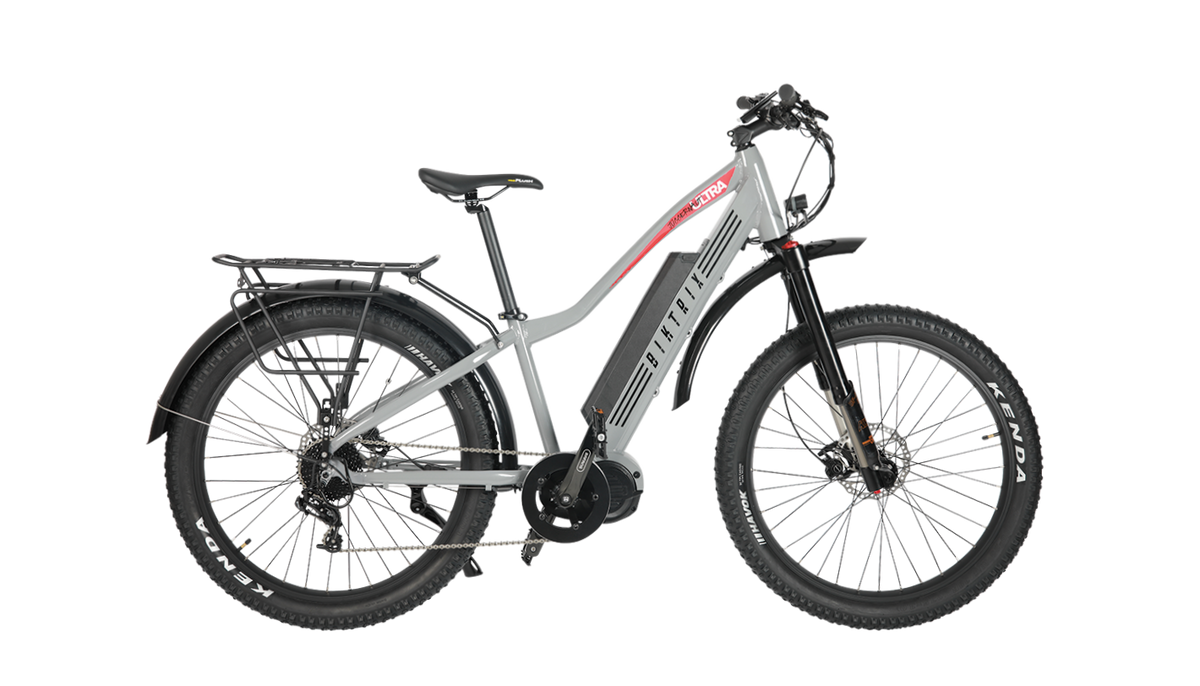

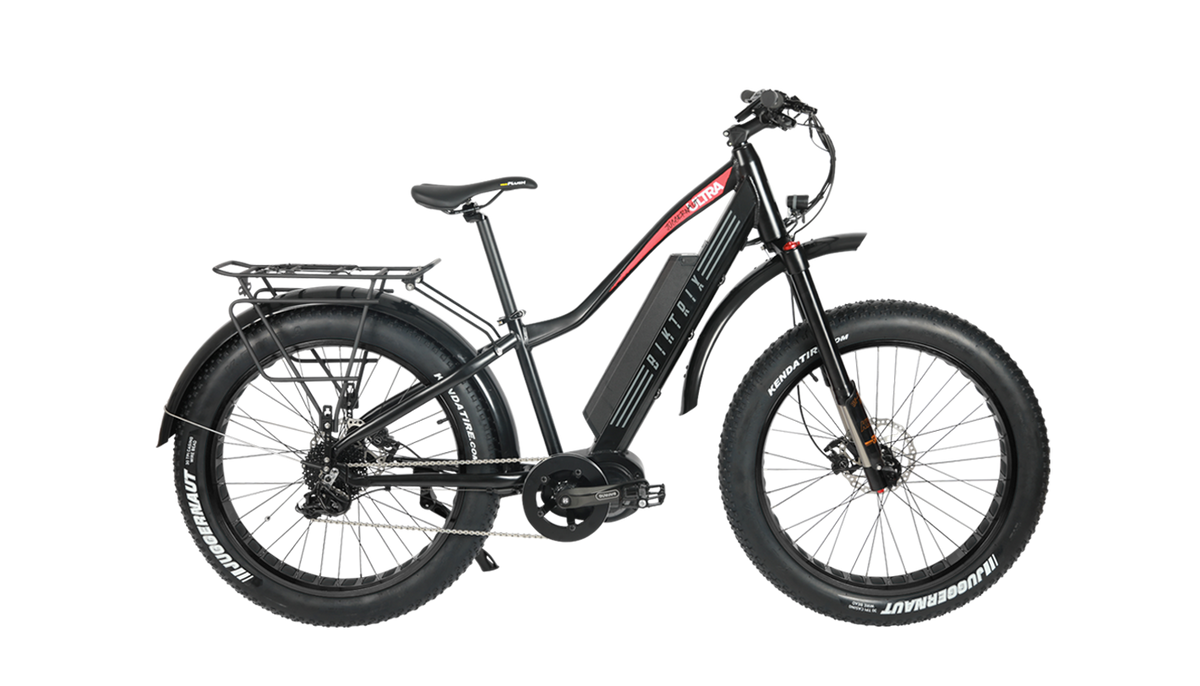

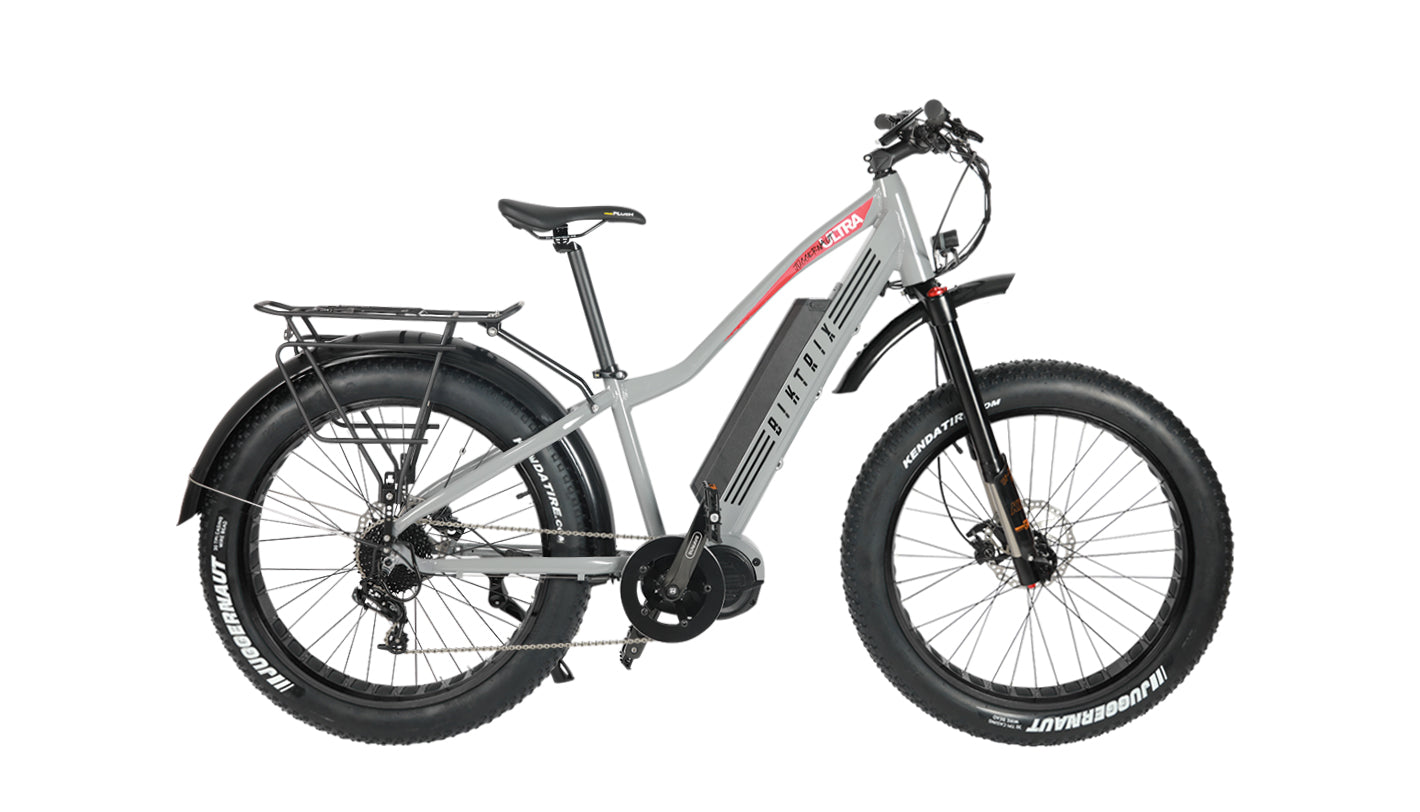

Juggernaut Ultra 1000 Pro

Name: Juggernaut Ultra 1000 Pro
Brand: juggernaut-ultra-1000-details
SKU: JUG-ULTPR-M-264-GY
Availability: OutOfStock
Rating: 4.53 (91 reviews)

4.5

£0 £3,510

This item has been replaced!

Looking for a spiritual successor with the same motor and dual battery capability? Check out the Juggernaut Ultra Duo Step-Over!

Juggernaut Ultra Duo Step-Over

Technical Specifications

Frame 6061 aluminum	Front hub Quanta 150mm 36h	Seat post Aluminum 30.9mm
Fork Biktrix inverted air fork, 100mm travel	Front axle 15mm thru	Seat post clamp 30.9mm qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub Quanta 197mm 36h	Motor 1000w bafang ultra mid-drive
Shifter rear Sram nx 11 speed	Rear axle 12mm thru	Battery sizes 48v17.5ah, 48v21ah, 52v17.5ah
Rear derailleur Sram nx 11 speed	Rims 26"- 36h, black 27.5"- 36h	Display Dpc-18 color display
Cassette Sram 11-42t	Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, battery taillight
Chain Kmc x11	Handlebar Aluminum 31.8 clamp, 700mm wide, 10mm rise 7° sweep	Assist type Torque, cadence
Crank set 170mm aluminum arms with 44t steel chainring	Stem 90mm aluminum	Assist levels 0-5
Bottom bracket Bafang ultra isis	Grips Slide on	Throttle Thumb throttle
Brakes Tektro e-350 dual piston hydraulic	Saddle Velo plush	Other Aluminum fenders, rear rack, adjustable kickstand
Brake levers Tektro hydraulic w/ motor cutoff

Frame 6061 aluminum	Front hub Quanta 150mm 36h
Seat post Aluminum 30.9mm	Fork Biktrix inverted air fork, 100mm travel
Front axle 15mm thru	Seat post clamp 30.9mm qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub Quanta 197mm 36h
Motor 1000w bafang ultra mid-drive	Shifter rear Sram nx 11 speed
Rear axle 12mm thru	Battery sizes 48v17.5ah, 48v21ah, 52v17.5ah
Rear derailleur Sram nx 11 speed	Rims 26"- 36h, black 27.5"- 36h
Display Dpc-18 color display	Cassette Sram 11-42t
Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, battery taillight
Chain Kmc x11	Handlebar Aluminum 31.8 clamp, 700mm wide, 10mm rise 7° sweep
Assist type Torque, cadence	Crank set 170mm aluminum arms with 44t steel chainring
Stem 90mm aluminum	Assist levels 0-5
Bottom bracket Bafang ultra isis	Grips Slide on
Throttle Thumb throttle	Brakes Tektro e-350 dual piston hydraulic
Saddle Velo plush	Other Aluminum fenders, rear rack, adjustable kickstand
Brake levers Tektro hydraulic w/ motor cutoff

Frame

6061 aluminum

Front hub

Quanta 150mm 36h

Seat post

Aluminum 30.9mm

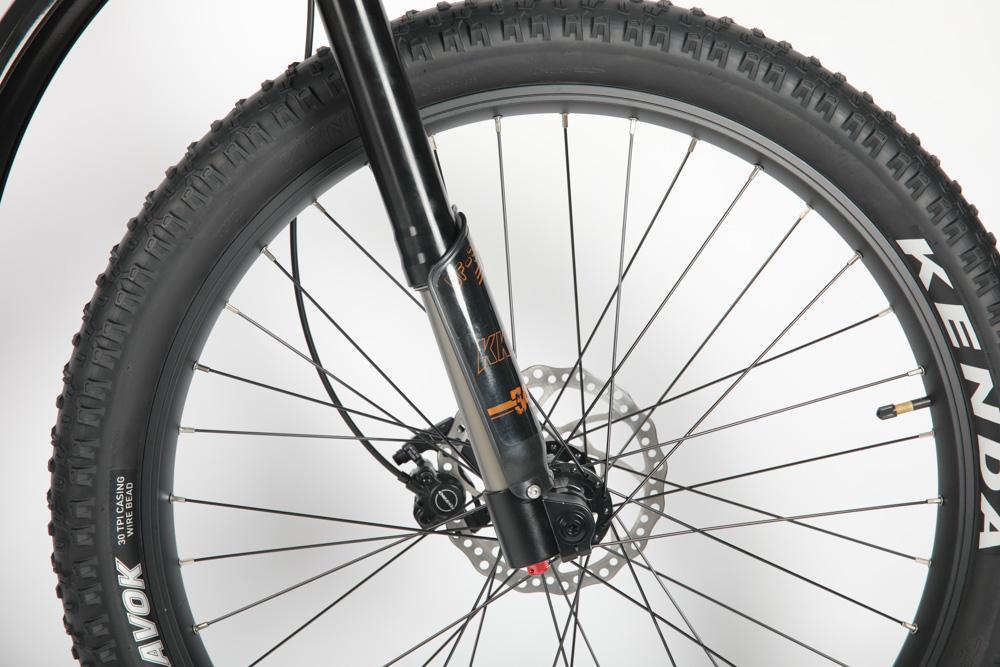

Fork

Biktrix inverted air fork, 100mm travel

Front axle

15mm thru

Seat post clamp

30.9mm qr

Headset

Threadless 1-1/8 1-1/2 tapered

Rear hub

Quanta 197mm 36h

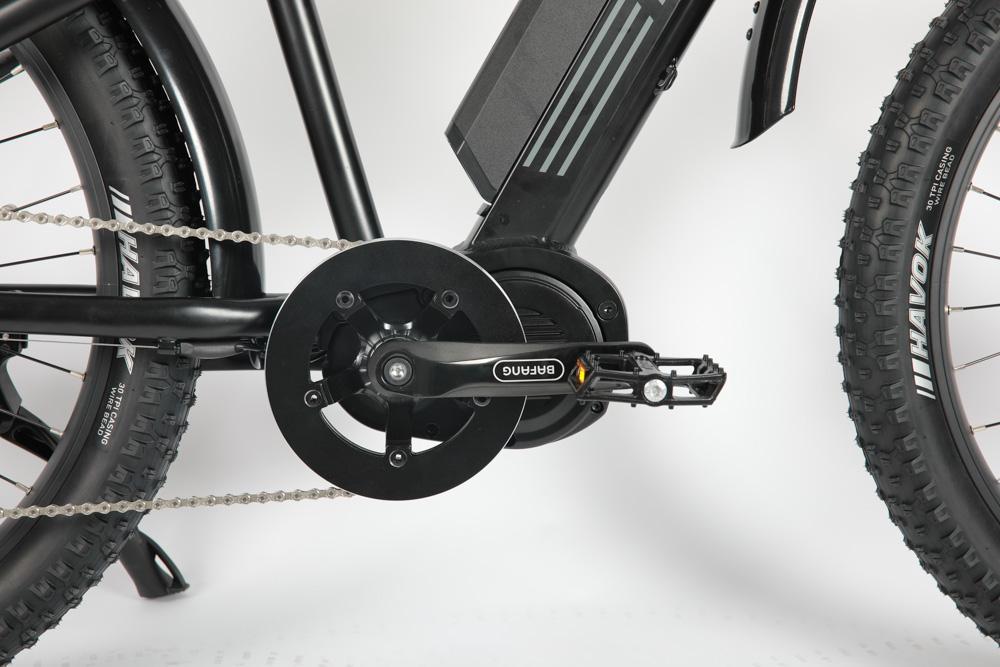

Motor

1000w bafang ultra mid-drive

Shifter rear

Sram nx 11 speed

Rear axle

12mm thru

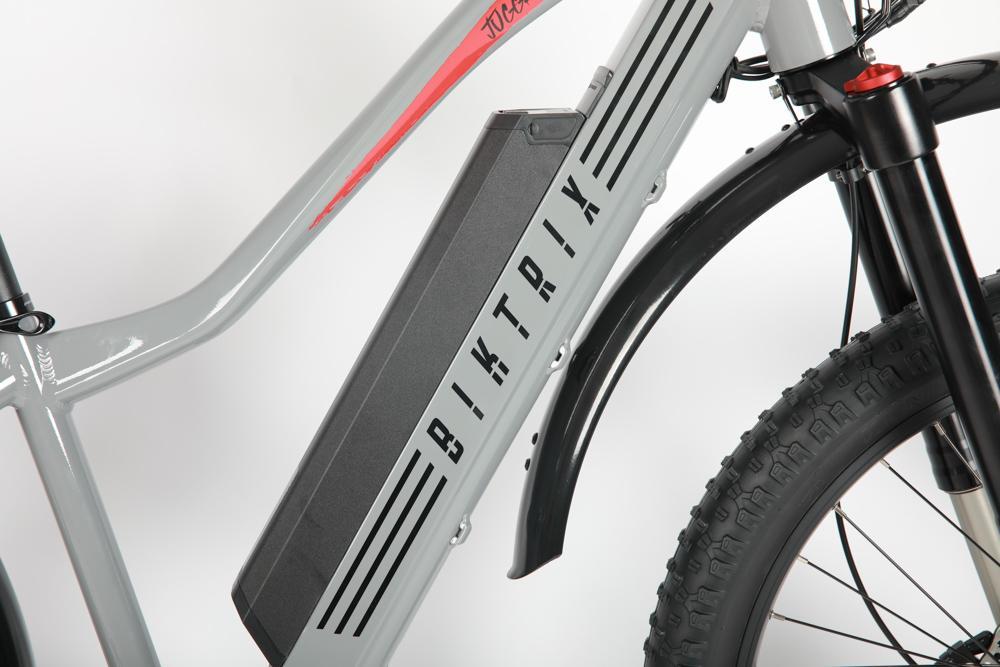

Battery sizes

48v17.5ah, 48v21ah, 52v17.5ah

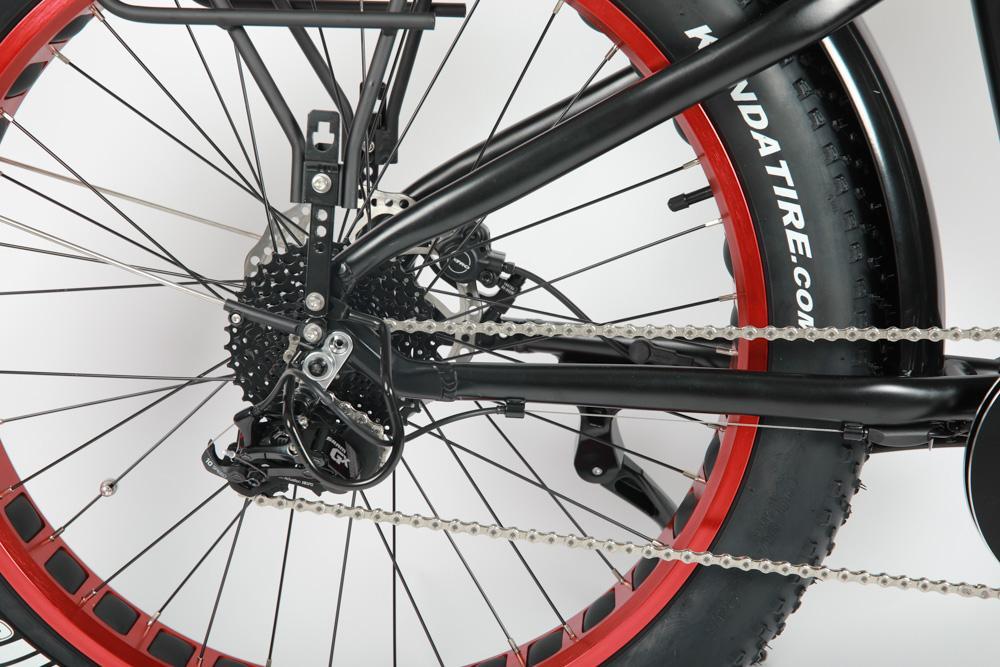

Rear derailleur

Sram nx 11 speed

Rims

26"- 36h, black 27.5"- 36h

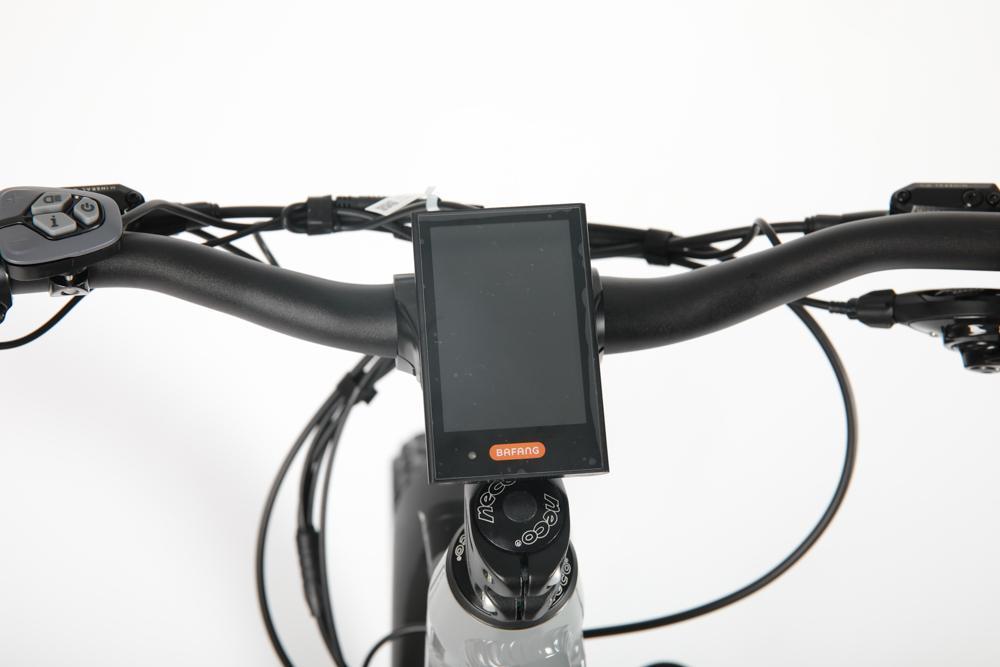

Display

Dpc-18 color display

Cassette

Sram 11-42t

Tire sizes

26x4", 27.5x3"

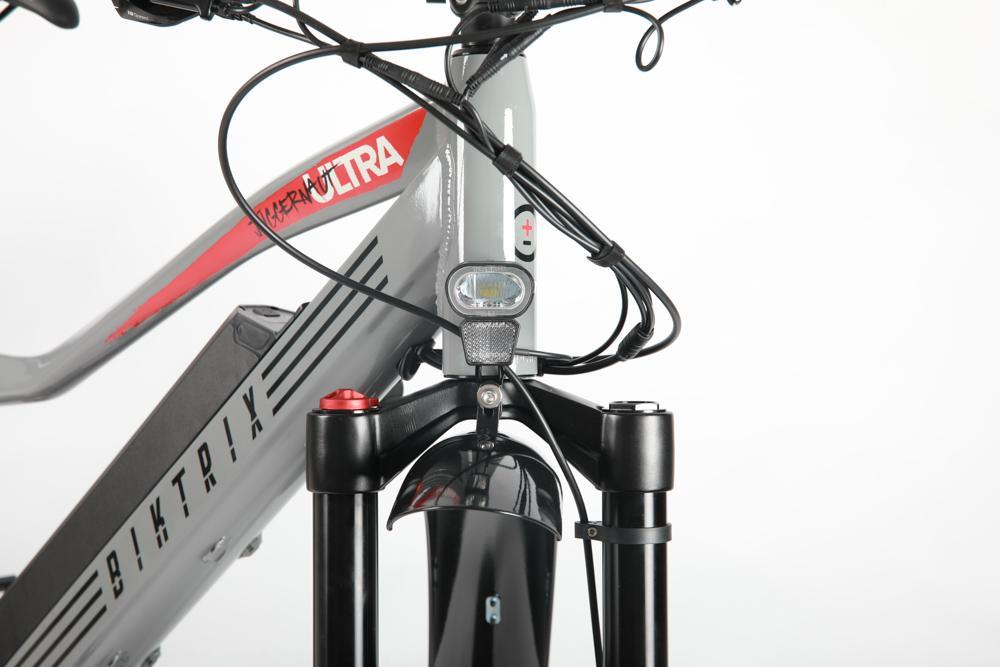

Lights

Integrated headlight, battery taillight

Chain

Kmc x11

Handlebar

Aluminum 31.8 clamp, 700mm wide, 10mm rise 7° sweep

Assist type

Torque, cadence

Crank set

170mm aluminum arms with 44t steel chainring

Stem

90mm aluminum

Assist levels

0-5

Bottom bracket

Bafang ultra isis

Grips

Slide on

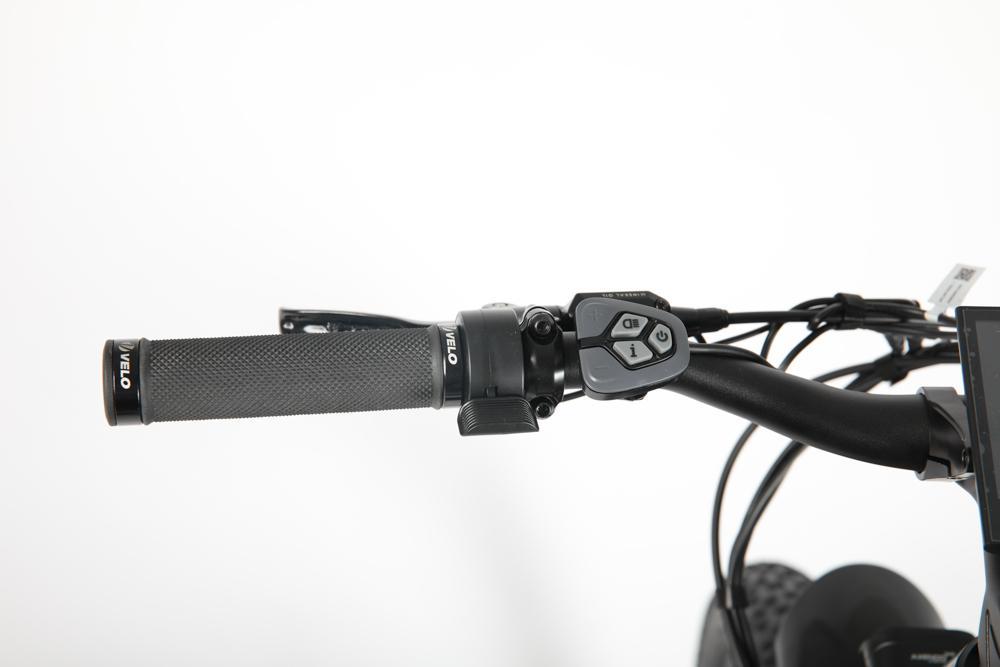

Throttle

Thumb throttle

Brakes

Tektro e-350 dual piston hydraulic

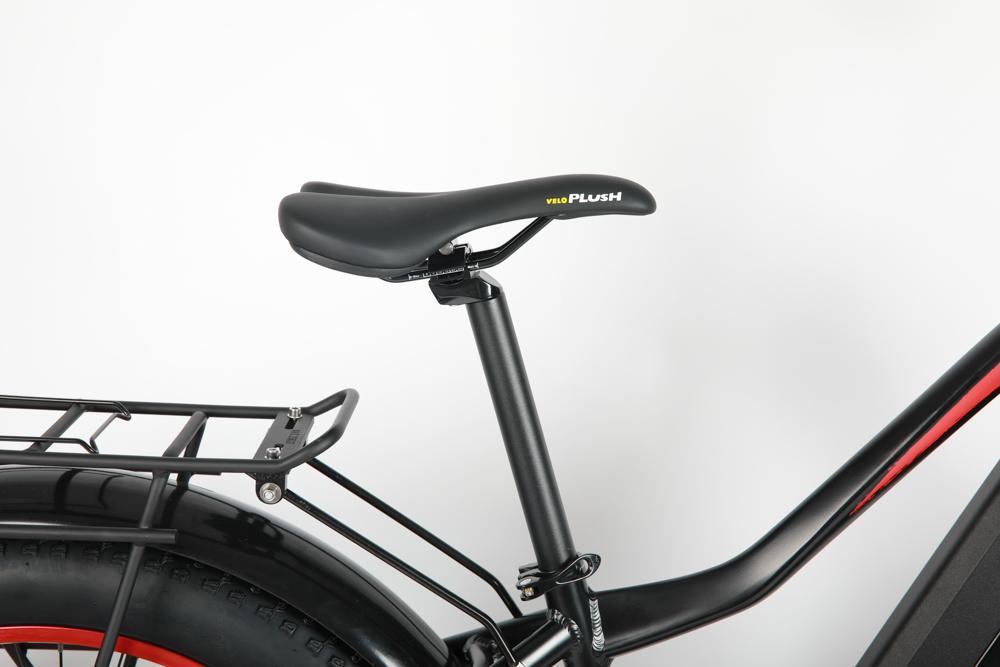

Saddle

Velo plush

Other

Aluminum fenders, rear rack, adjustable kickstand

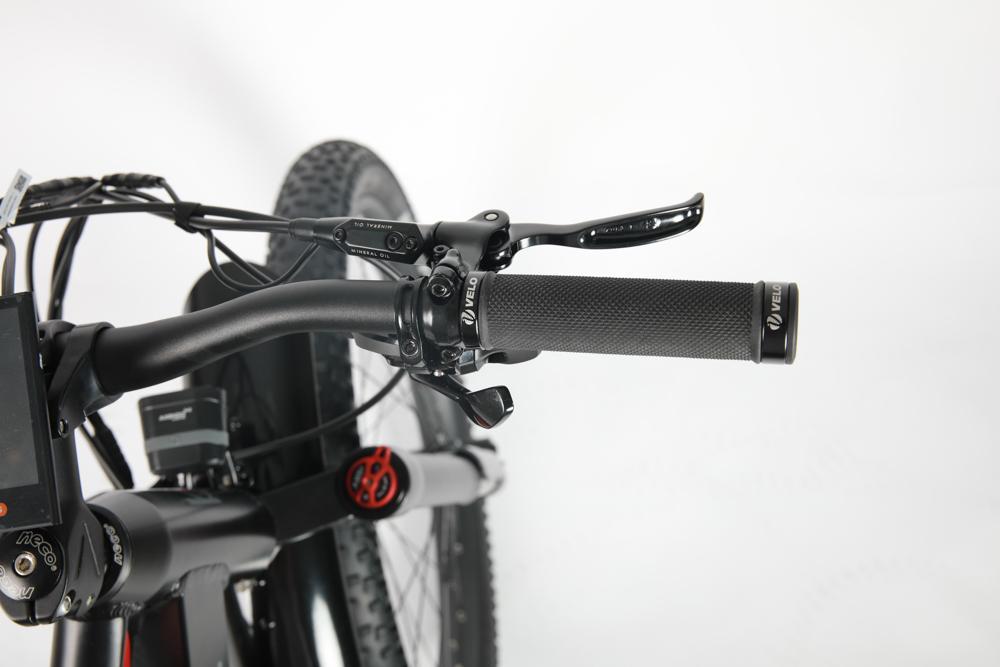

Brake levers

Tektro hydraulic w/ motor cutoff

Size & Fittings

1	Effective Top Tube Length	610mm	24in
2	Seat Tube Length (Classic Bike Size)	480mm	18.9in
3	Reach	470mm	18.5in
4	Stack	670mm	26.4in
5	Chainstay Length	510mm	20.1in
6	Standover Height	740mm	29.1in
7	Head Angle	69°	-
8	Seat Angle	72°	-
9	Head Tube Length	170 mm	6.7 in
10	Fork Length	580mm	22.8in
11	Front Center	800mm	31.5in
12	BB (Bottom Bracket) Drop	75mm	3in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1310mm	51.6in
15	Total Length	2070mm	81.5in
16	Max Seat Height	1060mm	41.7in
17	Min Seat Height	860mm	33.9in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	30.5kg	67.2lb
