750W Hub-Drive

Motor Power

48V 13Ah 624Wh

est. 40mi Range

+5'3"ft / 300lb

Max Load

Cadence Sensor

Powerful Pedal Assist

UL Certified

Safety

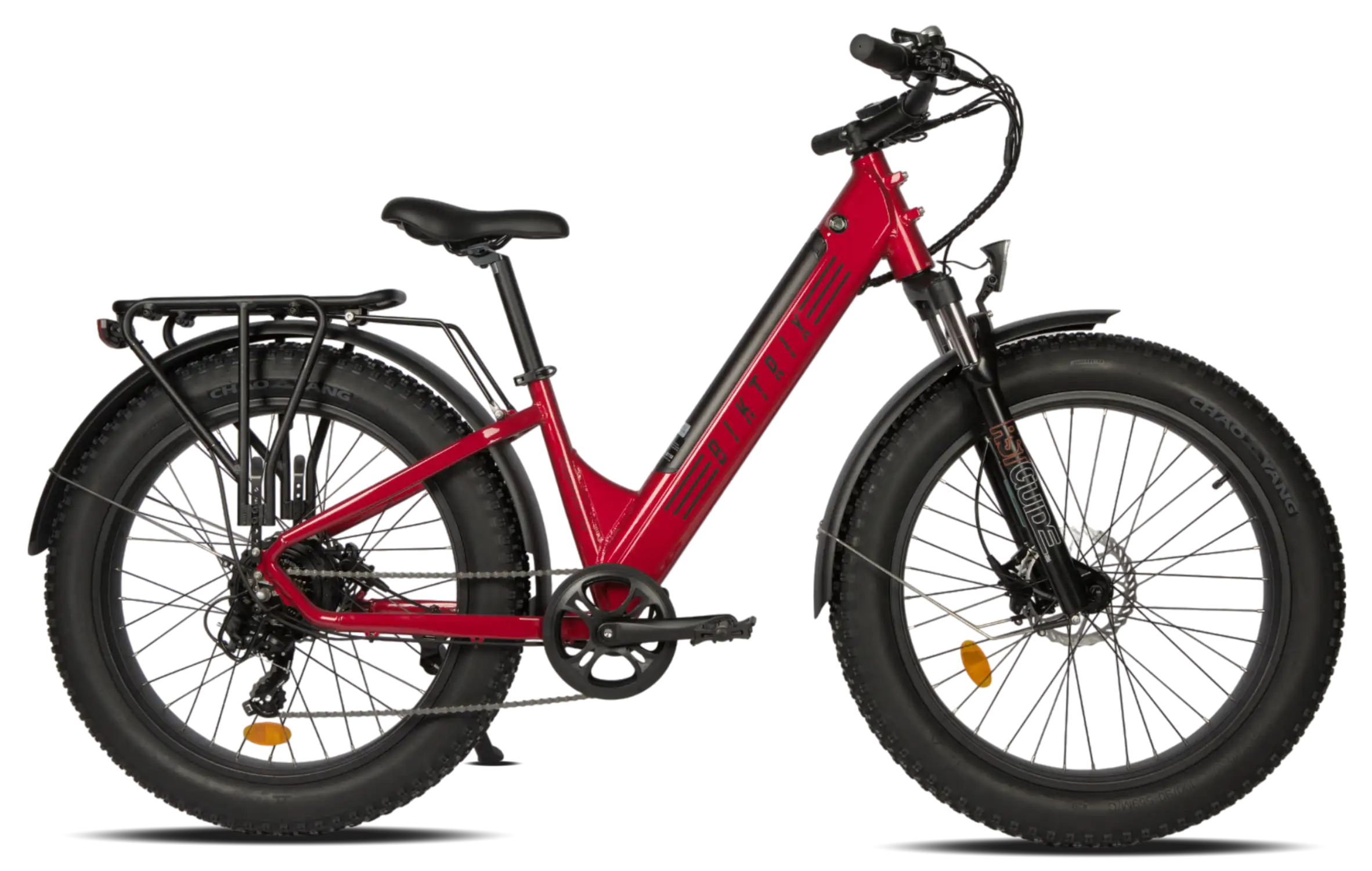

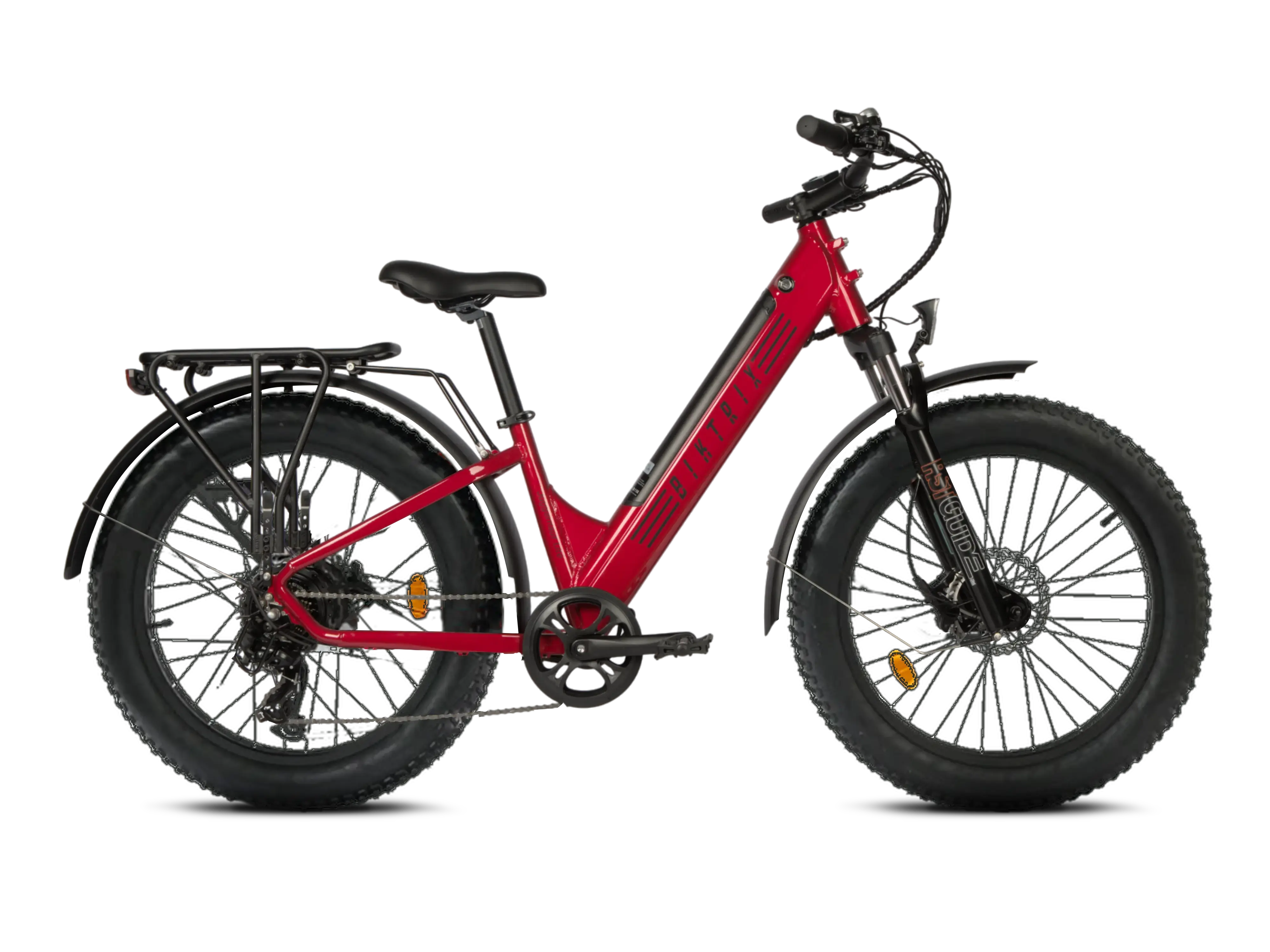

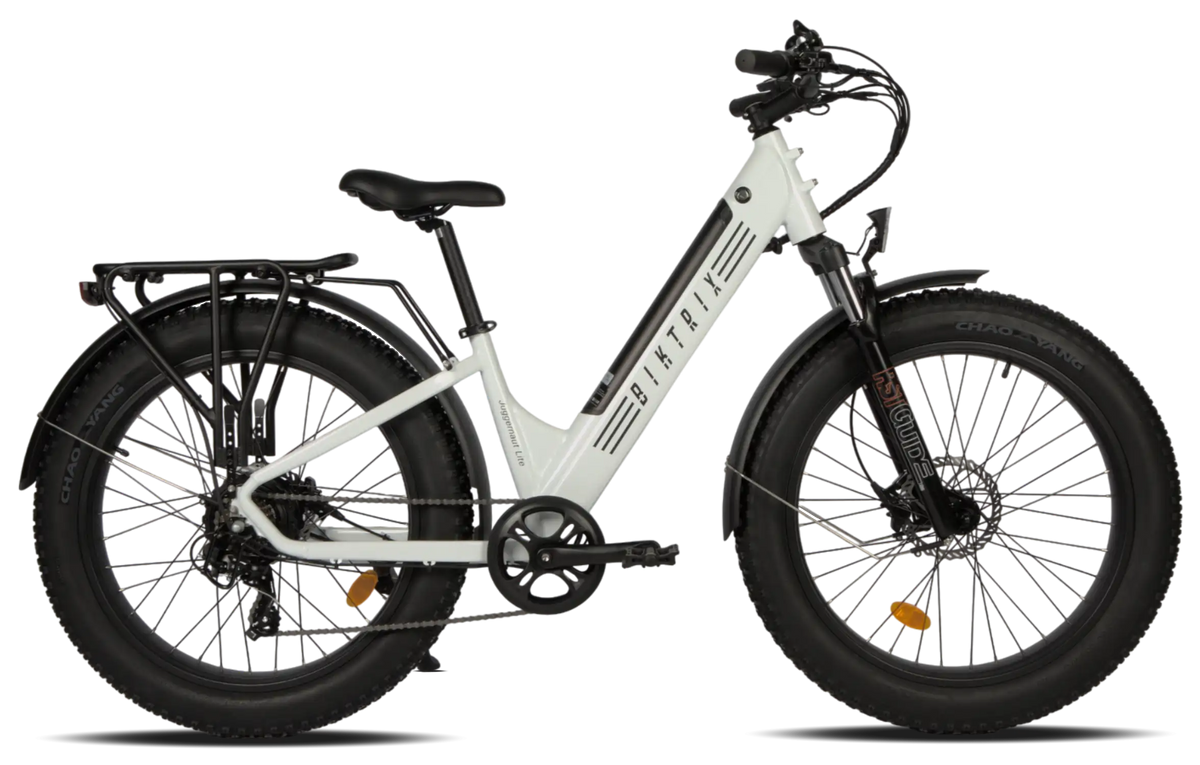

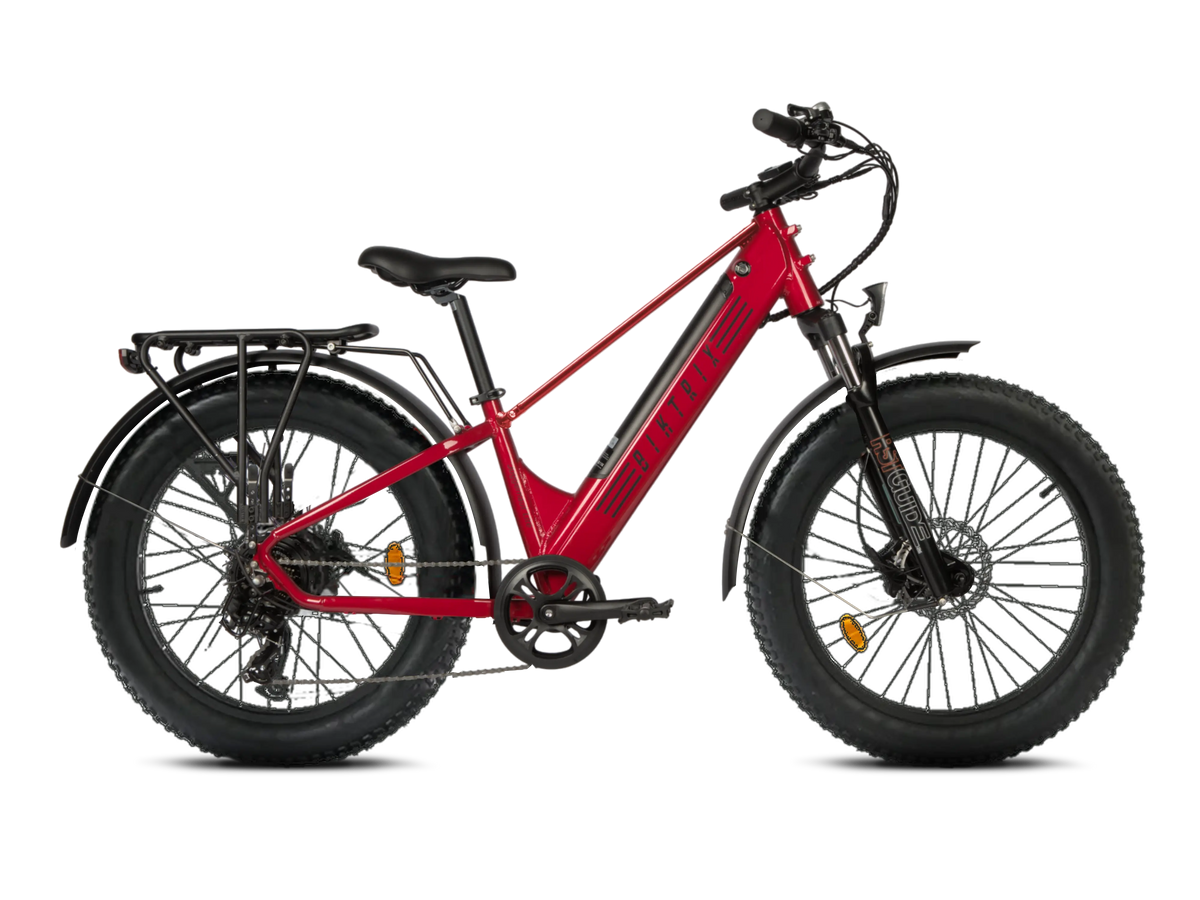

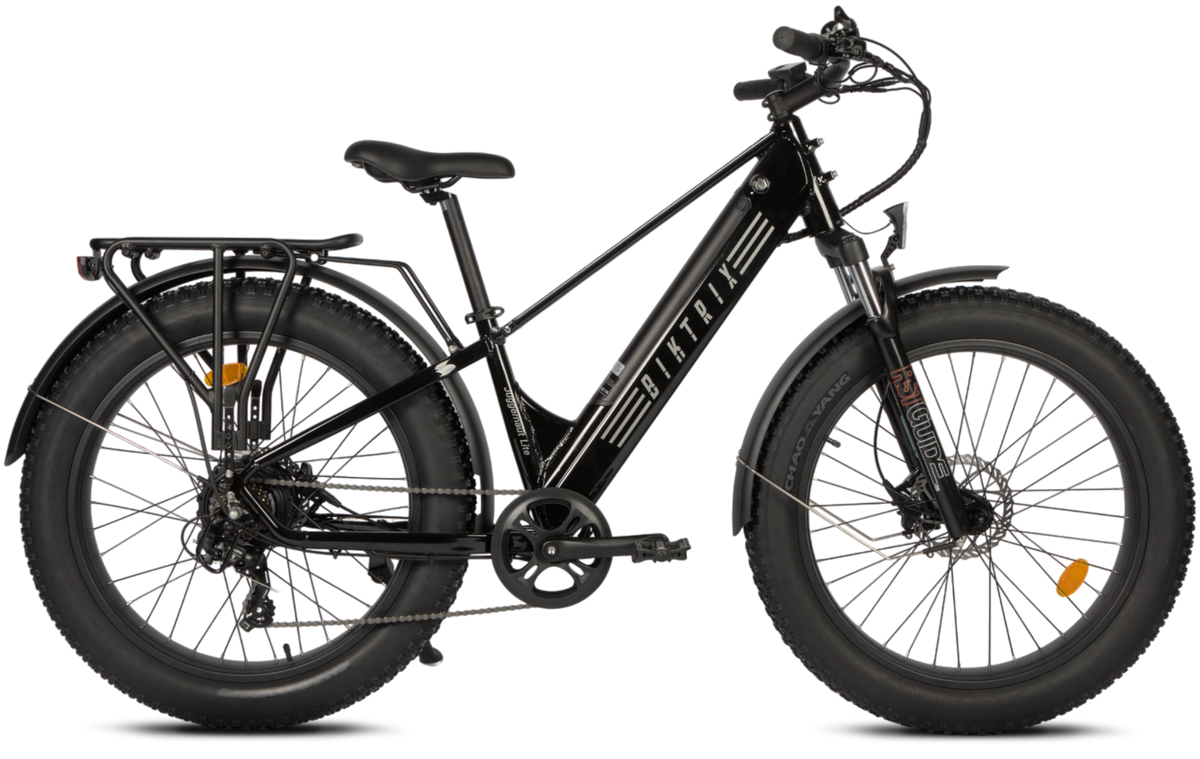

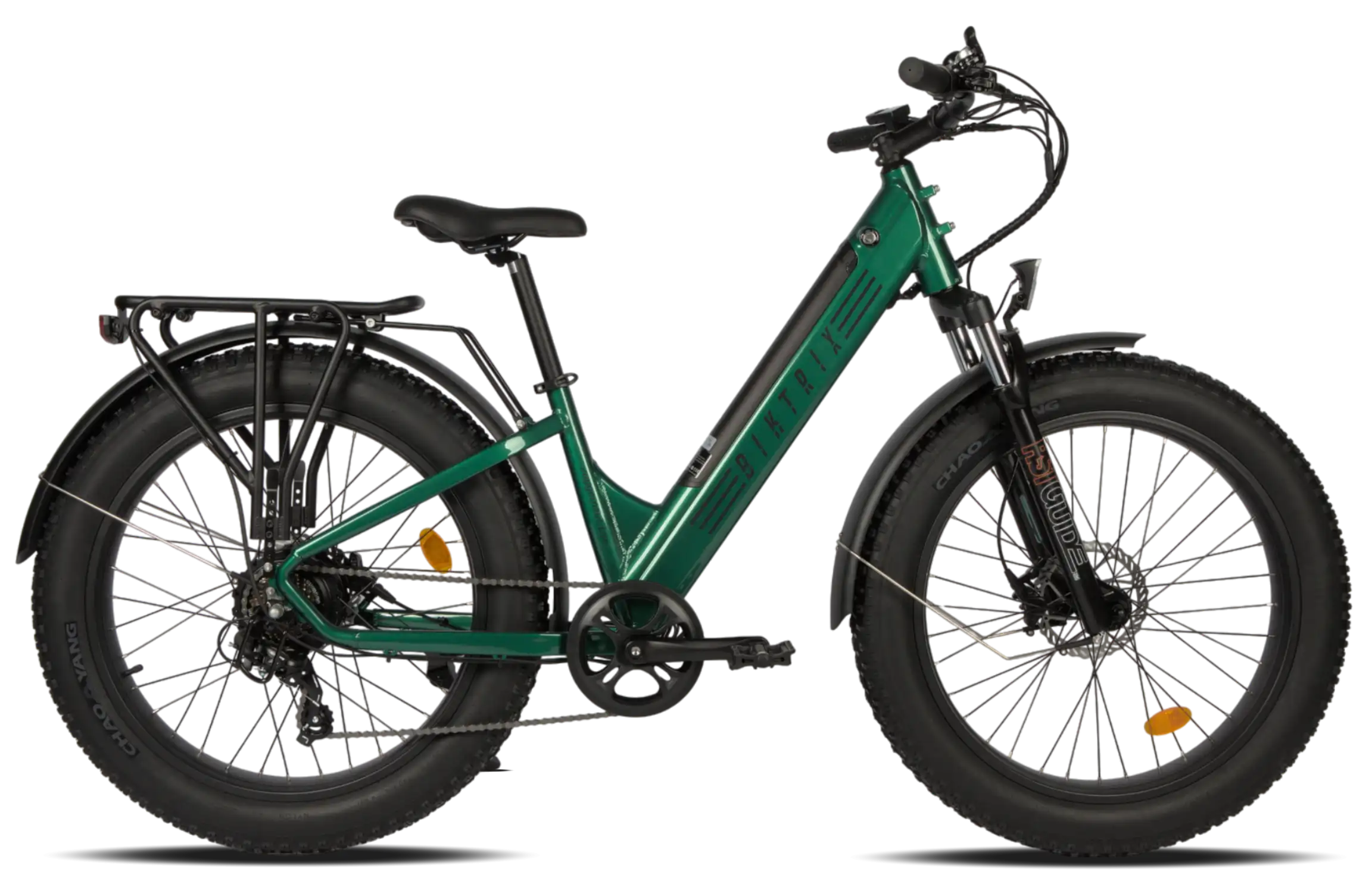

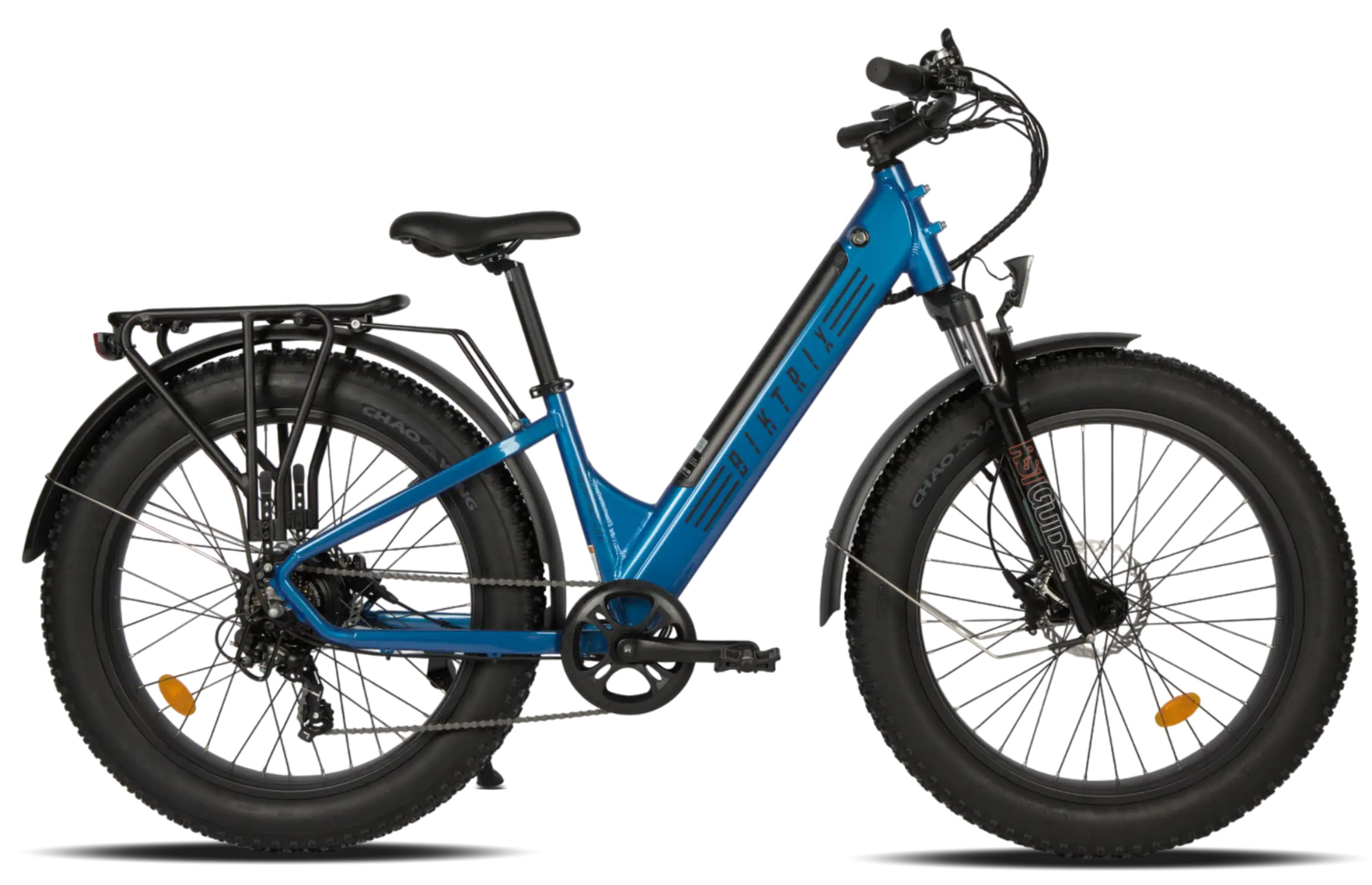

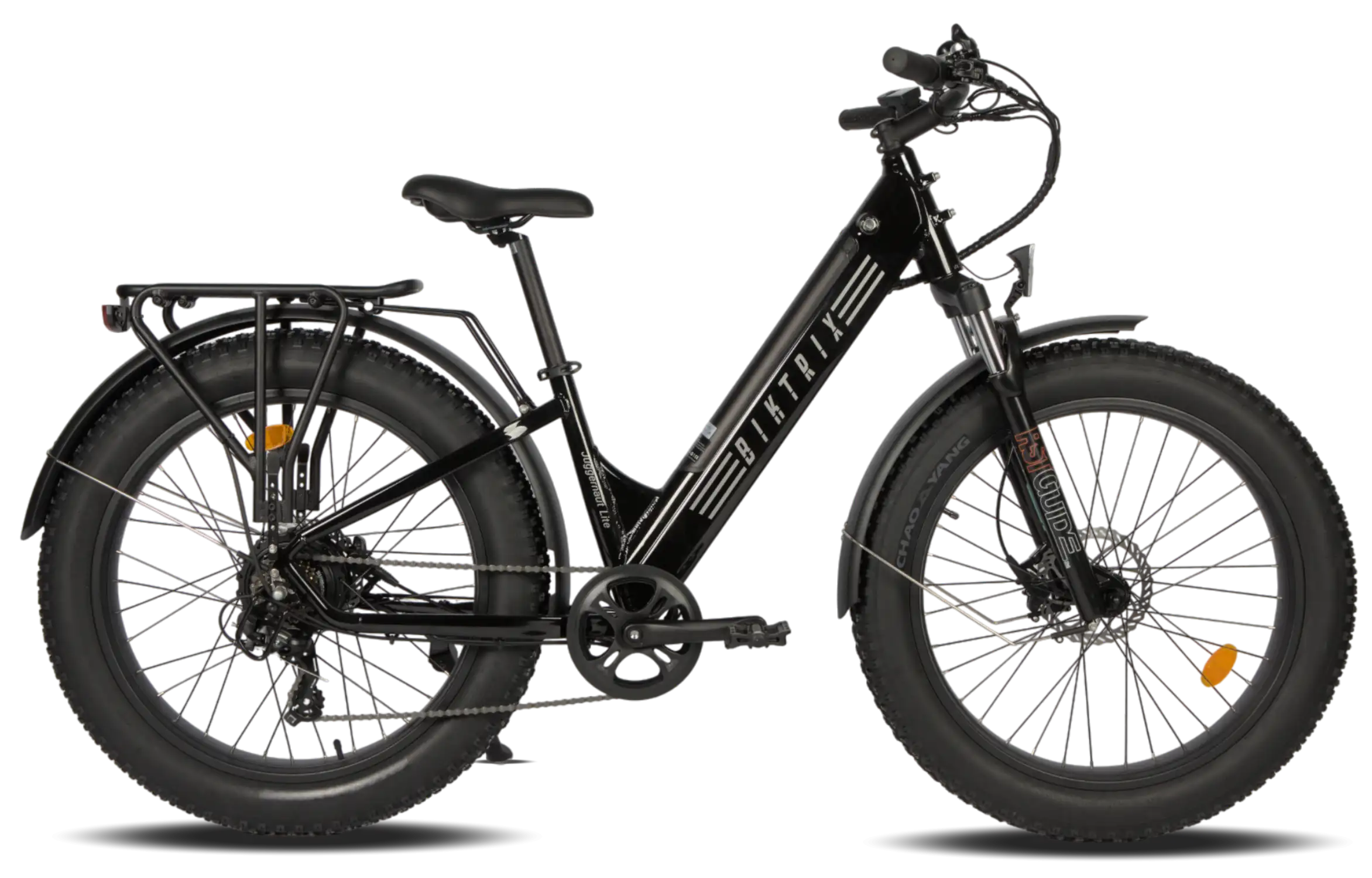

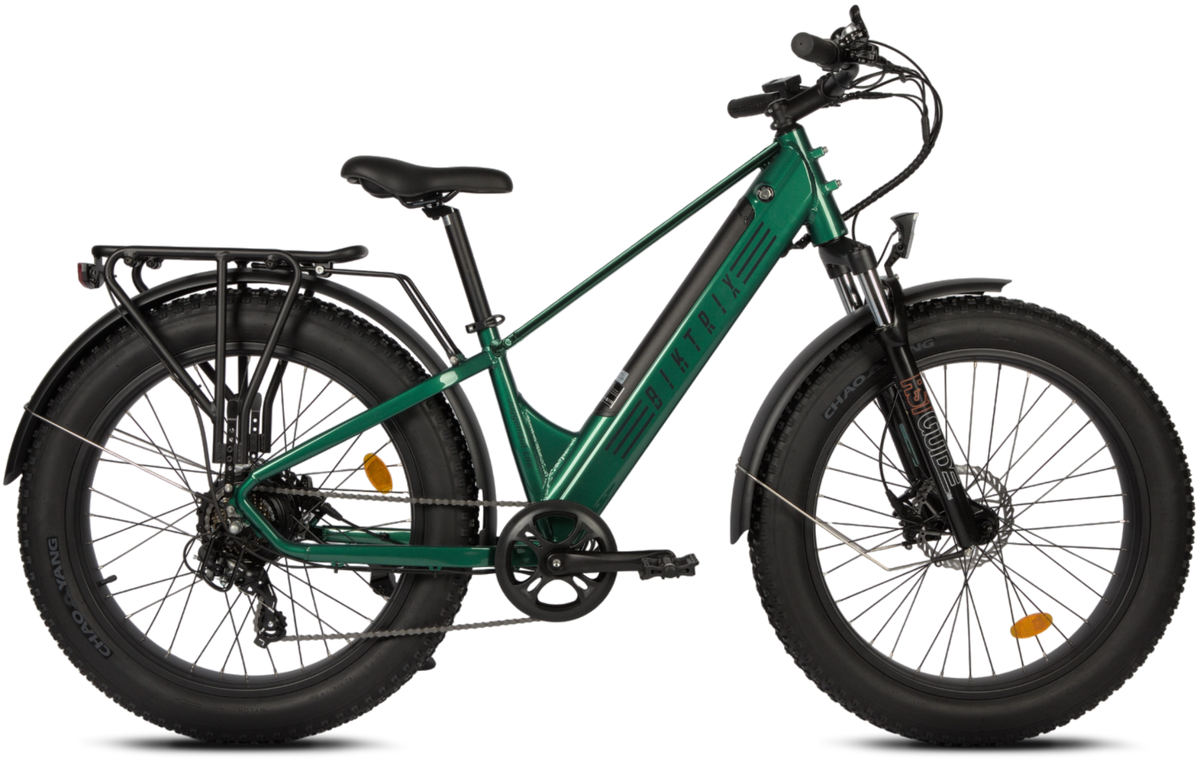

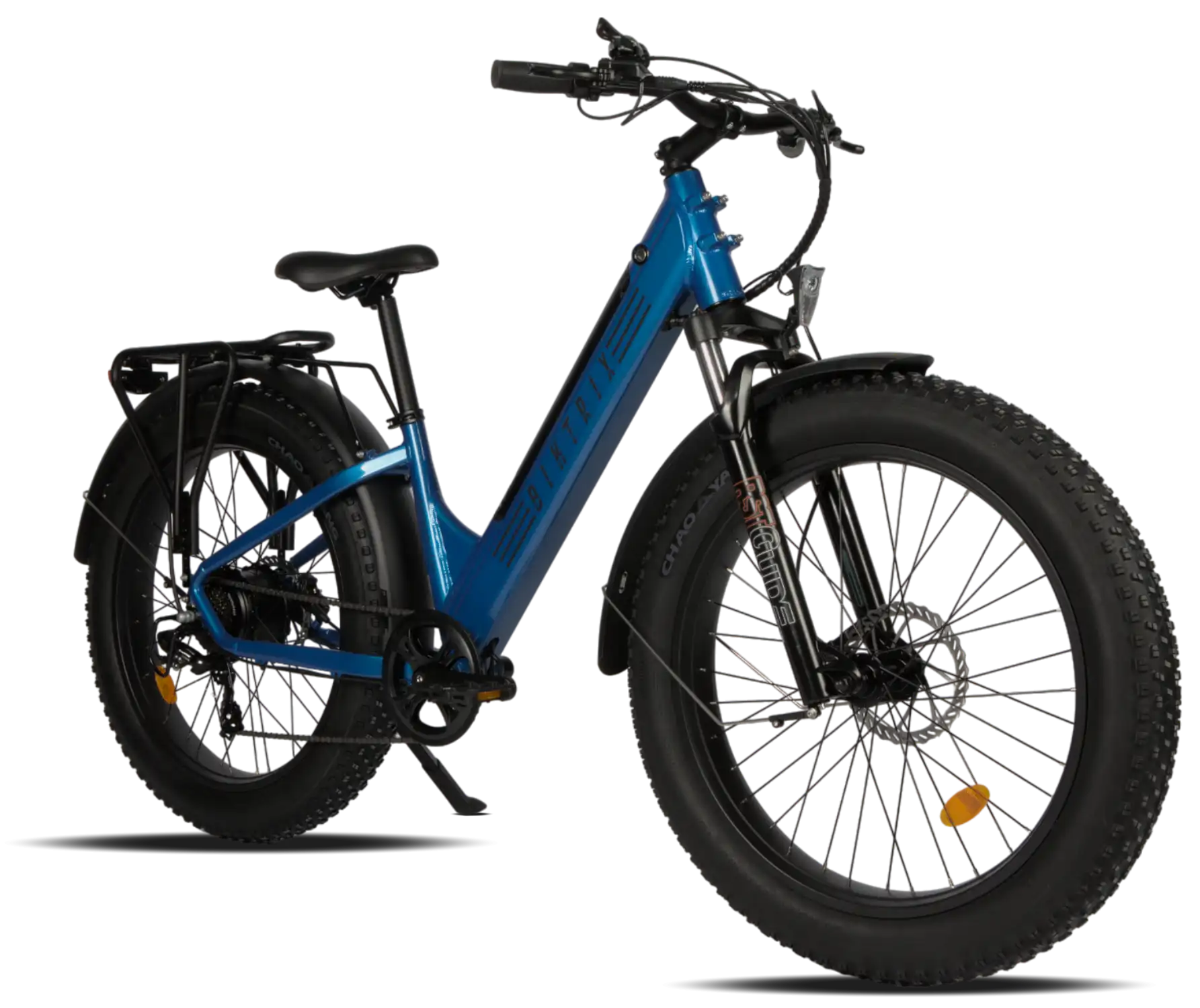

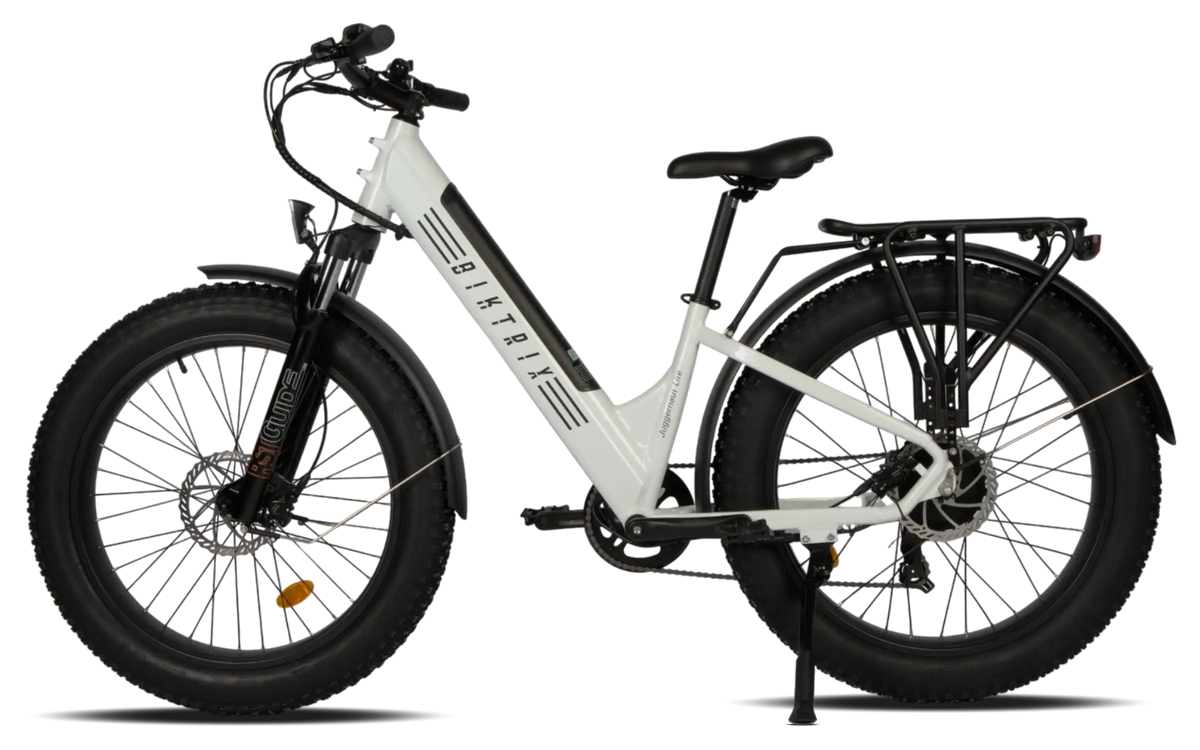

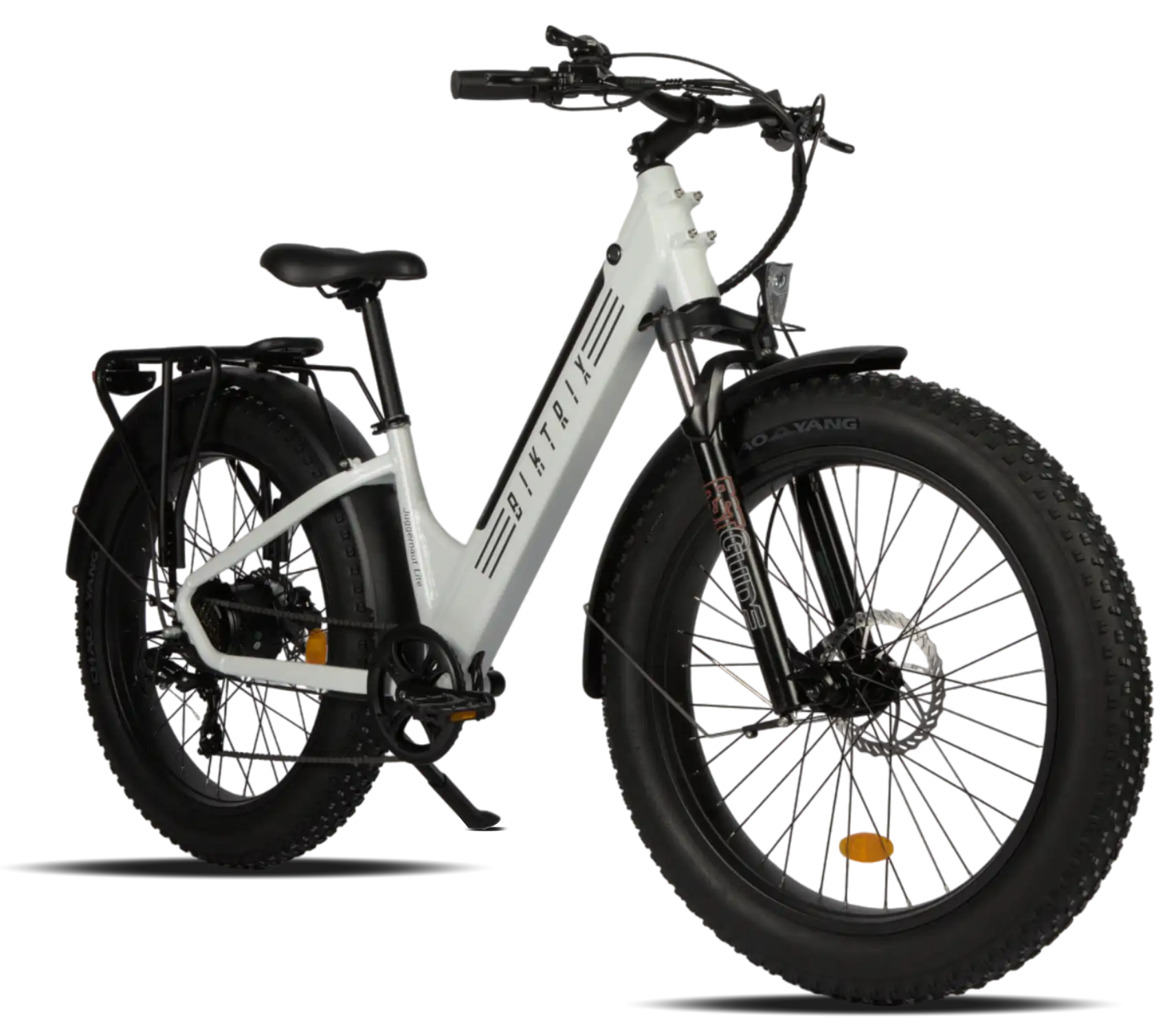

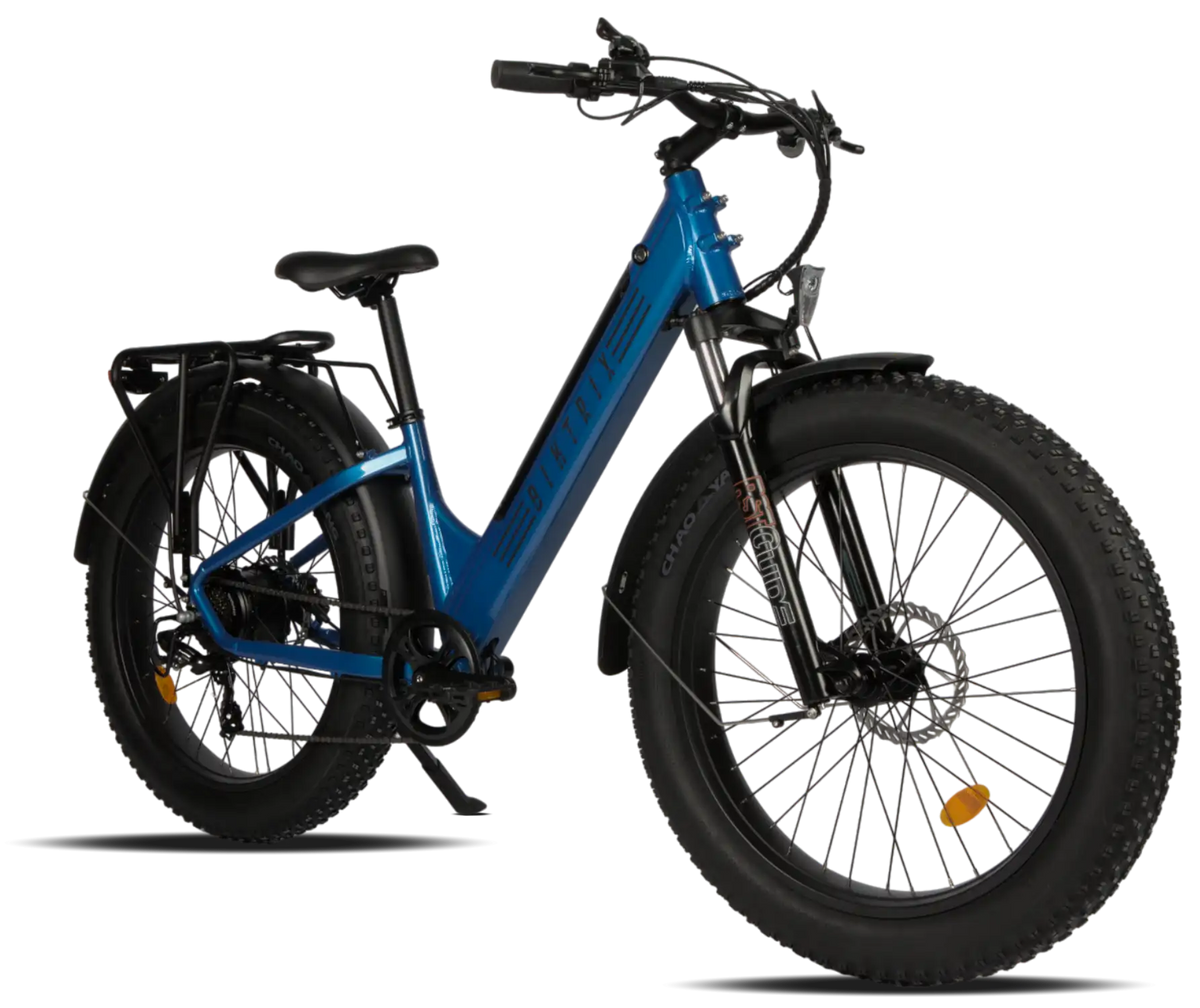

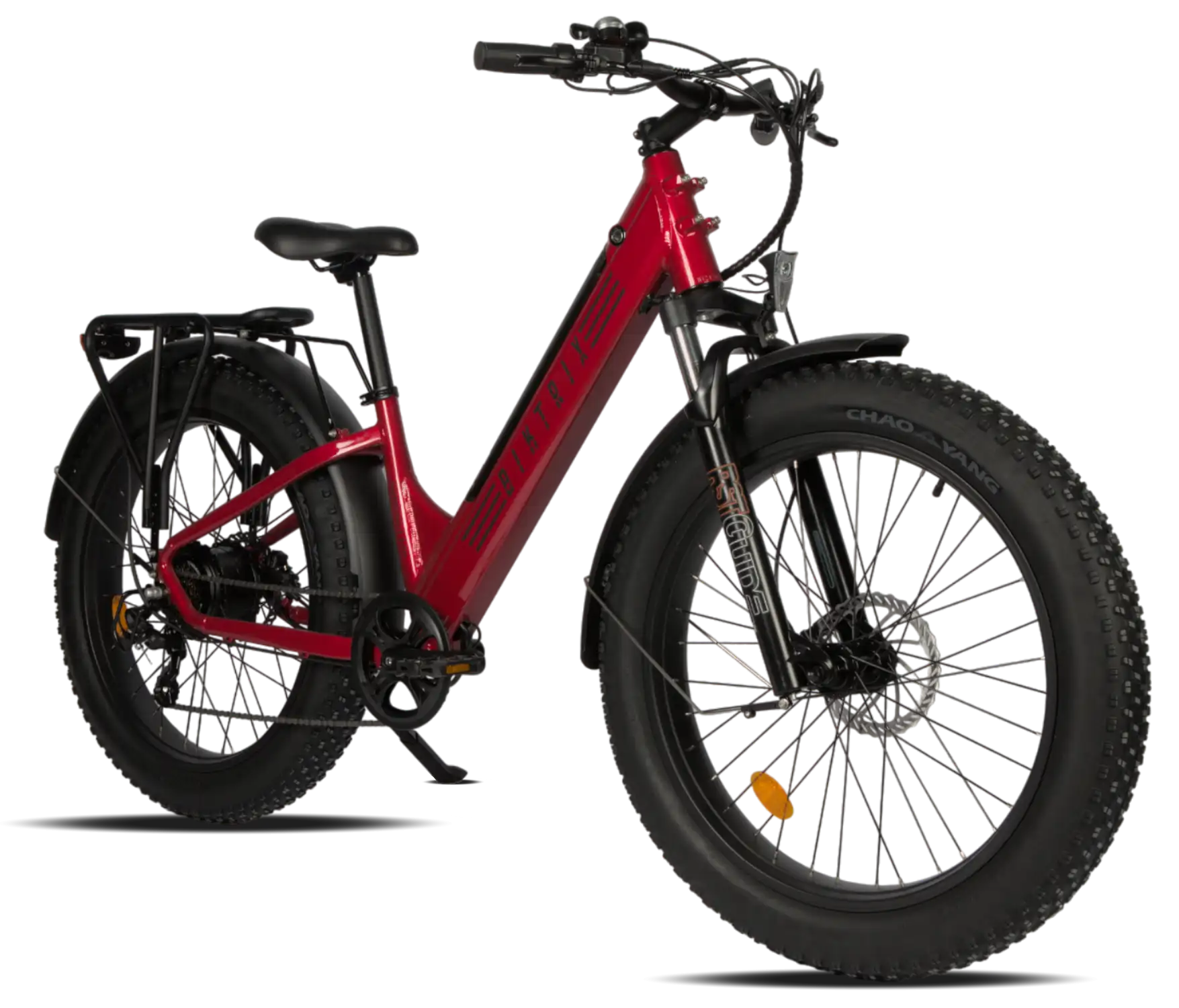

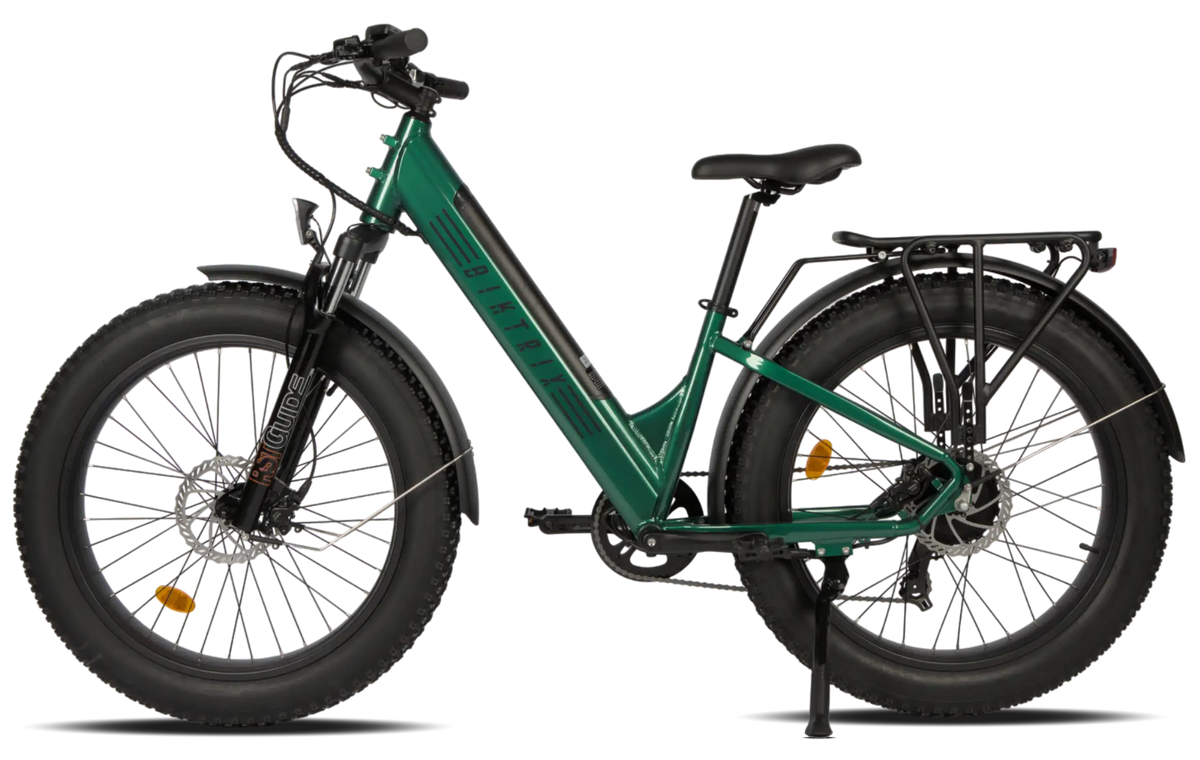

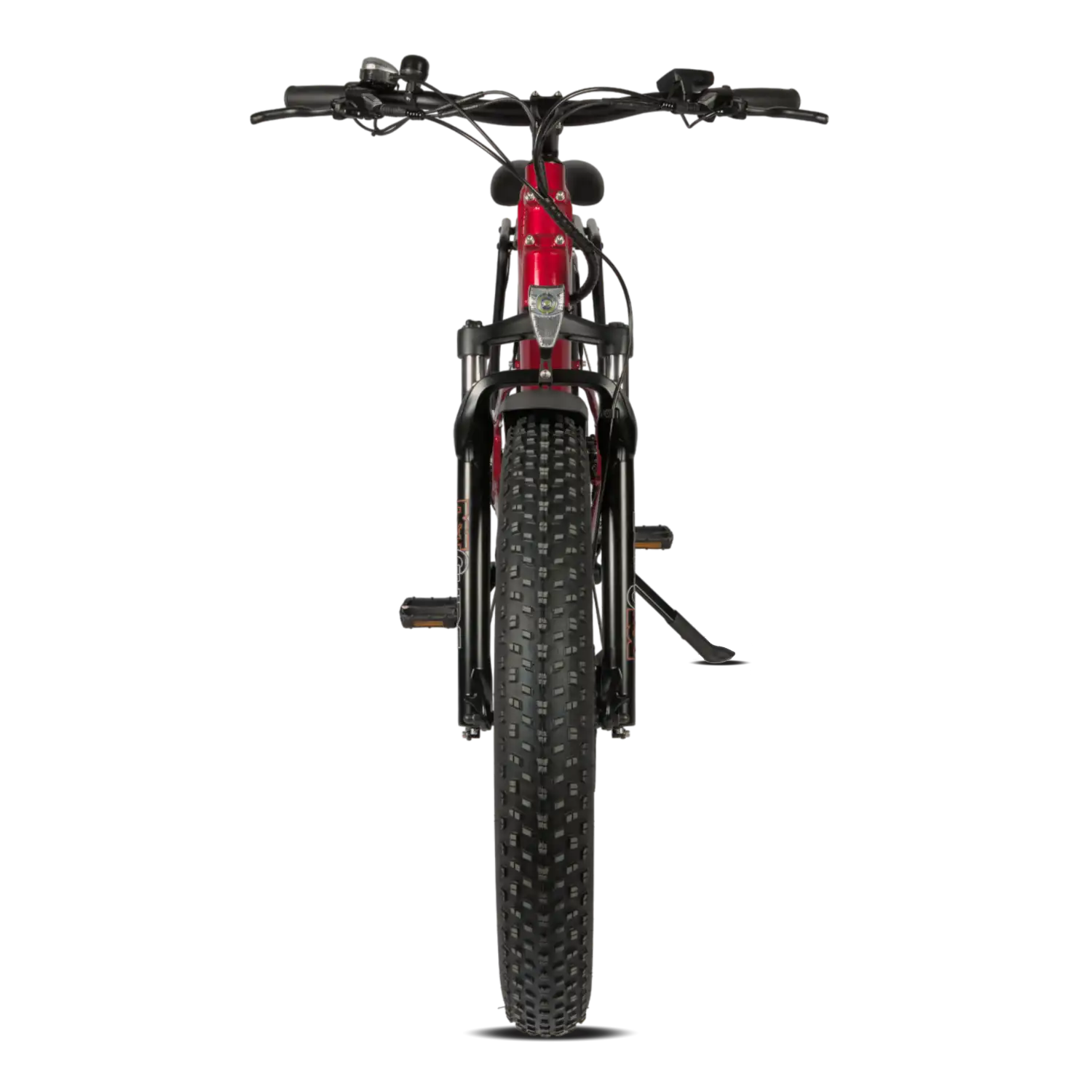

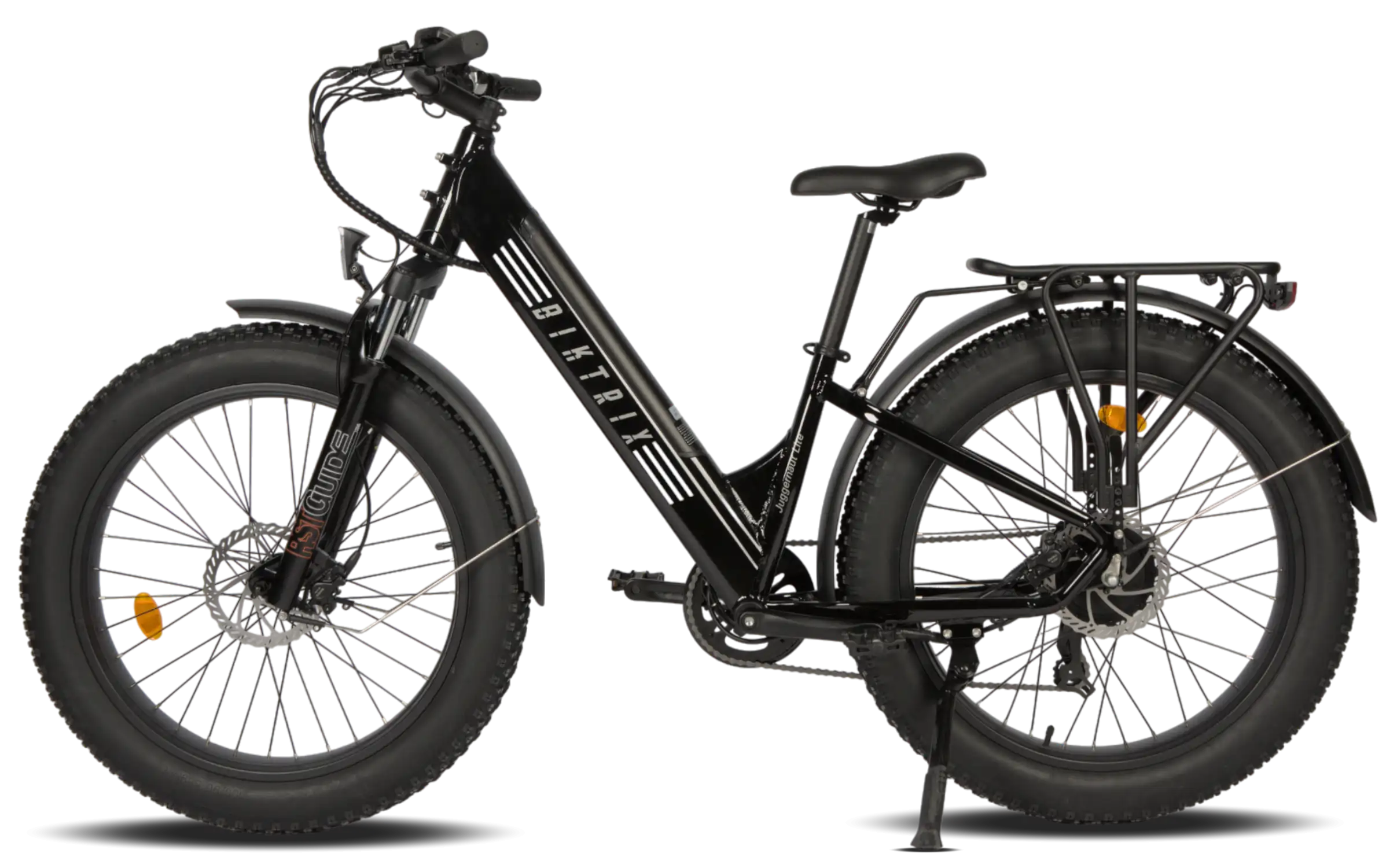

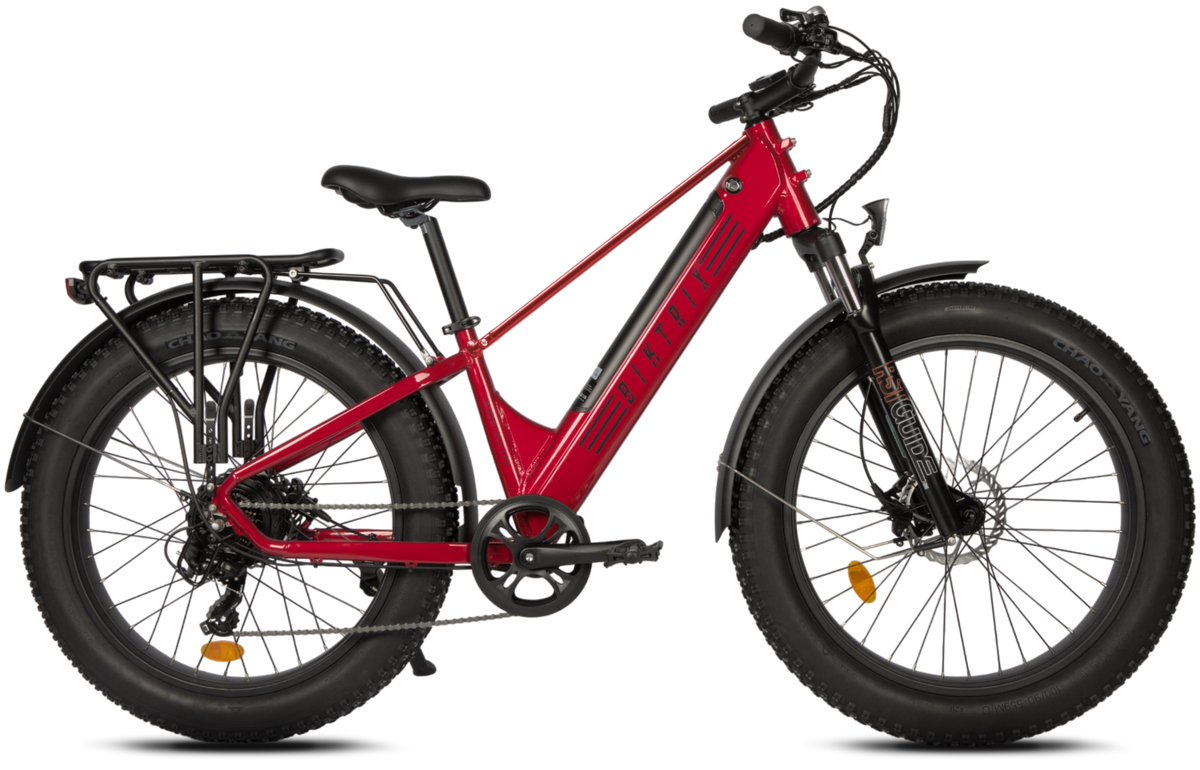

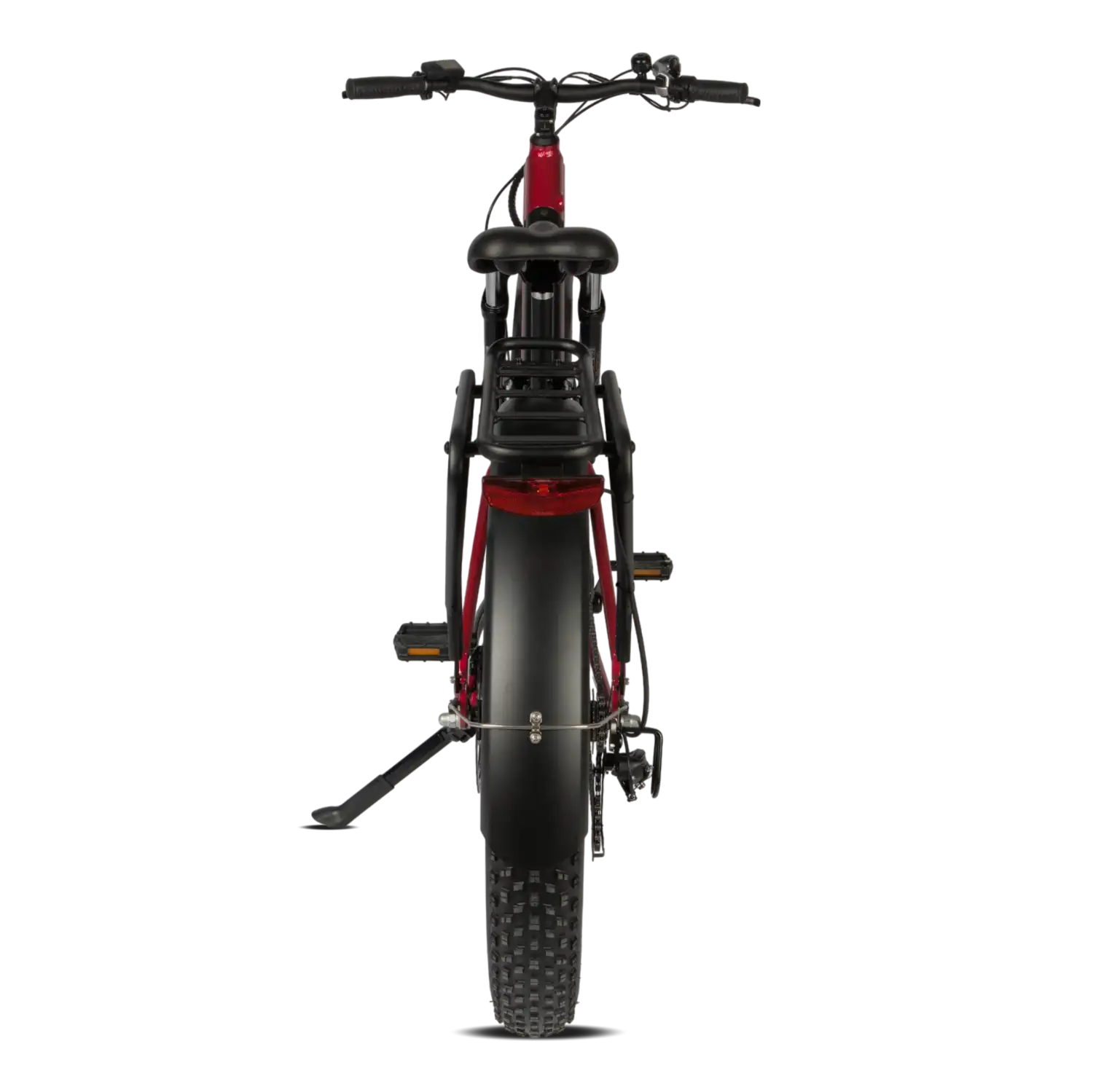

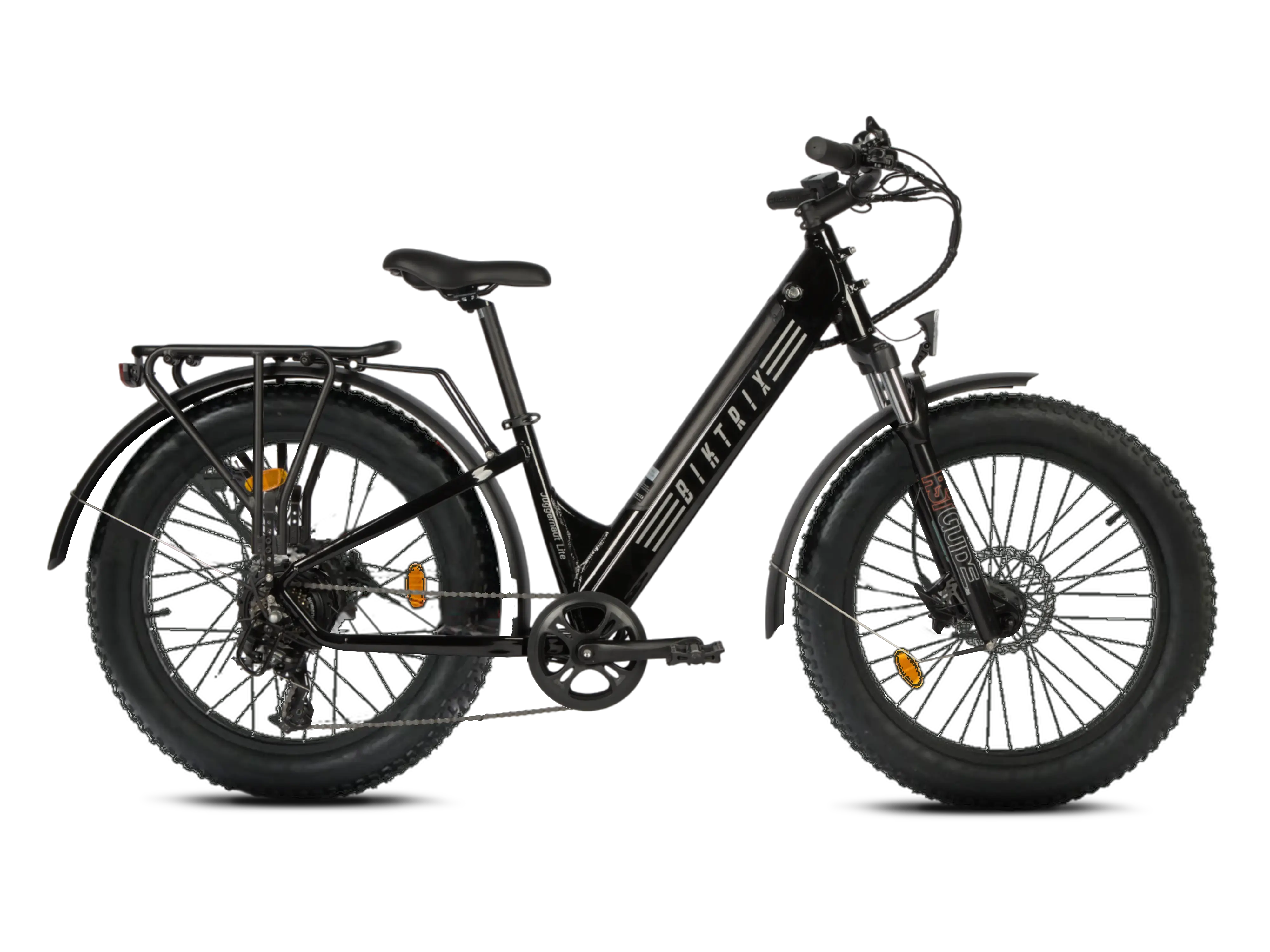

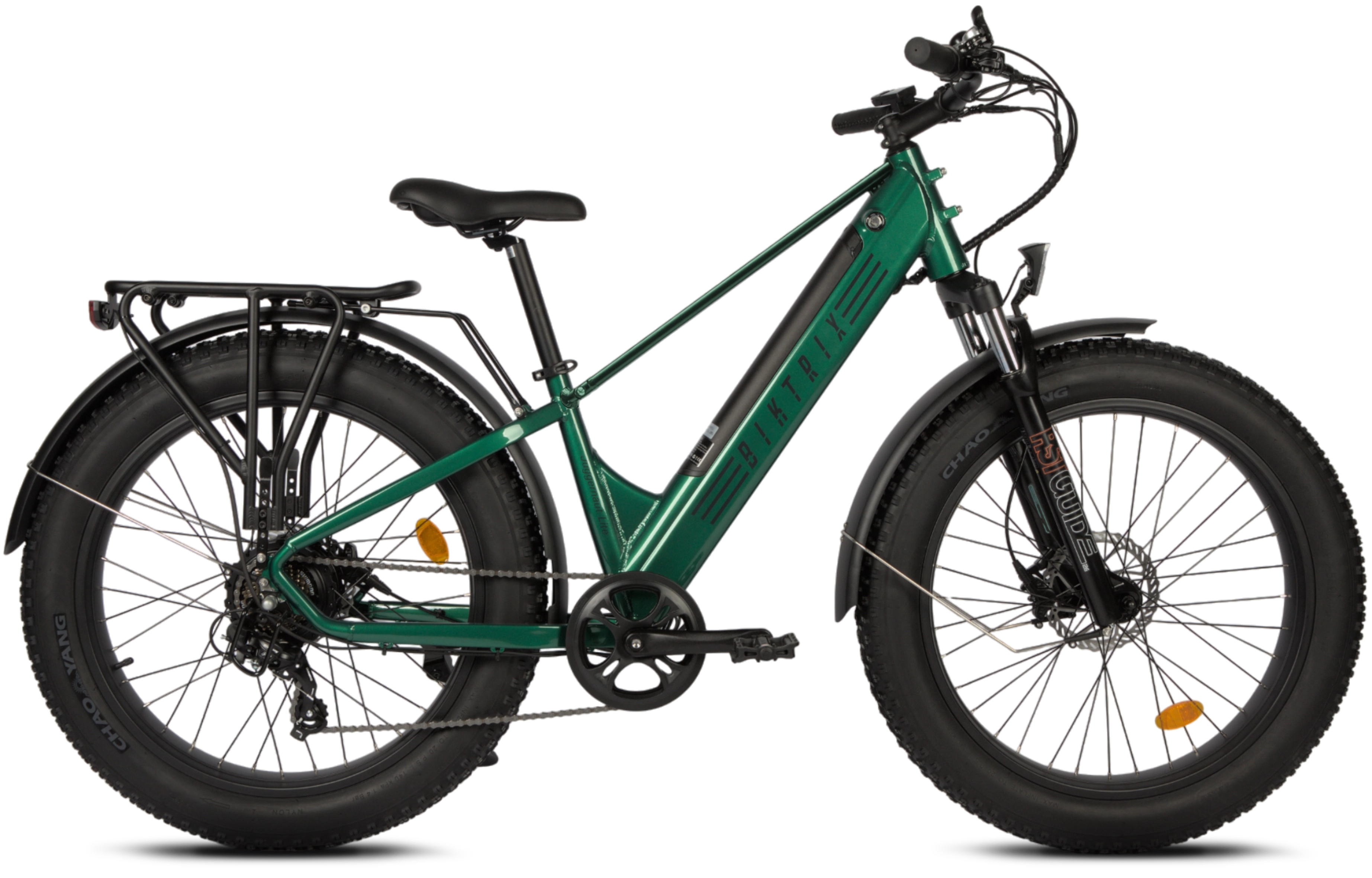

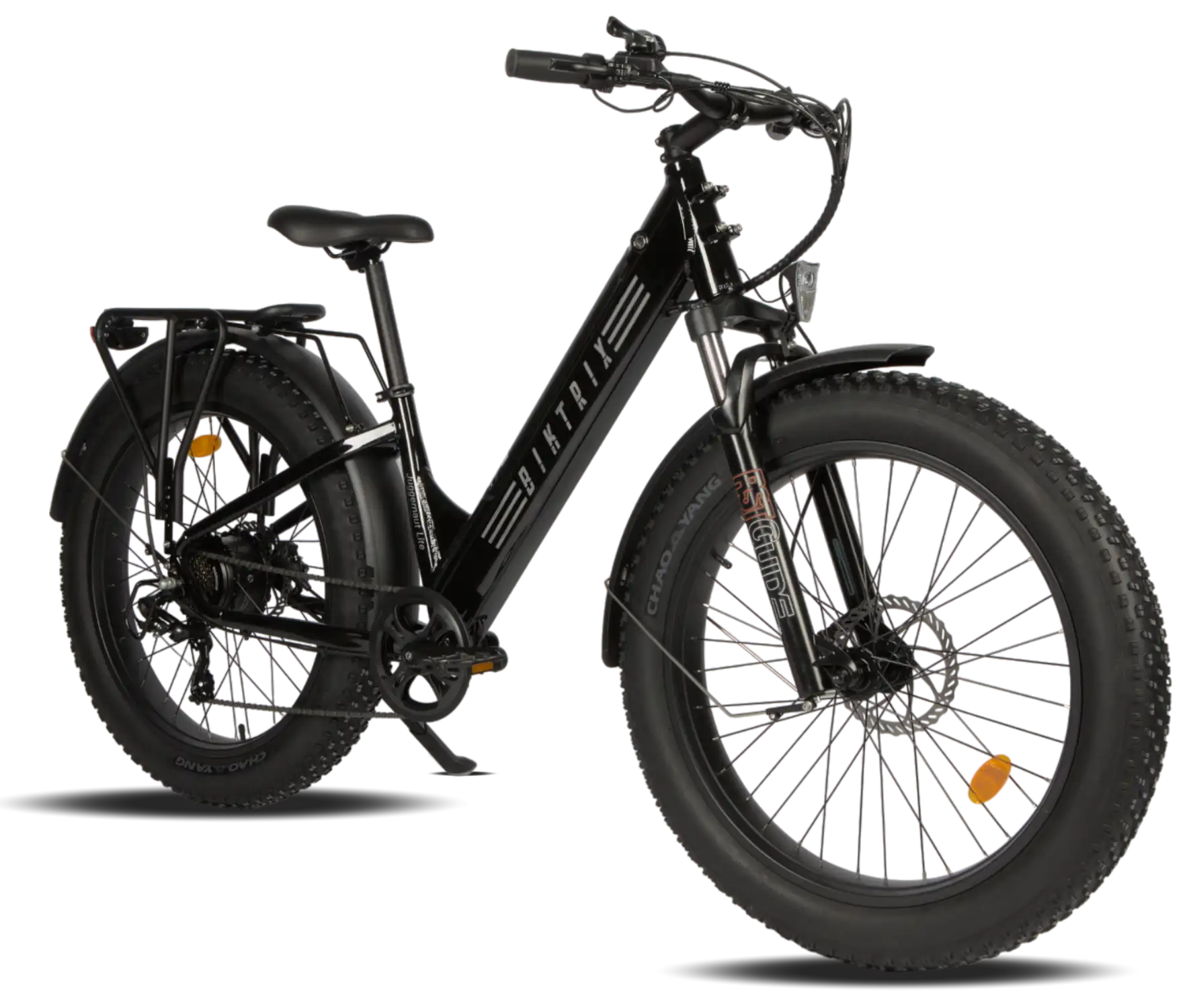

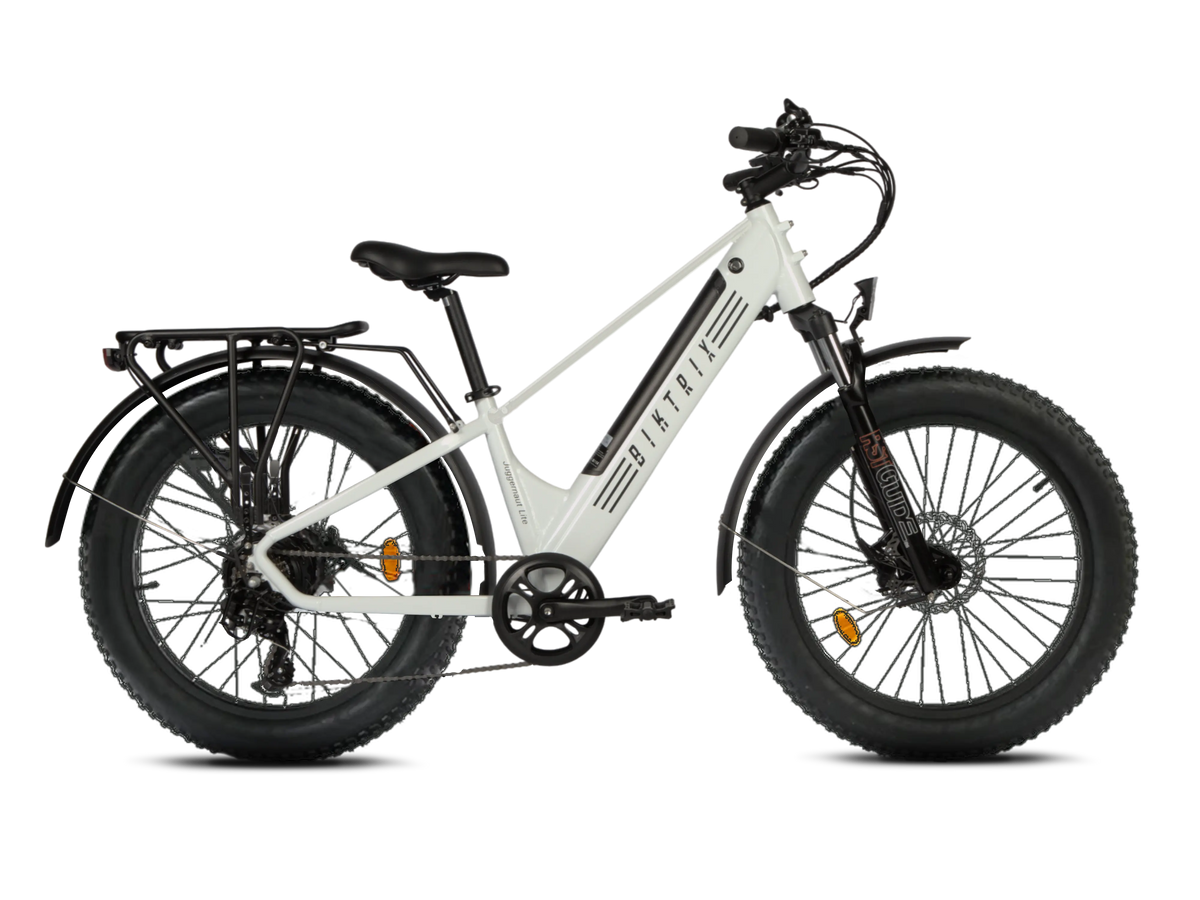

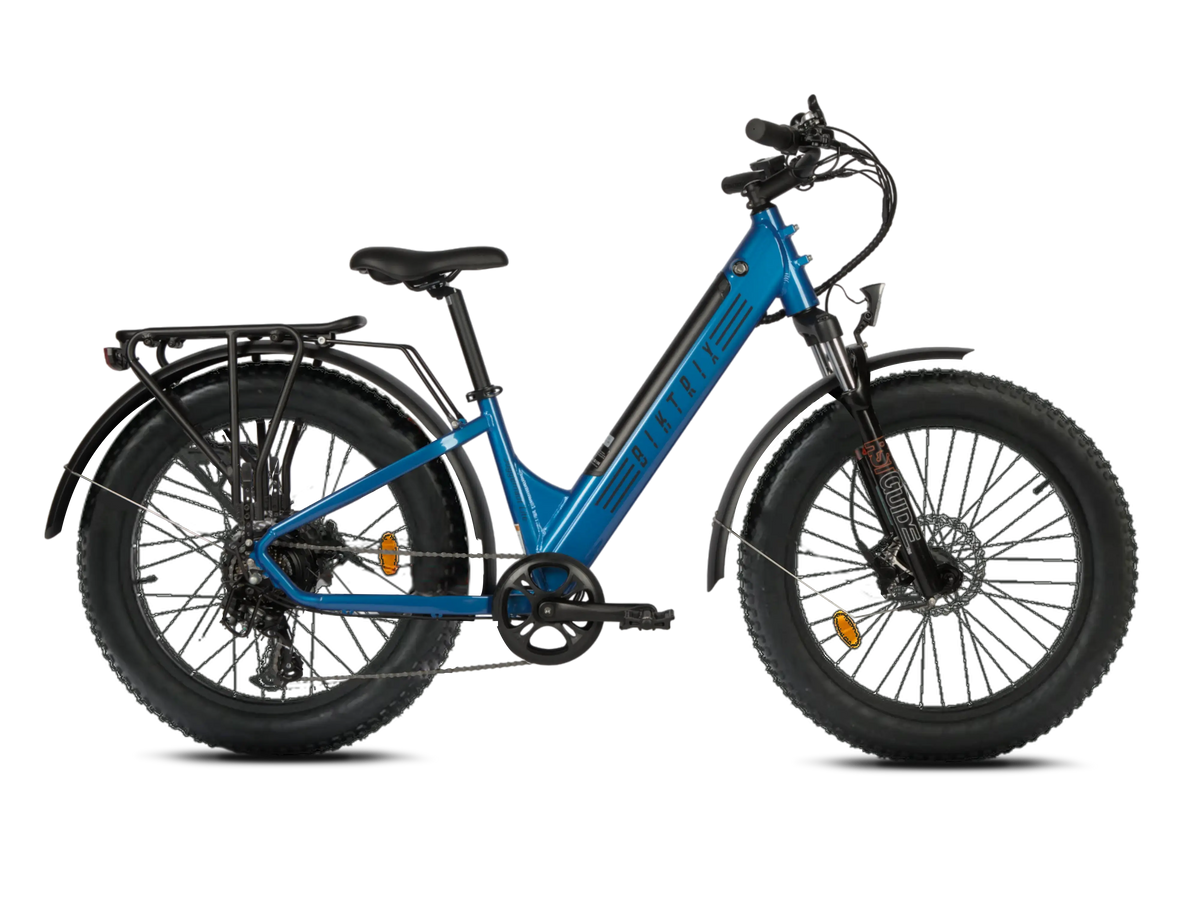

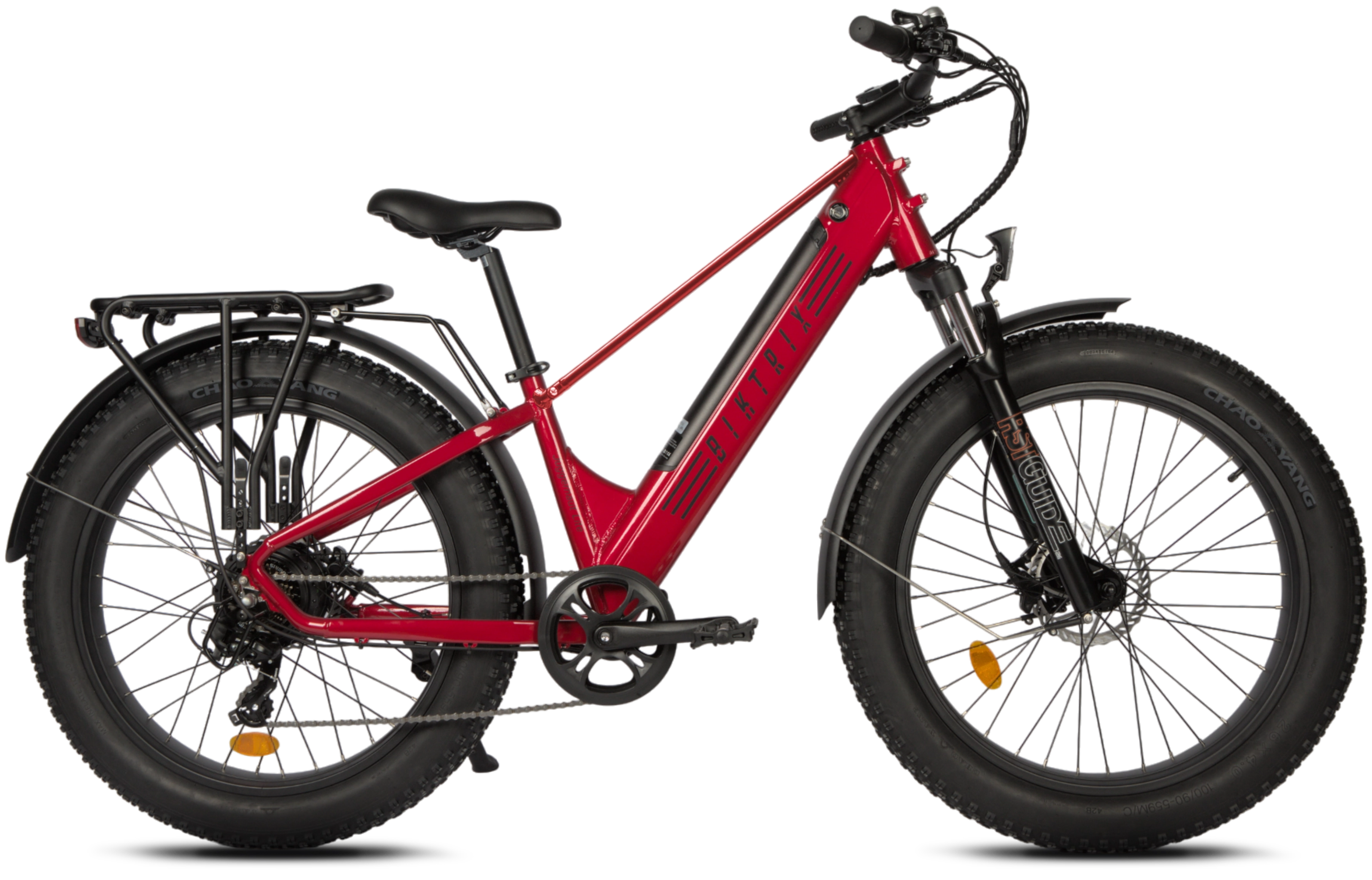

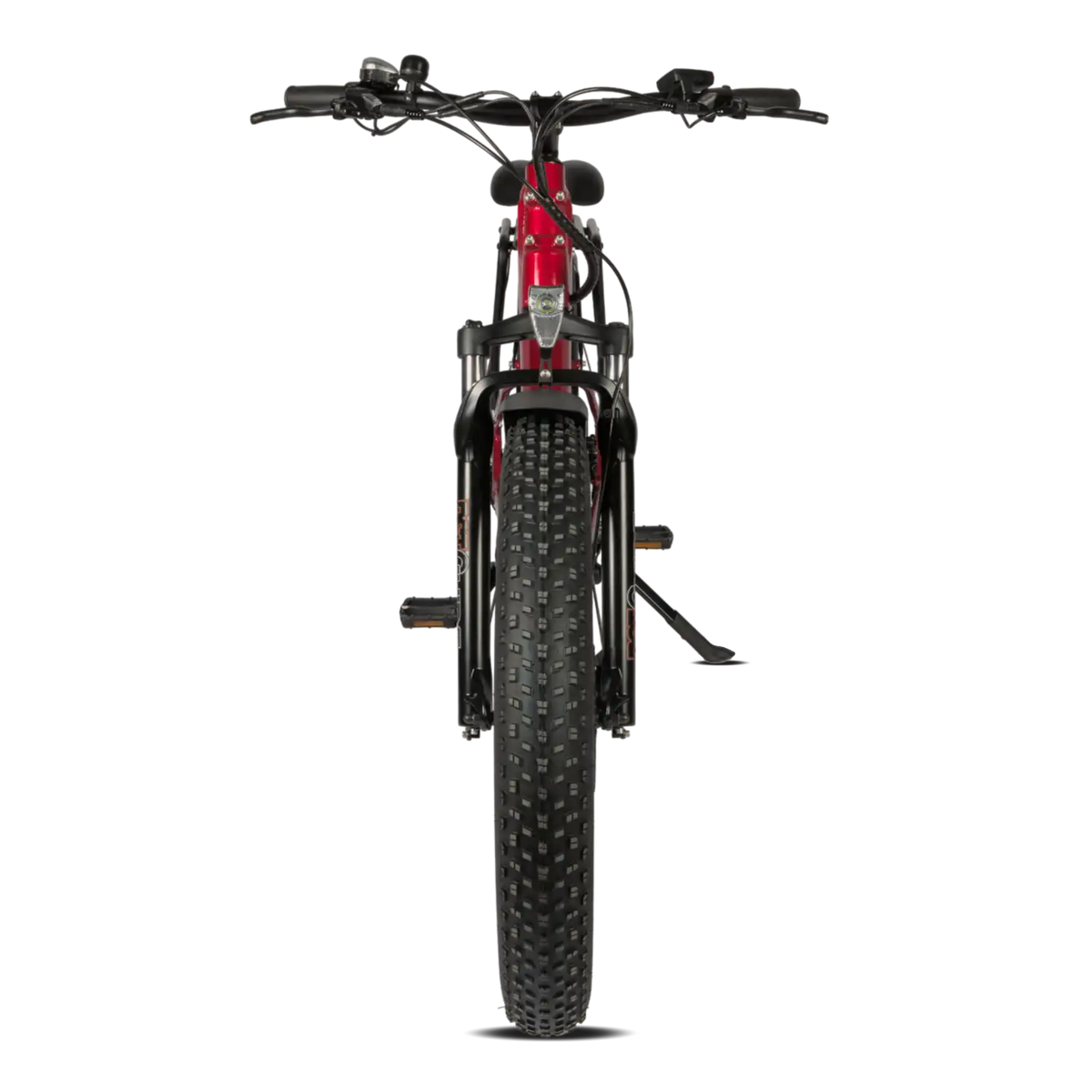

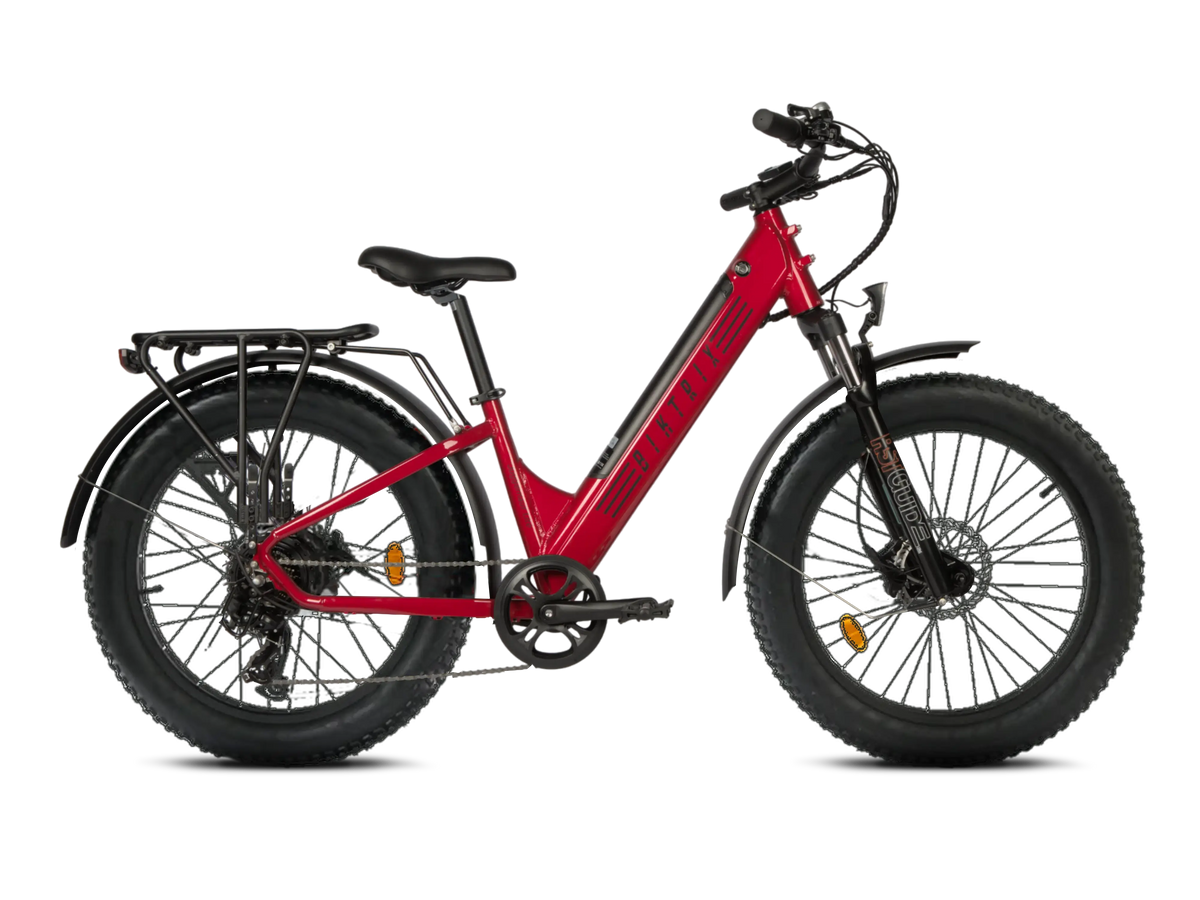

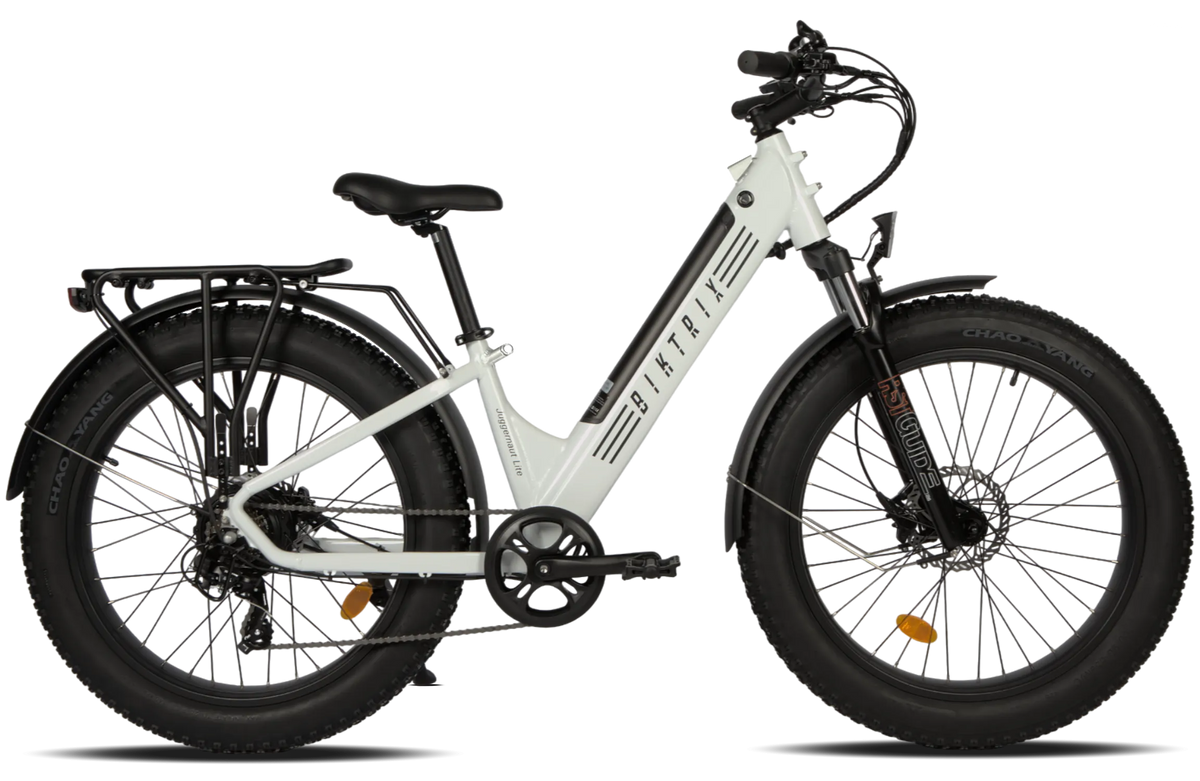

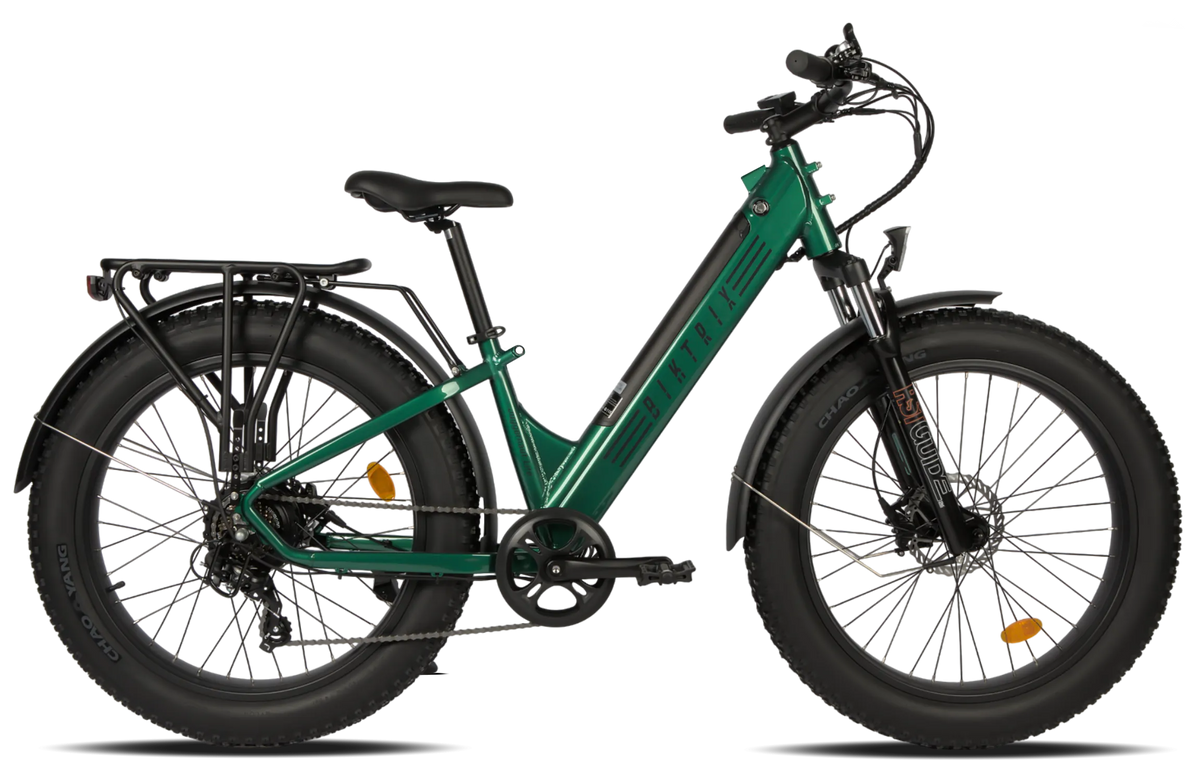

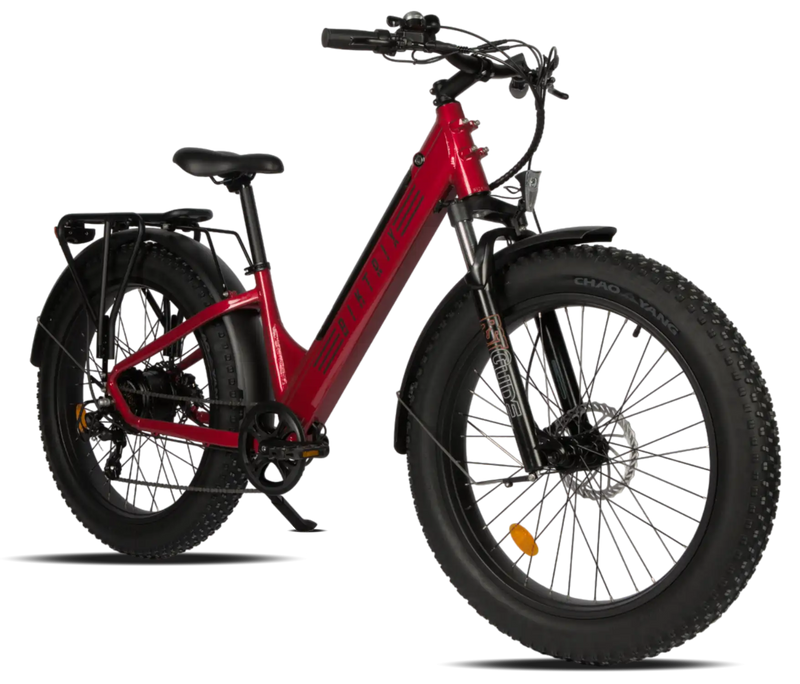

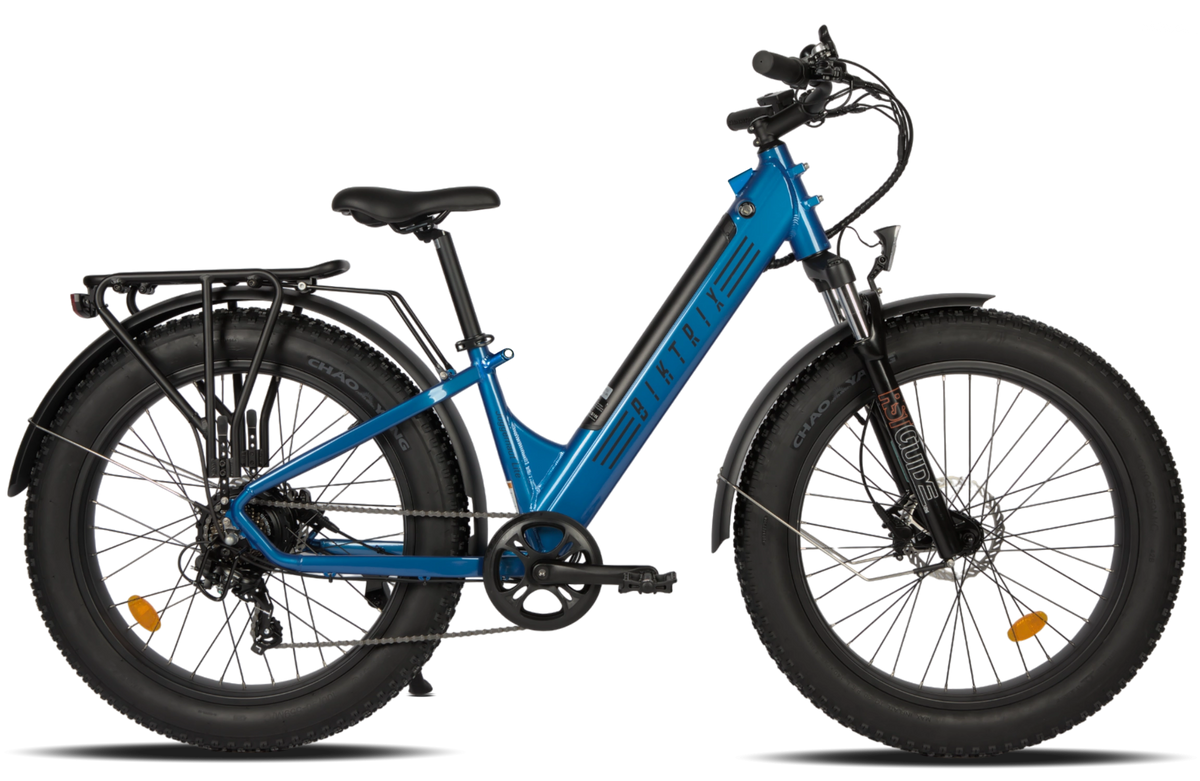

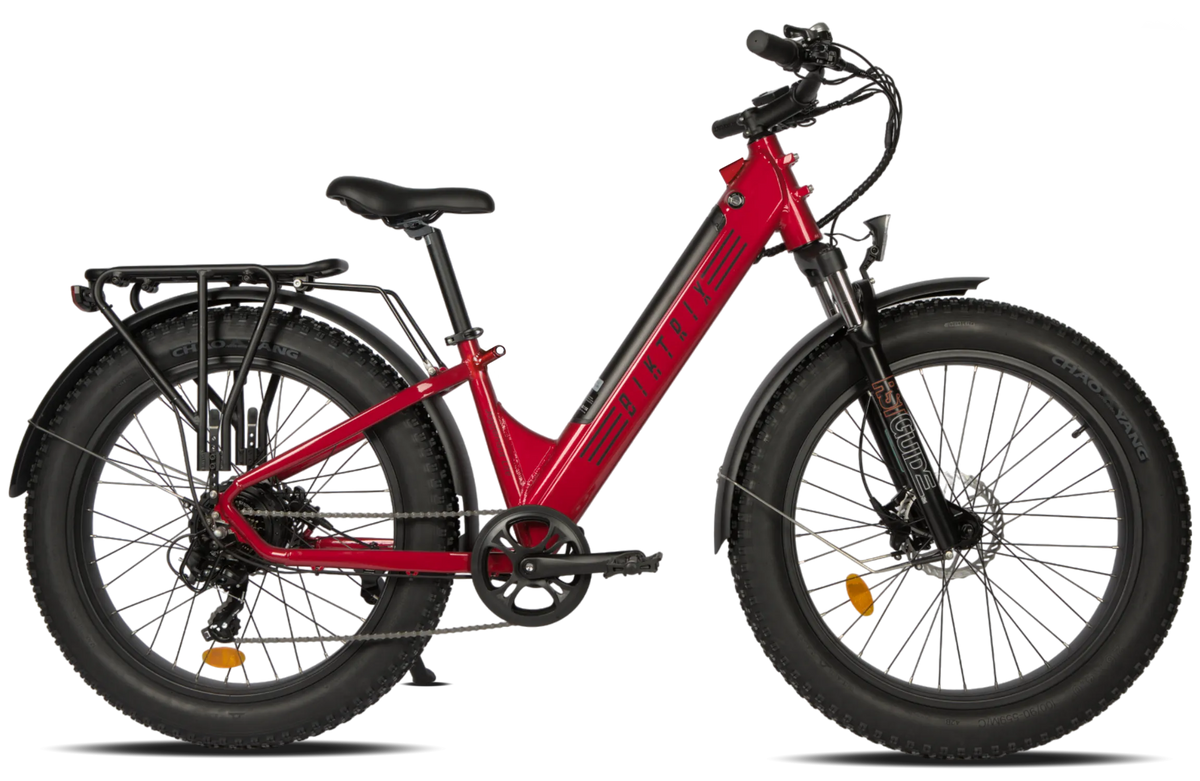

Juggernaut Lite ST

Name: Juggernaut Lite Step-Thru
Brand: BTN E - Bikes
SKU: JLISTL264RD1
Price: 1922.0 GBP
Availability: InStock
Rating: 4.5 (18 reviews)

4.5

£1,922

Sale ends in

d h m s

🚀 Limited time only: Add two Juggernaut Lites to your cart - pay for one, get one free!

Act now! Price jumps to $2299 on Aug 30, 2024. Last chance to save!

Batch 7 -> Delivery in Mid January — SELLING FAST

~~Batch 6 -> Delivery in Nov 2024~~ — SOLD OUT
~~Batch 5 -> Delivery in Nov 2024~~ — SOLD OUT
~~Batch 4 -> Delivery in Sep 2024~~ — SOLD OUT
~~Batch 3 -> Delivery in Aug 2024~~ — SOLD OUT
~~Batch 2 -> Delivery in July 2024~~ — SOLD OUT
~~Batch 1 -> Delivery in June 2024~~ — SOLD OUT

The Juggernaut Lite Step-Thru is a robust and reliable electric bike that is ready for any adventure. With a powerful 750W motor, 6-speed Shimano drivetrain, and dual-piston hydraulic brakes, this bike provides simplicity, power, and reliability with minimal maintenance. The sleek step-thru frame makes it easy to hop on and off, and the removable 48V 13Ah battery and suspension fork add convenience and comfort to your ride. With 70Nm of torque, the 750W rear hub motor allows for effortless exploration of cities and beyond.

Frame Size

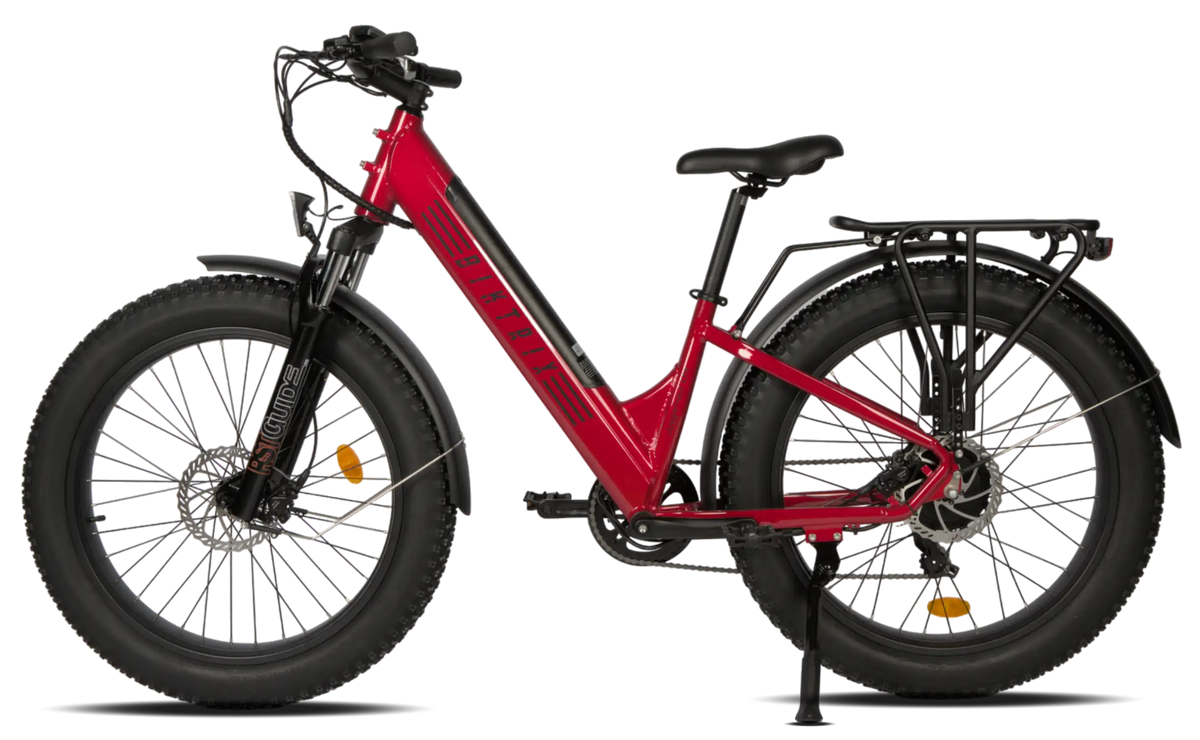

Colour Red

Advanced Options

Packages

Battery

Extra Battery At Discounted Price

Add an additional battery to on a discounted price to give you an extra boost!

Upgrades

Seatpost

Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"

Accessories

Front Cargo Basket

£83

Haul extra cargo and unlock your Biktrix eBike's full versatility with the front basket. Measures 380mm/15" Wide x 285mm/11.25" Long x 125mm/5" Tall

Front Cargo Basket (Large)

£117

Haul even more cargo and unlock your Biktrix eBike's full versatility with the front basket. Measures 480mm/19" Wide x 355mm/14" Long x 150mm/6" Tall

Warranty

Protect Your Bike

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

£1,922.00

Shipping: Leaves within Mid January

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	340mm	13.4in
4	Stack	690mm	27.2in
5	Chainstay Length	500mm	19.7in
6	Standover Height	550mm	21.7in
7	Head Angle	68°	-
8	Seat Angle	72.5°	-
9	Head Tube Length	185 mm	7.3 in
10	Fork Length	530mm	20.9in
11	Front Center	685mm	27in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1180mm	46.5in
15	Total Length	1940mm	76.4in
16	Max Seat Height	1020mm	40.2in
17	Min Seat Height	850mm	33.5in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	29kg	63.9lb

1	Effective Top Tube Length	550mm	21.7in
2	Seat Tube Length (Classic Bike Size)	400mm	15.7in
3	Reach	330mm	13in
4	Stack	690mm	27.2in
5	Chainstay Length	500mm	19.7in
6	Standover Height	540mm	21.3in
7	Head Angle	68°	-
8	Seat Angle	72.5°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	530mm	20.9in
11	Front Center	680mm	26.8in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1180mm	46.5in
15	Total Length	1940mm	76.4in
16	Max Seat Height	950mm	37.4in
17	Min Seat Height	800mm	31.5in
18	Handlebar Height	1080mm	42.5in
19	Weight (Without Battery)	29kg	63.9lb

750W Hub-Drive

Motor Power

48V 13Ah 624Wh

est. 40mi Range

+5'3"ft / 300lb

Max Load

Cadence Sensor

Powerful Pedal Assist

UL Certified

Safety

Lite but Mighty

The Juggernaut Lite is your efficient, user-friendly, and affordable solution for seamless adventures wherever you want to go!

Designed for Simplicity

Powered by a robust 750W Rear Hub motor that ensures simplicity, power, and reliability with minimal maintenance. Combine that with a 6-Speed Shimano Drivetrain, Dual Piston Hydraulic Brakes, and a sleek step-thru frame, this bike is ready to accompany you on any adventure you envision!

Packing A Punch.

Removable 48V 13Ah Battery

Our removable battery system offers unmatched convenience for re-charging. With the twist of a key, your battery can be brought inside t to charge.

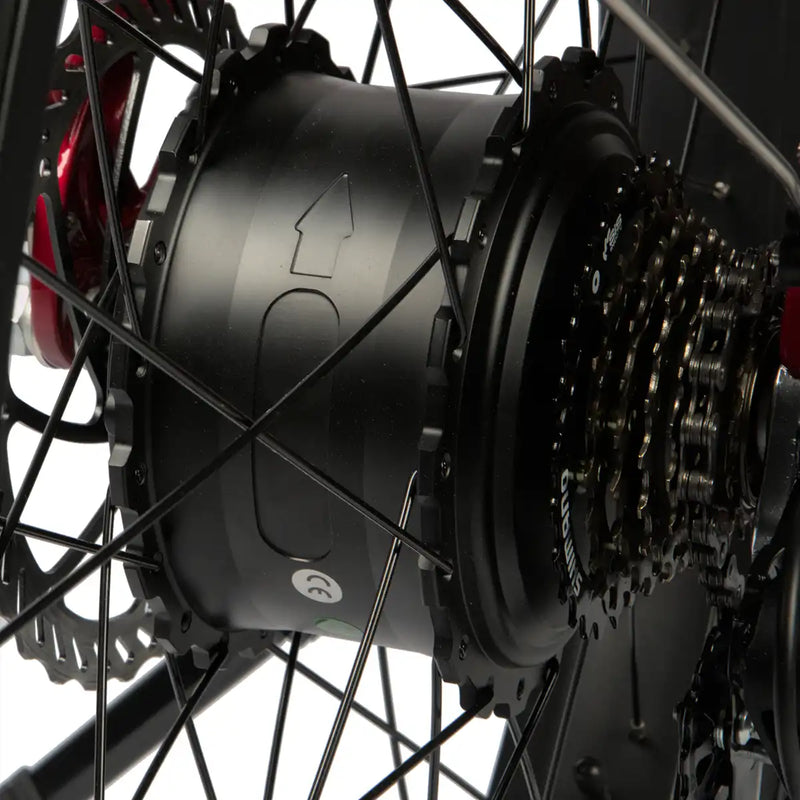

750W Rear Hub Motor

The powerful 750W rear hub motor features 750 watts of power and 70Nm of torque. This allows you to span cities, and explore all the places you want to go with ease.

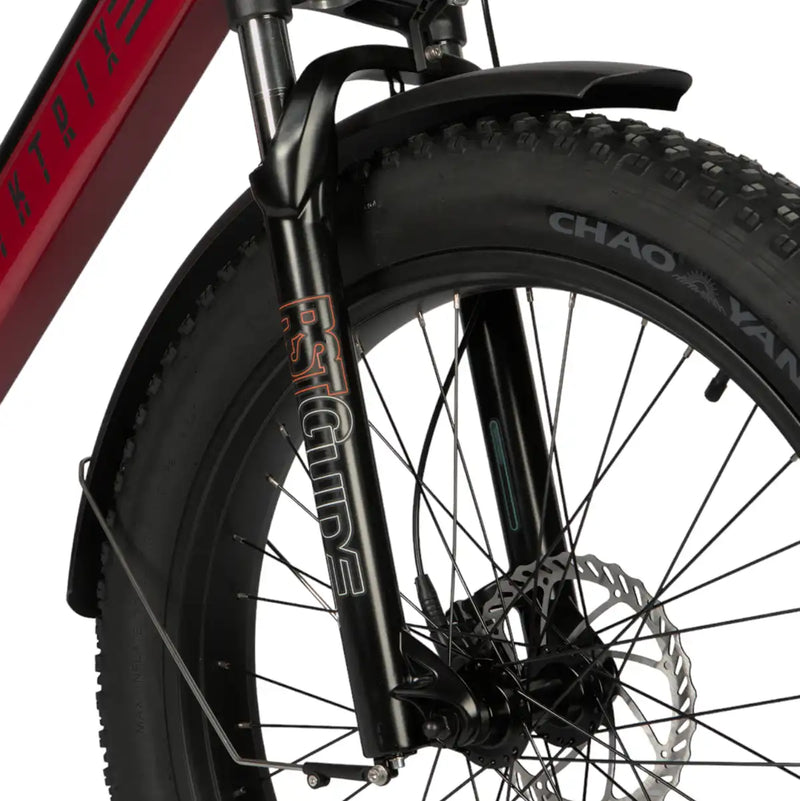

Suspension Fork

The RST Guide front suspension fork provides 75mm of travel with adjustable preload and a mechanical lockout.

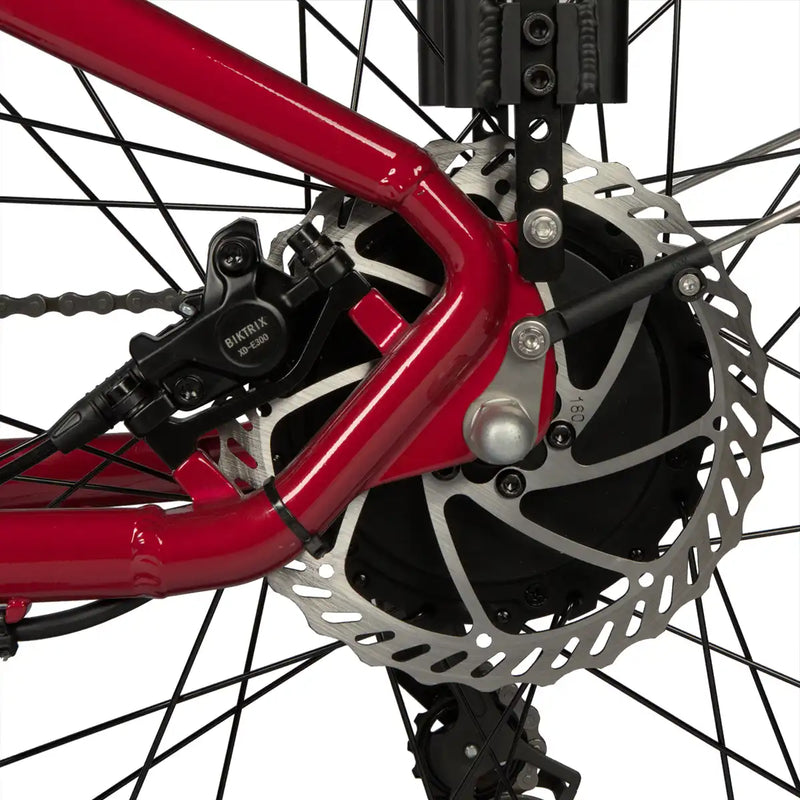

Hydrauic Disc Brakes

When it’s so easy to go fast, you need strong stopping power. These hydraulic disc brakes combined with 180mm rotors will quickly and reliably bring you to a halt.

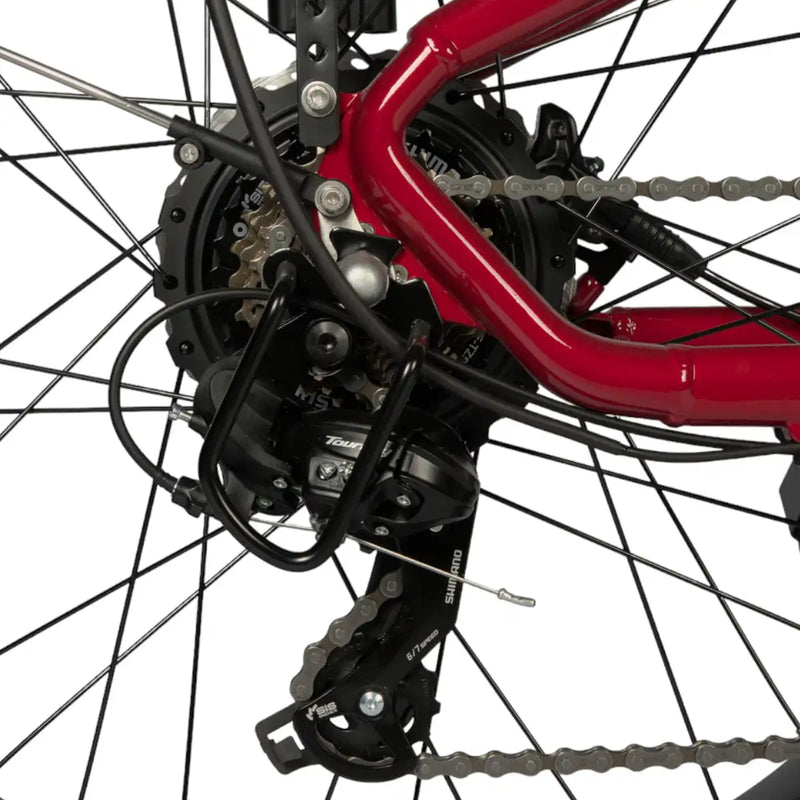

Shimano 6 Speed Transmission

From climbing city sloped to holding maximum speed on flats and everything in between, our Shimano 6-speed drivetrain has you covered.

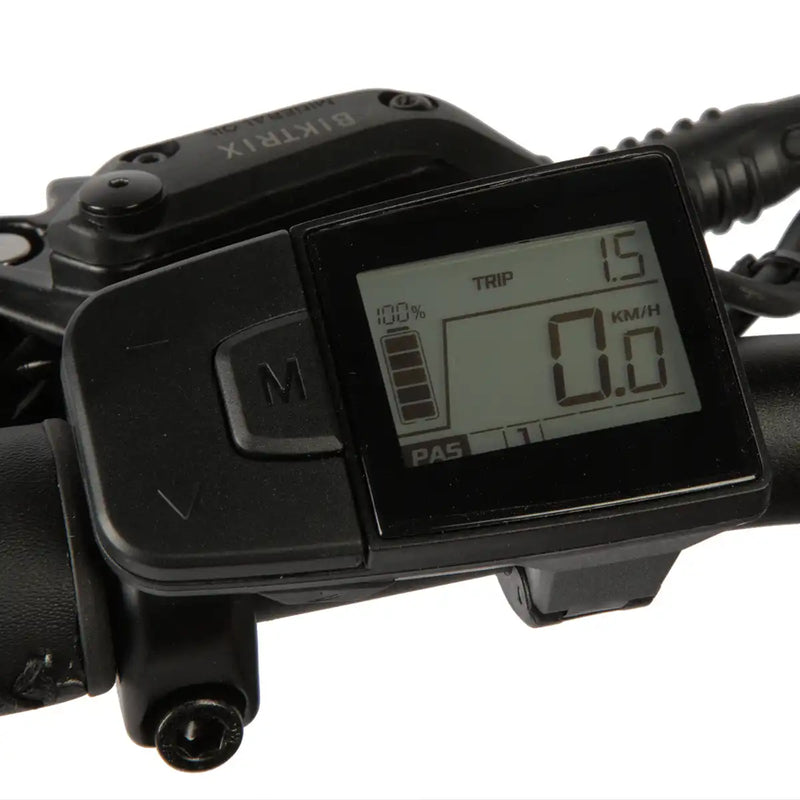

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

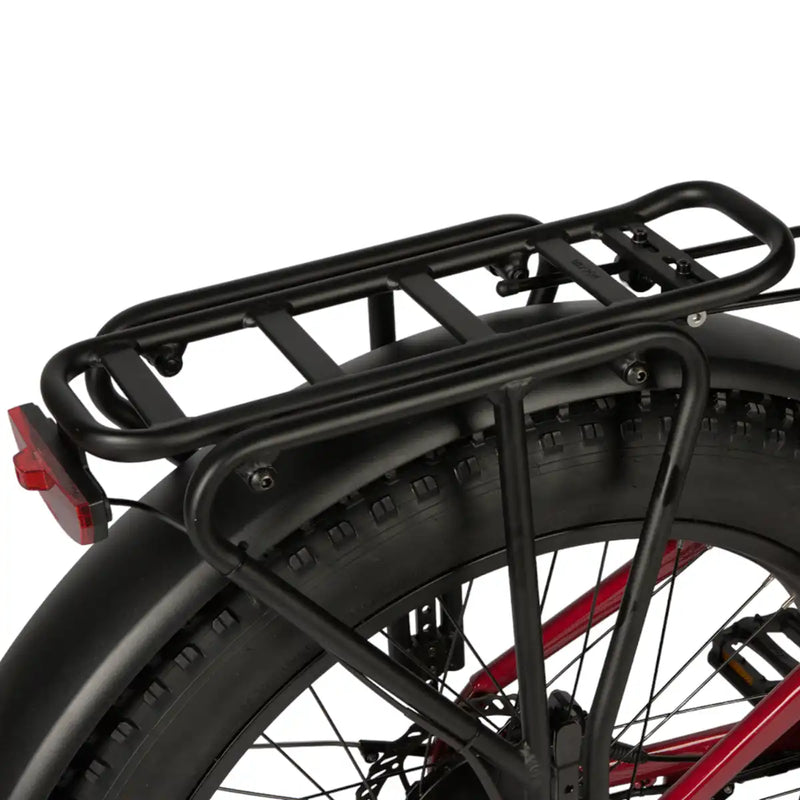

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

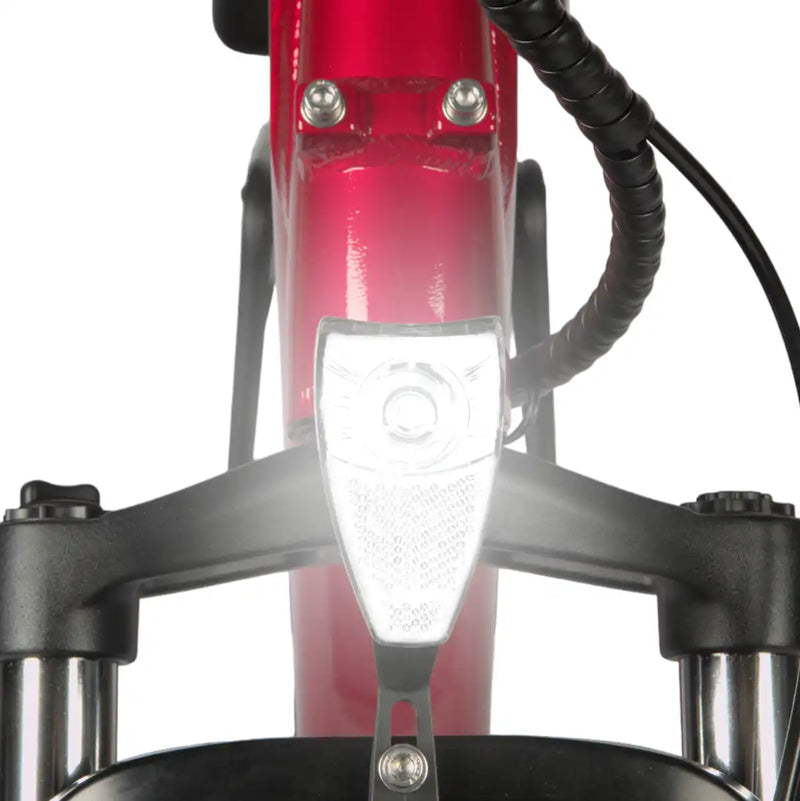

Integrated Front Light

This bright LED light is powered by the bike’s battery and can be turned on and off with a button on the handlebar control pad.

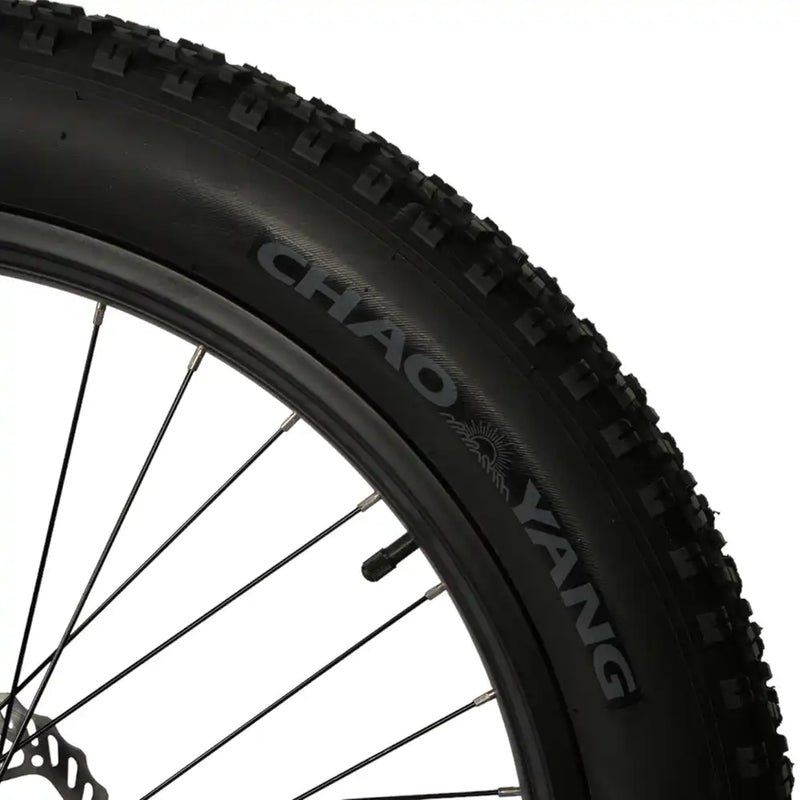

Fat Tires

The 26x4” Fat Tires offer unparalleled traction, durability and control - a perfect choce for superor performance on diverse terrain.

Technical Specifications

Frame 6061 aluminum	Front hub 135mm 36h bolt-on	Seat post 30.4mm
Fork Rst guide w/preload, 75mm travel	Front axle Bolt-on	Seat post clamp Qr
Headset Threadless 1-1/2" 1-1/8" tapered	Rear hub Motor	Motor 750w rear hub motor
Shifter rear Shimano 7-speed thumb shifter	Rear axle Bolt-on	Battery sizes 48v 13.2ah 634wh
Rear derailleur Shimano tourney 7-speed	Rims Solid black 36h, 80mm wide	Display Dm01 lcd display
Cassette 14-28t 7 speed freewheel	Tire sizes 26x4 chaoyang	Lights Integrated headlight, taillight
Chain Kmc 7 speed - 124 links	Handlebar 640mm wide w/31.8mm clamp	Assist type Cadence
Crank set 44t chainring w/ 170mm arms	Stem 90mm solid w/31.8mm clamp	Assist levels 0-5
Bottom bracket Square taper	Grips Slide-on comfort grips	Throttle Thumb throttle
Brakes Biktrix e300 w/180mm rotors	Saddle Plush mtb saddle	Other Front and rear fender, rear rack, kickstand, bell
Brake levers Adjustable w/ integrated brake sensors

Frame 6061 aluminum	Front hub 135mm 36h bolt-on
Seat post 30.4mm	Fork Rst guide w/preload, 75mm travel
Front axle Bolt-on	Seat post clamp Qr
Headset Threadless 1-1/2" 1-1/8" tapered	Rear hub Motor
Motor 750w rear hub motor	Shifter rear Shimano 7-speed thumb shifter
Rear axle Bolt-on	Battery sizes 48v 13.2ah 634wh
Rear derailleur Shimano tourney 7-speed	Rims Solid black 36h, 80mm wide
Display Dm01 lcd display	Cassette 14-28t 7 speed freewheel
Tire sizes 26x4 chaoyang	Lights Integrated headlight, taillight
Chain Kmc 7 speed - 124 links	Handlebar 640mm wide w/31.8mm clamp
Assist type Cadence	Crank set 44t chainring w/ 170mm arms
Stem 90mm solid w/31.8mm clamp	Assist levels 0-5
Bottom bracket Square taper	Grips Slide-on comfort grips
Throttle Thumb throttle	Brakes Biktrix e300 w/180mm rotors
Saddle Plush mtb saddle	Other Front and rear fender, rear rack, kickstand, bell
Brake levers Adjustable w/ integrated brake sensors

Frame

6061 aluminum

Front hub

135mm 36h bolt-on

Seat post

30.4mm

Fork

Rst guide w/preload, 75mm travel

Front axle

Bolt-on

Seat post clamp

Headset

Threadless 1-1/2" 1-1/8" tapered

Rear hub

Motor

750w rear hub motor

Shifter rear

Shimano 7-speed thumb shifter

Rear axle

Bolt-on

Battery sizes

48v 13.2ah 634wh

Rear derailleur

Shimano tourney 7-speed

Rims

Solid black 36h, 80mm wide

Display

Dm01 lcd display

Cassette

14-28t 7 speed freewheel

Tire sizes

26x4 chaoyang

Lights

Integrated headlight, taillight

Chain

Kmc 7 speed - 124 links

Handlebar

640mm wide w/31.8mm clamp

Assist type

Cadence

Crank set

44t chainring w/ 170mm arms

Stem

90mm solid w/31.8mm clamp

Assist levels

0-5

Bottom bracket

Square taper

Grips

Slide-on comfort grips

Throttle

Thumb throttle

Brakes

Biktrix e300 w/180mm rotors

Saddle

Plush mtb saddle

Other

Front and rear fender, rear rack, kickstand, bell

Brake levers

Adjustable w/ integrated brake sensors

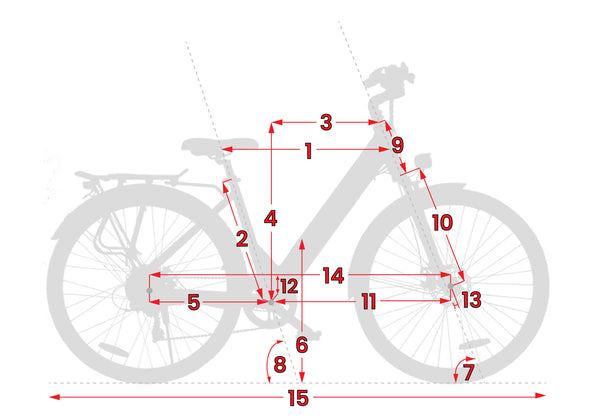

Size & Fittings

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	340mm	13.4in
4	Stack	690mm	27.2in
5	Chainstay Length	500mm	19.7in
6	Standover Height	550mm	21.7in
7	Head Angle	68°	-
8	Seat Angle	72.5°	-
9	Head Tube Length	185 mm	7.3 in
10	Fork Length	530mm	20.9in
11	Front Center	685mm	27in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1180mm	46.5in
15	Total Length	1940mm	76.4in
16	Max Seat Height	1020mm	40.2in
17	Min Seat Height	850mm	33.5in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	29kg	63.9lb

1	Effective Top Tube Length	550mm	21.7in
2	Seat Tube Length (Classic Bike Size)	400mm	15.7in
3	Reach	330mm	13in
4	Stack	690mm	27.2in
5	Chainstay Length	500mm	19.7in
6	Standover Height	540mm	21.3in
7	Head Angle	68°	-
8	Seat Angle	72.5°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	530mm	20.9in
11	Front Center	680mm	26.8in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1180mm	46.5in
15	Total Length	1940mm	76.4in
16	Max Seat Height	950mm	37.4in
17	Min Seat Height	800mm	31.5in
18	Handlebar Height	1080mm	42.5in
19	Weight (Without Battery)	29kg	63.9lb
