Technical Specifications
Frame6061 aluminum |
Front hubQuanta 150mm 36h |
Seat postAluminum 30.9mm |
ForkRst coil spring, 75mm travel |
Front axle5mm qr |
Seat post clamp30.9mm qr |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hubQuanta 190mm 36h |

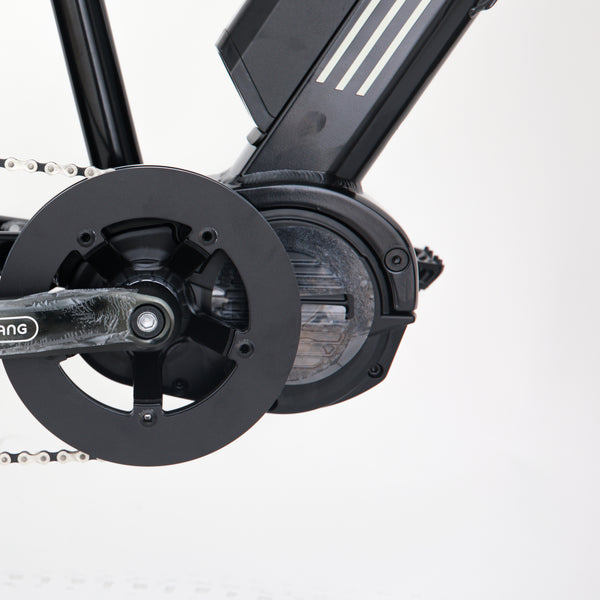

Motor1000w bafang ultra mid-drive |
Shifter rear9 speed shimano |
Rear axle12mm thru |

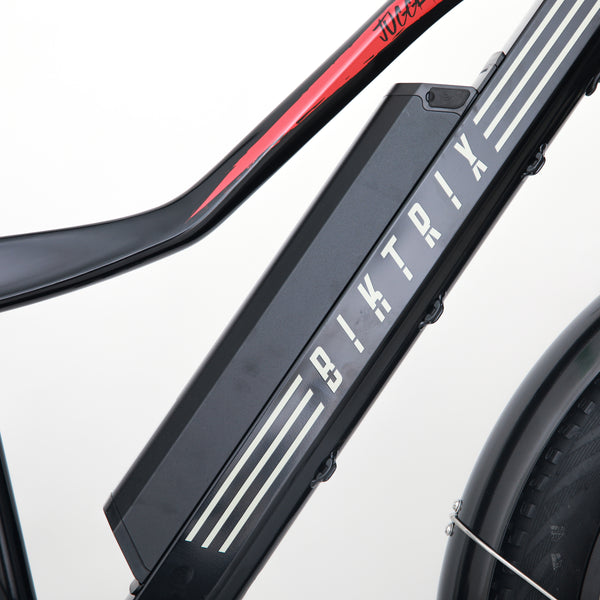

Battery sizes48v17.5ah, 48v21ah, 52v17.5ah |
Rear derailleur9 speed shimano |
Rims26"- 36h, black 27.5"- 36h |
DisplayDpc-18 color display |
CassetteShimano 11-34t |

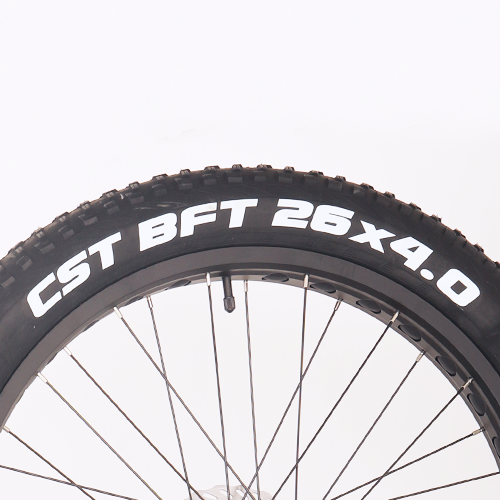

Tire sizes26x4", 27.5x3" |
LightsIntegrated headlight, battery taillight |
ChainKmc x9 |
HandlebarAluminum 31.8 clamp, 700mm wide, 10mm rise 7° sweep |
Assist typeTorque, cadence |
Crank set170mm aluminum arms with 44t steel chainring |
Stem90mm aluminum |
Assist levels0-5 |
Bottom bracketBafang ultra isis |
GripsSlide on |
ThrottleThumb throttle |
BrakesBiktrix hydraulic |
SaddleVelo plush |
OtherAluminum fenders, rear rack, adjustable kickstand |
Brake leversBiktrix hydraulic w/ motor cutoff |
Frame6061 aluminum |
Front hubQuanta 150mm 36h |
Seat postAluminum 30.9mm |
ForkRst coil spring, 75mm travel |
Front axle5mm qr |
Seat post clamp30.9mm qr |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hubQuanta 190mm 36h |
Motor1000w bafang ultra mid-drive |
Shifter rear9 speed shimano |
Rear axle12mm thru |
Battery sizes48v17.5ah, 48v21ah, 52v17.5ah |
Rear derailleur9 speed shimano |
Rims26"- 36h, black 27.5"- 36h |
DisplayDpc-18 color display |
CassetteShimano 11-34t |
Tire sizes26x4", 27.5x3" |
LightsIntegrated headlight, battery taillight |
ChainKmc x9 |
HandlebarAluminum 31.8 clamp, 700mm wide, 10mm rise 7° sweep |
Assist typeTorque, cadence |
Crank set170mm aluminum arms with 44t steel chainring |
Stem90mm aluminum |
Assist levels0-5 |
Bottom bracketBafang ultra isis |
GripsSlide on |
ThrottleThumb throttle |
BrakesBiktrix hydraulic |
SaddleVelo plush |
OtherAluminum fenders, rear rack, adjustable kickstand |
Brake leversBiktrix hydraulic w/ motor cutoff |
Size & Fittings
1 | Effective Top Tube Length |
610mm | 24in |
2 | Seat Tube Length (Classic Bike Size) |
480mm | 18.9in |
3 |
Reach |
470mm | 18.5in |
4 |
Stack |
670mm | 26.4in |
5 |
Chainstay Length |
510mm | 20.1in |
6 |
Standover Height |
740mm | 29.1in |
7 |
Head Angle |
69° | - |
8 |
Seat Angle |
72° | - |
9 |
Head Tube Length |
170 mm | 6.7 in |
10 |
Fork Length |
580mm | 22.8in |
11 |
Front Center |
800mm | 31.5in |
12 |
BB (Bottom Bracket) Drop |
75mm | 3in |
13 |
Fork Offset |
40mm | 1.6in |
14 |
Wheelbase |
1310mm | 51.6in |
15 |
Total Length |
2070mm | 81.5in |
16 |
Max Seat Height |
1060mm | 41.7in |
17 |
Min Seat Height |
860mm | 33.9in |
18 |
Handlebar Height |
1100mm | 43.3in |
19 |
Weight (Without Battery) |
34kg | 75lb |
1 | Effective Top Tube Length |
580mm | 22.8in |
2 | Seat Tube Length (Classic Bike Size) |
408mm | 16.1in |
3 |
Reach |
410mm | 16.1in |
4 |
Stack |
620mm | 24.4in |
5 |
Chainstay Length |
509mm | 20in |
6 |
Standover Height |
675mm | 26.6in |
7 |
Head Angle |
70° | - |
8 |
Seat Angle |
73° | - |
9 |
Head Tube Length |
205 mm | 8.1 in |
10 |
Fork Length |
530mm | 20.9in |
11 |
Front Center |
698mm | 27.5in |
12 |
BB (Bottom Bracket) Drop |
55mm | 2.2in |
13 |
Fork Offset |
50mm | 2in |
14 |
Wheelbase |
1200mm | 47.2in |
15 |
Total Length |
1890mm | 74.4in |
16 |
Max Seat Height |
990mm | 39in |
17 |
Min Seat Height |
780mm | 30.7in |
18 |
Handlebar Height |
1180mm | 46.5in |
19 |
Weight (Without Battery) |
30.4kg | 67lb |
