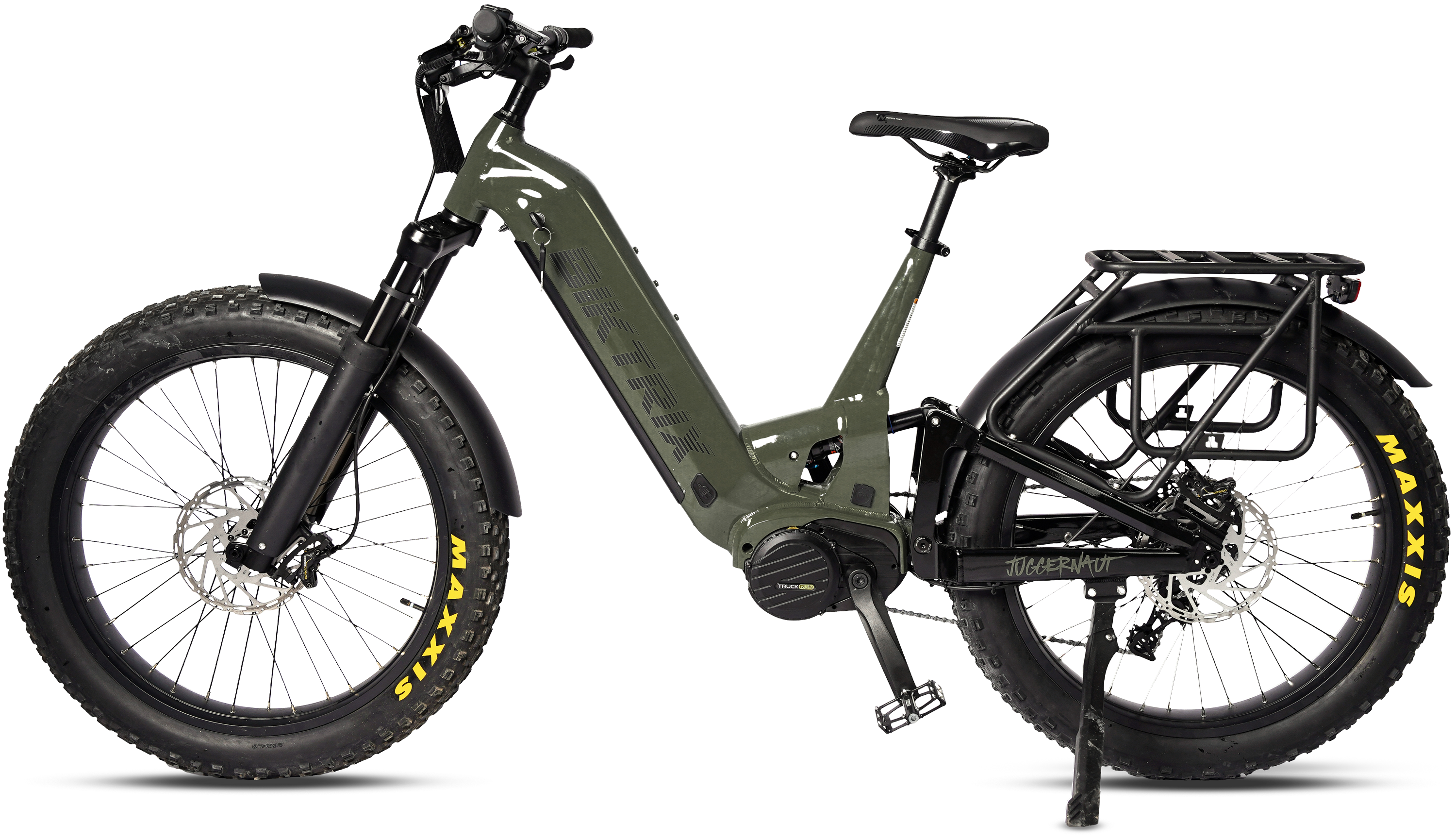

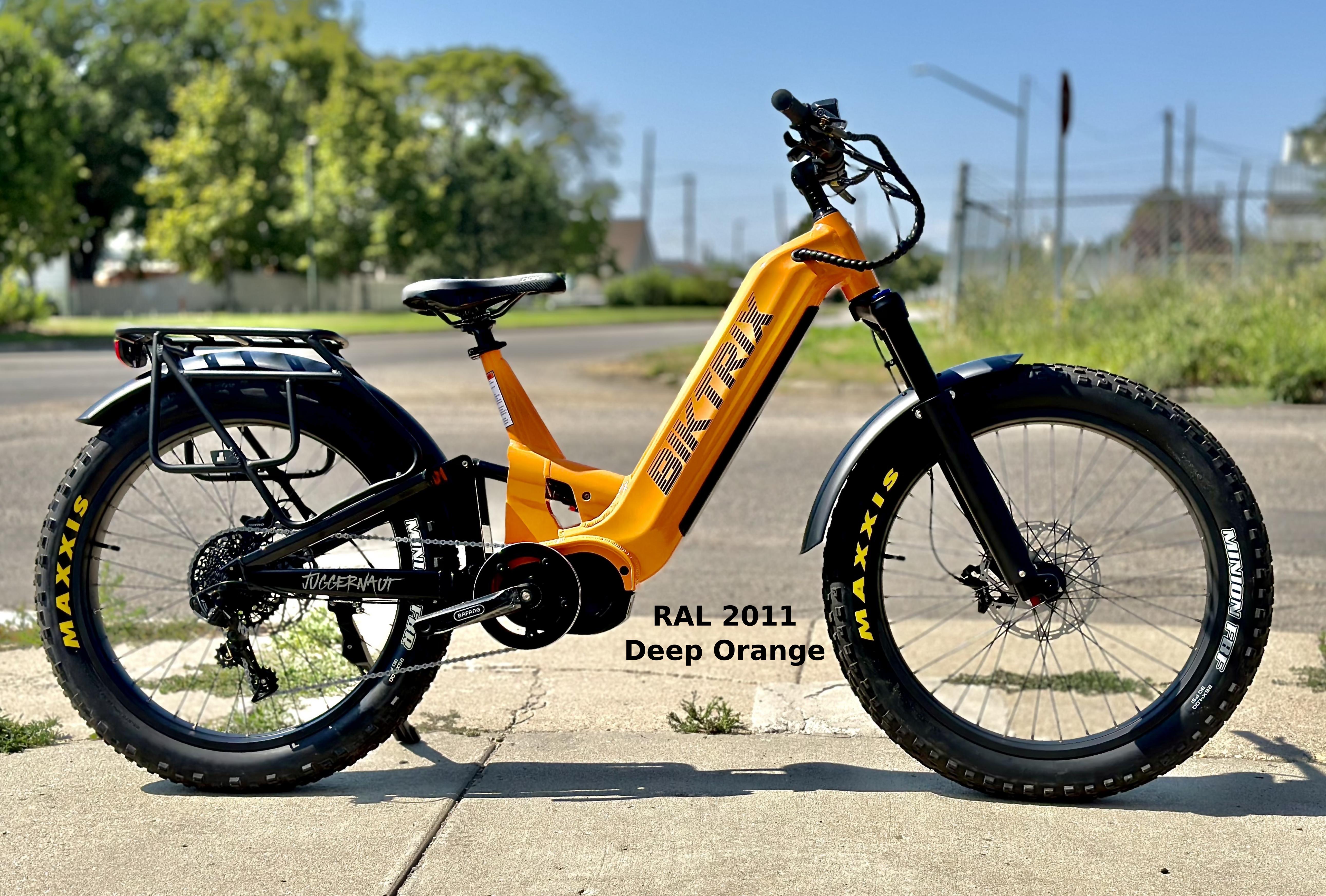

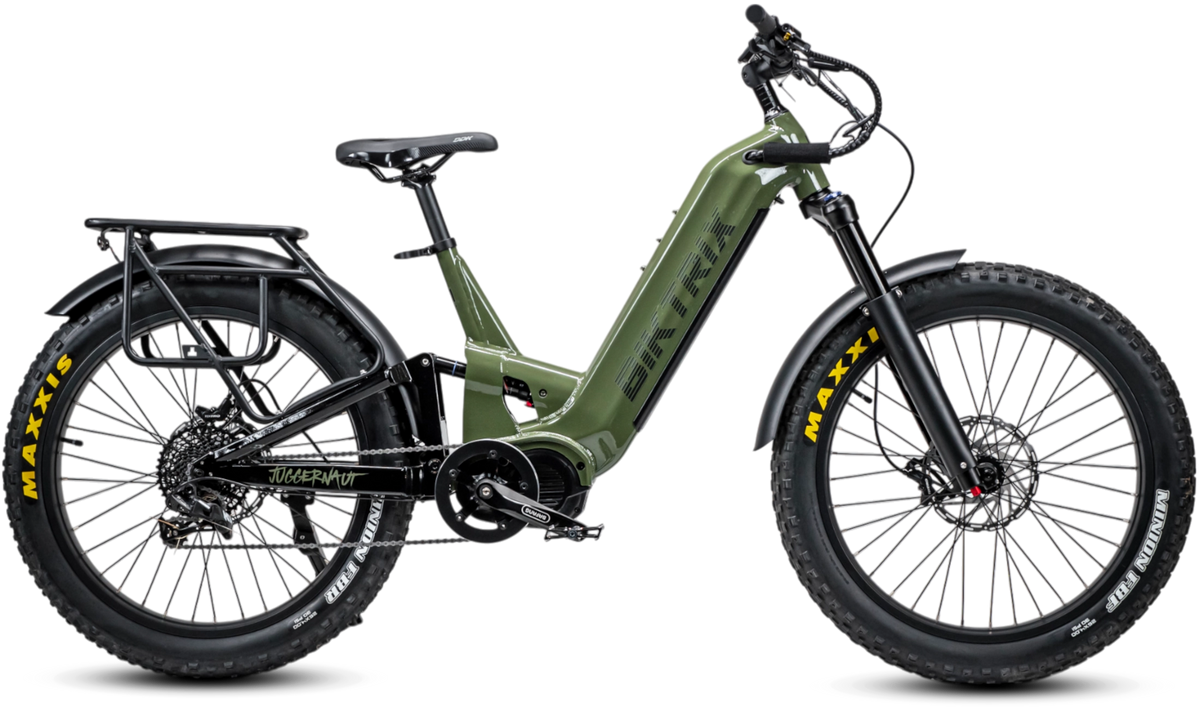

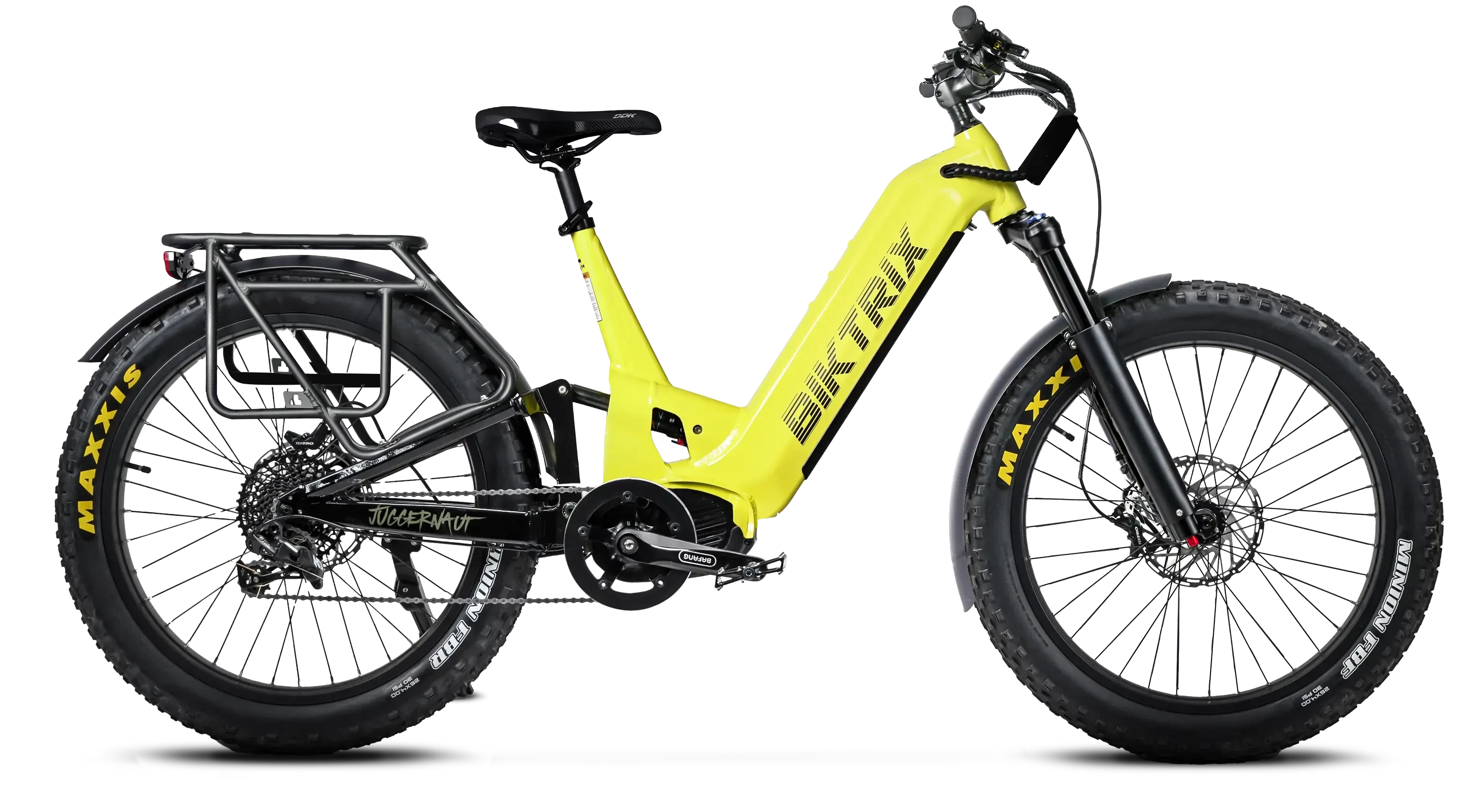

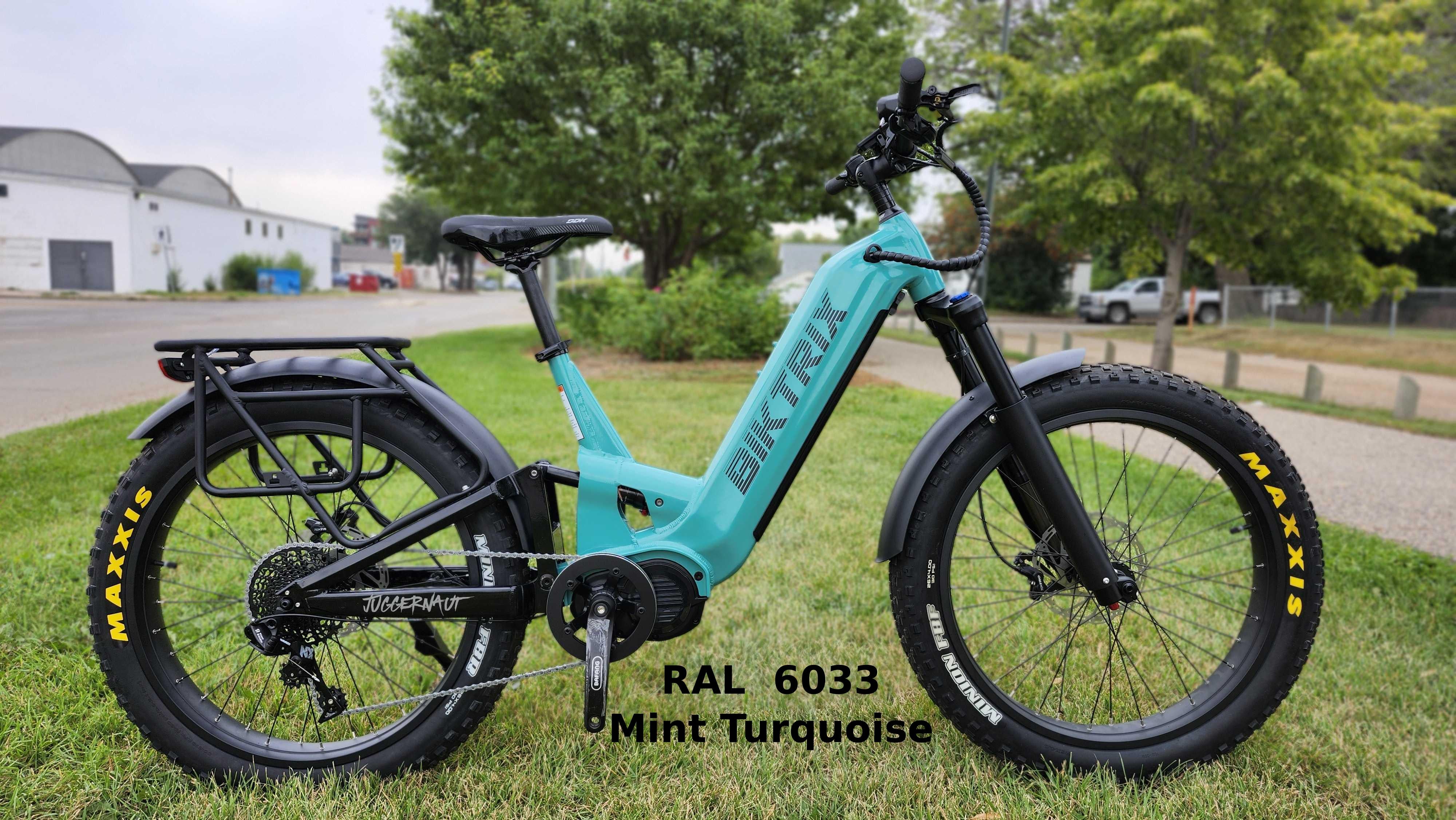

Juggernaut FS ST Fat

Sale price £3,267.00 Regular price£4,084.00Save £817
Black
Packages
Battery
Range Extender Battery


Add an additional battery to extend your bikes range and give you that boost!

**This option adds an extra battery that mounts on top of the frame that extends the range of the stock battery.
Upgrades
Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**No Front Fender is available for the Wren Suspension Fork
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

Rear Hub


Upgrade your eBike's rear hub for a smoother, more efficient ride, unlocking enhanced performance and reliability with every pedal.

Motor Power


Program your motor to meet local eBike regulations or opt for unlimited speed and power suitable for off-road use only.

Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

Headlight


Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

Accessories
Canvas Pannier Bags
Canvas Pannier Bags


These Canvas bags offer great convenience and carrying capacity!

Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price £3,267.00 Regular price£4,084.00
Shipping: Leaves within Late July
1500W Mid-Drive

Motor Power

52V 25Ah 1300Wh

est. 60mi Range

+5'6"ft / 265lb

Max Load

Torque Sensor

Powerful Pedal Assist

On-Demand Throttle

Pedaling Optional

25+ Point Quality

Control Checklist

New

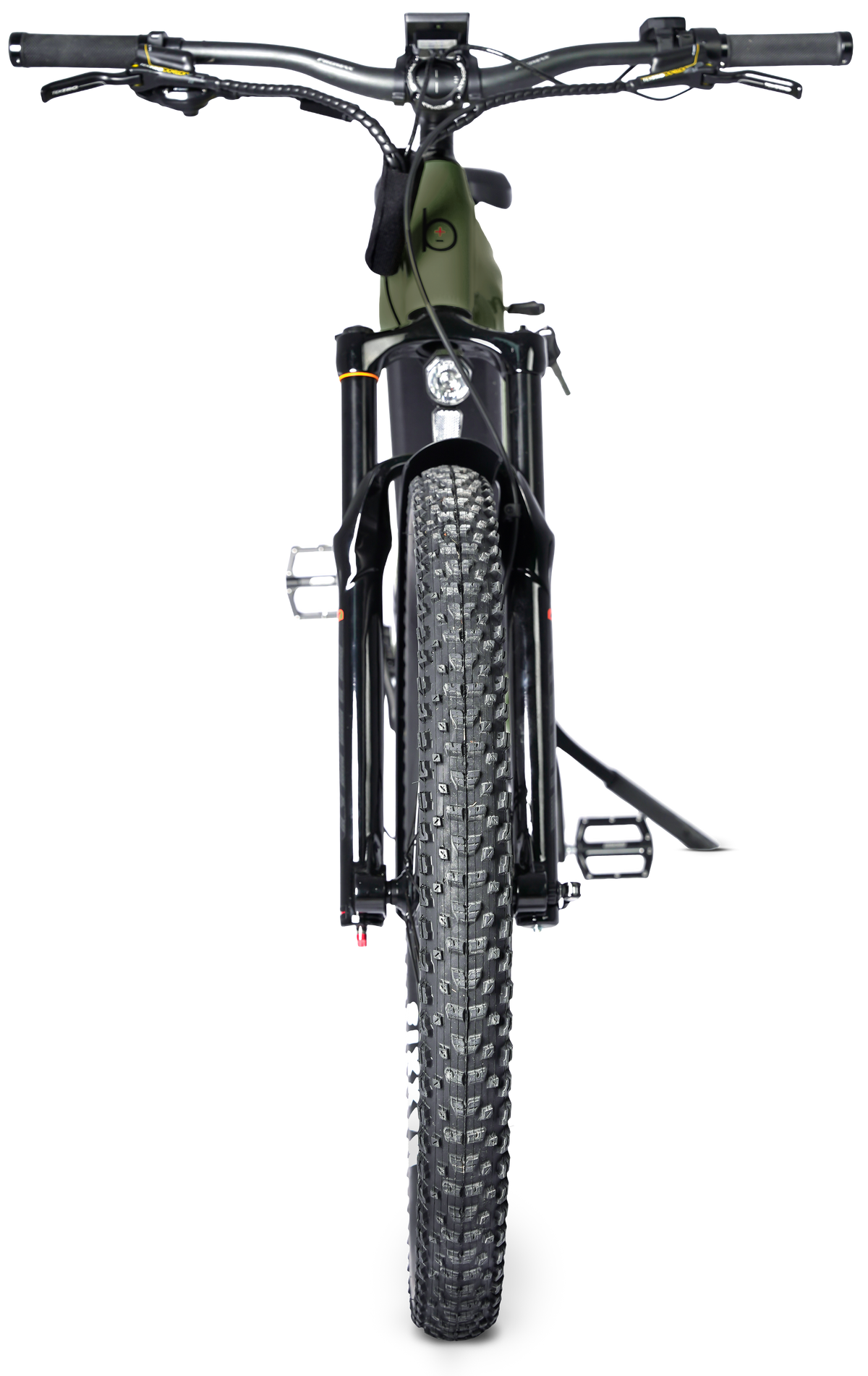

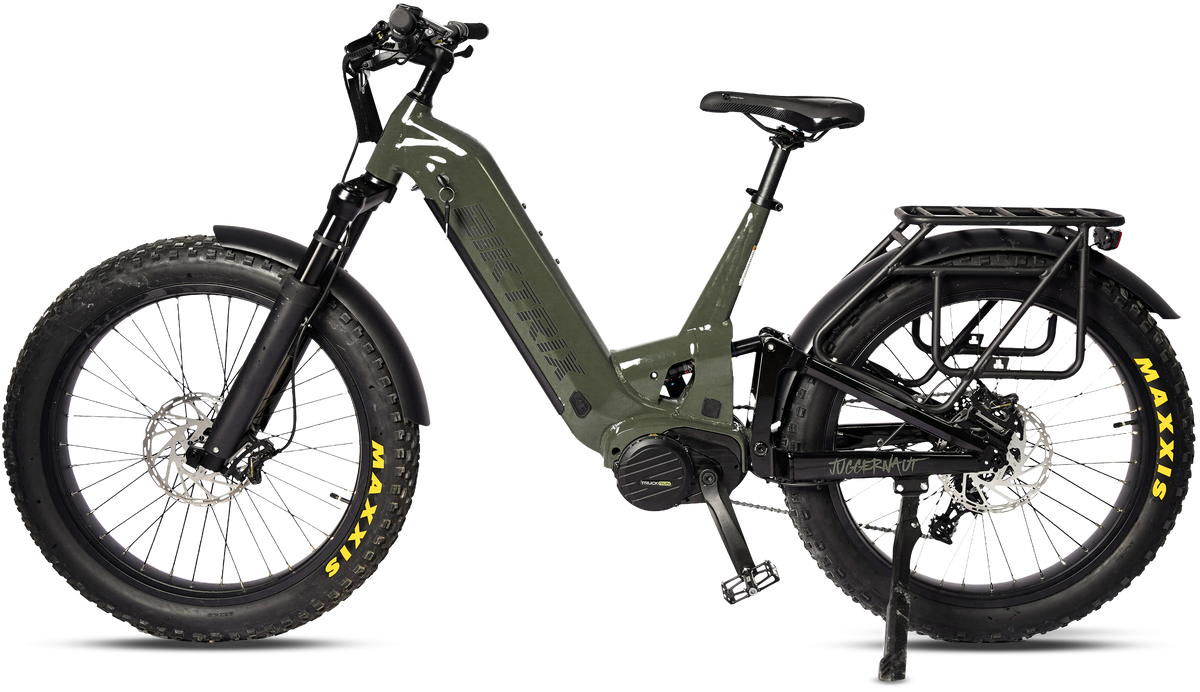

Step-Thru The Extraordinary.

This isn't just a bike; it's your bold companion for city commutes and all-terrain adventures.

Biktrix VS. Everyone

In the electrifying Battle of the Bikes, the Juggernaut FS Step-Through stands tall, ready to go head-to-head against the rest. Brace yourselves; this is no ordinary comparison – it's a clash of innovation and power.

Biktrix

Juggernaut FS

Starting at £3,999.00

  • Custom 52V 35A 1500W Bafang Ultra M620
  • 52V 25Ah 1300Wh
  • Dual Battery Support
  • Tektro E725 Quad-Piston, 203mm Rotors
  • MTB (27.5x2.8) or FAT (26x4)
  • SRAM NX 11 Speed
  • Ships from Canada (Custom Built Orders)
  • Direct Support From Canada +1-866-BIKTRIX
Frey

CC Fat

Starting at £4,980.00

  • Bafang M620 1000W Mid-Drive, 160 Nm Torque
  • 48V 21Ah 1008Wh
  • No Dual Battery Support
  • Magura MT5e Quad-Piston, 203mm Rotors
  • FAT Only (26x4)
  • Shimano Alivio 9 Speed
  • Ships from China (Some Custom Built Options)
  • Direct Support From China (via Email)
Specter ST

Specter ST

Starting at £3,799.00

  • Bafang M620 1000W Mid-Drive, 160 Nm Torque
  • 48V 17Ah 816Wh
  • No Dual Battery Support
  • EUNORAU Dual-Piston, 180MM Rotors
  • Only MTB (27.5x2.8)
  • SRAM NX 11 Speed
  • Ships from Third-Party US Warehouse (No Custom Orders)
  • Direct Support From China (via Email)

Full Suspension. Full Power.

The Juggernaut FS Step-Thru is not a compromise; its full-suspension design using the 53mm Travel DNM AO-38RC rear suspension along with the front suspension lets you glide over any surface with total control.

Dominance Unleashed

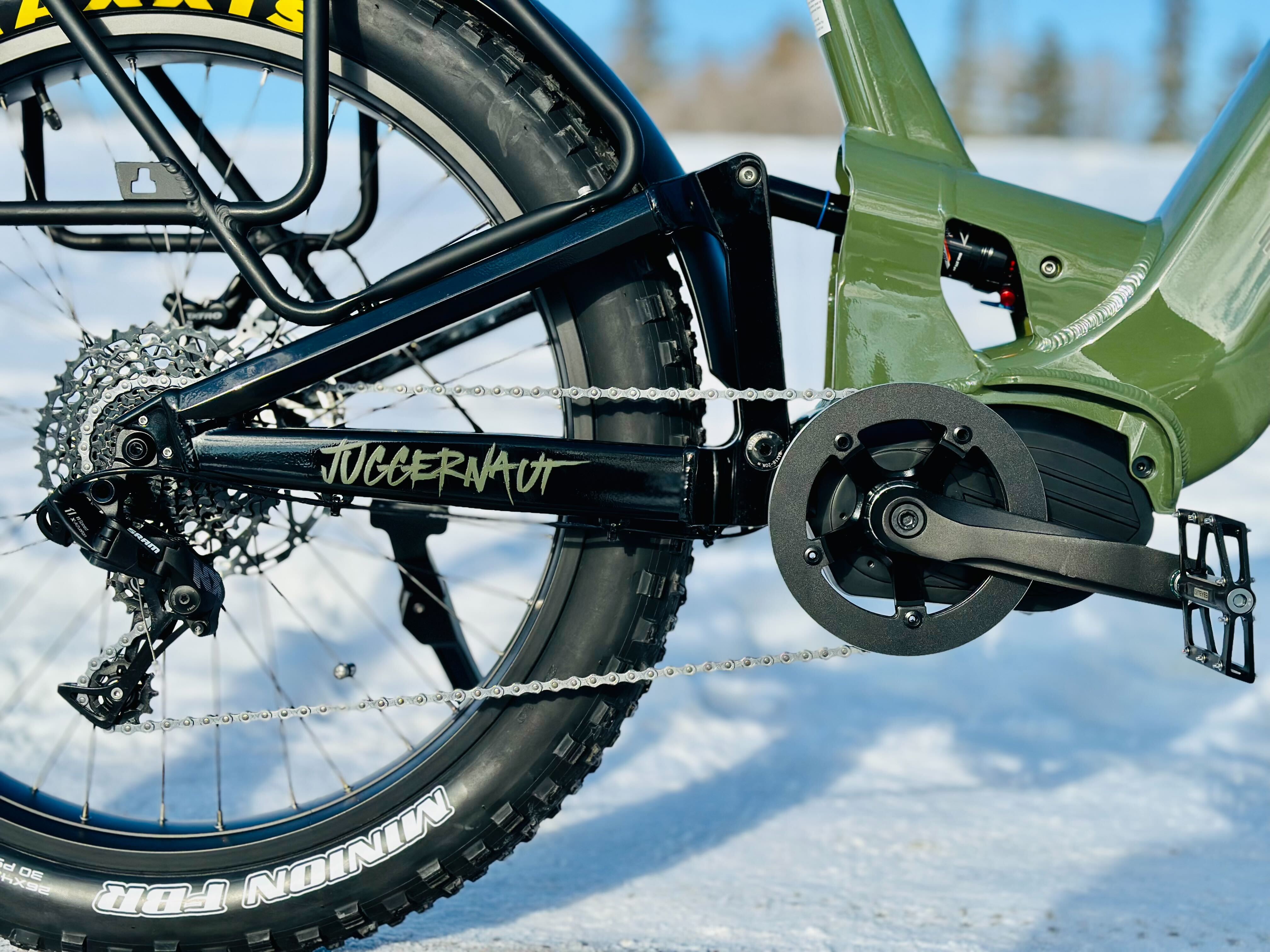

Expand every journey and conquer any elevation with the electrifying 1500W Custom Bafang Ultra M620 Mid-Drive motor delivering 200Nm+ peak torque with on-demand throttle or choose from 5 levels of torque + cadence sensing pedal assist

Battery Powerhouse

Elevate your off-road adventures with the Juggernaut FS Step-Thru, featuring a massive 52V 25Ah 1300Wh UL Certified default battery for up to 100 km on a single charge.

Extend your journey even further with the Range Extender option, pushing the limits to an impressive 160 km without breaking a sweat.

No Dual Battery
100km
Dual Battery
160km

Crush Any Obstacle.

Technical Specifications

Frame
6061 aluminum - 120mm frame travel
Front hub
150mm 36h ta
Seat post
31.6mm aluminum
Fork
Biktrix inverted w/100mm travel, lockout and preload adjustment
Front axle
15x150mm ta
Seat post clamp
38mm qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h ta
Motor
Custom 52v 35a 1500w bafang ultra m620 canbus
Shifter rear
Sram nx 11 speed trigger
Rear axle
12mm ta
Battery sizes
Total capacity of 52v 52v42ah 2184wh:
52v 25ah 1300wh (ul certified internal battery) +
52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Solid black, 36h, 80mm wide
Display
Canbus dpc-010 lcd display
Cassette
Sram 11-42t 11 speed
Tire sizes
26x4" maxxis minion
Lights
Integrated headlight
Chain
Kmc e11s - 126 links
Handlebar
780mm wide, 8° rise, 9° backsweep promax w/31.8mm clamp size
Assist type
Torque + cadence
Crank set
40t chainring w/170mm arms
Stem
Promax 40mm w/31.8mm clamp
Assist levels
0-6 (0-4)
Bottom bracket
Square tapered
Grips
Velo bolt-on mtb grips
Throttle
Thumb throttle
Brakes
Tektro e725 quad-piston brakes w/203mm rotors
Saddle
Gel padded mtb saddle
Other
Rear rack, fenders, kickstand
Brake levers
Tektro adjustable w/ integrated brake cutoffs
Rear suspension
Dnm ao-38rc w/53mm travel, 210 eye-to-eye, lockout + rebound adjustment
Frame
6061 aluminum - 120mm frame travel
Front hub
150mm 36h ta
Seat post
31.6mm aluminum
Fork
Biktrix inverted w/100mm travel, lockout and preload adjustment
Front axle
15x150mm ta
Seat post clamp
38mm qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h ta
Motor
Custom 52v 35a 1500w bafang ultra m620 canbus
Shifter rear
Sram nx 11 speed trigger
Rear axle
12mm ta
Battery sizes
Total capacity of 52v 52v42ah 2184wh:
52v 25ah 1300wh (ul certified internal battery) +
52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Solid black, 36h, 80mm wide
Display
Canbus dpc-010 lcd display
Cassette
Sram 11-42t 11 speed
Tire sizes
26x4" maxxis minion
Lights
Integrated headlight
Chain
Kmc e11s - 126 links
Handlebar
780mm wide, 8° rise, 9° backsweep promax w/31.8mm clamp size
Assist type
Torque + cadence
Crank set
40t chainring w/170mm arms
Stem
Promax 40mm w/31.8mm clamp
Assist levels
0-6 (0-4)
Bottom bracket
Square tapered
Grips
Velo bolt-on mtb grips
Throttle
Thumb throttle
Brakes
Tektro e725 quad-piston brakes w/203mm rotors
Saddle
Gel padded mtb saddle
Other
Rear rack, fenders, kickstand
Brake levers
Tektro adjustable w/ integrated brake cutoffs
Rear suspension
Dnm ao-38rc w/53mm travel, 210 eye-to-eye, lockout + rebound adjustment
Frame
6061 aluminum - 120mm frame travel
Front hub
150mm 36h ta
Seat post
31.6mm aluminum
Fork
Biktrix inverted w/100mm travel, lockout and preload adjustment
Front axle
15x150mm ta
Seat post clamp
38mm qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h ta
Motor
Custom 52v 35a 1500w bafang ultra m620 canbus
Shifter rear
Sram nx 11 speed trigger
Rear axle
12mm ta
Battery sizes
Total capacity of 52v 52v42ah 2184wh:
52v 25ah 1300wh (ul certified internal battery) +
52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Solid black, 36h, 80mm wide
Display
Canbus dpc-010 lcd display
Cassette
Sram 11-42t 11 speed
Tire sizes
26x4" maxxis minion
Lights
Integrated headlight
Chain
Kmc e11s - 126 links
Handlebar
780mm wide, 8° rise, 9° backsweep promax w/31.8mm clamp size
Assist type
Torque + cadence
Crank set
40t chainring w/170mm arms
Stem
Promax 40mm w/31.8mm clamp
Assist levels
0-6 (0-4)
Bottom bracket
Square tapered
Grips
Velo bolt-on mtb grips
Throttle
Thumb throttle
Brakes
Tektro e725 quad-piston brakes w/203mm rotors
Saddle
Gel padded mtb saddle
Other
Rear rack, fenders, kickstand
Brake levers
Tektro adjustable w/ integrated brake cutoffs
Rear suspension
Dnm ao-38rc w/53mm travel, 210 eye-to-eye, lockout + rebound adjustment

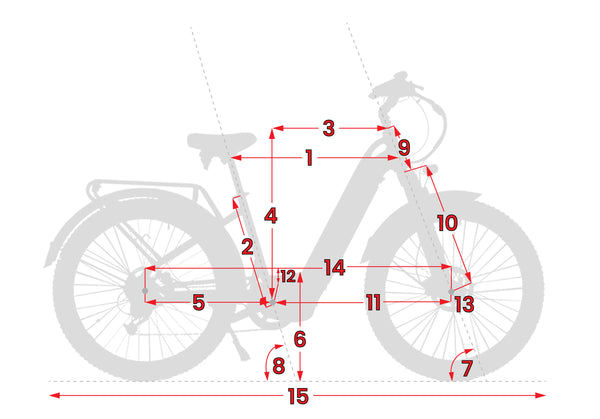

Size & Fittings

1
Effective Top Tube Length
650mm 25.6in
2
Seat Tube Length (Classic Bike Size)
480mm 18.9in
3
Reach
510mm 20.1in
4
Stack
630mm 24.8in
5
Chainstay Length
490mm 19.3in
6
Standover Height
550mm 21.7in
7
Head Angle
64° -
8
Seat Angle
71° -
9
Head Tube Length
145 mm 5.7 in
10
Fork Length
560mm 22in
11
Front Center
880mm 34.6in
12
BB (Bottom Bracket) Drop
35mm 1.4in
13
Fork Offset
35mm 1.4in
14
Wheelbase
1365mm 53.7in
15
Total Length
2070mm 81.5in
16
Max Seat Height
1030mm 40.6in
17
Min Seat Height
890mm 35in
18
Handlebar Height
1090mm 42.9in
19
Weight (Without Battery)
37.3kg 82.2lb
1
Effective Top Tube Length
670mm 26.4in
2
Seat Tube Length (Classic Bike Size)
435mm 17.1in
3
Reach
510mm 20.1in
4
Stack
630mm 24.8in
5
Chainstay Length
490mm 19.3in
6
Standover Height
535mm 21.1in
7
Head Angle
64° -
8
Seat Angle
71° -
9
Head Tube Length
145 mm 5.7 in
10
Fork Length
560mm 22in
11
Front Center
880mm 34.6in
12
BB (Bottom Bracket) Drop
35mm 1.4in
13
Fork Offset
35mm 1.4in
14
Wheelbase
1365mm 53.7in
15
Total Length
2070mm 81.5in
16
Max Seat Height
930mm 36.6in
17
Min Seat Height
840mm 33.1in
18
Handlebar Height
1050mm 41.3in
19
Weight (Without Battery)
37.3kg 82.2lb
