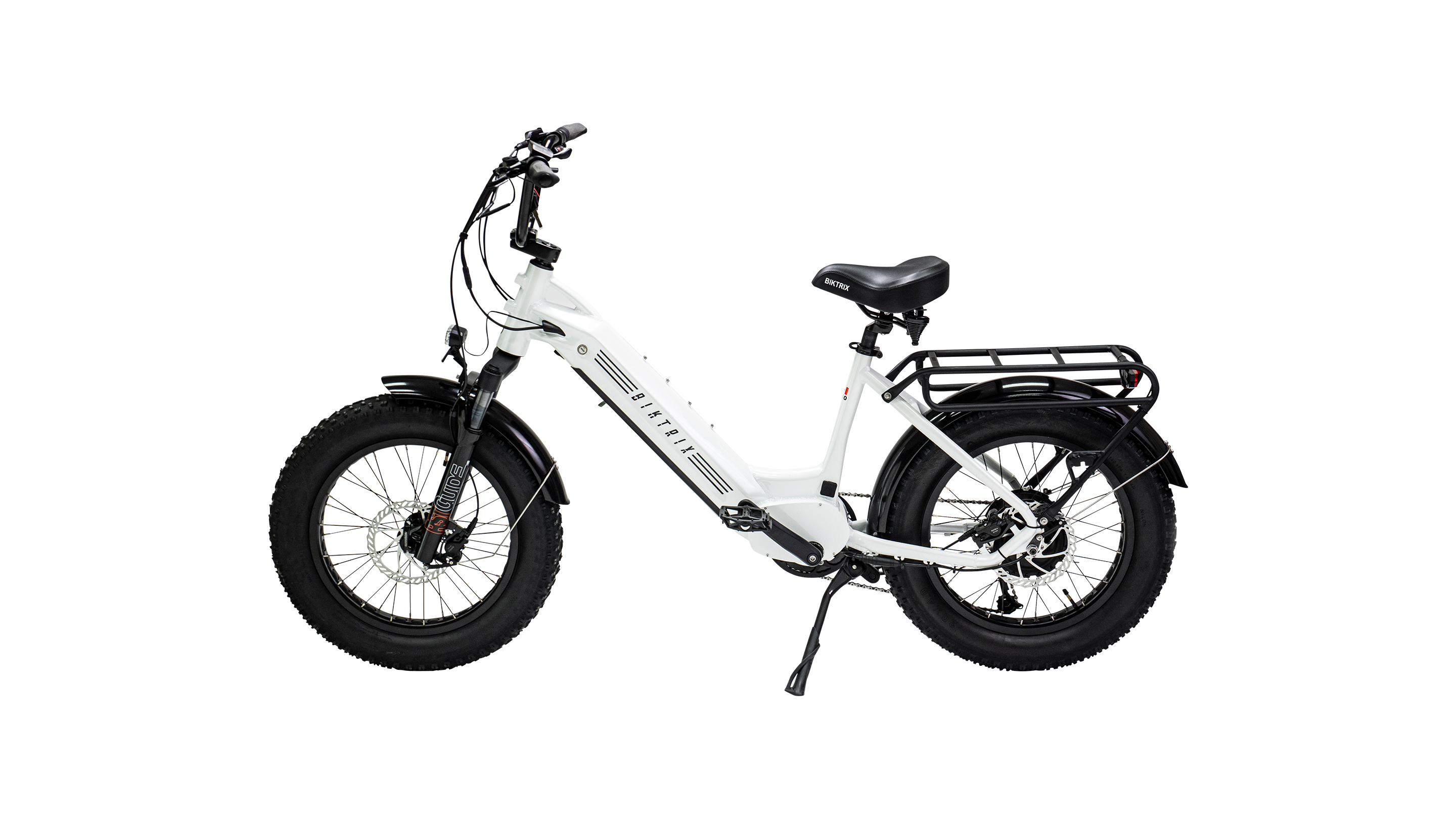

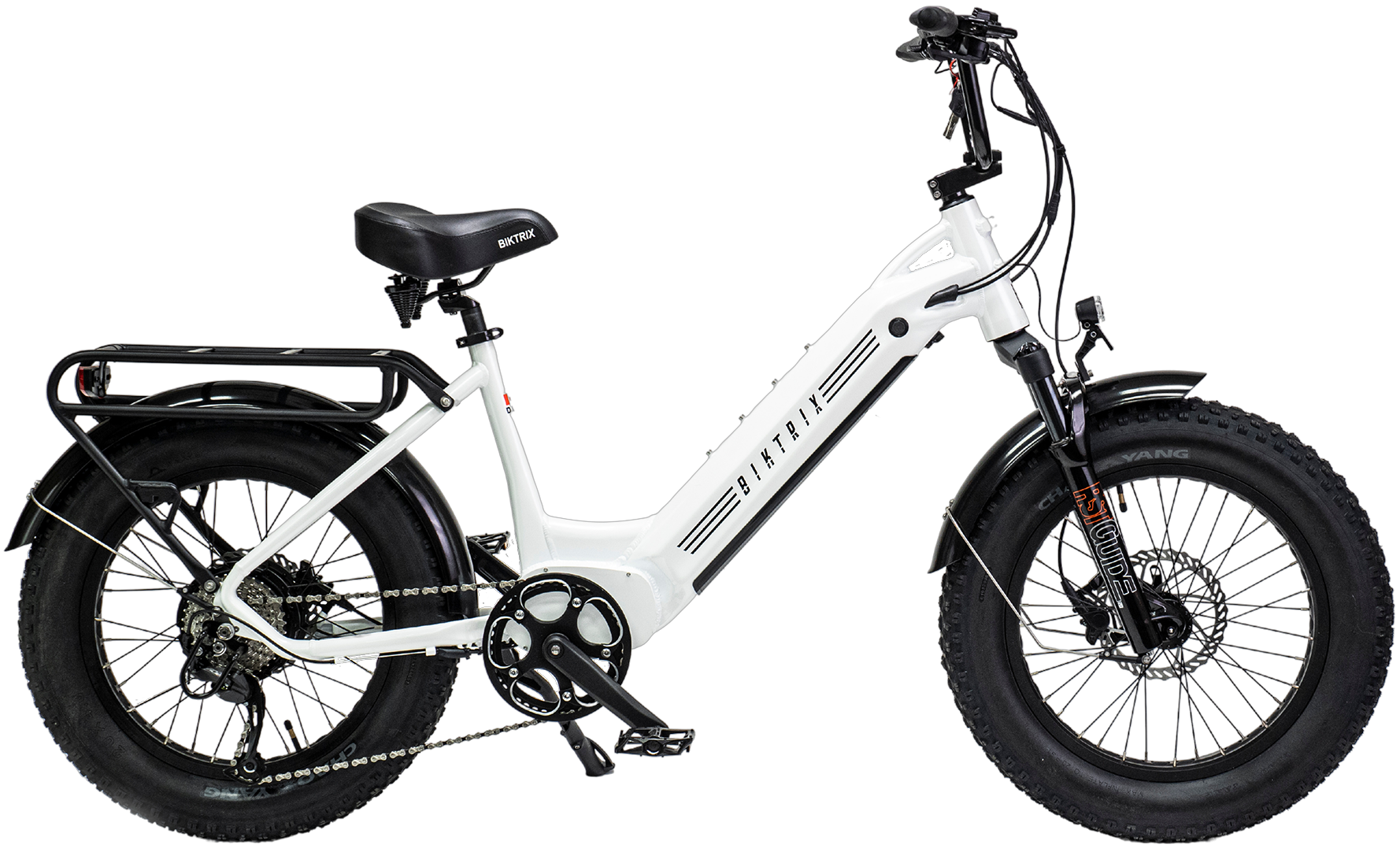

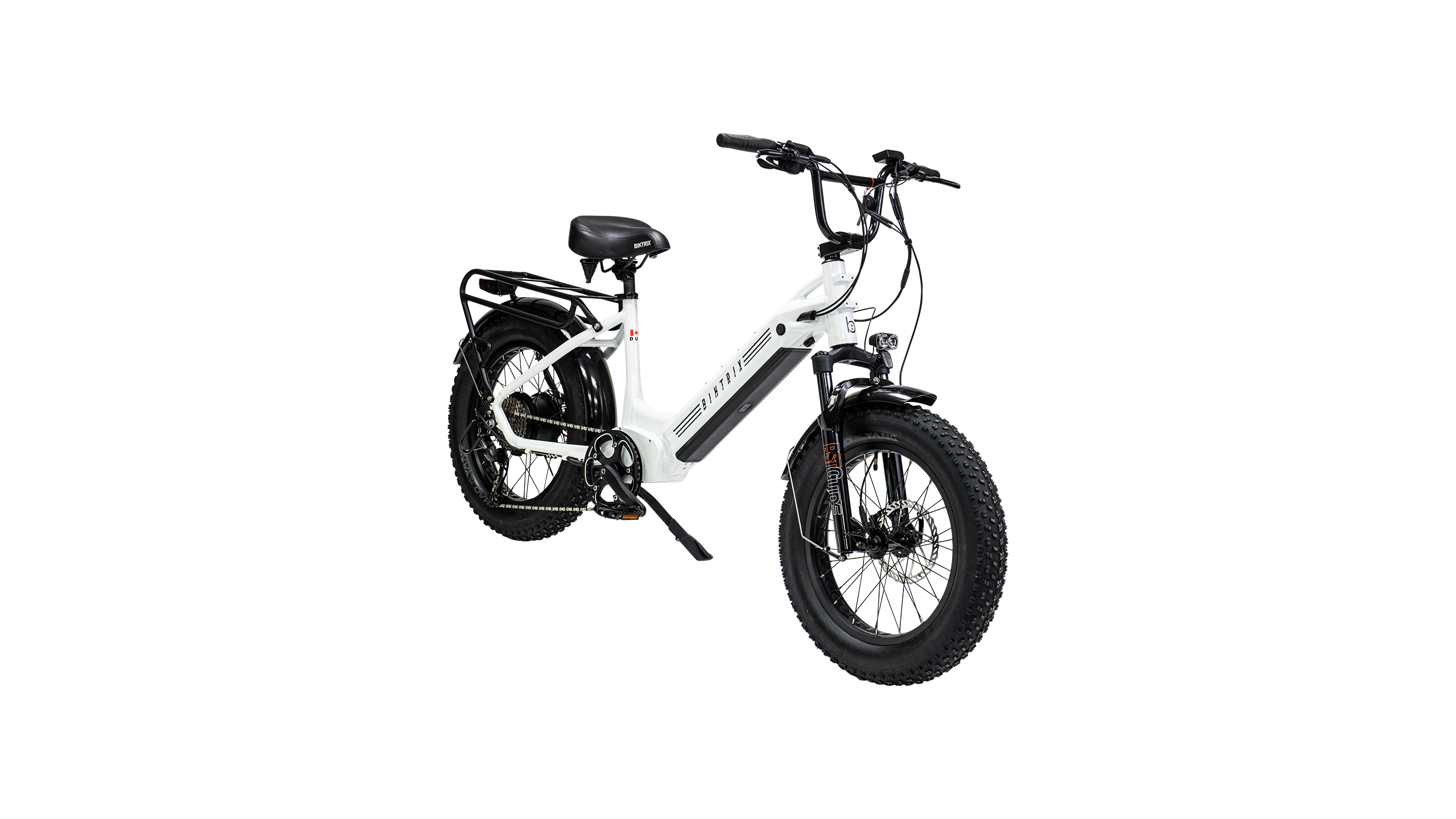

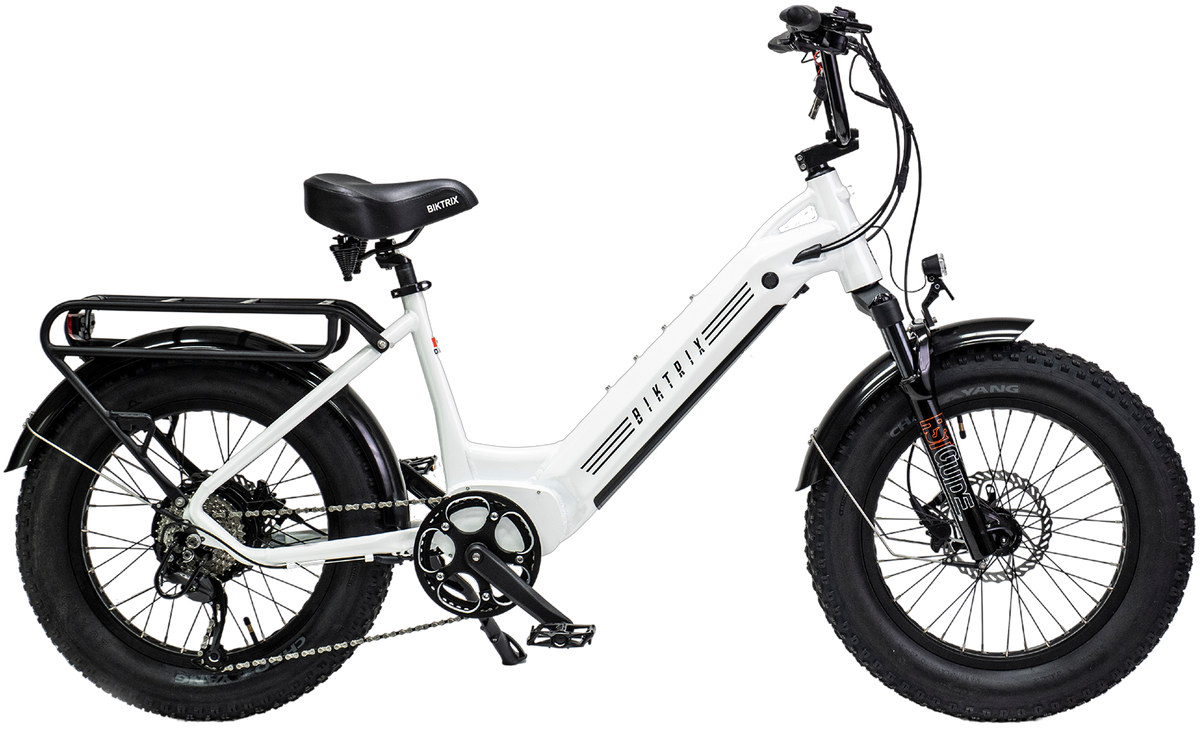

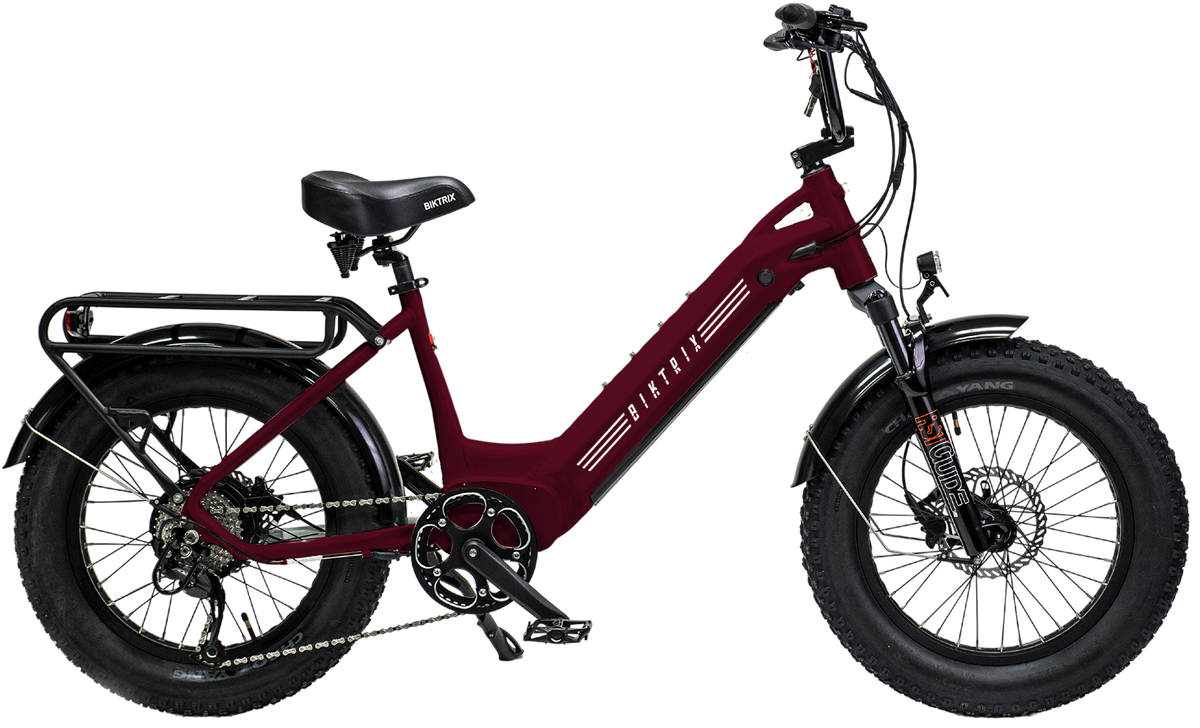

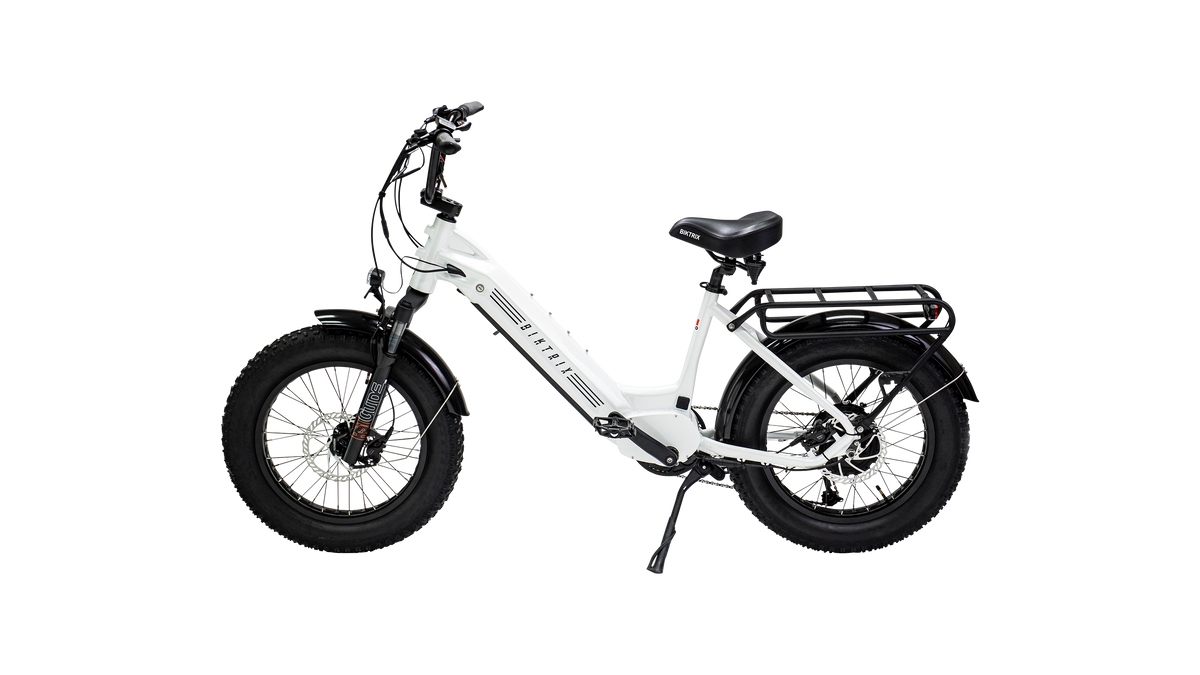

Juggernaut Hub Duo Small Step-Thru | 52V
Juggernaut Hub Duo Small Step-Thru | 52V
Juggernaut Hub Duo Small Step-Thru | 52V
Juggernaut Hub Duo Small Step-Thru | 52V
Juggernaut Hub Duo Small Step-Thru | 52V
Juggernaut Hub Duo Small Step-Thru | 52V
Juggernaut Hub Duo Small Step-Thru | 52V
Juggernaut Hub Duo Small Step-Thru | 52V
750W Hub-Drive

Motor Power

52V 17Ah 910Wh

est. 60mi Range

+5'2ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

UL Certified

Safety

Juggernaut Hub Duo Small ST | 52V

4.3
£1,980 £2,324
Save £344
Sale ends in
d h m s

🚀 Limited time only: Get a FREE Range Extender Battery.

Act Now! Sale ends Sept 02.

What frame will fit me?

×

The best way to ensure a fit is to check this measurement on your existing bike’s normal riding seat position;

If this measurement is equal to or MORE than the minimum seat height of the selected model then the selected frame size will work, however, if it is LESS you need to select a smaller frame.



If you do not have a bike then measure your inseam like this;

For most riders, the frame will work if their inseam is at least 2 inches less than the minimum seat height in inches. For example, a rider with an inseam of 28 inches can fit on a bike with a minimum seat height of 30 inches (30 - 2 = 28).

If you want to have a flat foot on the ground while on a full stop then your inseam must be equal to or greater than the minimum seat height listed for that frame size.


If you are selecting a step-over frame, ensure that the standover height listed is less than your inseam size.



    When in doubt, pick the smaller frame. You can always raise the seat up higher.

    If you need help with this, feel free to send us a note.
    Pearl White
    Packages
    Battery

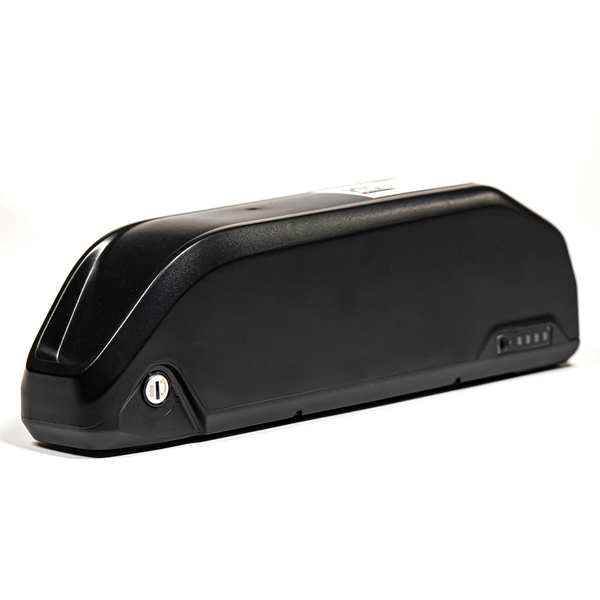

    Range Extender Battery


    This option adds an extra battery that mounts on top of the frame providing up to double the range of the stock battery.

    **Additional Range Extender Battery Shipping Separately Mid-February
    Upgrades
    Seatpost


    Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

    ***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"
    Brakes


    Enhance your safety and control on every ride by upgrading your eBike brakes.

    ***Magura upgrades come with a front brake rotor upgrade from 180mm to 203mm

    What Kind Of Brakes Should I Choose?

    ×

    Biktrix bikes are equipped with great brakes which are more than sufficient for most riders. However, if you plan on riding technical trails or have several descents on your daily ride, we offer a variety of brake upgrades which offer superior stopping power.

    Unless otherwise stated, most Biktrix ebikes come standard with dual-piston hydraulic brakes. For heavier riders, folks who plan to haul more gear (ie: hunters), or anyone planning to ride over steep or technical terrain, the Quad piston brake upgrade is worth considering. Quad piston brakes have more stopping ability than the dual-piston (Quad piston brake upgrades not available on all models).

    Headlights


    Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

    Note: This is a DIY upgrade upon purchasing the bike. Our Installation Guide for this can be found here.

    ×

    The stock headlights on Biktrix eBike's work great and allow the rider to be seen. If you plan on riding after dusk however, we highly recommend upgrading to an Armageddon headlight which turns night into day for riding. This is particularly handy for anyone who commutes in the evenings or rides off road in places not well lit.

    Accessories
    Canvas Pannier Bags
    Canvas Pannier Bags


    These Canvas bags offer great convenience and carrying capacity!

    Warranty

    Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

    Why BiktrixCare+?

    ×

    Biktrix is proud to introduce our latest warranty option for all clients on all products. With these latest upgrades, we will guarantee primary customer service and premium care for your eBike.

    2-Year

    Standard

    Standard Warranty that is included for all our eBikes for basic coverage

    • Battery & Charger
    • Cables, Wiring, Electronic Sensors
    • Front and Rear Suspensions
    • Motor* & Controller
    • Brakes
    4-Years

    BiktrixCare+

    Starting at $349.00

    The Ultimate coverage for your eBike, for complete peace of mind.

    • Everything in Standard
    • Refundable**
    • eBike Frame
    • Transferable

    Inclusions

    This package can be purchased within 30 Days from the date of delivery or while placing the eBike order whichever is earlier. BiktrixCare+ will cover the following list of eBike parts for manufacturing defects under the respective packages. BiktrixCare+ Gold is transferable once from the original buyer to another person subject to notifying the transfer of ownership to BEB.

    *Motors

    BEB will request to ship the motor to the Service Centre if the defect is fixable. Labour and parts cost is included in the motor service at BEB’s Service Centre. If the defect is unfixable BEB will issue a refurbished replacement. Shipping charges are excluded for the motor service. For Hub-Motors the maximum liability is the cost of the motor.

    **Cancellation & Refund

    BiktrixCare+ alone cannot be cancelled or refunded once the bike has been shipped. If the bike is returned under the first 14-day return window for a refund, 100% of the amount paid for this package would be refunded. If BEB decides to sever all relations with an owner under Section 19 this package would be deemed terminated with no refund

    Learn More About BiktrixCare+

    £1,980.00 £2,324.00
    Shipping: Leaves within 6-7 business days

    Technical Specifications

    ×
    Frame
    6061 aluminum
    Front hub
    135mm 36h
    Seat post
    28.6mm
    Fork
    Rst guide w/ 60mm travel, adjustable preload
    Front axle
    5mm qr
    Seat post clamp
    Qr
    Headset
    Threadless 1-1/8" straight
    Rear hub
    Motor
    Motor
    750w rear hub
    Shifter rear
    Shimano alivio 9 speed trigger
    Rear axle
    Bolt-on
    Battery sizes
    Total capacity of 52v 34ah 1794wh:
    52v 17.5ah 910wh (internal battery) +
    up to 52v 17ah 884wh (external range extender battery)
    Rear derailleur
    Shimano alivio 9 speed
    Rims
    20" black w/ round cutouts, 36h
    Display
    Dm07
    Cassette
    9 speed 11-34t cassette
    Tire sizes
    20x4" chaoyang

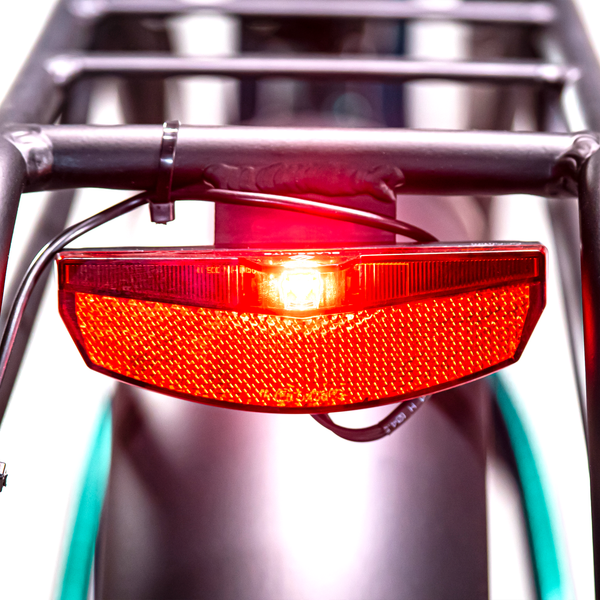

    Lights
    Integrated headlight, taillight
    Chain
    Kmc e9s - 124 links
    Handlebar
    690mm wide, 20mm tall, 25.4mm clamp bmx style
    Assist type
    Torque + cadence
    Crank set
    44t chainring w/ 170mm arms
    Stem
    120mm adjustable
    Assist levels
    0-5 (0-3, 0-9)
    Bottom bracket
    Square taper w/ integrated torque sensor
    Grips
    Slide-on
    Throttle
    Thumb throttle
    Brakes
    Xod e300 dual piston hydraulic brakes w/180mm rotors
    Saddle
    Biktrix comfy saddle
    Other
    Front and rear fenders, rear rack, kickstand
    Brake levers
    Adjustable w/ integrated brake cutoff sensors
    Frame
    6061 aluminum
    Front hub
    135mm 36h
    Seat post
    28.6mm
    Fork
    Rst guide w/ 60mm travel, adjustable preload
    Front axle
    5mm qr
    Seat post clamp
    Qr
    Headset
    Threadless 1-1/8" straight
    Rear hub
    Motor
    Motor
    750w rear hub
    Shifter rear
    Shimano alivio 9 speed trigger
    Rear axle
    Bolt-on
    Battery sizes
    Total capacity of 52v 34ah 1794wh:
    52v 17.5ah 910wh (internal battery) +
    up to 52v 17ah 884wh (external range extender battery)
    Rear derailleur
    Shimano alivio 9 speed
    Rims
    20" black w/ round cutouts, 36h
    Display
    Dm07
    Cassette
    9 speed 11-34t cassette
    Tire sizes
    20x4" chaoyang
    Lights
    Integrated headlight, taillight
    Chain
    Kmc e9s - 124 links
    Handlebar
    690mm wide, 20mm tall, 25.4mm clamp bmx style
    Assist type
    Torque + cadence
    Crank set
    44t chainring w/ 170mm arms
    Stem
    120mm adjustable
    Assist levels
    0-5 (0-3, 0-9)
    Bottom bracket
    Square taper w/ integrated torque sensor
    Grips
    Slide-on
    Throttle
    Thumb throttle
    Brakes
    Xod e300 dual piston hydraulic brakes w/180mm rotors
    Saddle
    Biktrix comfy saddle
    Other
    Front and rear fenders, rear rack, kickstand
    Brake levers
    Adjustable w/ integrated brake cutoff sensors

    Sizing / Fittings

    ×
    1
    Effective Top Tube Length
    		 620mm 24.4in
    2
    Seat Tube Length (Classic Bike Size)
    		 420mm 16.5in
    3
    Reach
    		 520mm 20.5in
    4
    Stack
    		 540mm 21.3in
    5
    Chainstay Length
    		 430mm 16.9in
    6
    Standover Height
    		 420mm 16.5in
    7
    Head Angle
    		 67° -
    8
    Seat Angle
    		 73° -
    9
    Head Tube Length
    		 190 mm 7.5 in
    10
    Fork Length
    		 430mm 16.9in
    11
    Front Center
    		 830mm 32.7in
    12
    BB (Bottom Bracket) Drop
    		 30mm 1.2in
    13
    Fork Offset
    		 30mm 1.2in
    14
    Wheelbase
    		 1220mm 48in
    15
    Total Length
    		 1850mm 72.8in
    16
    Max Seat Height
    		 950mm 37.4in
    17
    Min Seat Height
    		 800mm 31.5in
    18
    Handlebar Height
    		 1070mm 42.1in
    19
    Weight (Without Battery)
    		 27.3kg 60.2lb
    750W Hub-Drive

    Motor Power

    52V 17Ah 910Wh

    est. 60mi Range

    +5'2ft / 330lb

    Max Load

    Torque Sensor

    Powerful Pedal Assist

    UL Certified

    Safety

    60+

    Miles Range

    80Nm

    Torque For Extreme Hills

    52V 17Ah

    Strong, Reliable Battery

    The Duo Series. Ebikes For Everyone.

    The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

    Watch this video to see how The 3 Duo models stack up.

    Simple. Capable. Affordable.

    The Hub Duo is our most user-friendly & affordable eBike in the Juggernaut family. Thanks to the 750W hub-drive motor, you'll get an easy-going ride with plenty of power to boost you up those tough hills. Mix that with our 5-star customer service and you've got yourself a perfect entry-level eBike.

    Bells & Whistles? You Bet.

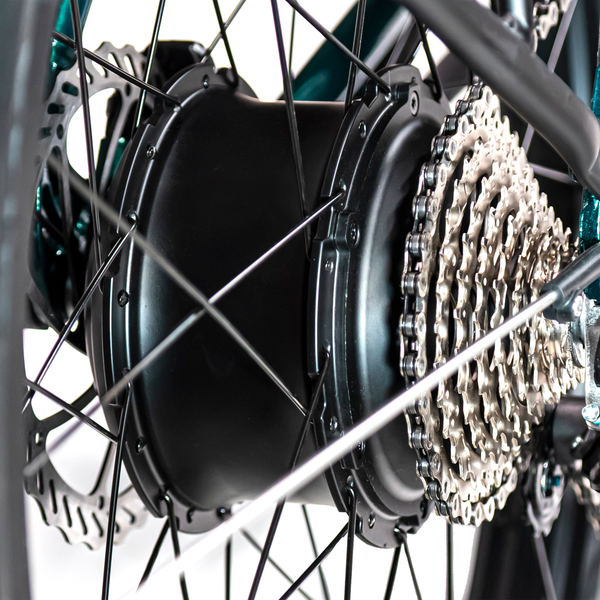

    750W Hub Motor

    The powerful hub-drive motor features 750 watts of power and 80Nm of torque. This allows you to span cities, climb hils and explore all the places you want to go with ease

    Optional Range Extender

    Multiple range extender battery options can expand your eBike’s range all the way to 100 miles

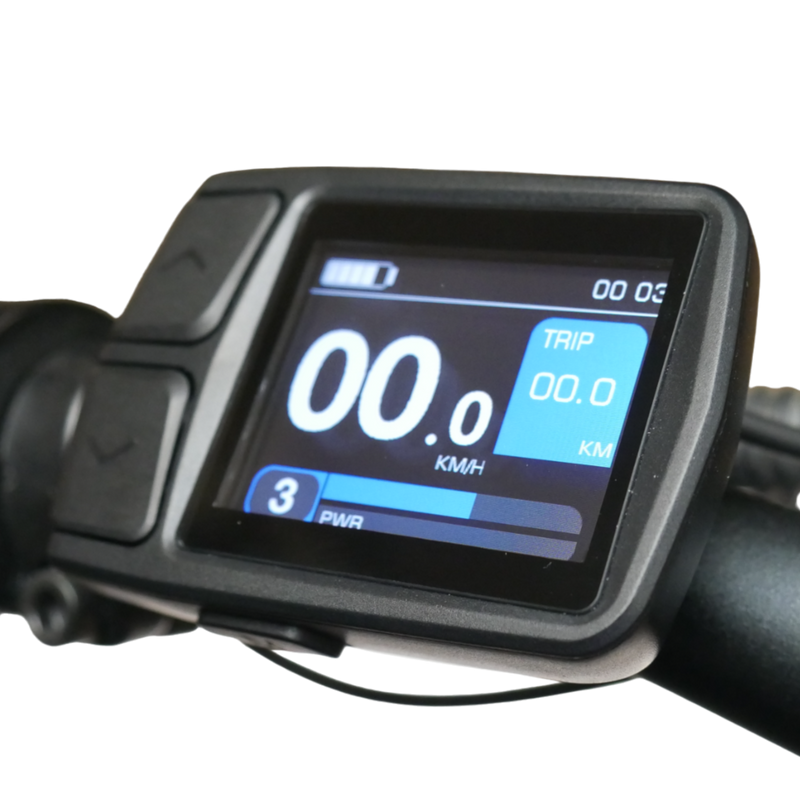

    LCD Display

    The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

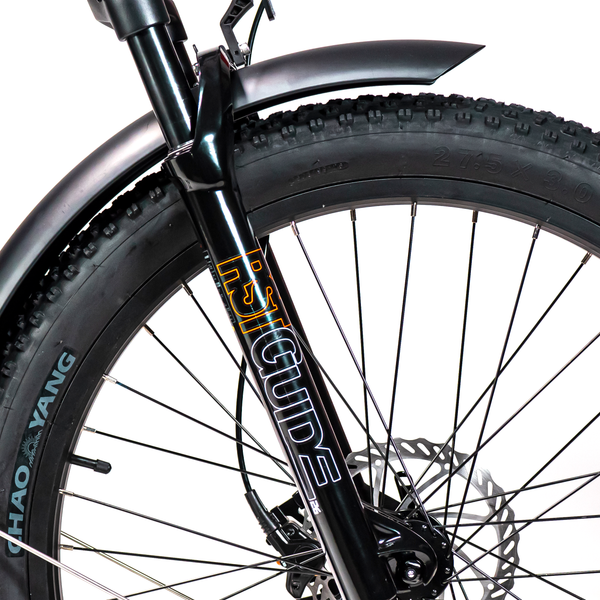

    Suspension Fork

    The RST Guide fork provides 60mm of travel with an adjustable preload to provide a comfortable ride for the terrain you want to tackle.

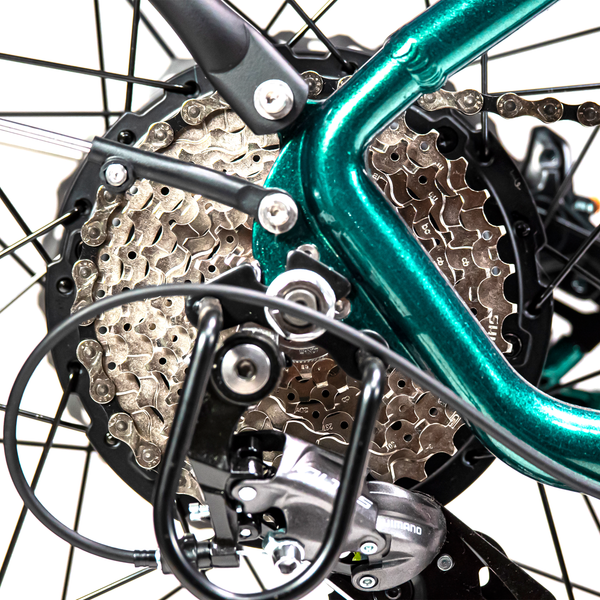

    Drivetrain

    From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.

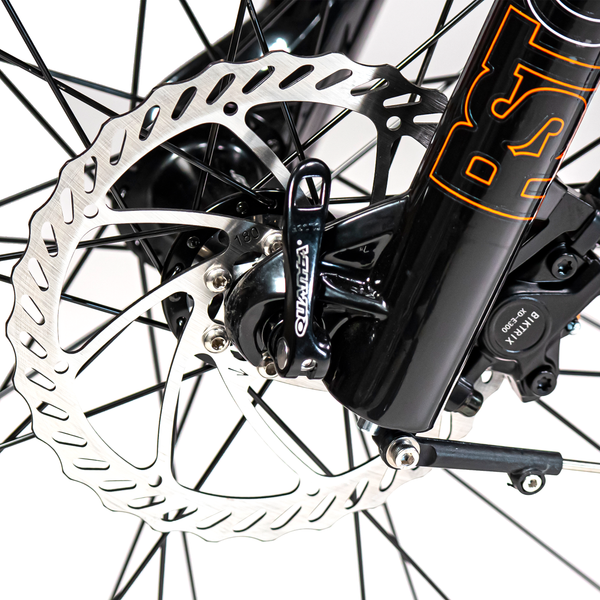

    Hydraulic Disc Brakes

    When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

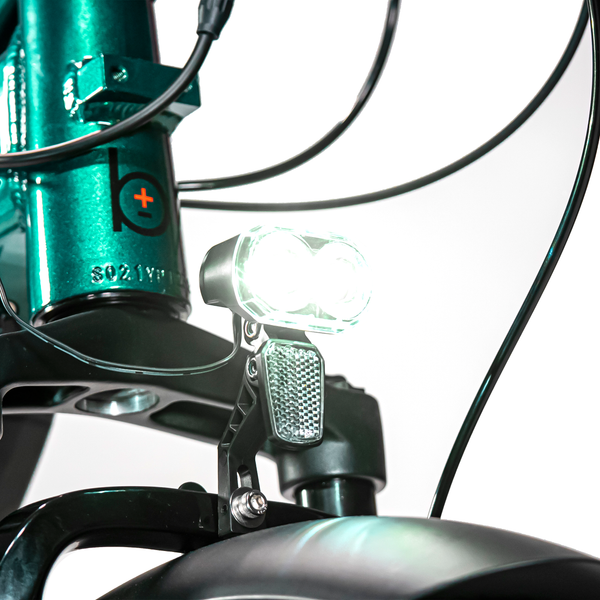

    Integrated Front Light

    This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

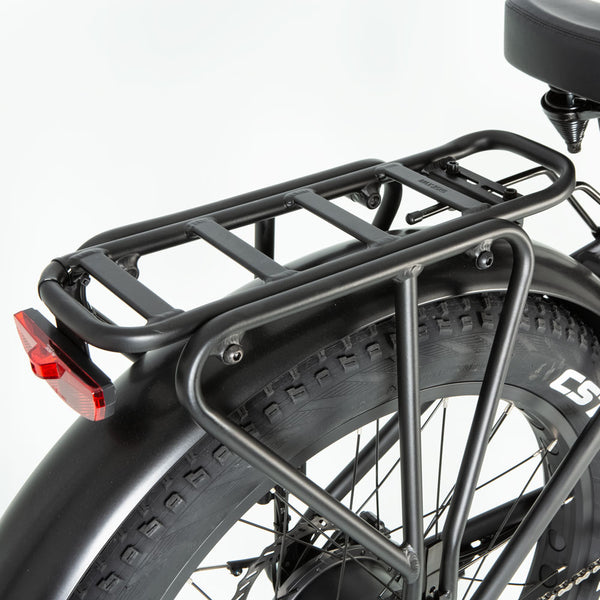

    Rack & Fenders

    These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

    Distance Range (Single Battery)

    Technical Specifications
