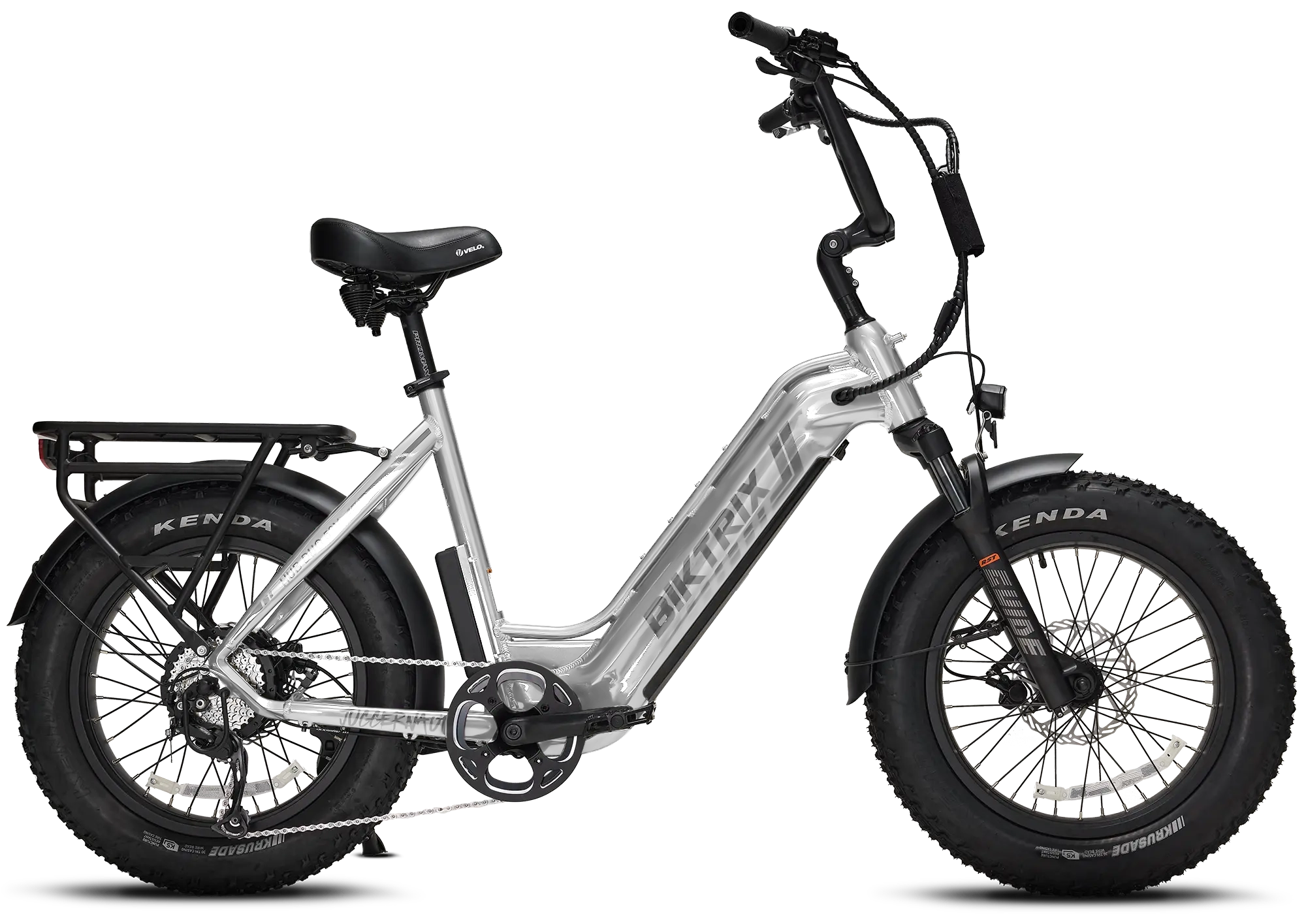

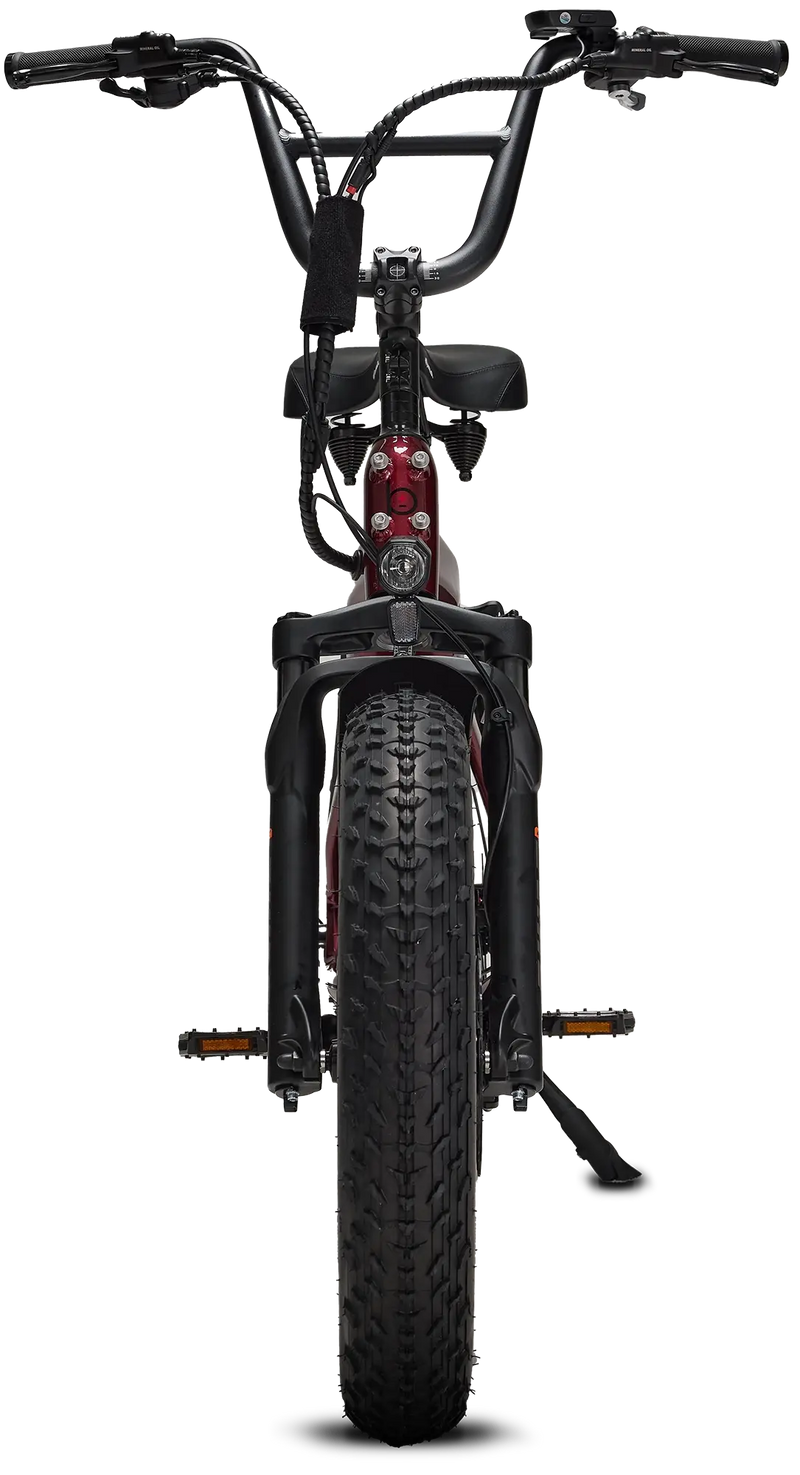

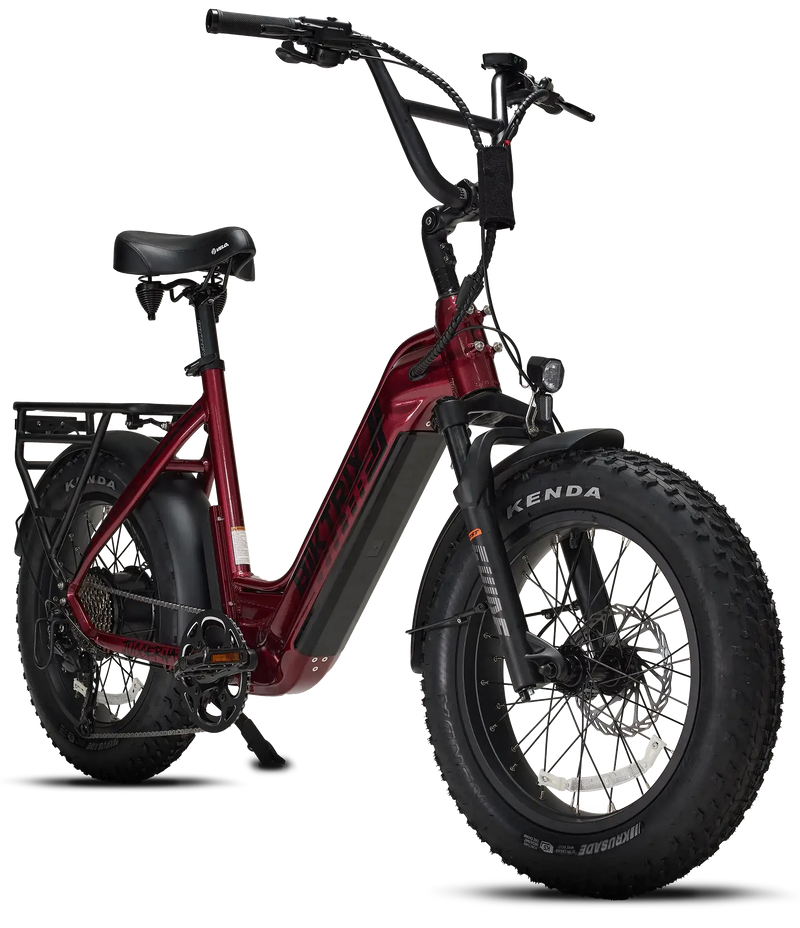

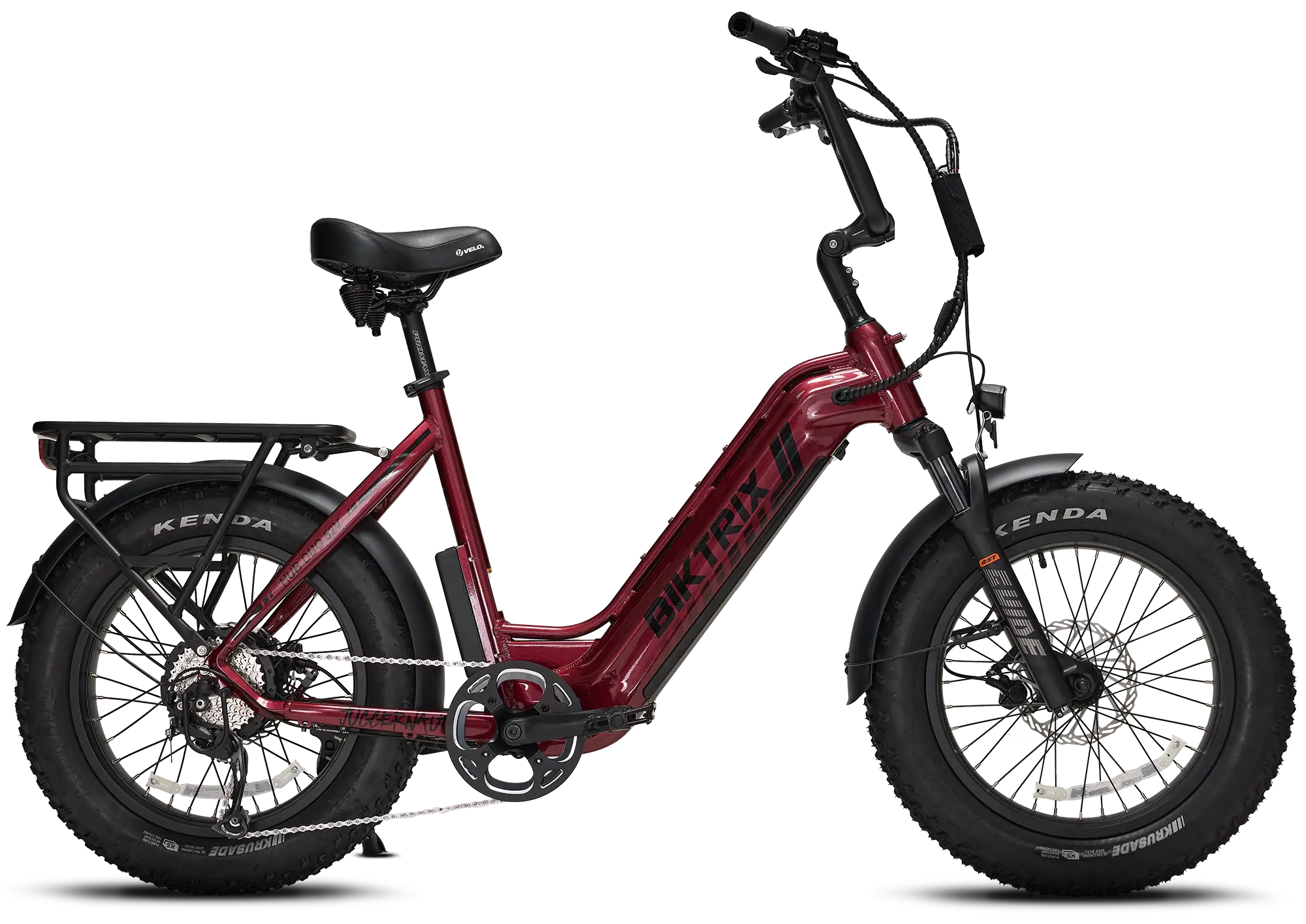

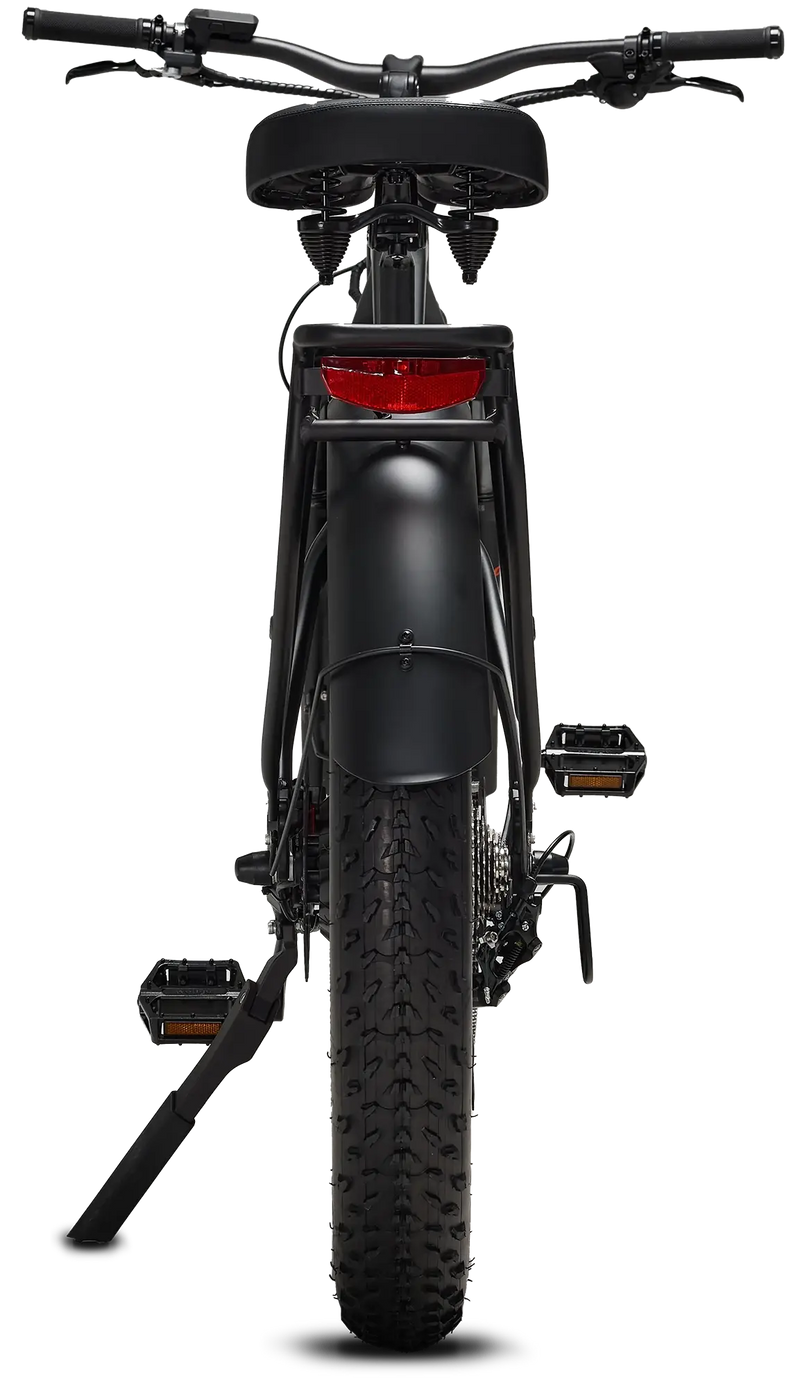

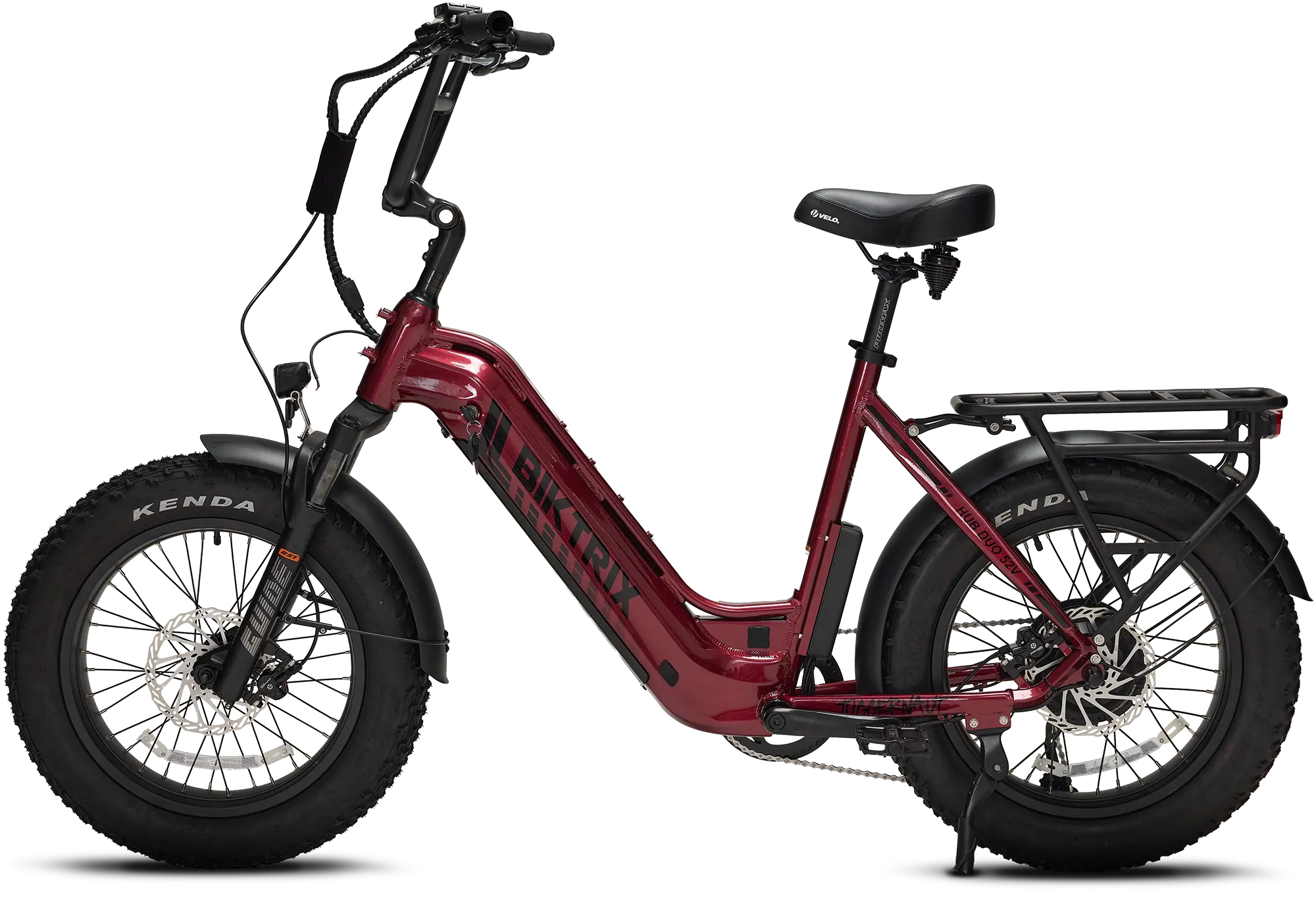

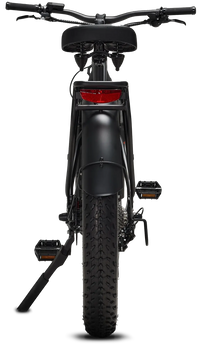

Juggernaut Hub Duo Step-Thru Small 2
Juggernaut Hub Duo Step-Thru Small 2
Custom Color
Juggernaut Hub Duo Step-Thru Small 2
Juggernaut Hub Duo Step-Thru Small 2
Juggernaut Hub Duo Step-Thru Small 2
Juggernaut Hub Duo Step-Thru Small 2
Juggernaut Hub Duo Step-Thru Small 2
Juggernaut Hub Duo Step-Thru Small 2
Custom Color
Juggernaut Hub Duo Step-Thru Small 2
Juggernaut Hub Duo Step-Thru Small 2
Juggernaut Hub Duo Step-Thru Small 2
Juggernaut Hub Duo Step-Thru Small 2
750W Hub-Drive

Motor Power

52V 17Ah 910Wh

est. 60mi Range

+5'2"ft / 265lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

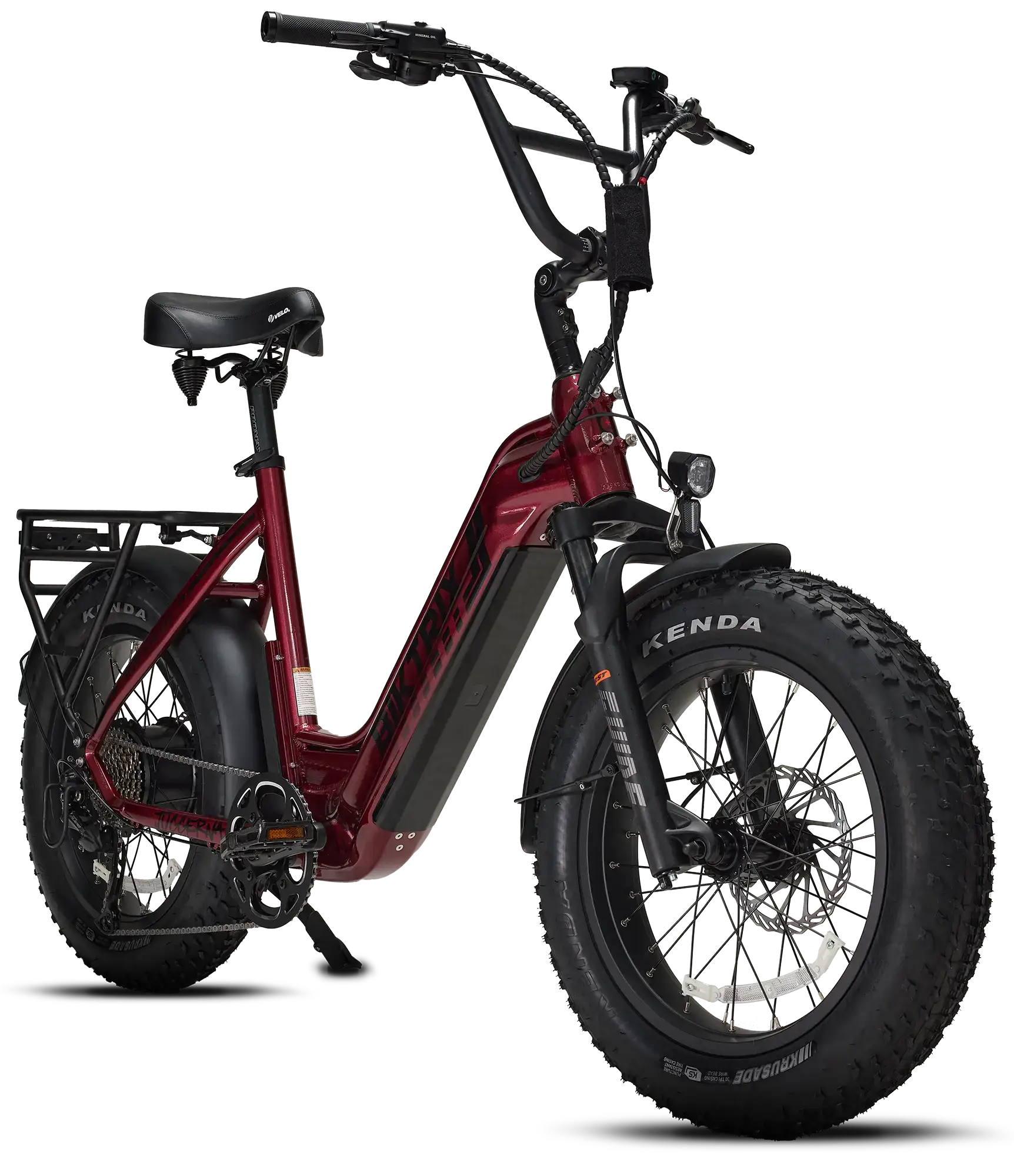

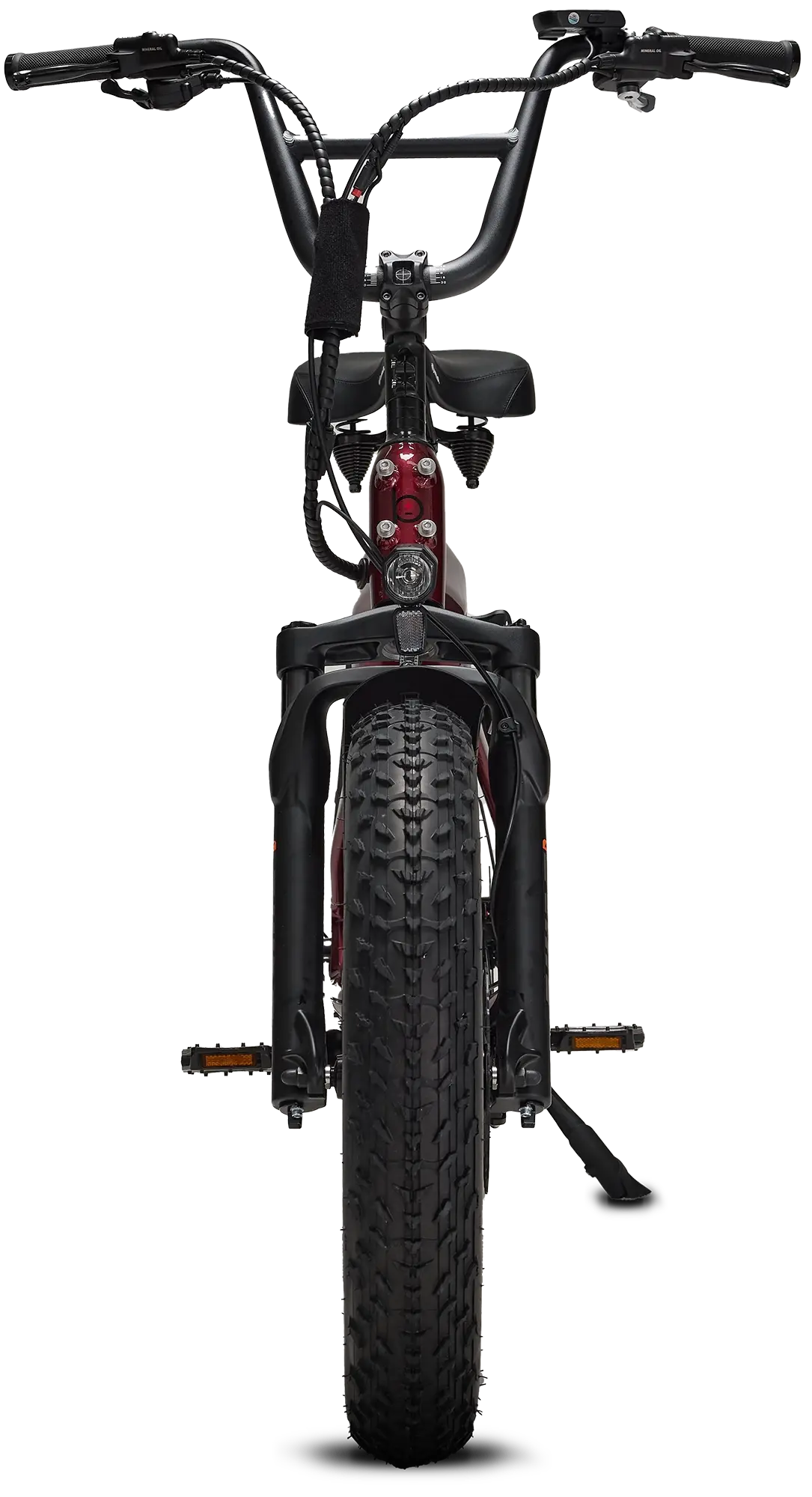

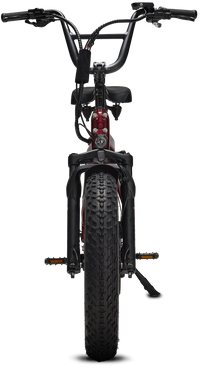

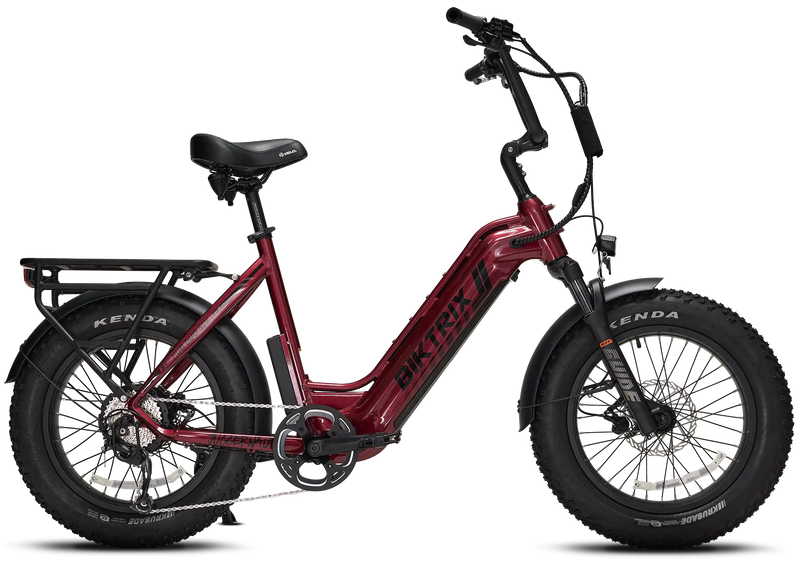

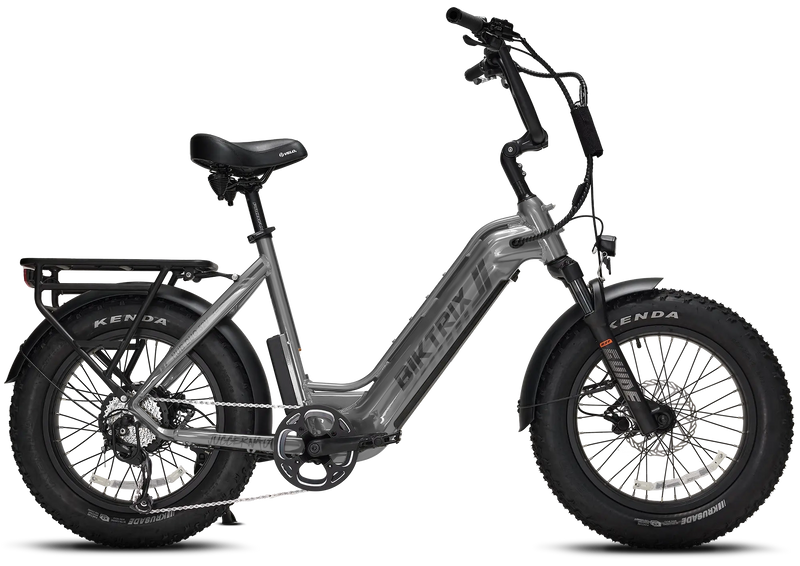

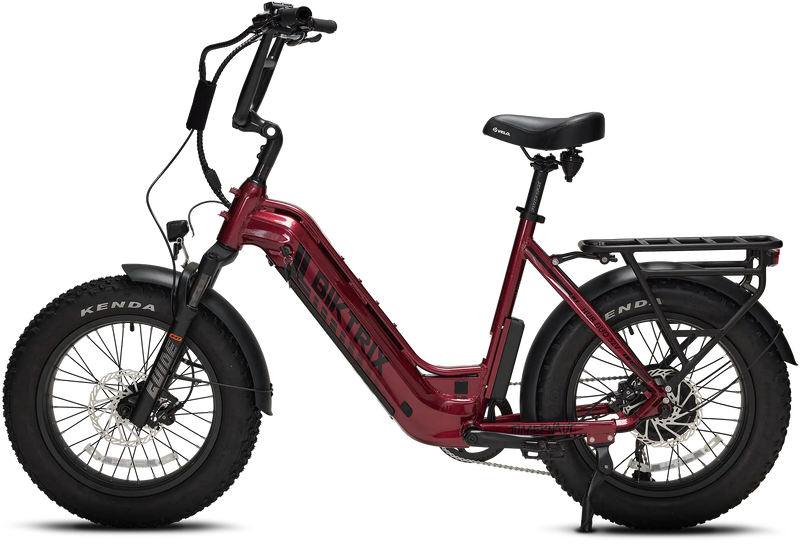

Juggernaut Hub Duo ST Small 2

£1,786 £2,330
Save £544
Attention: Note for residents of California.
Black Cherry
Packages
Battery
[Select] Battery Options
Battery


A sleek internal battery that provides reliable power and range to extend your ride!

Range Extender Battery


This option adds an extra battery that mounts on top of the frame providing up to double the range of the stock battery.

Upgrades
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

***Magura upgrades come with a front brake rotor upgrade from 180mm to 203mm

What Kind Of Brakes Should I Choose?

×

Biktrix bikes are equipped with great brakes which are more than sufficient for most riders. However, if you plan on riding technical trails or have several descents on your daily ride, we offer a variety of brake upgrades which offer superior stopping power.

Unless otherwise stated, most Biktrix ebikes come standard with dual-piston hydraulic brakes. For heavier riders, folks who plan to haul more gear (ie: hunters), or anyone planning to ride over steep or technical terrain, the Quad piston brake upgrade is worth considering. Quad piston brakes have more stopping ability than the dual-piston (Quad piston brake upgrades not available on all models).

Headlights


Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

Note: This is a DIY upgrade upon purchasing the bike. Our Installation Guide for this can be found here.

×

The stock headlights on Biktrix eBike's work great and allow the rider to be seen. If you plan on riding after dusk however, we highly recommend upgrading to an Armageddon headlight which turns night into day for riding. This is particularly handy for anyone who commutes in the evenings or rides off road in places not well lit.

Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail. Dropper posts allow for easy adjustment of seat height for different riding styles!

***Adding a suspension or dropper seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"
Motor Power


Program your motor to meet local eBike regulations or opt for unlimited speed and power suitable for off-road use only.

What Motor Should I Choose?

×

In most places, 500w (32kmph/20mph) is the street-legal setting and for many casual riders is lots of power to get you where you are going.

If you are riding off-road, on private land, you may want to consider the unlock option to get the most power out of your motor.



**Note that the onus is on you, the rider, to determine whether it is legal to ride an ebike where you intend to ride it. Biktrix will not be held liable if the rider decides to break local laws by riding an ebike illegally.

Accessories
Canvas Pannier Bags
Canvas Pannier Bags


These Canvas bags offer great convenience and carrying capacity!

Coloured Pedals


Add some extra flair to your eBike with a set of coloured pedals!

Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Why BiktrixCare+?

×

Biktrix is proud to introduce our latest warranty option for all clients on all products. With these latest upgrades, we will guarantee primary customer service and premium care for your eBike.

2-Year

Standard

Standard Warranty that is included for all our eBikes for basic coverage

  • Battery & Charger
  • Cables, Wiring, Electronic Sensors
  • Front and Rear Suspensions
  • Motor* & Controller
  • Brakes
4-Years

BiktrixCare+

Starting at $349.00

The Ultimate coverage for your eBike, for complete peace of mind.

  • Everything in Standard
  • Refundable**
  • eBike Frame
  • Transferable

Inclusions

This package can be purchased within 30 Days from the date of delivery or while placing the eBike order whichever is earlier. BiktrixCare+ will cover the following list of eBike parts for manufacturing defects under the respective packages. BiktrixCare+ Gold is transferable once from the original buyer to another person subject to notifying the transfer of ownership to BEB.

*Motors

BEB will request to ship the motor to the Service Centre if the defect is fixable. Labour and parts cost is included in the motor service at BEB’s Service Centre. If the defect is unfixable BEB will issue a refurbished replacement. Shipping charges are excluded for the motor service. For Hub-Motors the maximum liability is the cost of the motor.

**Cancellation & Refund

BiktrixCare+ alone cannot be cancelled or refunded once the bike has been shipped. If the bike is returned under the first 14-day return window for a refund, 100% of the amount paid for this package would be refunded. If BEB decides to sever all relations with an owner under Section 19 this package would be deemed terminated with no refund

Learn More About BiktrixCare+

£1,786.00 £2,330.00
Shipping: Leaves within Mid September

Sizing / Fittings

×
1
Effective Top Tube Length
 620mm 24.4in
2
Seat Tube Length (Classic Bike Size)
 420mm 16.5in
3
Reach
 520mm 20.5in
4
Stack
 540mm 21.3in
5
Chainstay Length
 430mm 16.9in
6
Standover Height
 420mm 16.5in
7
Head Angle
 67° -
8
Seat Angle
 73° -
9
Head Tube Length
 190 mm 7.5 in
10
Fork Length
 430mm 16.9in
11
Front Center
 830mm 32.7in
12
BB (Bottom Bracket) Drop
 30mm 1.2in
13
Fork Offset
 30mm 1.2in
14
Wheelbase
 1220mm 48in
15
Total Length
 1850mm 72.8in
16
Max Seat Height
 950mm 37.4in
17
Min Seat Height
 800mm 31.5in
18
Handlebar Height
 1070mm 42.1in
19
Weight (Without Battery)
 27.2kg 60lb

Technical Specifications

×
Frame
6061 aluminum
Front hub
135mm 36h bolt-on
Seat post
31.6mm
Fork
Rst guide w/95mm travel, lockout, preload
Front axle
Bolt-on
Seat post clamp
38mm qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
Motor
Motor
52v 750w shengyi rear hub motor
Shifter rear
Shimano alivio 9 speed trigger shifter
Rear axle
Bolt-on
Battery sizes
Total capacity of 52v 33.5ah 1742wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 16ah 832wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
Black 36h
Display
Dm07 colour display
Cassette
9 speed 11-34t
Tire sizes
26x4
Lights
Integrated headlight, taillight
Chain
Kmc z9 - 126 link
Handlebar
780mm wide, 8° rise, 9° backsweep mtb bar w/ 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
105mm gooseneck adjustable stem w/ 31.8mm clamp
Assist levels
0-5
Bottom bracket
Torque sensor w/ diamond taper
Grips
Bolt-on mtb grips
Throttle
Thumb throttle
Brakes
Star union dual piston w/180mm rotors
Saddle
Gel padded comfort saddle
Other
Rear rack, fenders, kickstand
Brake levers
Star union adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
135mm 36h bolt-on
Seat post
31.6mm
Fork
Rst guide w/95mm travel, lockout, preload
Front axle
Bolt-on
Seat post clamp
38mm qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
Motor
Motor
52v 750w shengyi rear hub motor
Shifter rear
Shimano alivio 9 speed trigger shifter
Rear axle
Bolt-on
Battery sizes
Total capacity of 52v 33.5ah 1742wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 16ah 832wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
Black 36h
Display
Dm07 colour display
Cassette
9 speed 11-34t
Tire sizes
26x4
Lights
Integrated headlight, taillight
Chain
Kmc z9 - 126 link
Handlebar
780mm wide, 8° rise, 9° backsweep mtb bar w/ 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
105mm gooseneck adjustable stem w/ 31.8mm clamp
Assist levels
0-5
Bottom bracket
Torque sensor w/ diamond taper
Grips
Bolt-on mtb grips
Throttle
Thumb throttle
Brakes
Star union dual piston w/180mm rotors
Saddle
Gel padded comfort saddle
Other
Rear rack, fenders, kickstand
Brake levers
Star union adjustable w/ integrated brake cutoffs
750W Hub-Drive

Motor Power

52V 17Ah 910Wh

est. 60mi Range

+5'2"ft / 265lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

New and Improved by popular demand

The new Juggernaut Hub Duo 2 sports multiple frame sizes, colours and wheel sizes to have a erosion for everyone! Combine that with an updated center mounted display and other tried and true Hub Duo components and you have a solid, reliable eBike that can take you everywhere in style!

Simple. Capable. Affordable.

The Juggernaut Hub Duo 2 is the evolution of our most user-friendly & affordable eBike in the Juggernaut Duo family. Thanks to the 750W hub-drive motor, you’ll get an easy-going ride with plenty of power to boost you up those tough hills. Combine that with a high-capacity 52V 17Ah 910Wh battery with the ability to add a second, and you’ve got yourself a perfect entry-level eBike.

Bells & Whistles? You Bet.

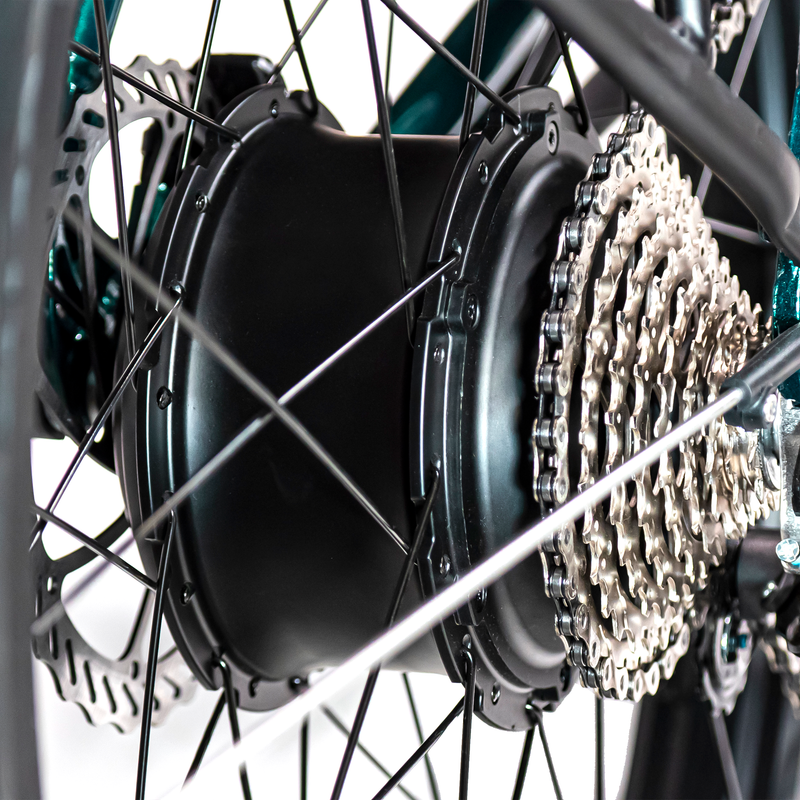

750W Hub Motor

Feel the surge of effortless freedom—this 750 W hub‑drive motor with 80 Nm of torque turns steep hills into gentle slopes and city blocks into breezy joyrides, so every ride feels like pure adventure on demand.

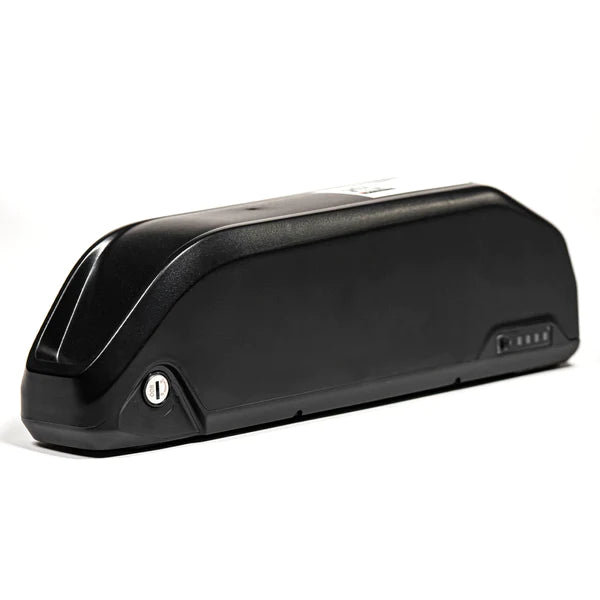

Optional Range Extender

Add a Range Extender battery to go the extra mile—literally. Unlock up to double the range and explore farther with confidence on every ride.

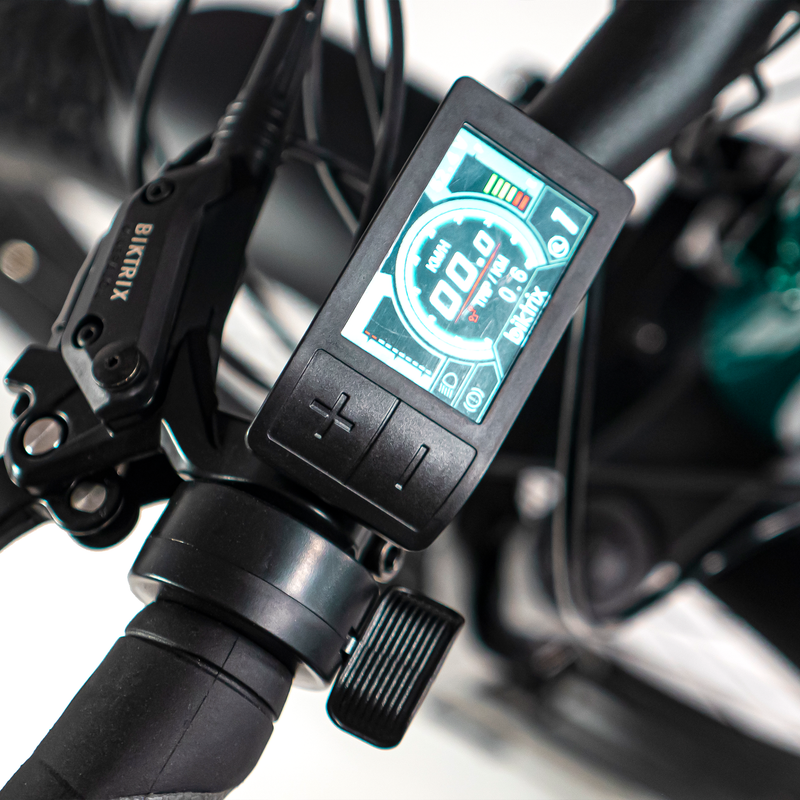

LCD Display

The LCD Display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

Suspension Fork

The RST Guide suspension fork offers 95mm of travel with adjustable preload and lockout, letting you dial in your ride for smooth comfort on city streets, gravel paths, or weekend trails.

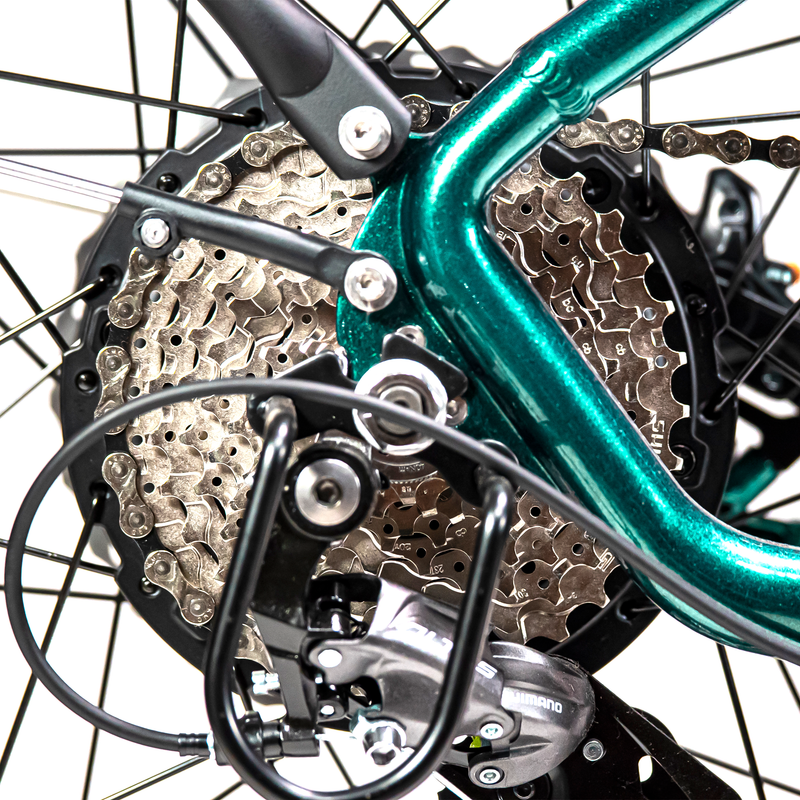

9 Speed Shimano Drivetrain

Whether you're powering up hills or cruising fast on the flats, the Shimano 9-speed drivetrain delivers smooth, reliable shifting to keep you in control every mile of the ride.

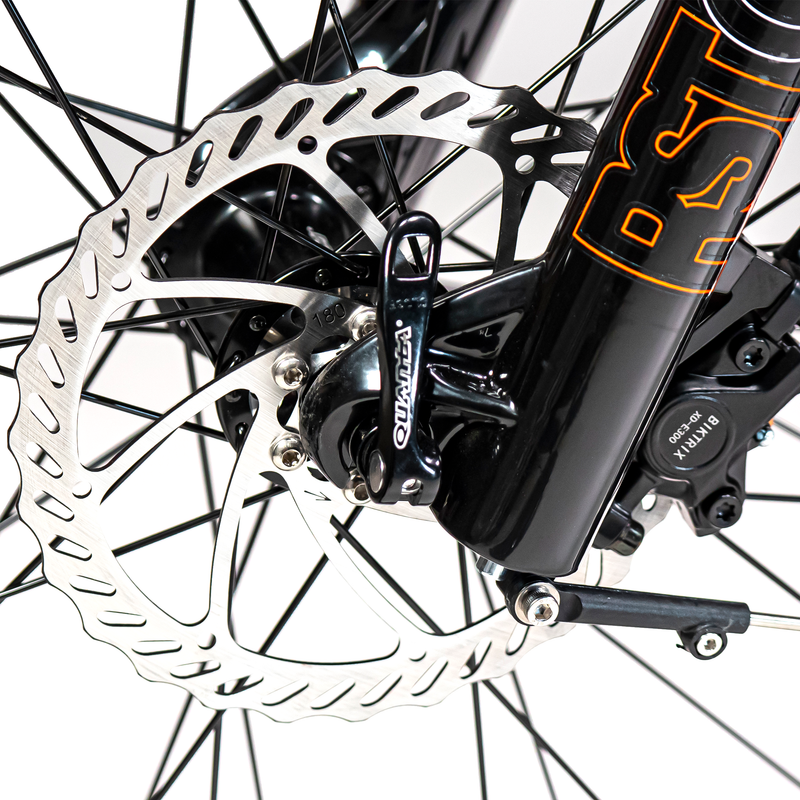

Hydraulic Disc Brakes

With speed comes the need for control—dual-piston hydraulic disc brakes deliver powerful, reliable stopping performance so you can ride at any speed and brake with confidence.

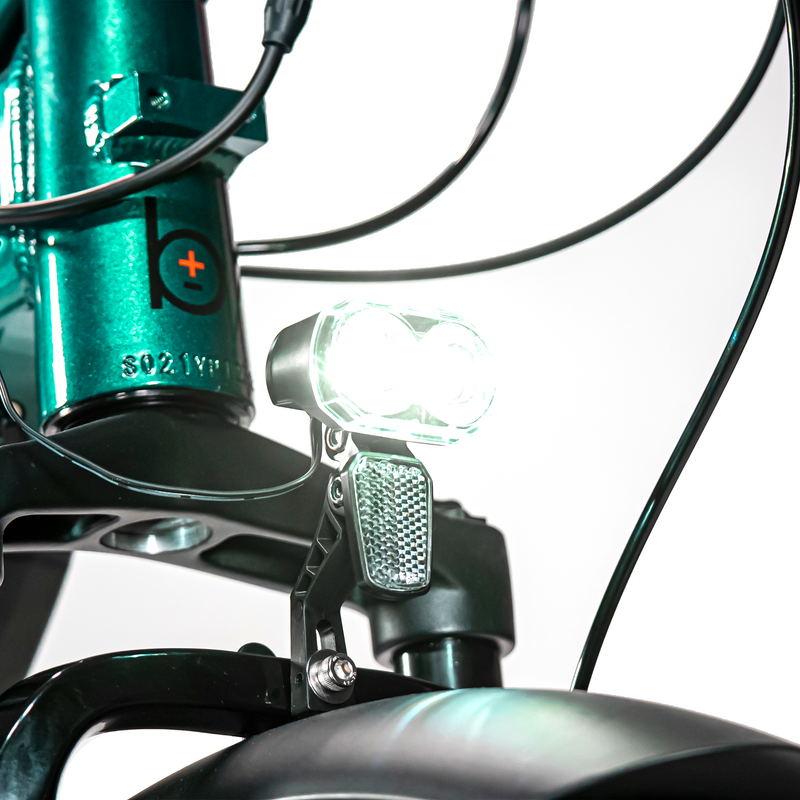

Integrated Front Light

This bright LED Light is power by the bike’s battery and can be turned on and off with a button on the handlebar control pad.

Rack & Fenders

Stay clean and dry with full-coverage fenders, while the sturdy rear rack lets you haul your gear, groceries, or weekend essentials with ease.
