Overview

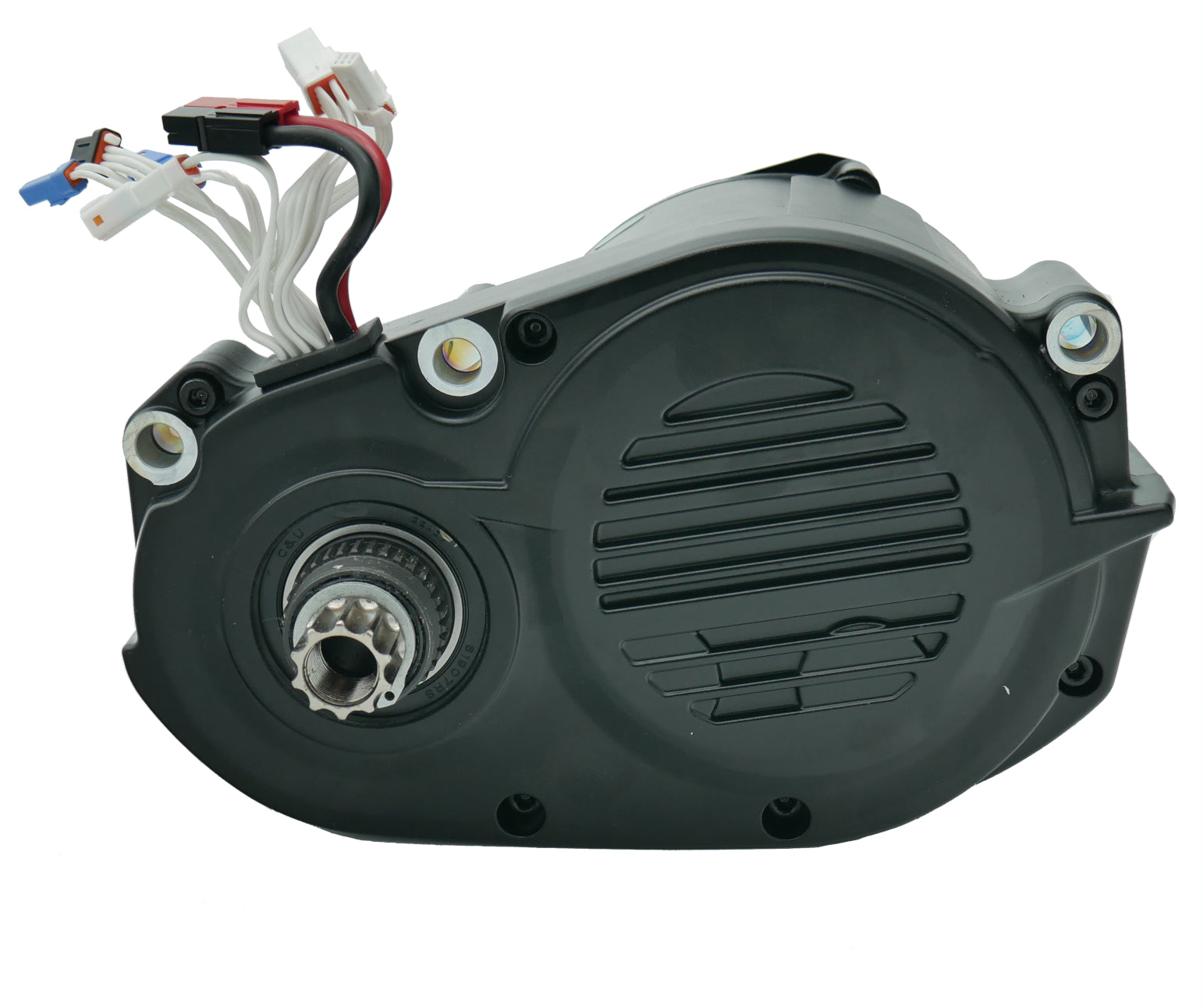

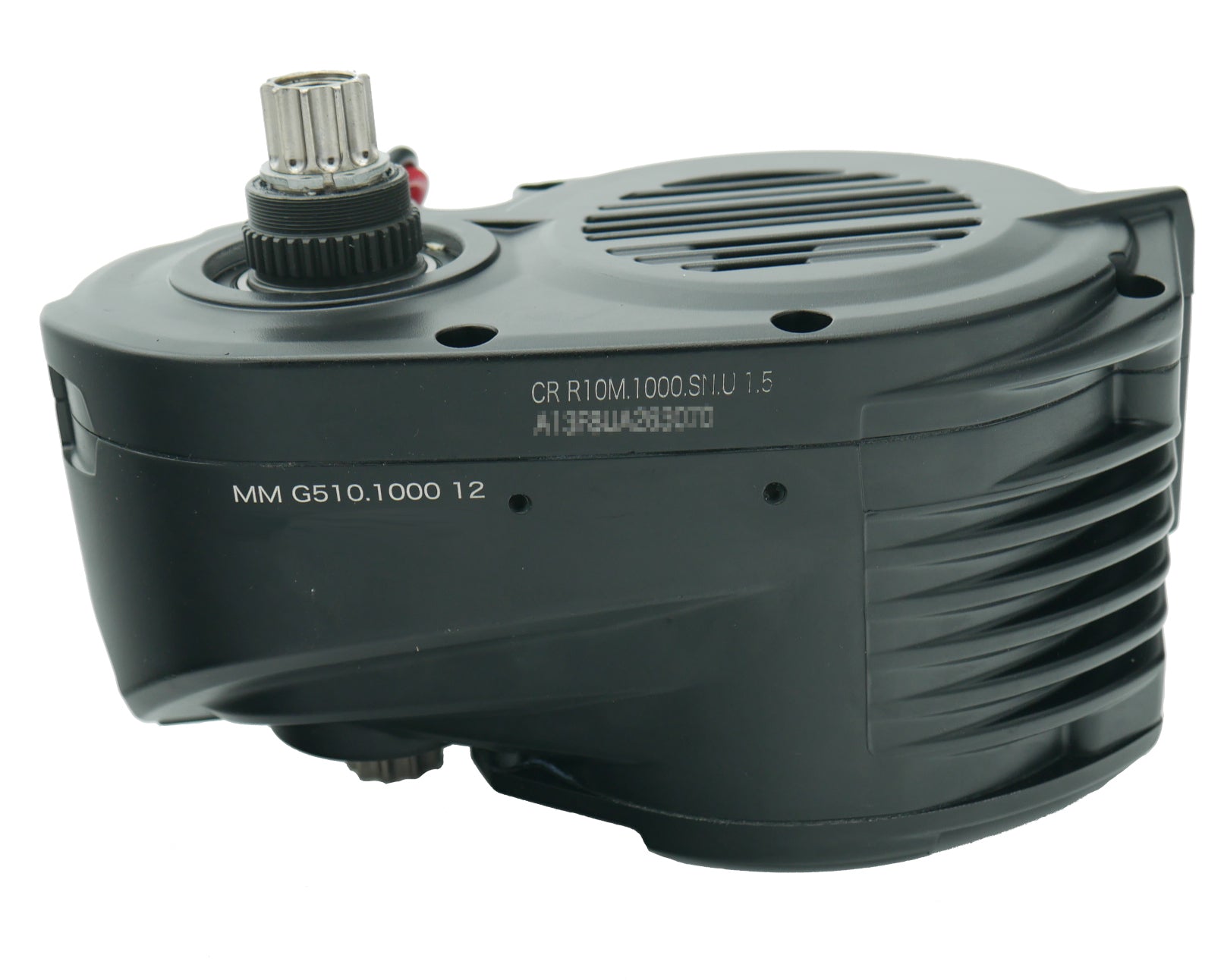

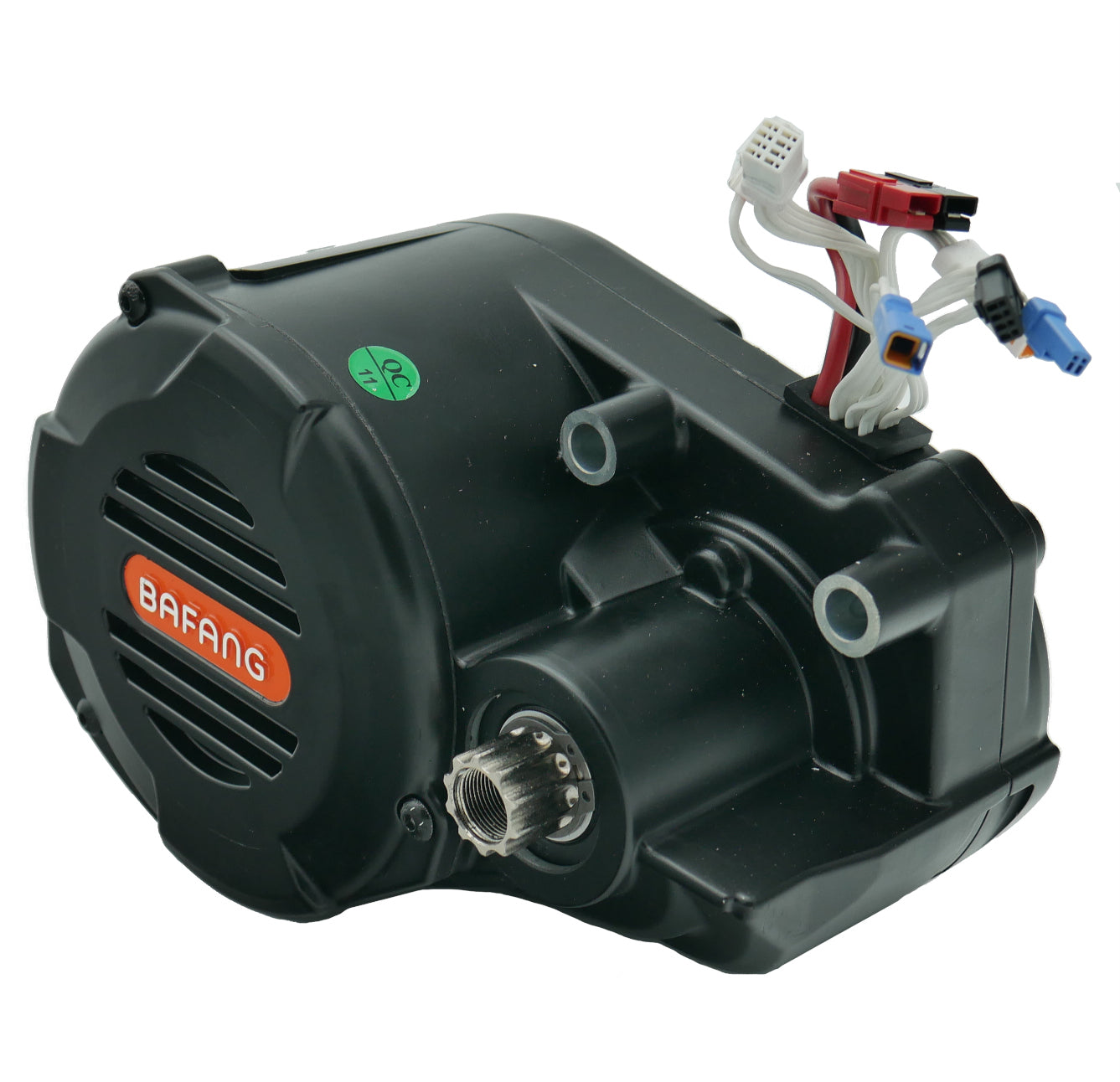

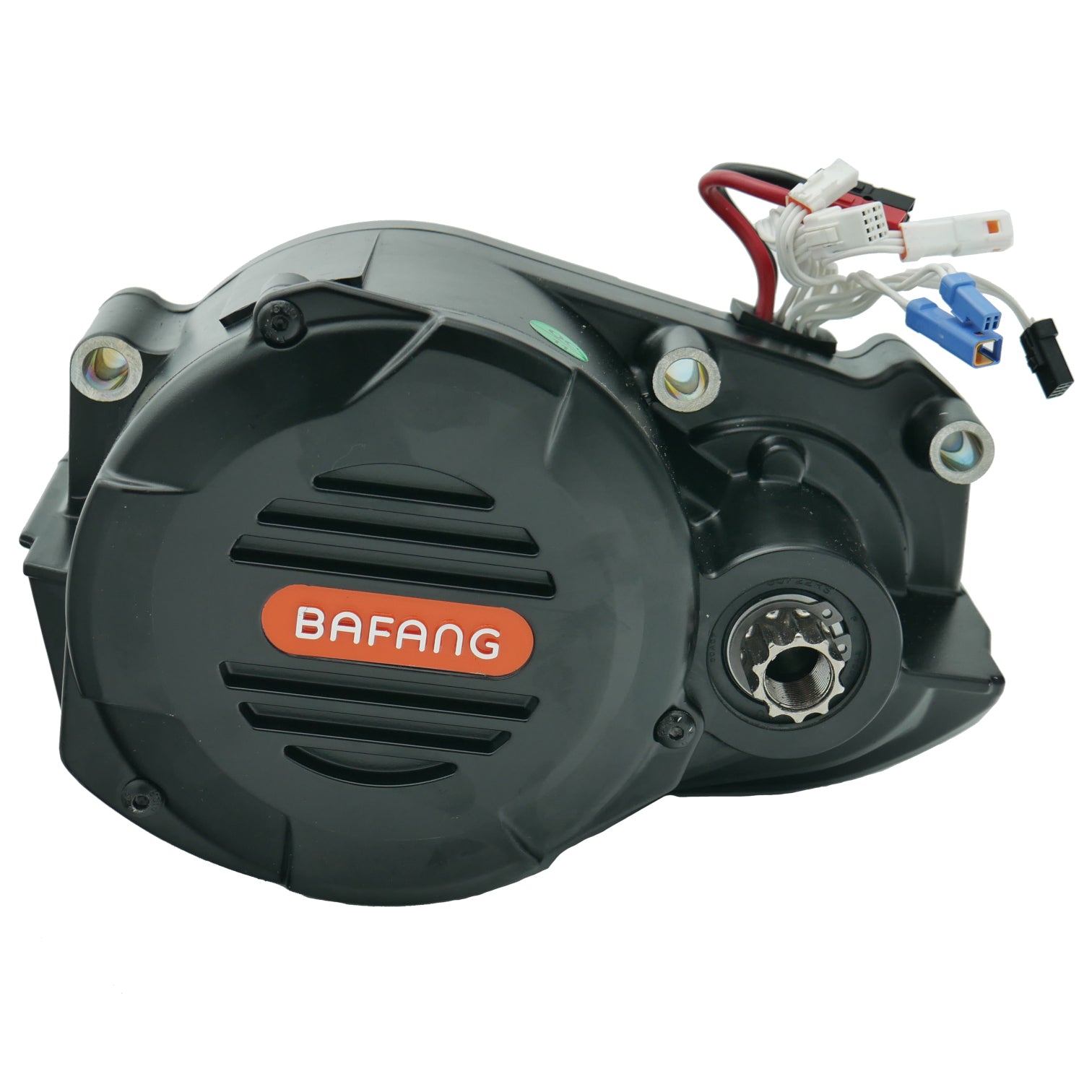

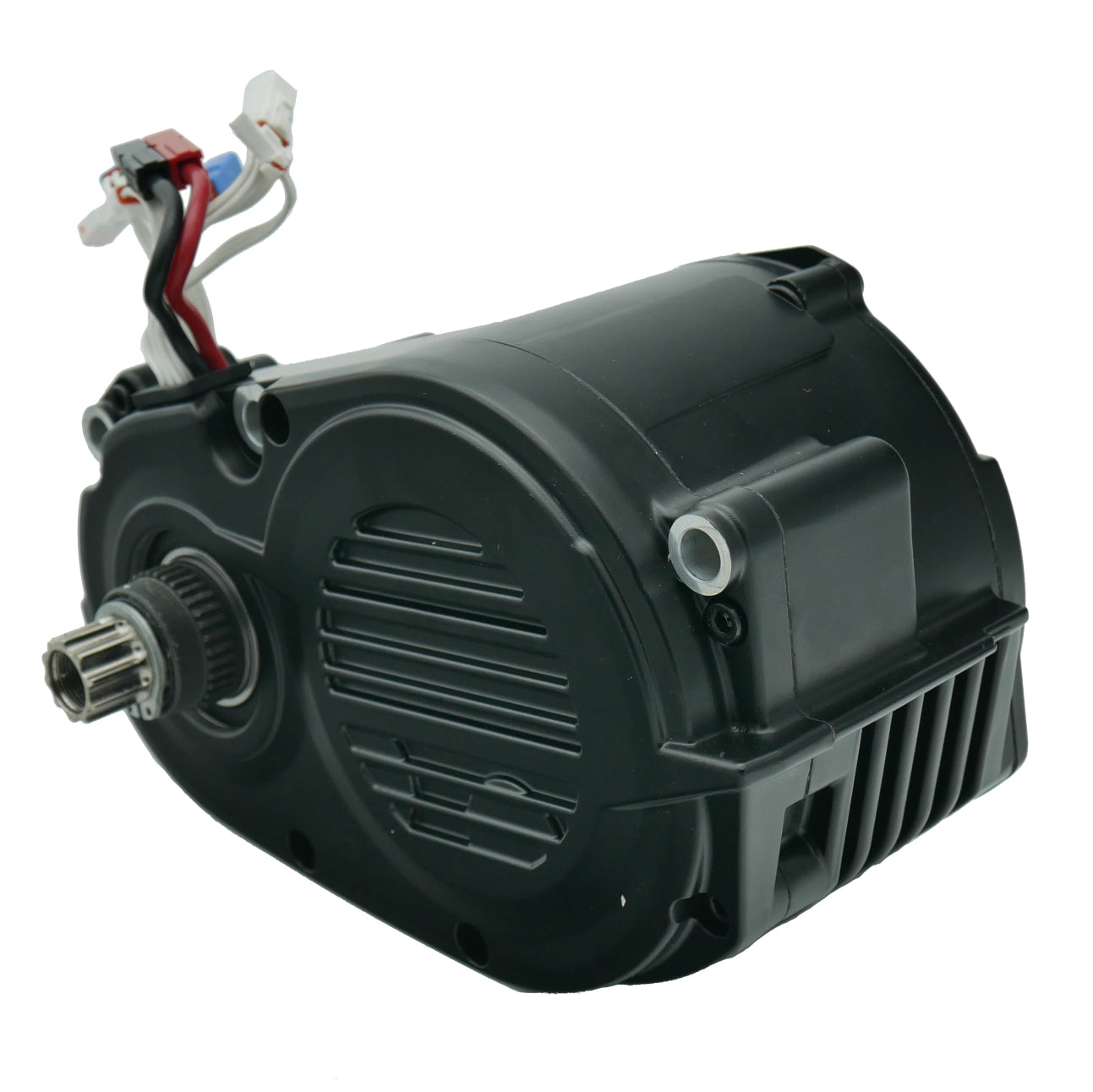

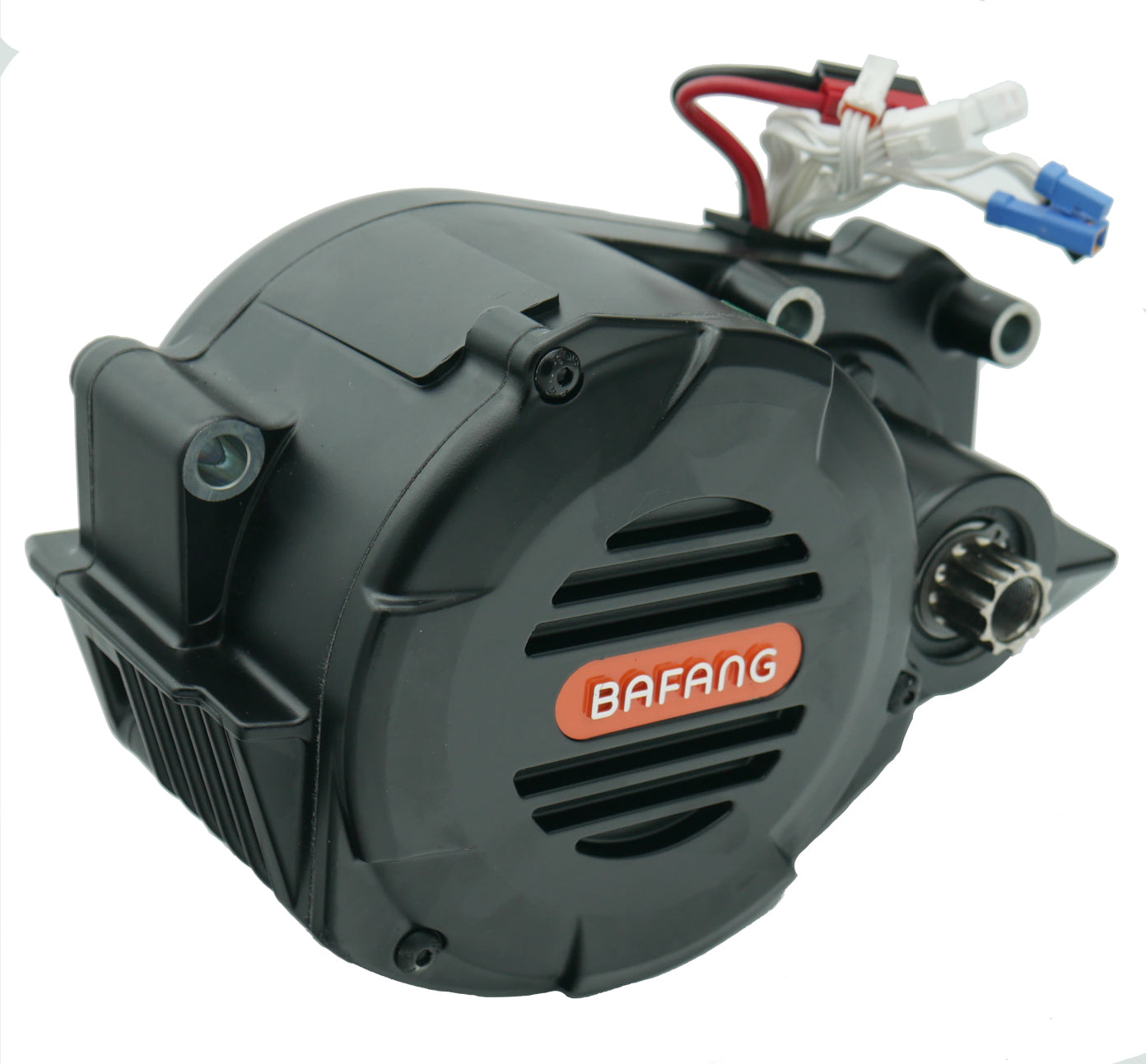

Experience exceptional value with the Bafang M620 Ultra Motor, meticulously factory-refurbished to ensure top-notch performance. Equipped with durable all-metal gears, this motor promises longevity and reliability. Each unit undergoes rigorous bench testing by Bafang USA and at BIKTRIX before dispatch, offering you added assurance and peace of mind with your purchase.
These are refurbished motors - as such there may be cosmetic damage on the outer casing.
This is a bare motor. Accessories like wiring harness, speed sensor, display, crank arms etc. are NOT included. You need to purchase them separately.
Technical Specifications
Motor Protocol
UART
Rated Nominal Power output
1000W
Peak Power Output
1500W
Max Ampreage
30A
Max Torque
160 N.m
Rated Voltage
48V / 52V
Position
Mid-Drive
Internal Gears
Steel Gears
Spindle Shaft Standard
ISIS
Water-proof grade
IP66
Pedal Assist Sensors
Integrated Torque + Cadence
Shift Sensor Function
Yes
Brake Sensor Function
Yes - Closer Type
Integrated Headlight / Taillight Capacity
Yes - Headlight + Taillight at 6 DCV / 3W MAX
Compatibility
| Bike Name | Compatible |
|---|---|
| Bikes with Bafang Ultra M620/G510 Motor | |
| eBike Frames Designed for Bafang Ultra M620/G510 motors | |
| Standard Bike Frames | |
| Bike Frame Designed for BBS02 / BBSHD Mid-Drive Motors | |
| Bike Frame Designed for Rear Hub Motor |
