Please select your color
![]()
750W Mid-Drive
Motor Power
52V 17Ah 910Wh
est. 60mi Range
+5'4ft / 330lb
Max Load
Cadence Sensor
Powerful Pedal Assist
25+ Point Quality
Control Checklist
Technical Specifications

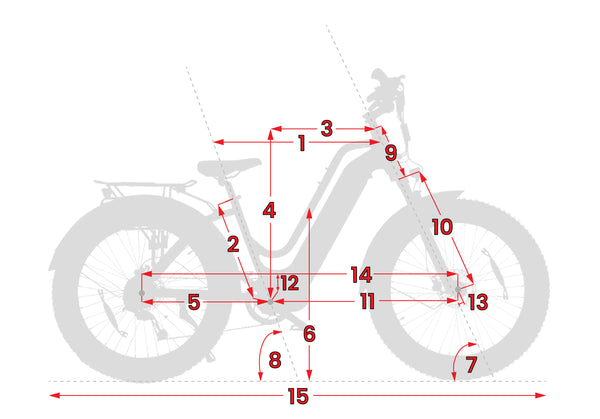

×Sizing / Fittings
×
| 1 | Effective Top Tube Length |
600mm | 23.6in |
| 2 | Seat Tube Length (Classic Bike Size) |
440mm | 17.3in |
| 3 |
Reach |
400mm | 15.7in |
| 4 |
Stack |
620mm | 24.4in |
| 5 |
Chainstay Length |
480mm | 18.9in |
| 6 |
Standover Height |
480mm | 18.9in |
| 7 |
Head Angle |
65° | - |
| 8 |
Seat Angle |
70° | - |
| 9 |
Head Tube Length |
180 mm | 7.1 in |
| 10 |
Fork Length |
480mm | 18.9in |
| 11 |
Front Center |
740mm | 29.1in |
| 12 |
BB (Bottom Bracket) Drop |
40mm | 1.6in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1210mm | 47.6in |
| 15 |
Total Length |
1870mm | 73.6in |
| 16 |
Max Seat Height |
920mm | 36.2in |
| 17 |
Min Seat Height |
780mm | 30.7in |
| 18 |
Handlebar Height |
1100mm | 43.3in |
| 19 |
Weight (Without Battery) |
28kg | 61.7lb |
| 1 | Effective Top Tube Length |
610mm | 24in |
| 2 | Seat Tube Length (Classic Bike Size) |
440mm | 17.3in |
| 3 |
Reach |
400mm | 15.7in |
| 4 |
Stack |
670mm | 26.4in |
| 5 |
Chainstay Length |
520mm | 20.5in |
| 6 |
Standover Height |
520mm | 20.5in |
| 7 |
Head Angle |
65° | - |
| 8 |
Seat Angle |
68° | - |
| 9 |
Head Tube Length |
180 mm | 7.1 in |
| 10 |
Fork Length |
520mm | 20.5in |
| 11 |
Front Center |
750mm | 29.5in |
| 12 |
BB (Bottom Bracket) Drop |
40mm | 1.6in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1280mm | 50.4in |
| 15 |
Total Length |
2010mm | 79.1in |
| 16 |
Max Seat Height |
990mm | 39in |
| 17 |
Min Seat Height |
830mm | 32.7in |
| 18 |
Handlebar Height |
1180mm | 46.5in |
| 19 |
Weight (Without Battery) |
28.5kg | 62.8lb |
750W Mid-Drive
Motor Power
52V 17Ah 910Wh
est. 60mi Range
+5'4ft / 330lb
Max Load
Cadence Sensor
Powerful Pedal Assist
25+ Point Quality
Control Checklist
Technical Specifications
Frame6061 aluminum |
Front hub135mm 36h |
Seat post30.4mm |
ForkMozo hydraulic w/ 80mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/8" straight |
Rear hub170mm 36h |
MotorBafang bbs02 mid-drive |
Shifter rearShimano alivio 9 speed trigger shifter |
Rear axle5mm qr |
Battery sizes52v 17.5ah 910wh hidden battery |
Rear derailleurShimano alivio 9 speed |
RimsBlack 26" w/ round cutouts, black 24" w/ round cutouts |
DisplayDpc-18 |
Cassette12-36t |
Tire sizes24x3", 26x4" |
LightsHeadlight, taillight |
ChainKmc x9 |
Handlebar700mm wide, 80mm rise, 31.8mm clamp cruiser bars |
Assist typeCadence |
Crank set152mm arms w/44t chainring (24" m)/170mm arms w/44t chainring (26" l) |
StemSolid 90mm aluminum |
Assist levels1-5 |
Bottom bracketBafang square tapered |
GripsSlide on comfort grips |
ThrottleThumb throttle |
BrakesTektro e350 dual piston w/ 160mm rotors |
SaddleLarge saddle |
OtherRear rack, fenders, kickstand |
Brake leversTektro with adjustable reach and integrated motor cutoffs |
Frame6061 aluminum |
Front hub135mm 36h |
Seat post30.4mm |
ForkMozo hydraulic w/ 80mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/8" straight |
Rear hub170mm 36h |
MotorBafang bbs02 mid-drive |
Shifter rearShimano alivio 9 speed trigger shifter |
Rear axle5mm qr |
Battery sizes52v 17.5ah 910wh hidden battery |
Rear derailleurShimano alivio 9 speed |
RimsBlack 26" w/ round cutouts, black 24" w/ round cutouts |
DisplayDpc-18 |
Cassette12-36t |
Tire sizes24x3", 26x4" |
LightsHeadlight, taillight |
ChainKmc x9 |
Handlebar700mm wide, 80mm rise, 31.8mm clamp cruiser bars |
Assist typeCadence |
Crank set152mm arms w/44t chainring (24" m)/170mm arms w/44t chainring (26" l) |
StemSolid 90mm aluminum |
Assist levels1-5 |
Bottom bracketBafang square tapered |
GripsSlide on comfort grips |
ThrottleThumb throttle |
BrakesTektro e350 dual piston w/ 160mm rotors |
SaddleLarge saddle |
OtherRear rack, fenders, kickstand |
Brake leversTektro with adjustable reach and integrated motor cutoffs |
Size & Fittings
| 1 | Effective Top Tube Length |
600mm | 23.6in |
| 2 | Seat Tube Length (Classic Bike Size) |
440mm | 17.3in |
| 3 |
Reach |
400mm | 15.7in |
| 4 |
Stack |
620mm | 24.4in |
| 5 |
Chainstay Length |
480mm | 18.9in |
| 6 |
Standover Height |
480mm | 18.9in |
| 7 |
Head Angle |
65° | - |
| 8 |
Seat Angle |
70° | - |
| 9 |
Head Tube Length |
180 mm | 7.1 in |
| 10 |
Fork Length |
480mm | 18.9in |
| 11 |
Front Center |
740mm | 29.1in |
| 12 |
BB (Bottom Bracket) Drop |
40mm | 1.6in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1210mm | 47.6in |
| 15 |
Total Length |
1870mm | 73.6in |
| 16 |
Max Seat Height |
920mm | 36.2in |
| 17 |
Min Seat Height |
780mm | 30.7in |
| 18 |
Handlebar Height |
1100mm | 43.3in |
| 19 |
Weight (Without Battery) |
28kg | 61.7lb |
| 1 | Effective Top Tube Length |
610mm | 24in |
| 2 | Seat Tube Length (Classic Bike Size) |
440mm | 17.3in |
| 3 |
Reach |
400mm | 15.7in |
| 4 |
Stack |
670mm | 26.4in |
| 5 |
Chainstay Length |
520mm | 20.5in |
| 6 |
Standover Height |
520mm | 20.5in |
| 7 |
Head Angle |
65° | - |
| 8 |
Seat Angle |
68° | - |
| 9 |
Head Tube Length |
180 mm | 7.1 in |
| 10 |
Fork Length |
520mm | 20.5in |
| 11 |
Front Center |
750mm | 29.5in |
| 12 |
BB (Bottom Bracket) Drop |
40mm | 1.6in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1280mm | 50.4in |
| 15 |
Total Length |
2010mm | 79.1in |
| 16 |
Max Seat Height |
990mm | 39in |
| 17 |
Min Seat Height |
830mm | 32.7in |
| 18 |
Handlebar Height |
1180mm | 46.5in |
| 19 |
Weight (Without Battery) |
28.5kg | 62.8lb |
