Distance Range (Single Battery)
PAS 1Pedal-Assist Lv.1 |
6mi
|
|
PAS 2Pedal-Assist Lv.2 |
12mi
|
|
PAS 3Pedal-Assist Lv.3 |
19mi
|
|
PAS 4Pedal-Assist Lv.4 |
25mi
|
|
PAS 5Pedal-Assist Lv.5 |
31mi
|
|
THRLThrottle Only |
37mi
|
Technical Specifications

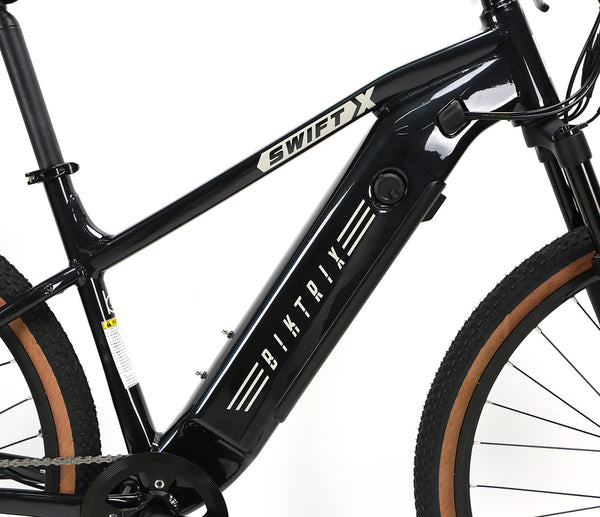

Frame6061 aluminum |
Front hub110mm qr |
Seat post31.6mm |

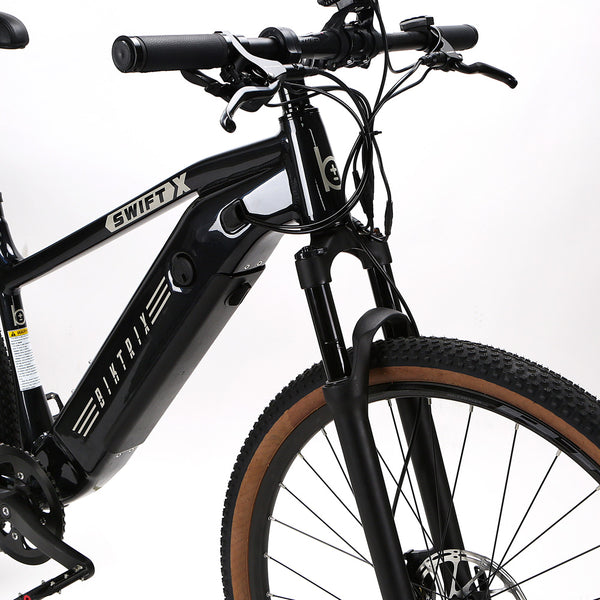

ForkCoil suspension fork w/ 60mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/2 1-1/8 tapered |
Rear hubMotor |

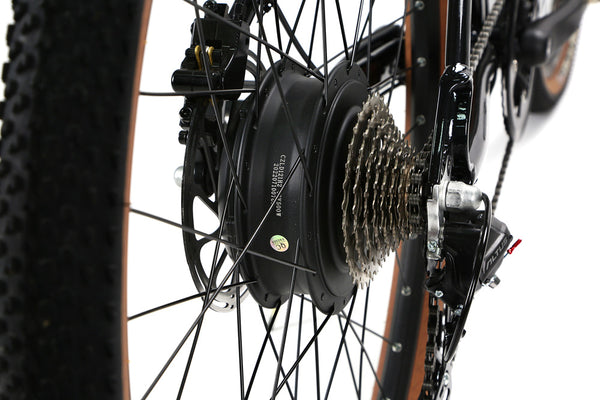

Motor500w rear hub motor |
Shifter rearShimano altus 9 speed trigger |
Rear axleBolt on |

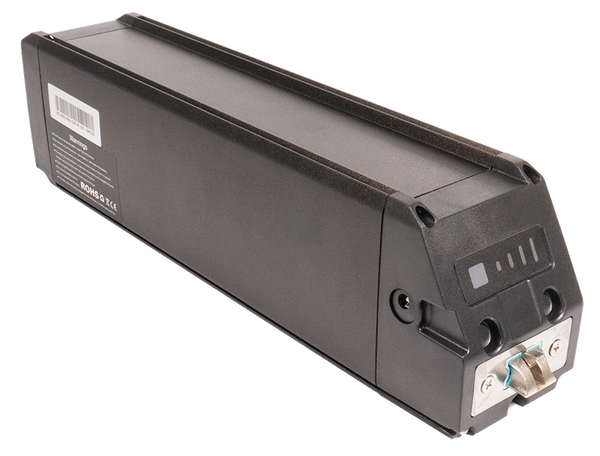

Battery sizes48v 13ah 624wh |

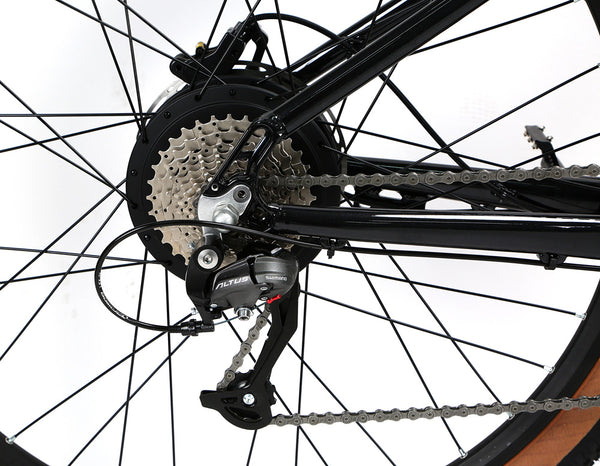

Rear derailleurShimano altus 9 speed |
RimsBlack 36h |

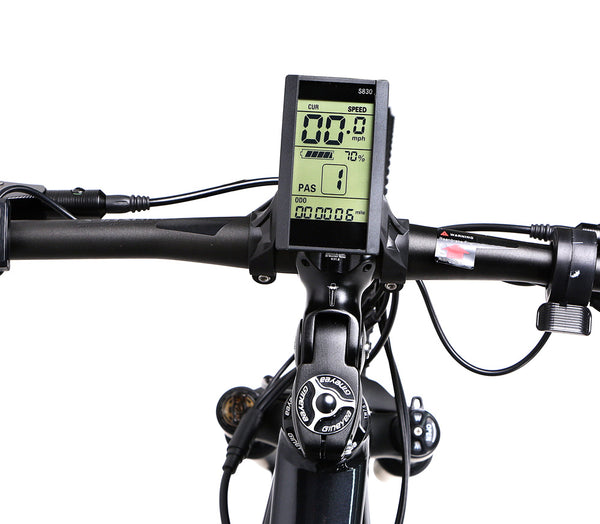

DisplayS830 |
Cassette11-32t 9 speed cassette |

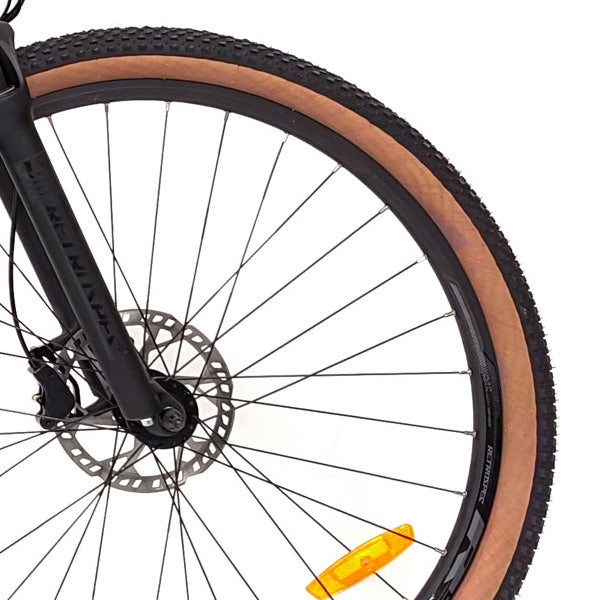

Tire sizesInnova pro cross fit 29x2.25" |
Chain9 speed |

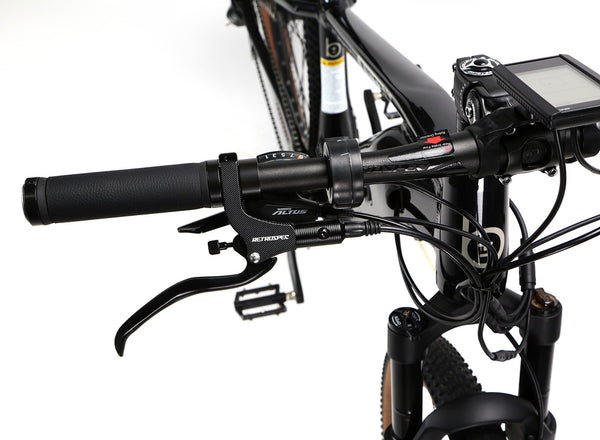

Handlebar720mm wide, 20mm rise, 31.8mm clamp |
Assist typeTorque |
Crank set42t chainring w/ 170mm crankarms |
Stem80mm adjustable |
Assist levels0-5 (0-3, 0-9) |
Bottom bracketSquare tapered torque sensor |
GripsBolt on comfort grips |
ThrottleThumb throttle |

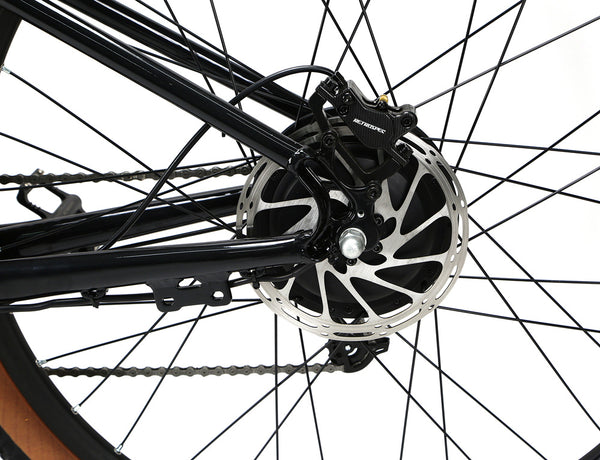

BrakesRetrospec dual piston hydraulic w/180mm rotors |
SaddlePadded narrow saddle |
OtherClamp on kickstand |
Brake leversLong pull w/ integrated motor cutoffs |
Frame6061 aluminum |
Front hub110mm qr |
Seat post31.6mm |
ForkCoil suspension fork w/ 60mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/2 1-1/8 tapered |
Rear hubMotor |
Motor500w rear hub motor |
Shifter rearShimano altus 9 speed trigger |
Rear axleBolt on |
Battery sizes48v 13ah 624wh |
Rear derailleurShimano altus 9 speed |
RimsBlack 36h |
DisplayS830 |
Cassette11-32t 9 speed cassette |
Tire sizesInnova pro cross fit 29x2.25" |
Chain9 speed |
Handlebar720mm wide, 20mm rise, 31.8mm clamp |
Assist typeTorque |
Crank set42t chainring w/ 170mm crankarms |
Stem80mm adjustable |
Assist levels0-5 (0-3, 0-9) |
Bottom bracketSquare tapered torque sensor |
GripsBolt on comfort grips |
ThrottleThumb throttle |
BrakesRetrospec dual piston hydraulic w/180mm rotors |
SaddlePadded narrow saddle |
OtherClamp on kickstand |
Brake leversLong pull w/ integrated motor cutoffs |

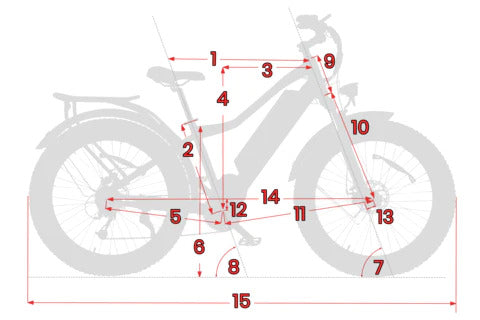

Size & Fittings
1 | Effective Top Tube Length |
540mm | 21.3in |
2 | Seat Tube Length (Classic Bike Size) |
420mm | 16.5in |
3 |
Reach |
420mm | 16.5in |
4 |
Stack |
600mm | 23.6in |
5 |
Chainstay Length |
450mm | 17.7in |
6 |
Standover Height |
700mm | 27.6in |
7 |
Head Angle |
67° | - |
8 |
Seat Angle |
73° | - |
9 |
Head Tube Length |
130 mm | 5.1 in |
10 |
Fork Length |
530mm | 20.9in |
11 |
Front Center |
690mm | 27.2in |
12 |
BB (Bottom Bracket) Drop |
65mm | 2.6in |
13 |
Fork Offset |
30mm | 1.2in |
14 |
Wheelbase |
1120mm | 44.1in |
15 |
Total Length |
1860mm | 73.2in |
16 |
Max Seat Height |
1050mm | 41.3in |
17 |
Min Seat Height |
830mm | 32.7in |
18 |
Handlebar Height |
1020mm | 40.2in |
19 |
Weight (Without Battery) |
21.3kg | 47lb |
1 | Effective Top Tube Length |
580mm | 22.8in |
2 | Seat Tube Length (Classic Bike Size) |
460mm | 18.1in |
3 |
Reach |
440mm | 17.3in |
4 |
Stack |
630mm | 24.8in |
5 |
Chainstay Length |
450mm | 17.7in |
6 |
Standover Height |
710mm | 28in |
7 |
Head Angle |
67° | - |
8 |
Seat Angle |
73° | - |
9 |
Head Tube Length |
130 mm | 5.1 in |
10 |
Fork Length |
530mm | 20.9in |
11 |
Front Center |
690mm | 27.2in |
12 |
BB (Bottom Bracket) Drop |
80mm | 3.1in |
13 |
Fork Offset |
30mm | 1.2in |
14 |
Wheelbase |
1140mm | 44.9in |
15 |
Total Length |
1880mm | 74in |
16 |
Max Seat Height |
1060mm | 41.7in |
17 |
Min Seat Height |
860mm | 33.9in |
18 |
Handlebar Height |
1050mm | 41.3in |
19 |
Weight (Without Battery) |
21.5kg | 47.4lb |
