Overview

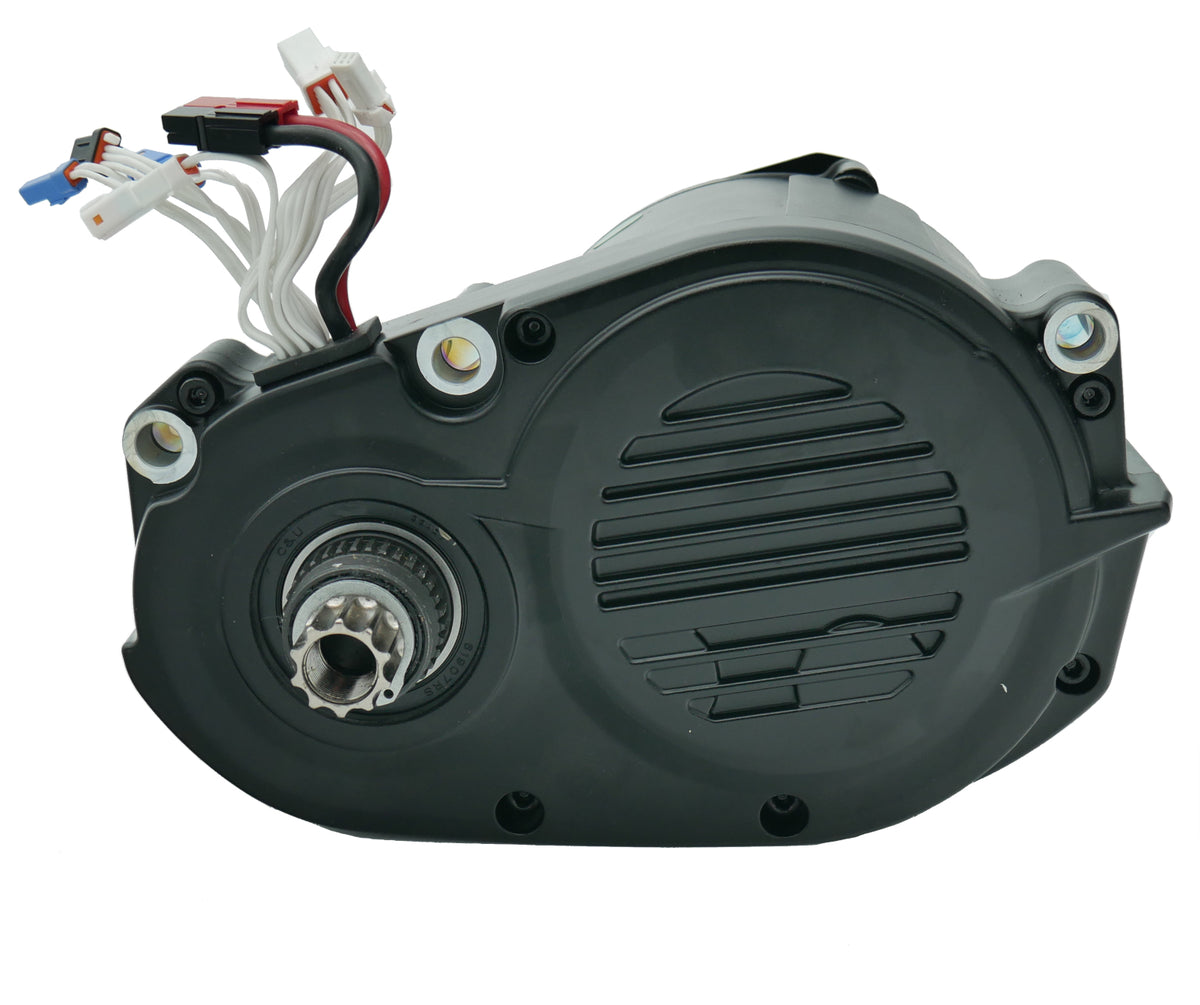

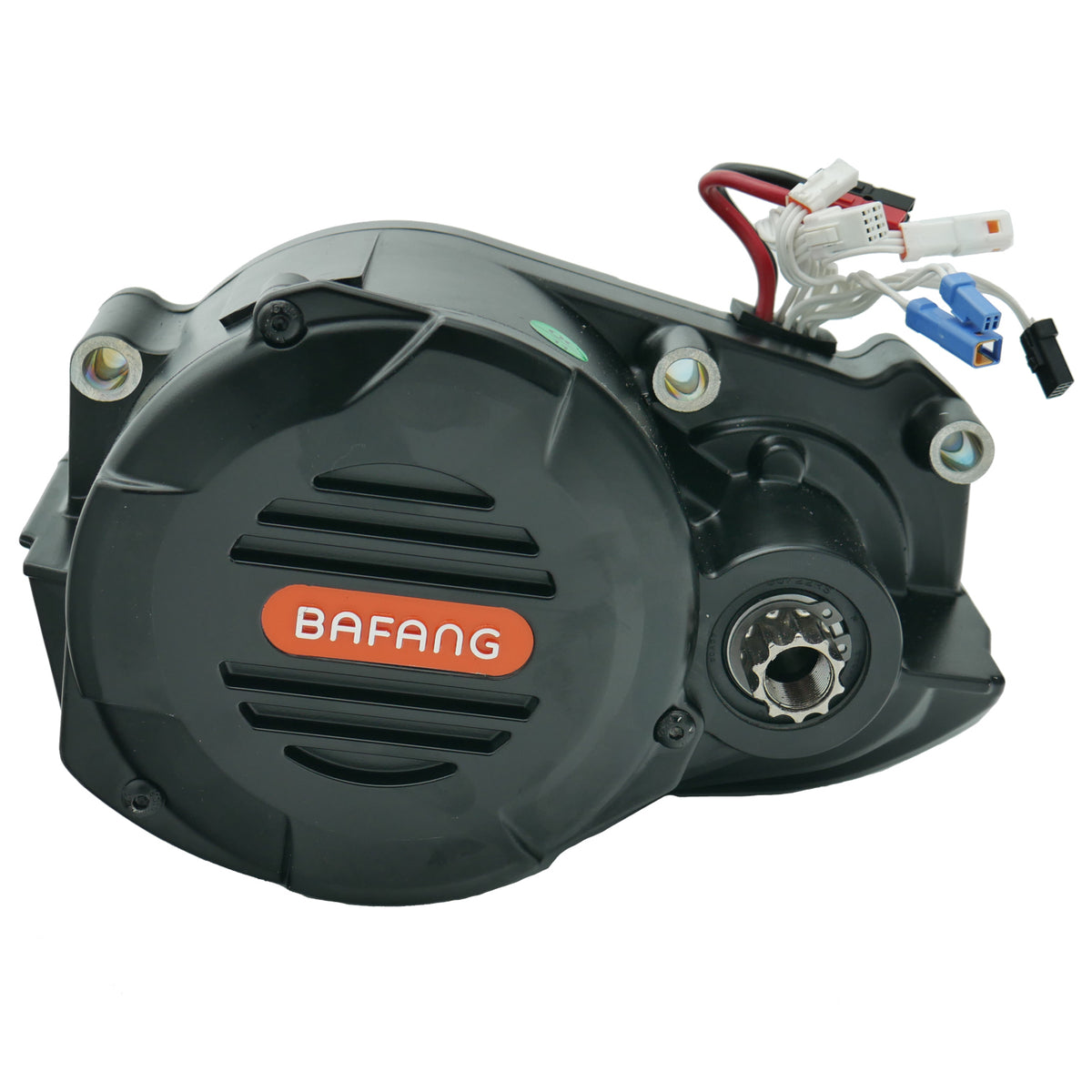

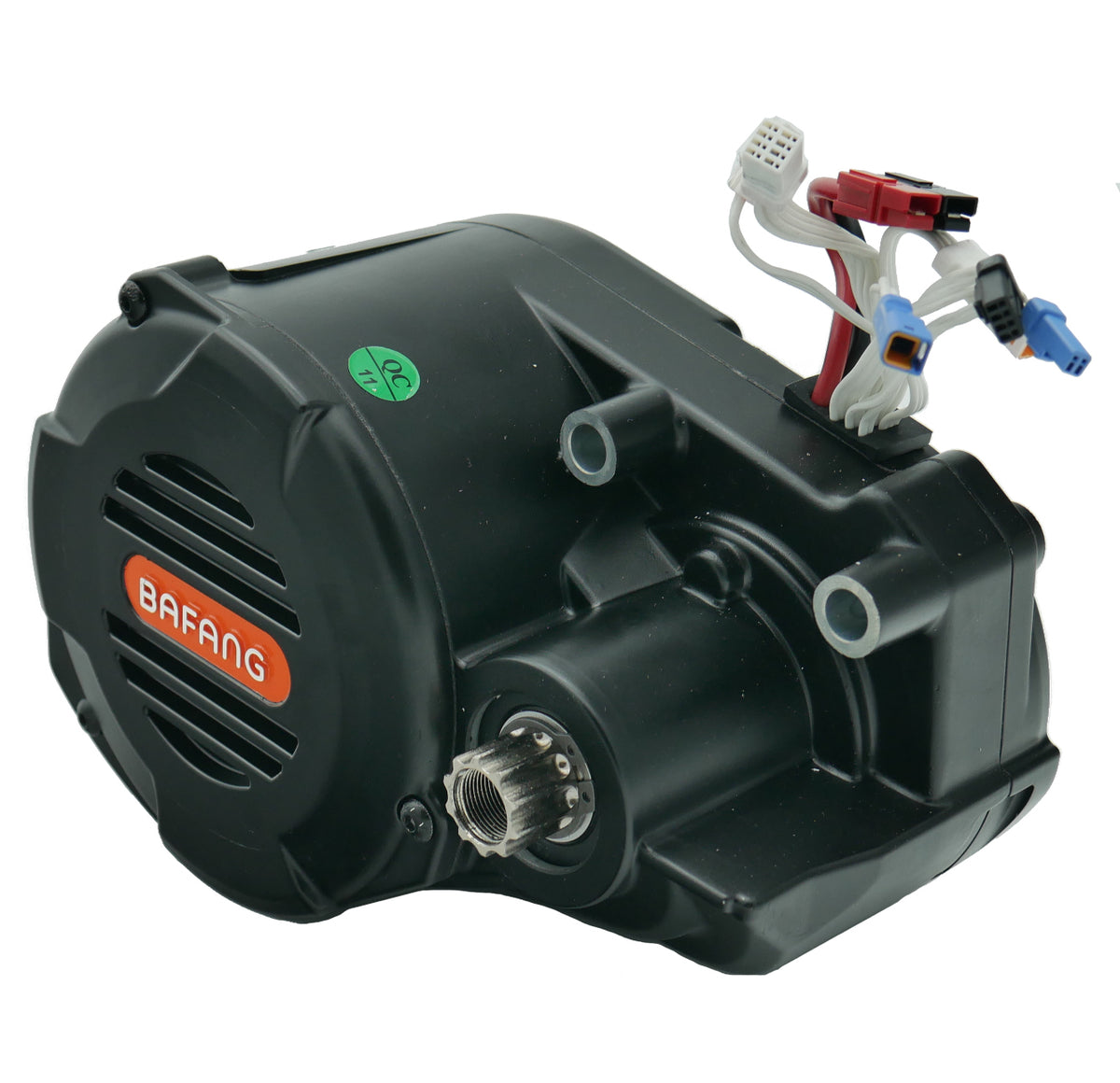

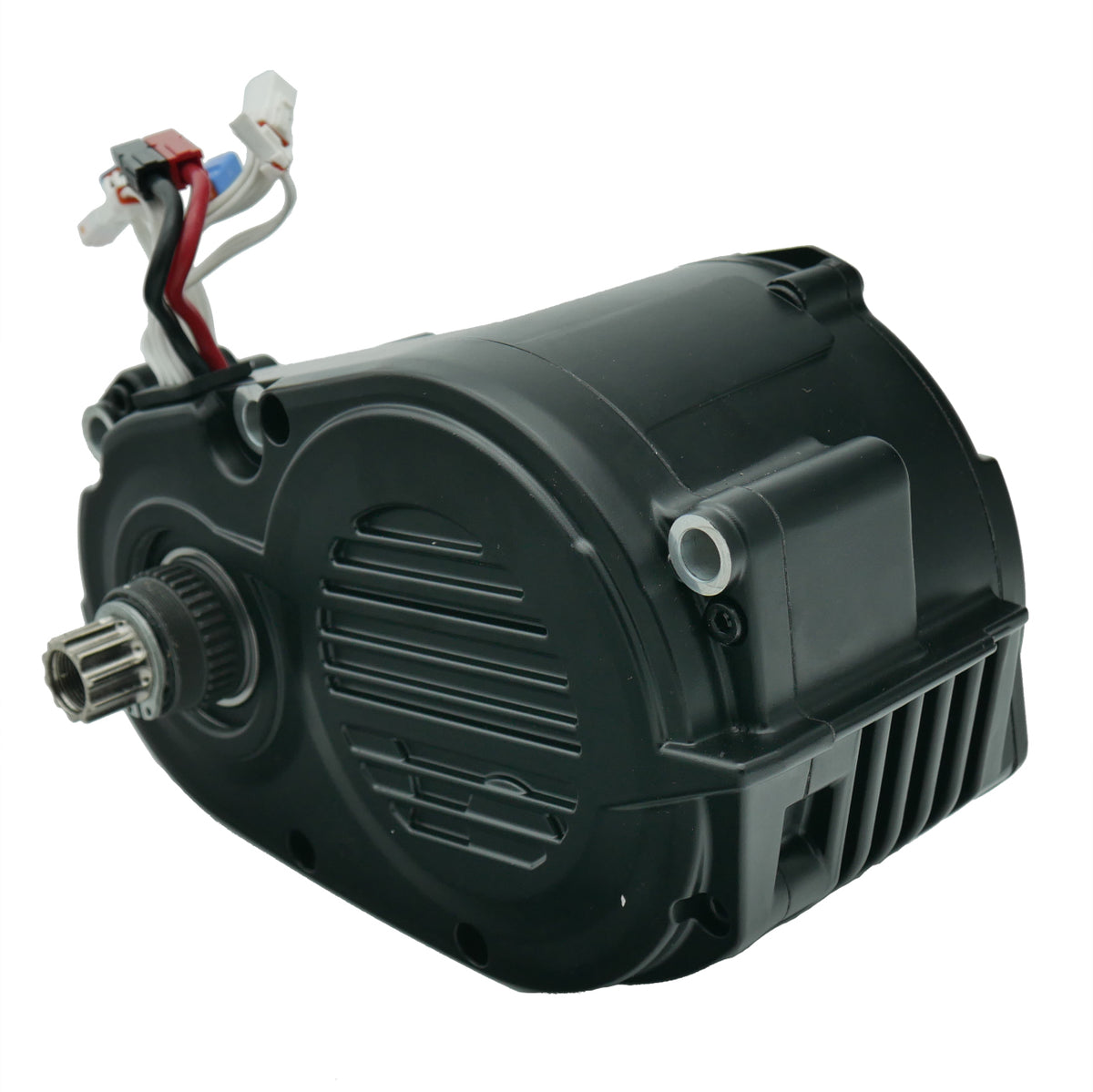

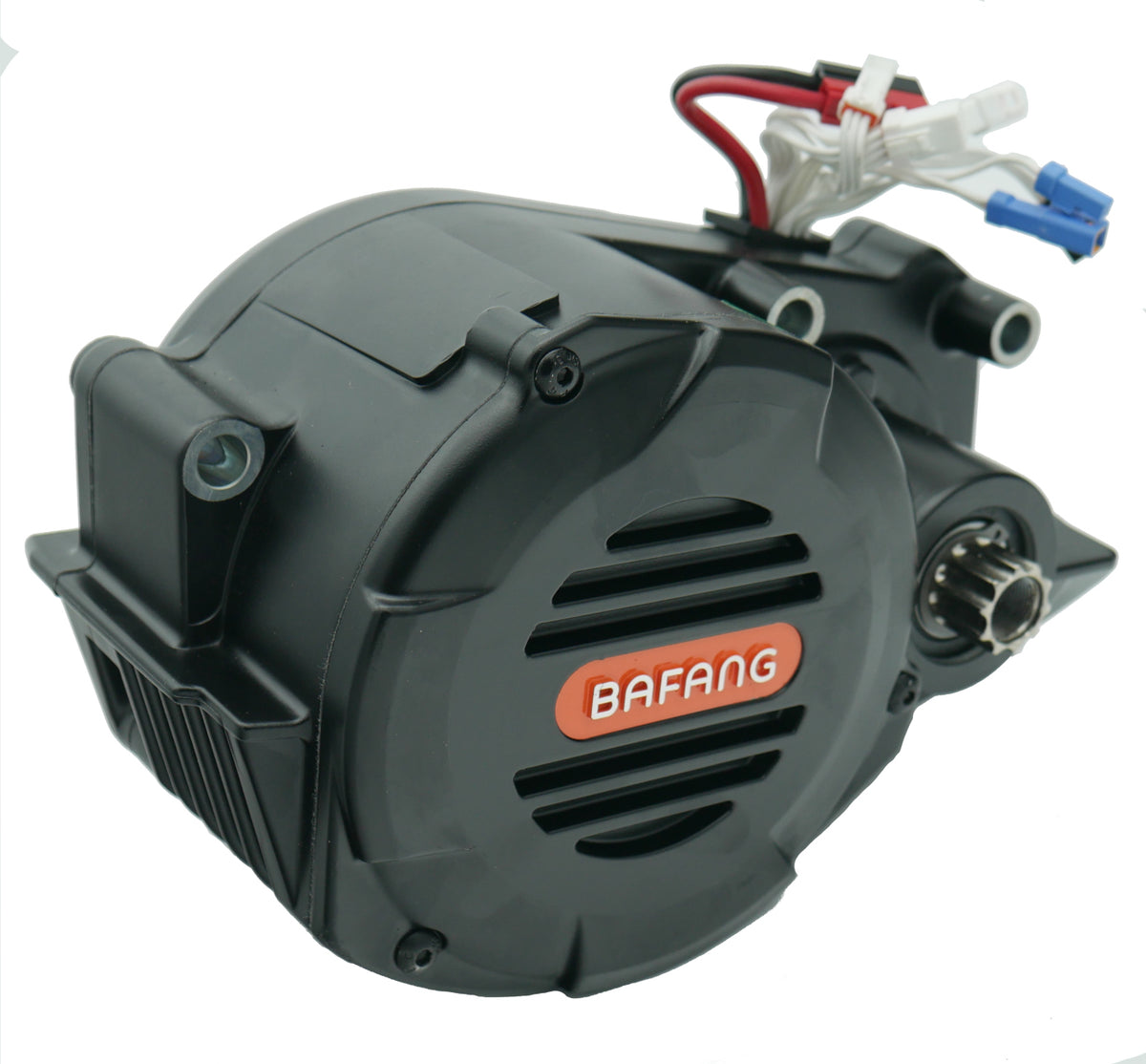

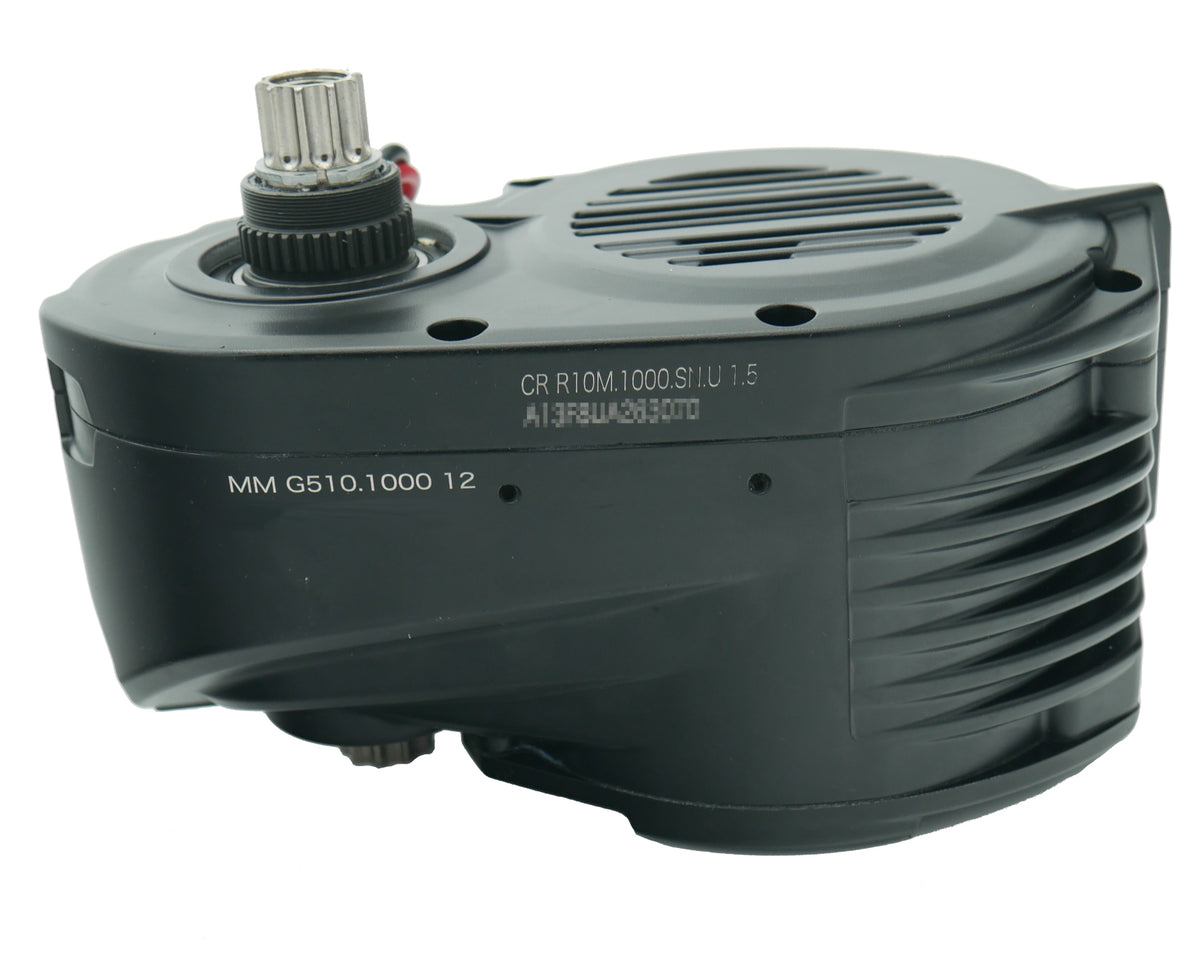

The Bafang Ultra M620 is the ultimate motor for your heavy-duty eBike with an incredible maximum torque of 160Nm and a power output of 1000W, this motor can handle the heaviest loads on the steepest inclines.
This is the UART version of the motor.
Available in 48V or 52V versions - please select your desired motor and battery voltage at the time of purchase!
This is a bare motor. Accessories like wiring harness, speed sensor, display, crank arms etc. are NOT included. You need to purchase them separately.
*Takeoff parts are parts which have been removed from brand-new, never ridden bikes. These parts may have some minor scuffs or fitment marks but are identical in performance and specifications to the brand-new version.
Technical Specifications
Motor Protocol
UART
Rated Nominal Power output
1000W
Peak Power Output
1500W
Max Ampreage
28A/30A (Controller Voltage Dependent)
Max Torque
160 N.m
Rated Voltage
48V / 52V
Position
Mid-Drive
Internal Gears
Steel Gears
Spindle Shaft Standard
ISIS
Water-proof grade
IP66
Pedal Assist Sensors
Integrated Torque + Cadence
Shift Sensor Function
Yes
Brake Sensor Function
Yes - Closer Type
Integrated Headlight / Taillight Capacity
Yes - Headlight + Taillight at 6 DCV / 3W MAX
Compatibility
| Bike Name | Compatible |
|---|---|
| Bikes with Bafang Ultra M620/G510 Motor | |
| eBike Frames Designed for Bafang Ultra M620/G510 motors | |
| Standard Bike Frames | |
| Bike Frame Designed for BBS02 / BBSHD Mid-Drive Motors | |
| Bike Frame Designed for Rear Hub Motor |
