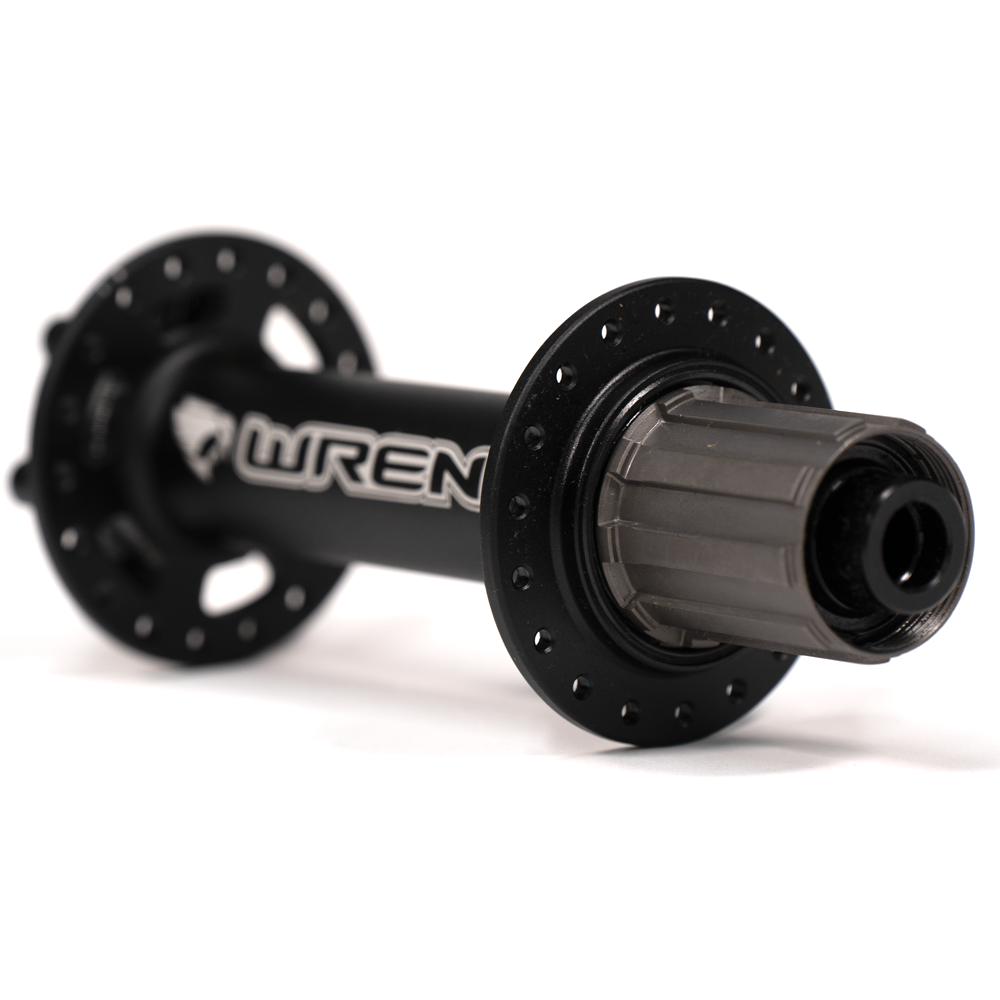

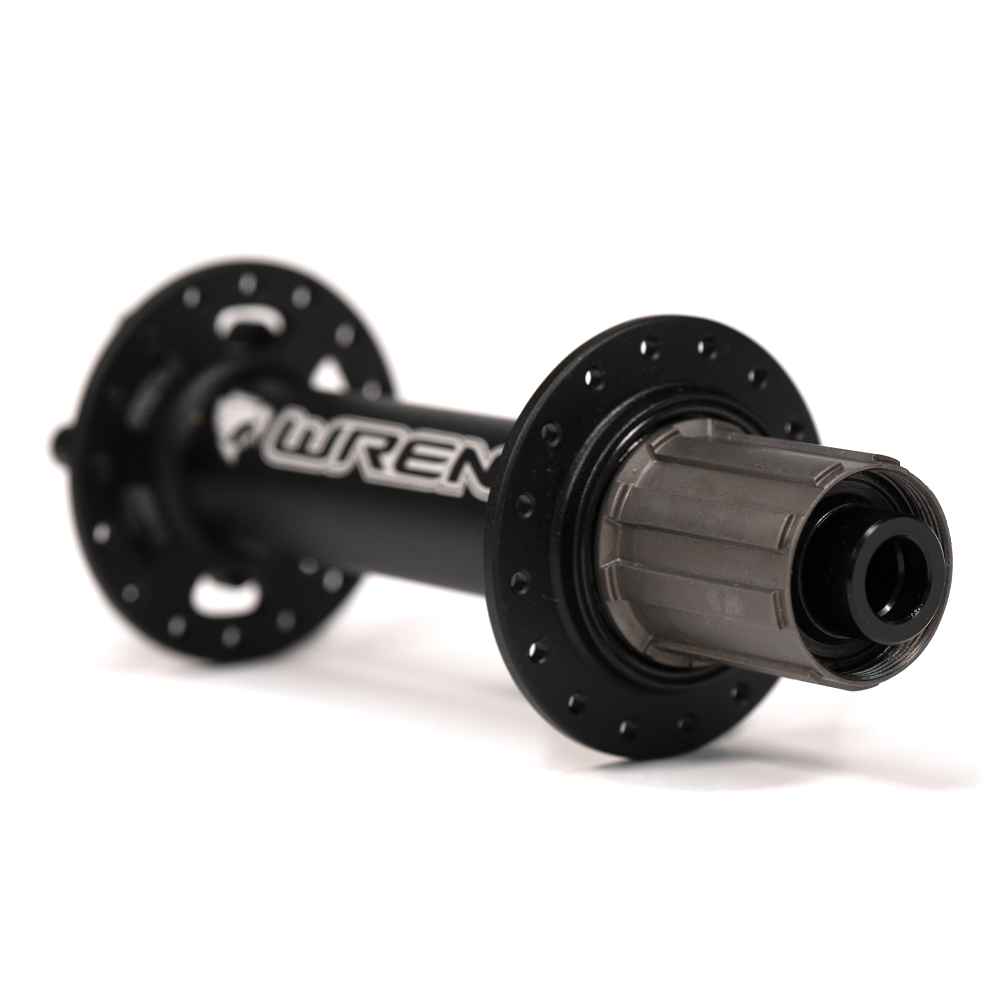

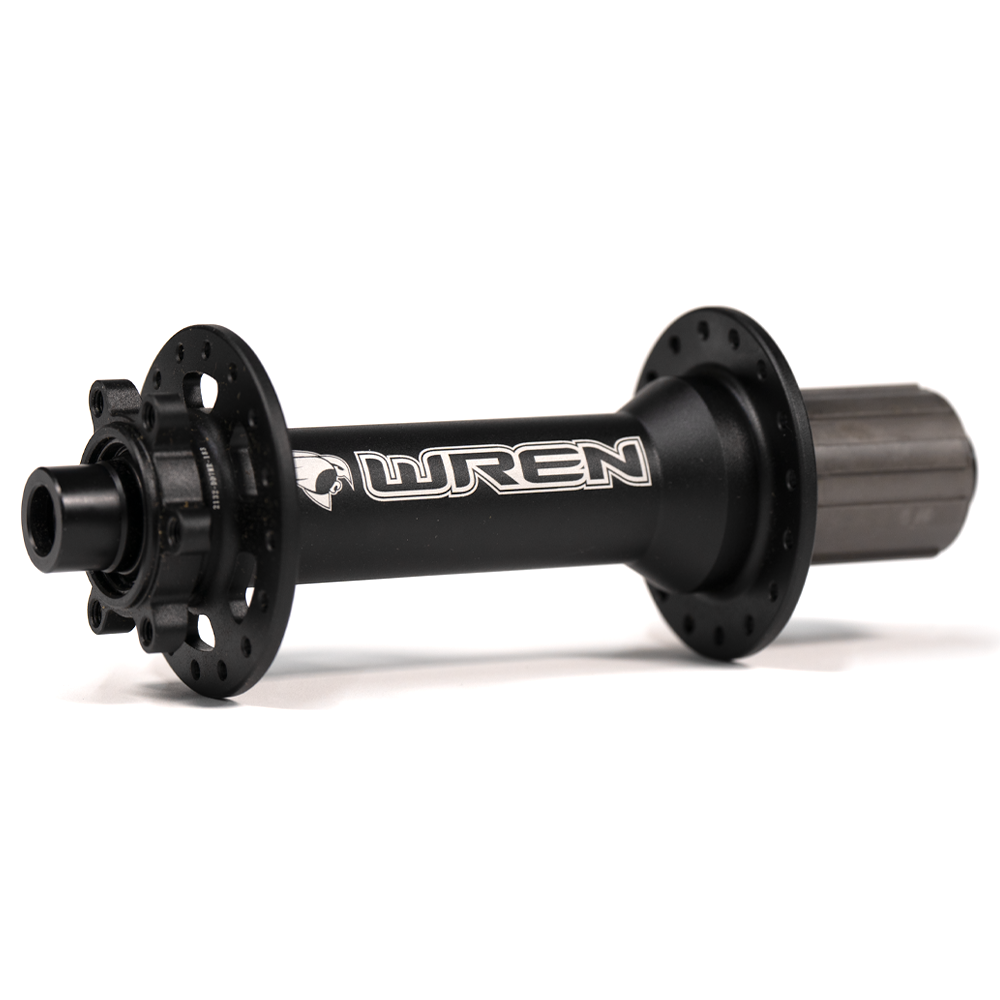

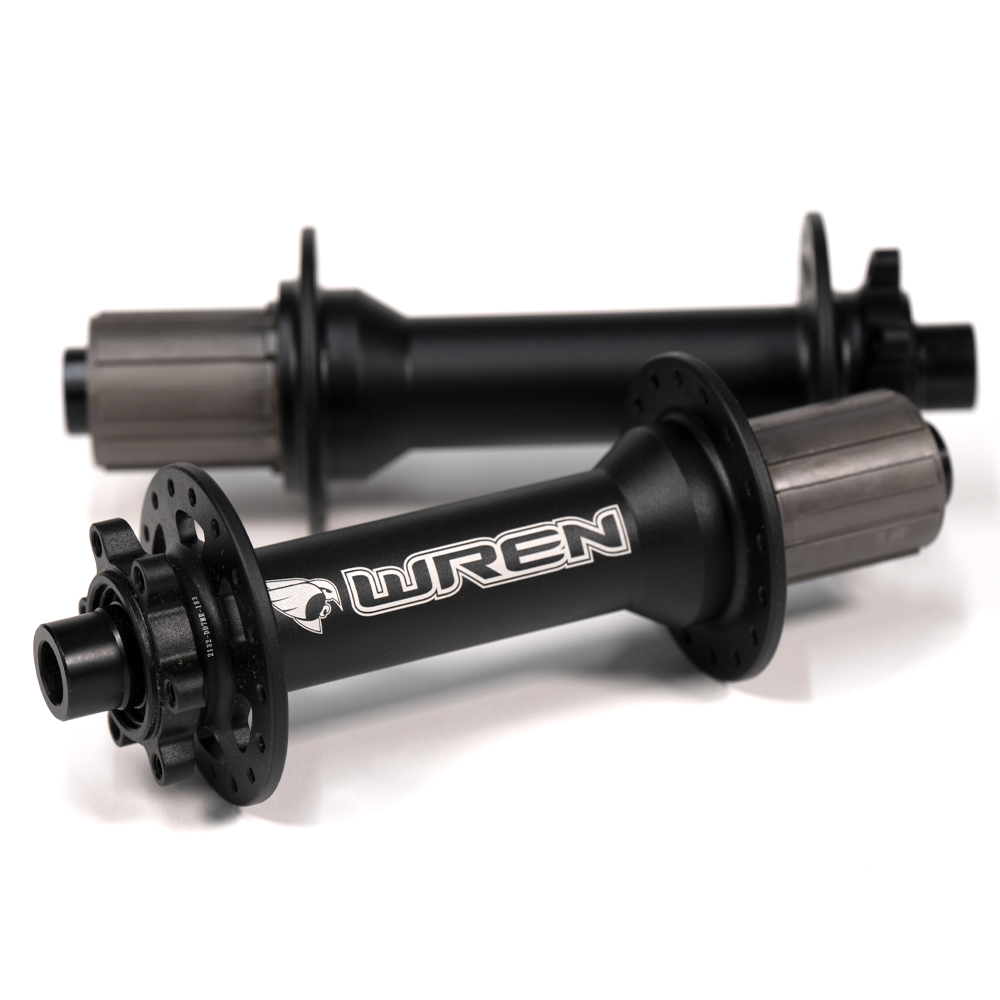

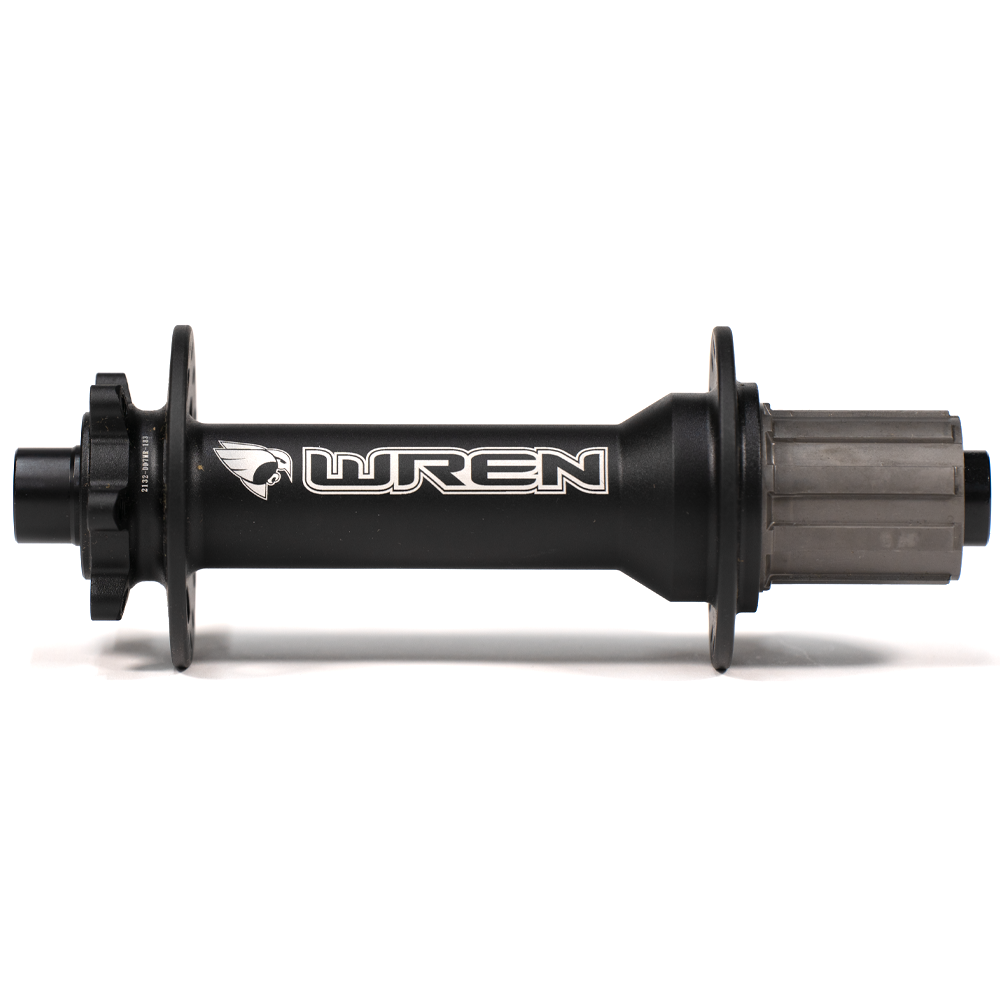

Wren Star Ratchet Rear Hub (190mm/197mm)

Sale price £272
Sale price £272.00

Overview

Upgrade your eBike's drive system with a star ratchet hub manufactured by Wren Sports. Designed to excel in high-torque situations with powerful mid-drive motor eBikes. Available in 32 hole and 36 hole variants and can be set up for 190mm or 197mm rear-ends.

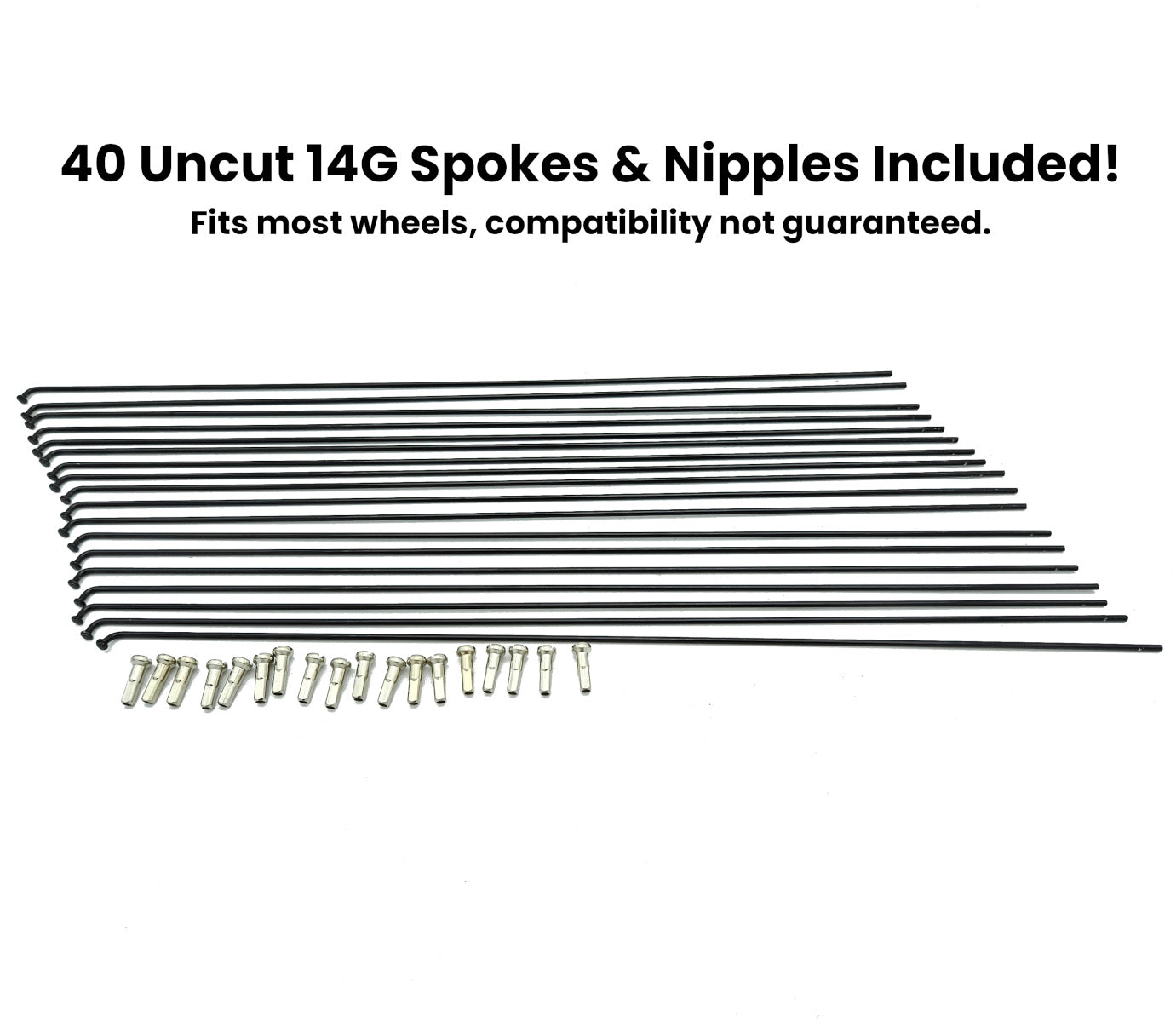

This bundle includes the hub, adaptor to fit your hub spacing and axle type (if applicable) and 40 Uncut 14G Spokes and Spoke Nipples.

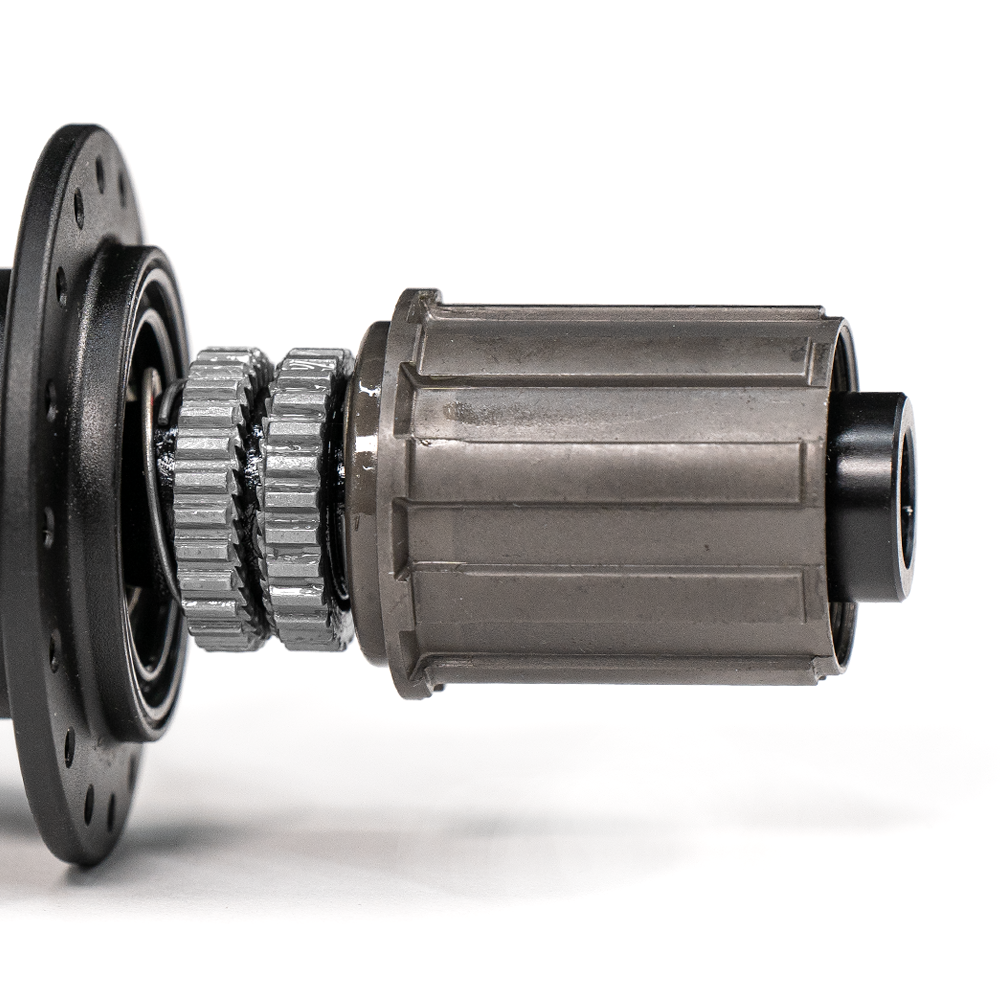

What is a star ratchet hub?

A star ratchet hub is a robust and reliable hub design which distributes the load of your eBike's motor across 36 points-of-contact opposed to the 4-6 points-of-contact on a pawl based hub.

This addresses a common point of failure for many regular hubs where the pawls will break or strip the race in the hub causing the power to no longer be transferred to the rear wheel. The even distribution of power between the star ratchet teeth ensures a smooth and reliable drivetrain.

No Tool Construction

The star ratchet hub can be assembled and disassembled with no tools, resulting in easy access to bearings, freehub body replacements,  and configuration between 190m and 197mm.

Technical Specifications

Axles Supported

12mm Thru Axle (5mm QR if purchased with Adaptor)

Spokes Included

40 Uncut, 14G Spokes and Nipples Included

Freehub

HG Style

Cassette Compatibility

9, 10, 11 Speed

Width

Adjustable Between 190mm, 197mm

Spoke Hole Count

32/36

Compatibility

Bike Name 36 Hole 36 Hole with 5mm QR Adaptor
Juggernaut Ultra FS
Juggernaut Ultra 1000 w/Rear Thru Axle
Juggernaut Ultra Duo 2 Step-Over
Juggernaut Ultra FS Pro 2/3
Juggernaut Ultra FS Pro 1 26x4 Fat-Tire Version
Juggernaut Ultra Beast 1/2
Monte Capro Ultra 1/2 26x4.8 Fat-Tire Version
Juggernaut Ultra Duo 3/Pro/4
Juggernaut HD Duo
Juggernaut Ultra FS Pro 1 27.5x3 Boost Version
Juggernaut Classic Duo
Monte Capro Ultra 1/2 27.5x3 Boost Version

Need A Hand?

Chat With Us
We are always excited to hear from you. Just click the button below to activate chat now.
Chat Now
Book A Virtual Demo
Our eBike specialists can help you find your dream eBike and answer any questions you may have.
Book An Appointment Now
Give Us A Ring
24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.
+1-866-BIKTRIX

Customer Reviews

Based on 22 reviews
73%
(16)
14%
(3)
5%
(1)
0%
(0)
9%
(2)
G
Griff C.
Bullet proof upgrade for Sondors LX mid drive

As many know by now, Sondors LX hubs are…less then optimal. Mine failed at 768 miles. The Wren ratchet hub is well reviewed and I’m aware of other Sondors installations so I purchased one.
Not being an avid biker I wasn’t aware of all the axle permutations but eventually concluded I could reuse the Sondors LX axle if I turned down the 14mm center section to the 12mm diameter of the ends. Worked perfectly, I’m back on my bike with confidence that my hub problems are past.

R
Robert M.
Wren Star Ratchet is a must!

I have a Juggernaut Ultra FS Pro 3 and mainly use it off road. I should have upgraded to the Wren Star Ratchet Rear Hub right when I bought it but I didn’t. After a year off road riding I stripped the standard hub. The guys at Biktrix were awesome at getting me fixed up with a new rim with the Wren Hub laced into it. Had me back in operation in just over a week including shipping awesome job guys! The Wren Hub is a must have in my eyes for this bike especially if you use it off road like I do. Much, much stronger hub! 👍

U
USA T.S.-.D.Y.D.C.
Ultra duo 3

no discount given at all even though I only had the bike 6 months. Plus the spokes have to all be changed, hard time finding spokes that fit.

B
B s.
Wren star ratchet rear hub juggernaut FS PRO

Get one when you order your bike, the 1,000 Watt motor will wear out the original one in about 600 miles or so, and this may depend on the type of riding you do. I ride off road up and down mountains. They got me a new hub and wheel in about a week. Thanks bike people for getting the parts that I need to the USA, asap. 😊✌️🤙

J
Joey E.
Decent Hub

The hub is built well but the spokes and nipples that are supplied don’t work with the wheel they sent on the bike. Spokes were also wrong diameter and the nipples didn’t match the spokes. Every time I order from biktrix I have issues. I wouldn’t have ordered from them if it wasn’t for there odd spoked wheel. I would not recommend biktrix but the wren hub is built well.

M
Michael N.
Hub is great after I got all the parts.

I got my wheel with the new hub in a very short time and I was very happy about that. Works great, sounds good. My issue was I didn't receive the QR skewer to mount it. Roshan says any wheelset you buy will not come with skewers Customer Service says they should have sent one and just forgot. However they did send me one, took about 5 days to get it, that was partially on FedX.
If you get one of these hubs specify if you need a skewer. My bike was originally a bolt on so I never had one. Other than that I like the upgraded wheel and as always love my bike, it's been a good one.

M
Martin R.
Hub-Bub

So far the Wren Ratcheting freehub seems rock solid. If I had known the standard freehub would fail, I would’ve ordered it as an upgrade when I ordered my Jugg Ultra Duo.

A
Al H.
biktrix supplied WREN hub

The package came quick AFTER they dropped the ball not seeing my order was placed AND paid . The hub looks good except for a small nick in the flange where the spokes install. Time will tell on the operational experience ; it sounds smooth as silk.

T
Todd C.
Great rear hub

Received my new rear hub and first thing I noticed was it appeared to be a far superior hub than the original rear hub that comes on the bike. Installs was a bit challenging as there were a couple extra parts (I come to realize they were different size spacers) and no directions as to what they were for. But after figuring it out and changing to the proper spacer it went together easily. Been back riding for over a week now and definitely rides smother and fixed my grinding issue from the bad hub I had. Thanks to the team for getting the part out to me quickly, so I had minimal down time.
