Overview

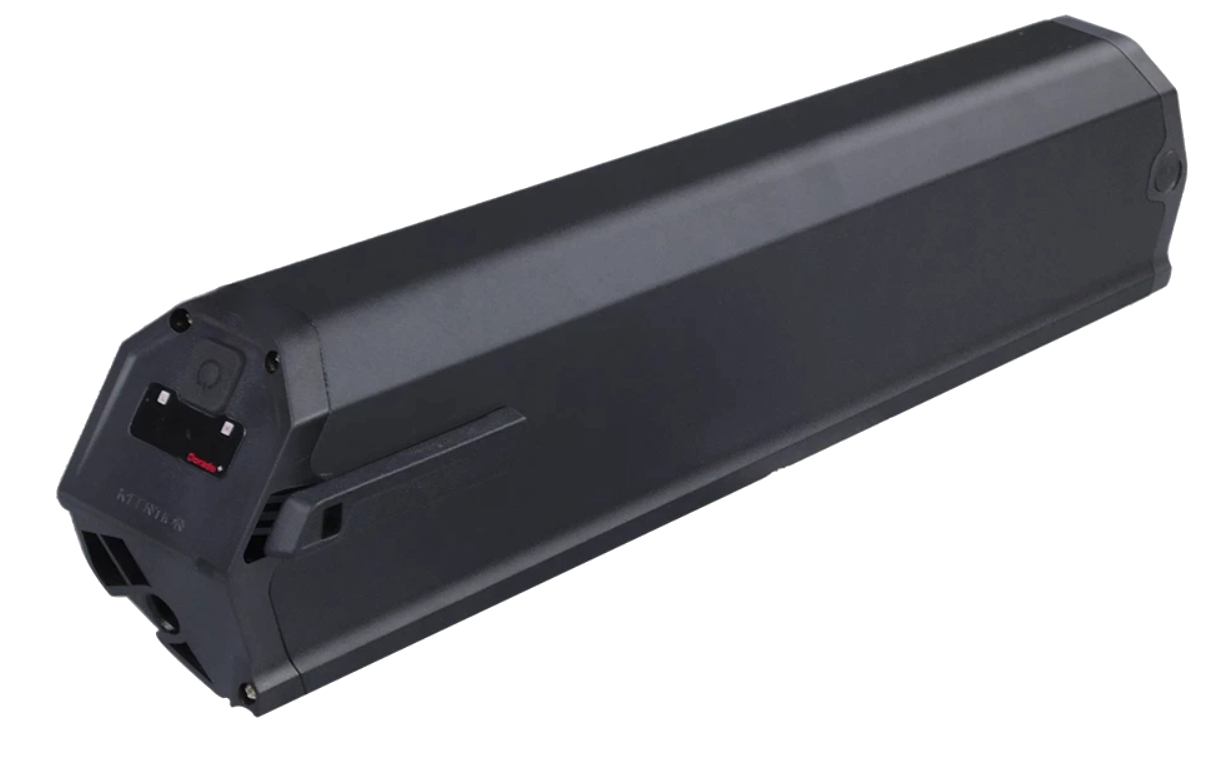

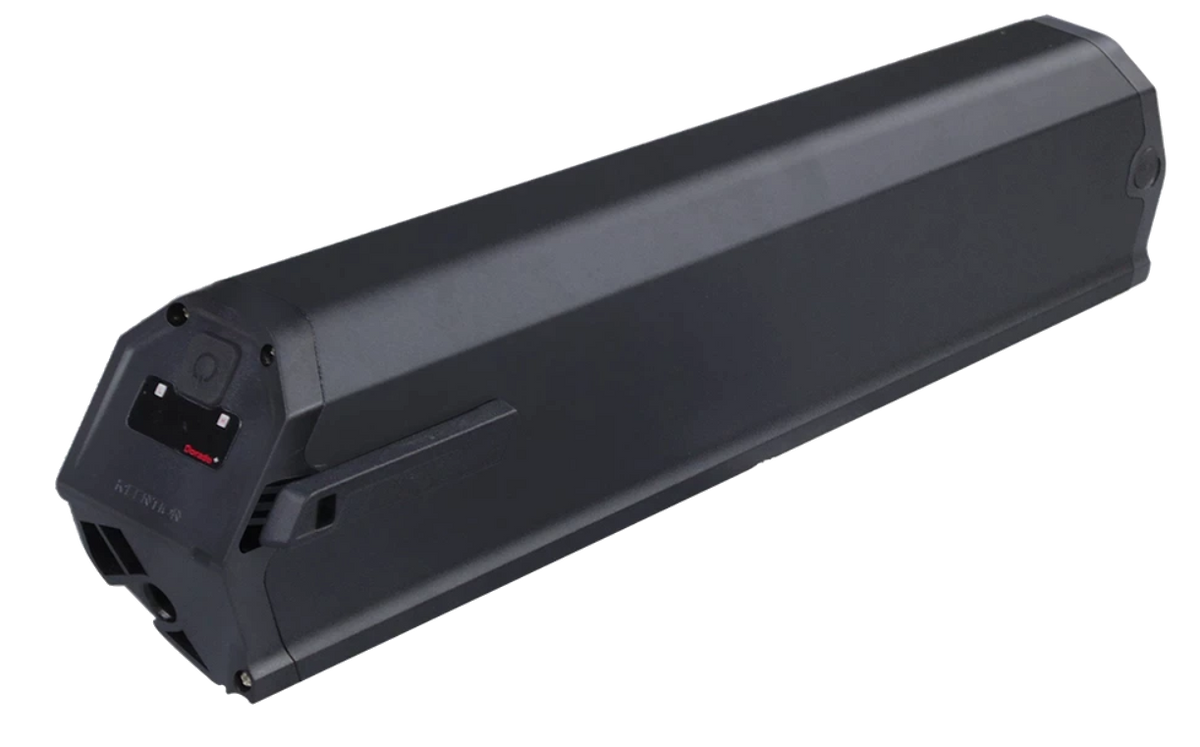

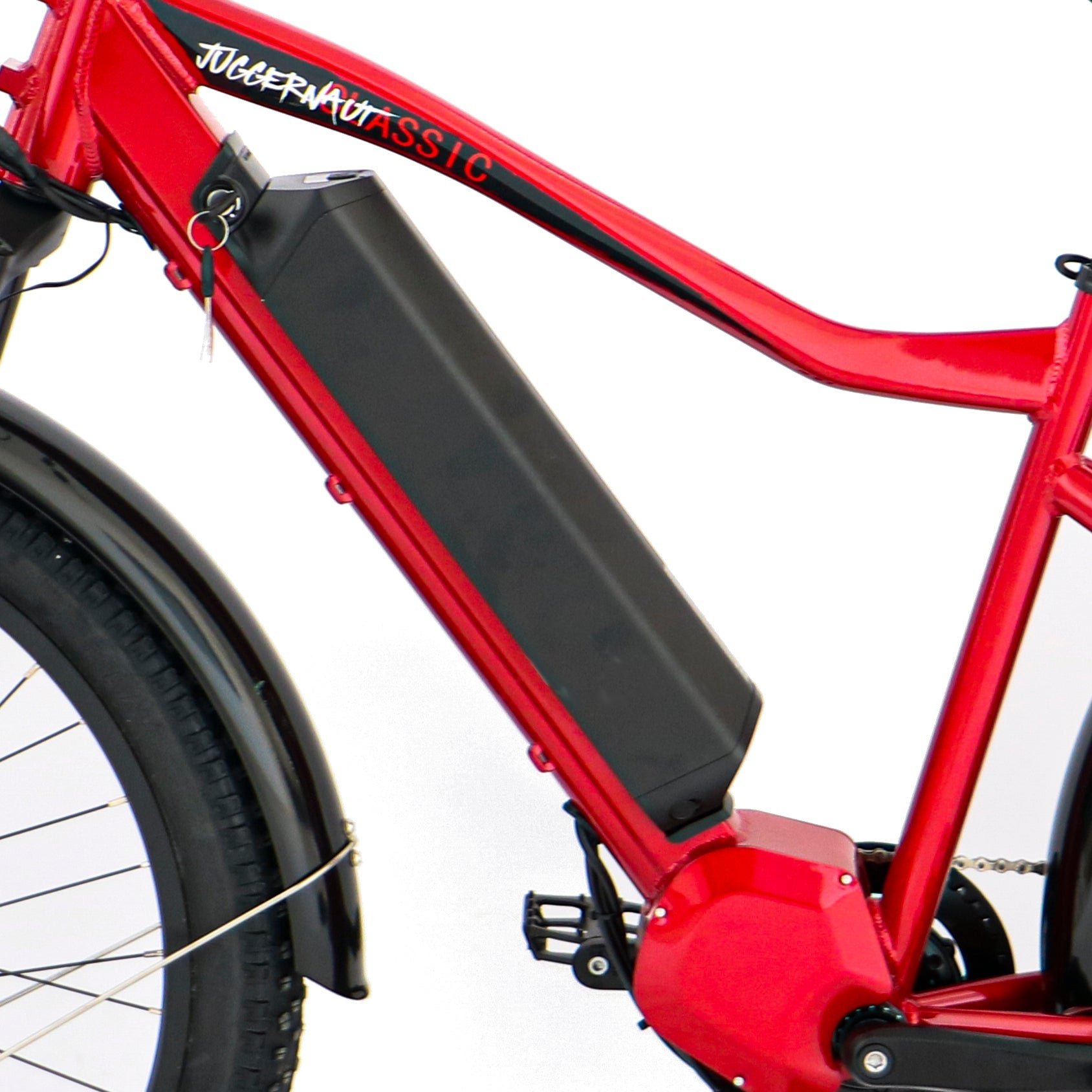

This sleek removable battery is used in many different Biktrix eBike models ranging from Juggernauts to Stunners to Swifts. A high-quality design and many power options provide reliable power and range to extend your ride!
Note for Juggernaut Eagle XD Riders: Your bike is only compatible with the voltage of the battery you purchased it with ie only 48V Extra Batteries will work with your bike if you purchased the bike with a 48V Battery originally.

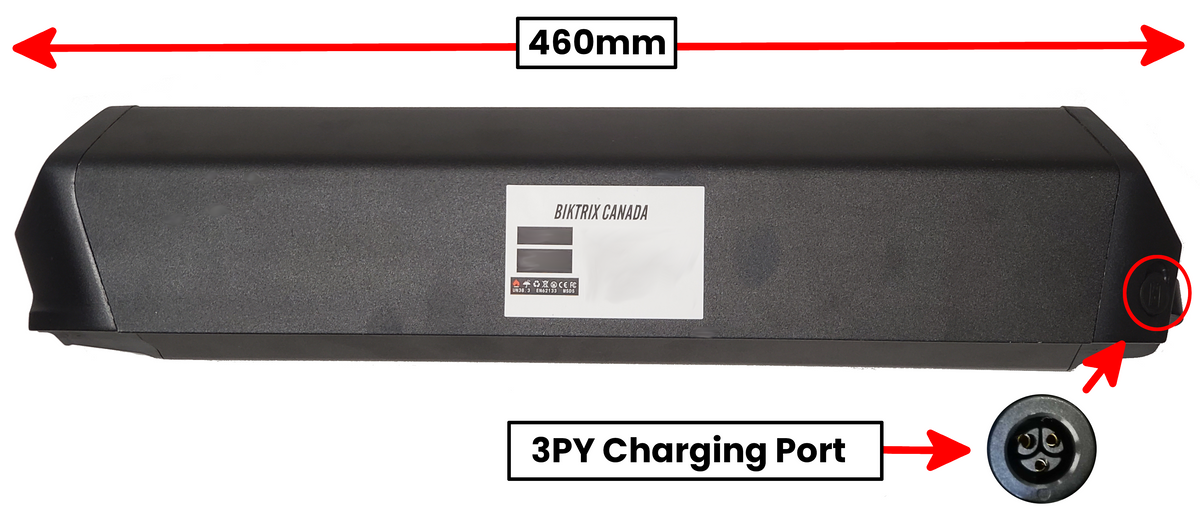

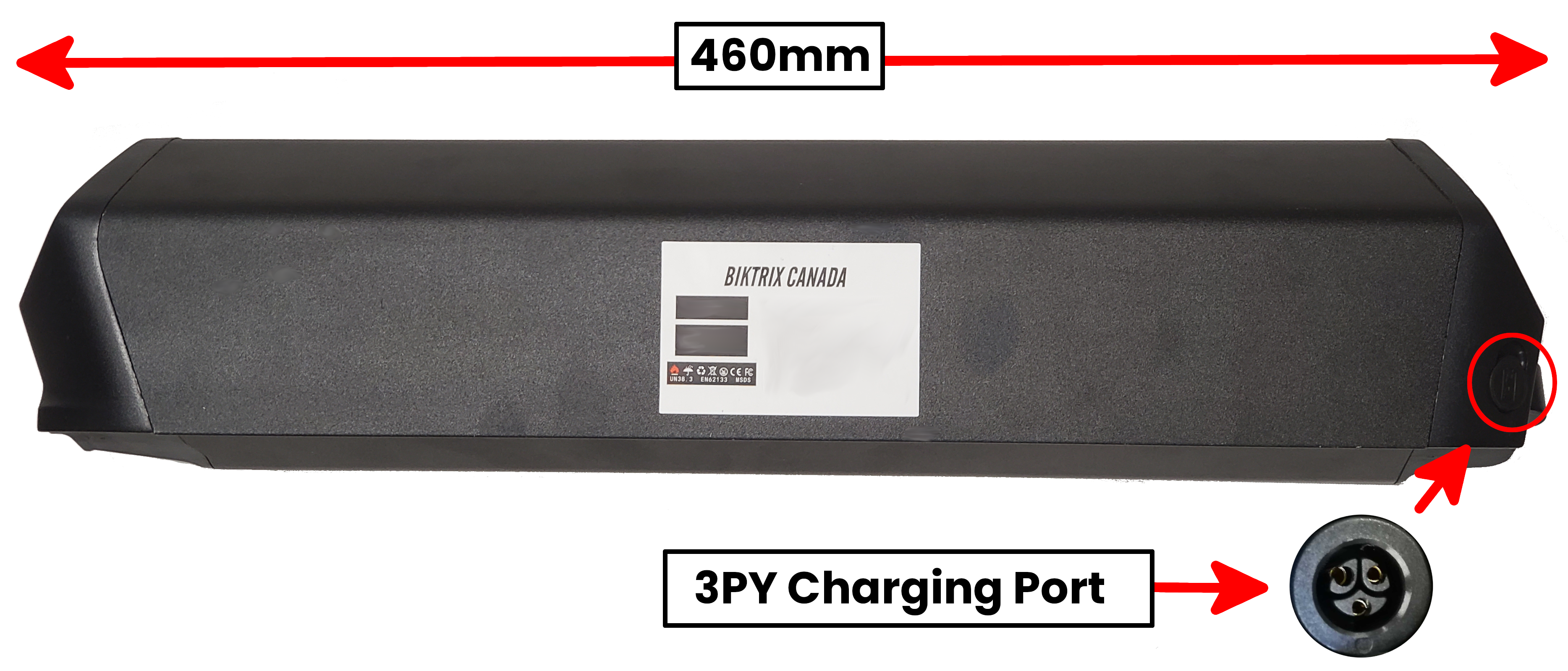

Note: There are two different case lengths for this battery. The batteries on this page have a 460mm Case Length (18.1"). If you are looking for the Short Case Battery please visit THIS PAGE.
* For these models you need to purchase the same voltage of battery as you originally ordered the bike with. Ie if you ordered a 48V Battery, make sure you get a 48V replacement! If you have purchased a 52V battery with your eBike, you will need the "52V 17Ah 910Wh 1-Pin" version of the battery.
^For these models you may need a specifically sized case - reach out to Biktrix Support for assistance in getting the perfect battery for your model!

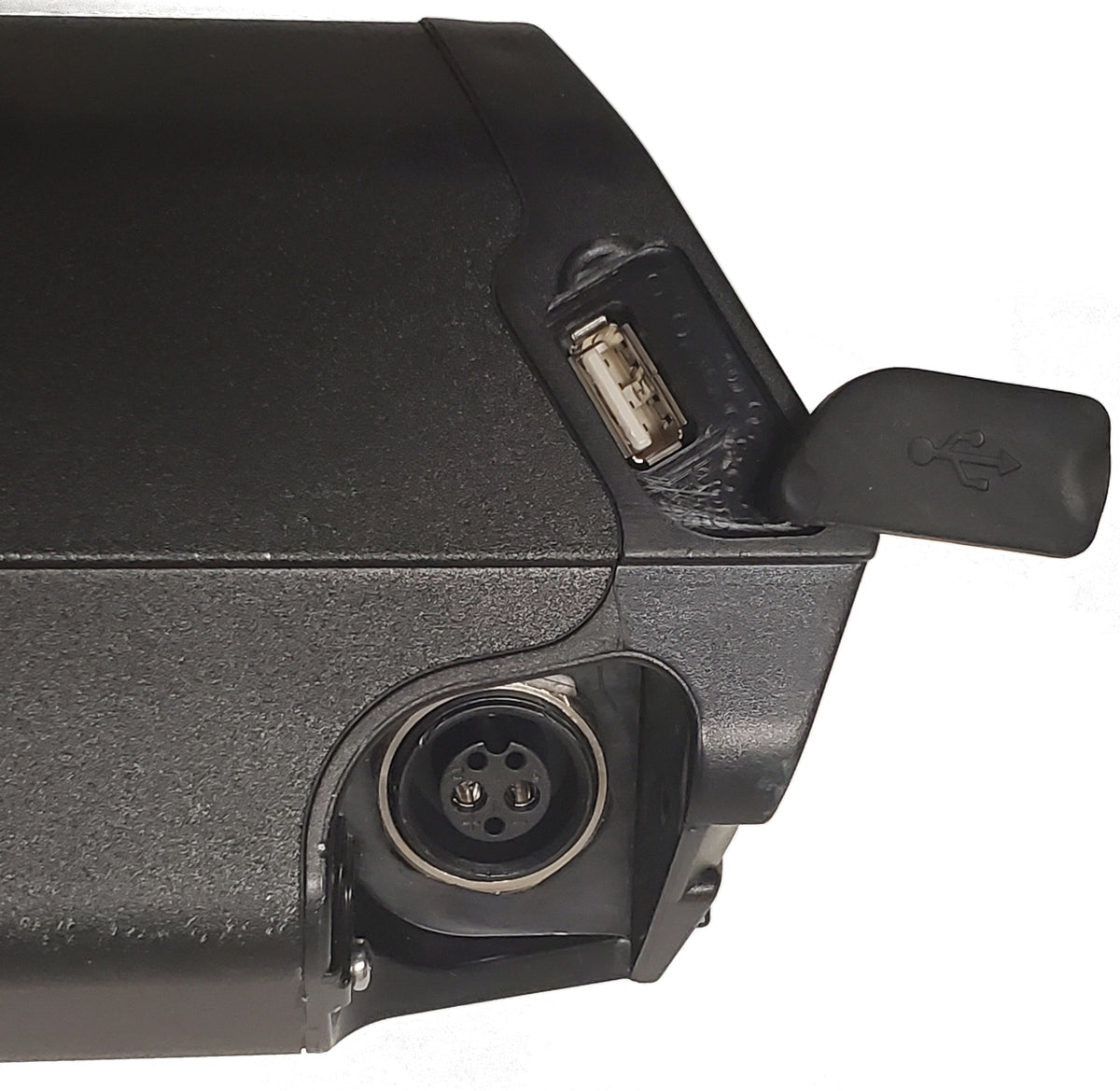

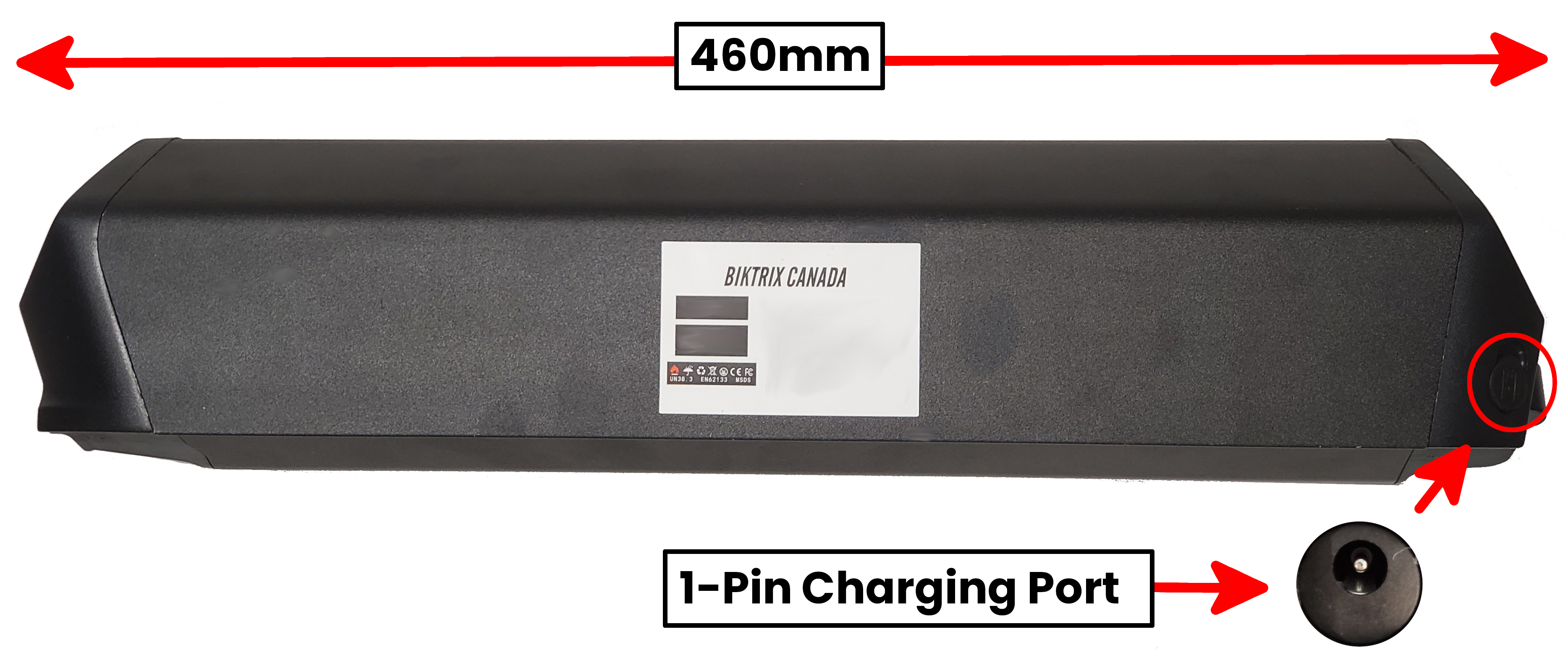

Not sure about charger connector type? Check out this guide for more information on Charger Types including 1-Pin, 3-Pin and 3py
There are 48 and 52V versions of this battery available with different Ah capacities. Check out this guide for more information on battery Voltage and Ah!
Technical Specifications
Dimensions (W x L x H)
48.7cm/19.2in x 64.1cm/25.2in x 18.5cm/7.3in
Weight
4.0kg/8.5lb+
Compatibility
| Bike Name | 36V | 48V | 52V | 60V |
|---|---|---|---|---|
| Juggernaut Classic* | ||||
| Juggernaut HD / Limited* | ||||
| Juggernaut Ultra 1000 / Pro | ||||
| Juggernaut Ultra FS | ||||
| Juggernaut XD* | ||||
| Ultra Eagle 2 | ||||
| Juggernaut Ultra Founders Edition | ||||
| XD Eagle* | ||||
| Juggernaut XD Founders Edition | ||||
| Stunner LT 6/7/8 | ||||
| Stunner LT 5 (and older)^ | ||||
| Stunner Step-Thru/Over* | ||||
| Stunner X 1-5* | ||||
| Swift Step-Thru/Over | ||||
| Skycap |
