Overview

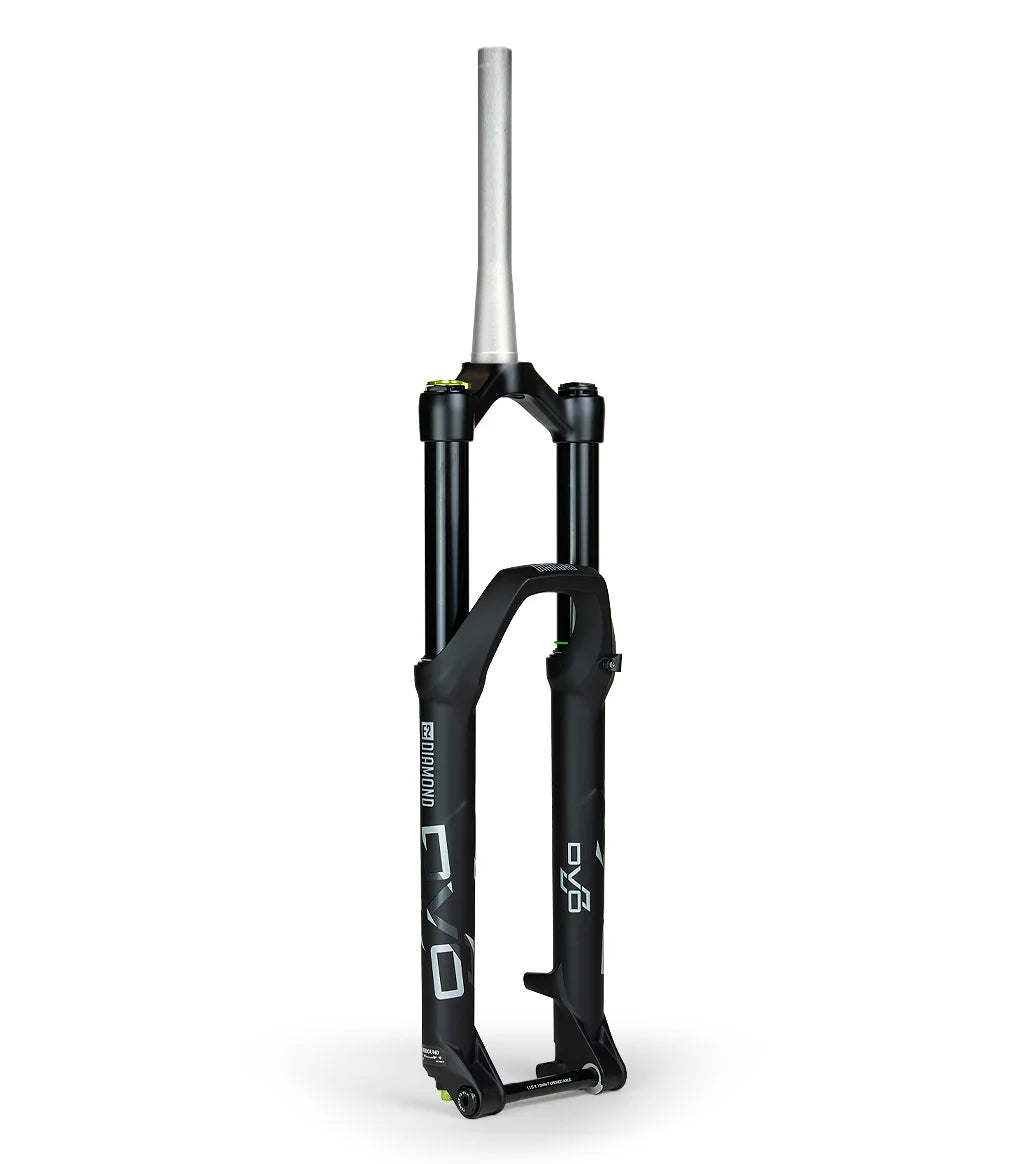

The Diamond D2 is the ultimate combination of simplicity and performance for the aggressive rider. With the same precision-designed chassis and 35mm stanchions as the D1 model, Diamond D2 is a 150mm to 170mm aggressive trail weapon with condensed features.
Technical Specifications
Travel
170mm-150mm Adjustable
Adjustments
4 Poisiton Low Speed Compression, Rebound, Air
Spring Type
Air Spring
Steerer Tube Diameter
1-1/2" - 1-1/8" Tapered
Hub Spacing
110mm TA
Supported Axle
15x110mm Thru Axle - Included
Supported Wheel Sizes
27.5x2.8-3"
Fork Offset
37mm
Leg Diameter
35mm Tapered Alloy
Brake Rotor Size Range
160mm - 203mm
Compatibility
| Bike Name | Compatible |
|---|---|
| Monte Capro Ultra 1/2 w/ 27.5 x 2.8" Boost Hub Spacing | |
| Monte Capro Ultra 1/2 w/ 26x4.8" Fat Tire Hub Spacing | |
| Monte Capro Lite | |
| Juggernaut Ultra Eagle 1 | |
| Juggernaut Ultra FS Pro 1 w/ 27.5x3" Boost Hub Spacing | |
| Juggernaut Ultra FS Pro 1 w/26x4" Fat Tire hub Spacing | |
| Juggernaut Ultra FS Pro 2/3 | |
| Juggernaut Ultra FS |
