750W Mid-Drive

Motor Power

Up to 85mi

Standard Range

+5'6ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

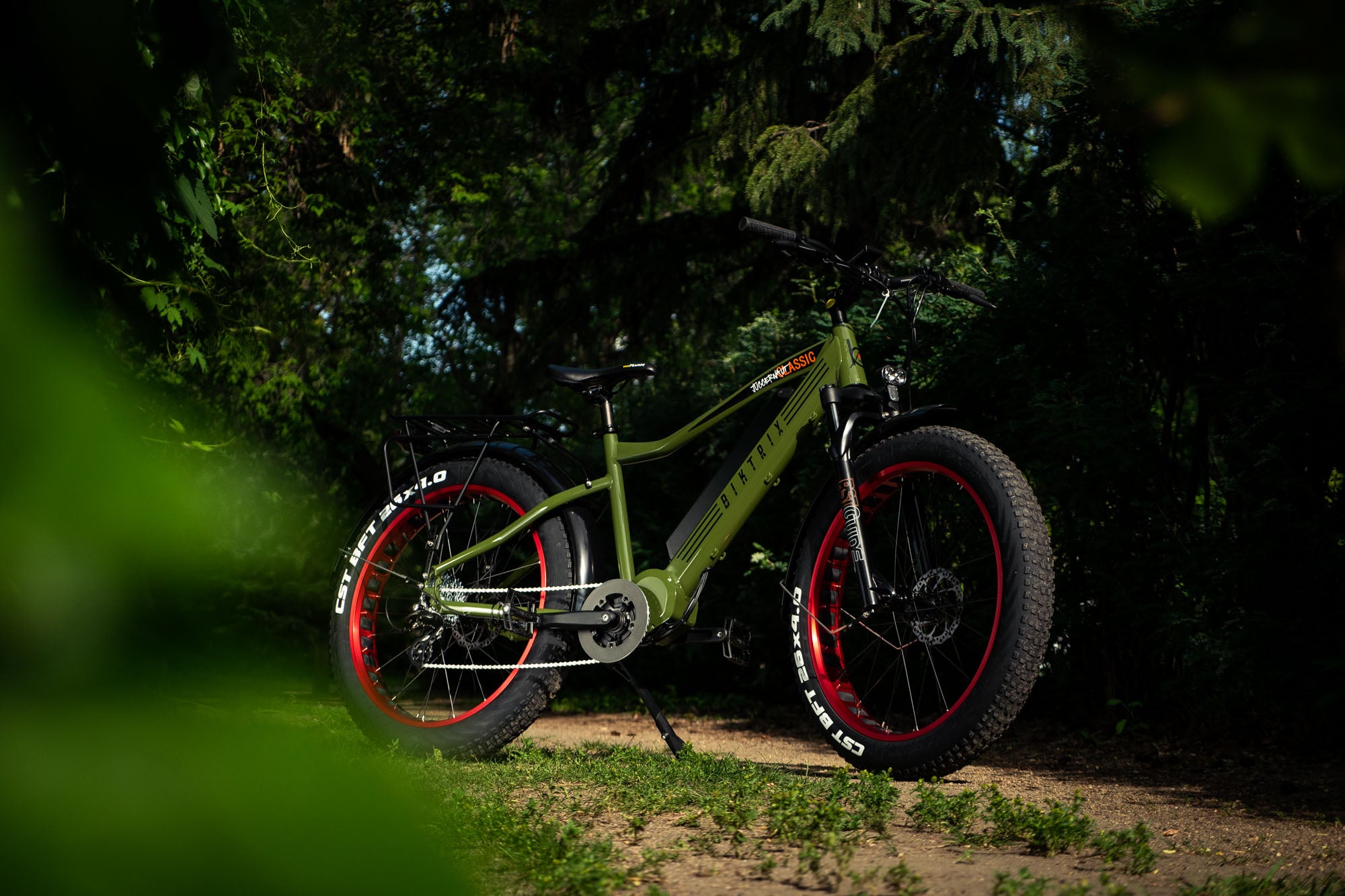

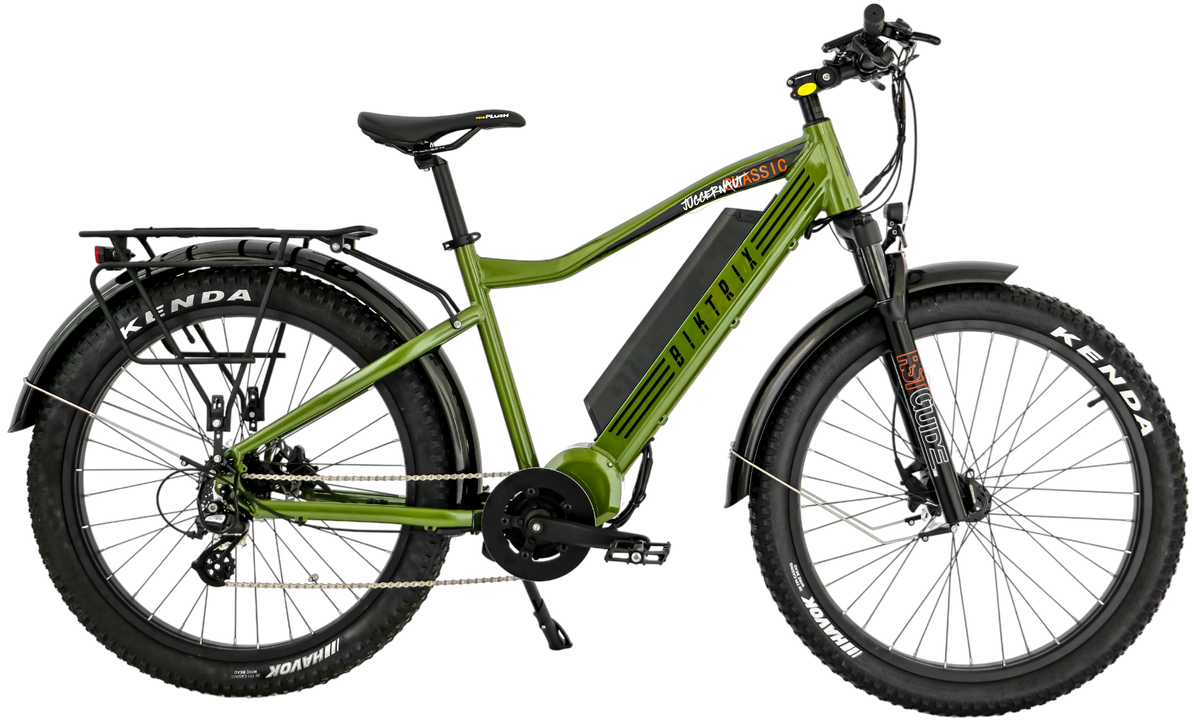

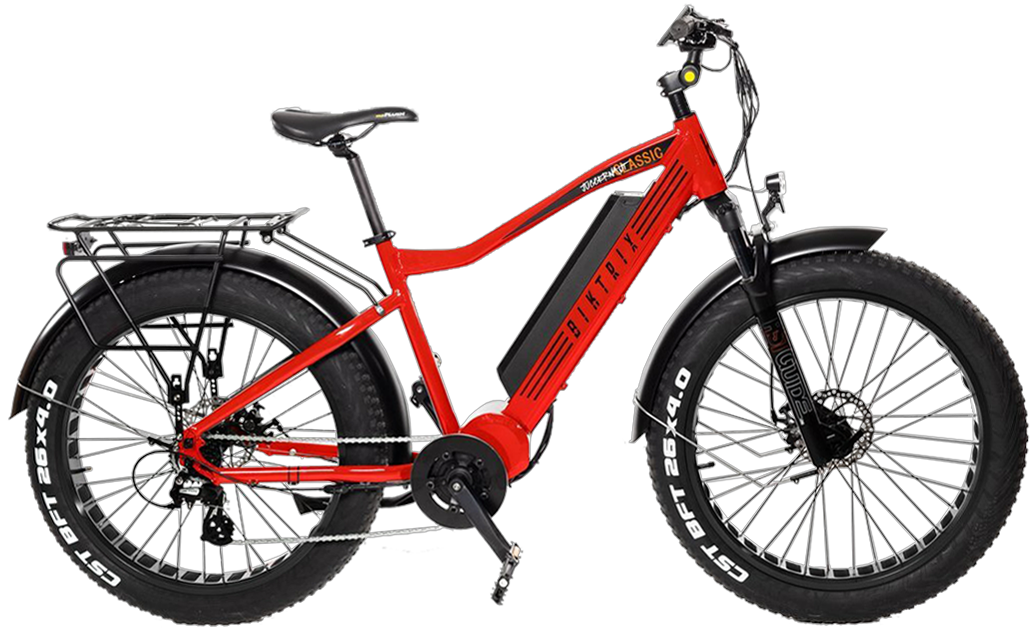

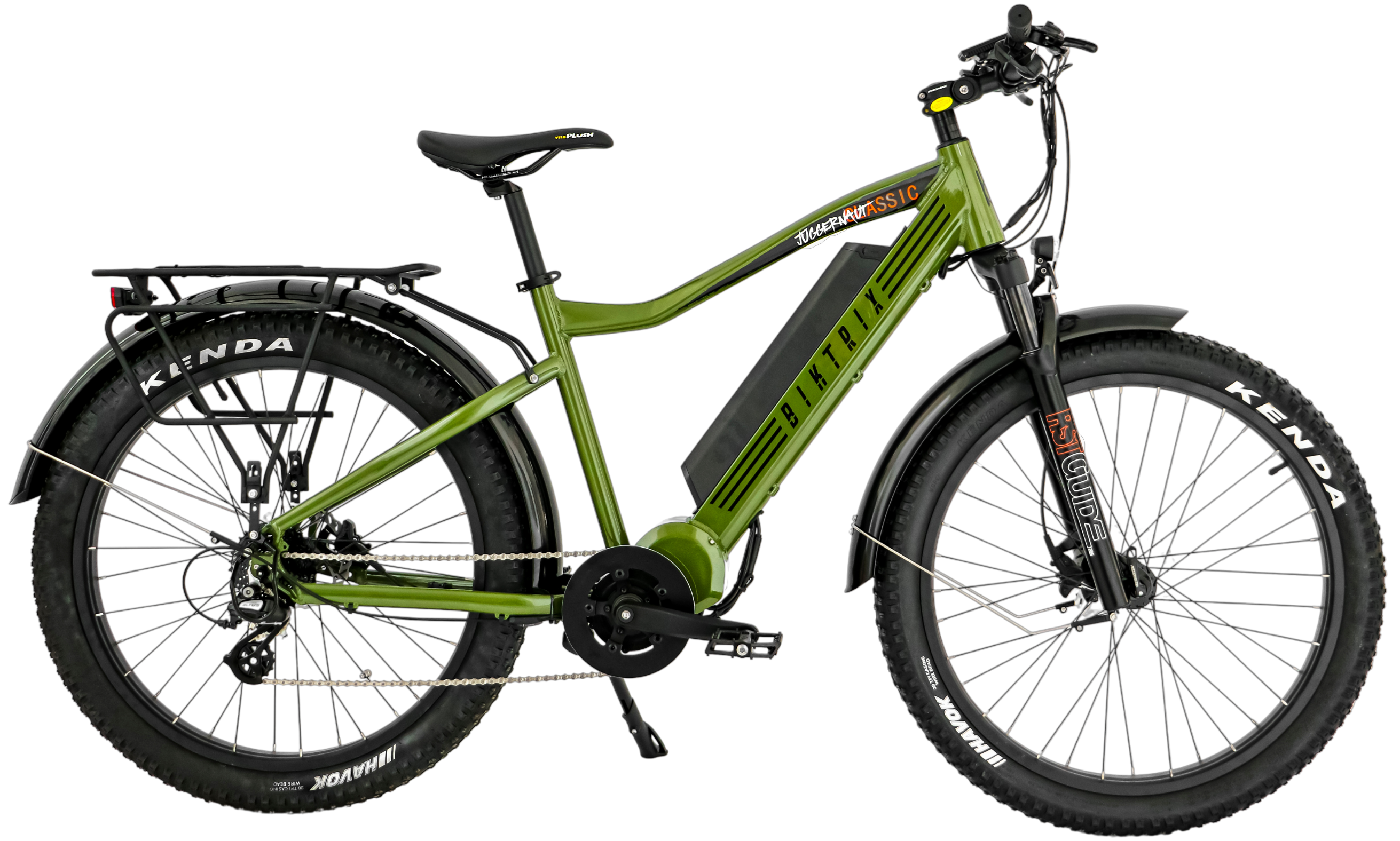

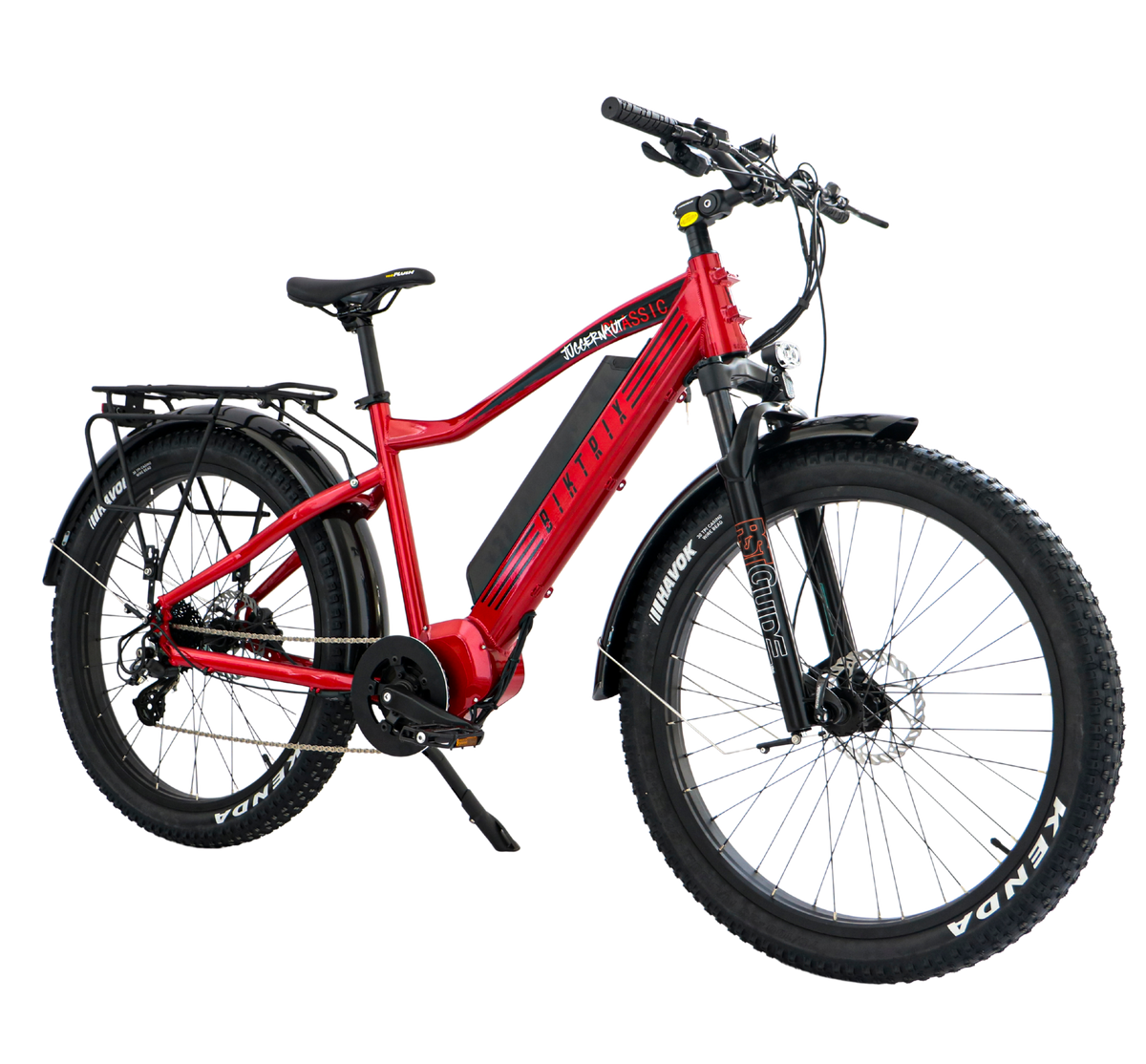

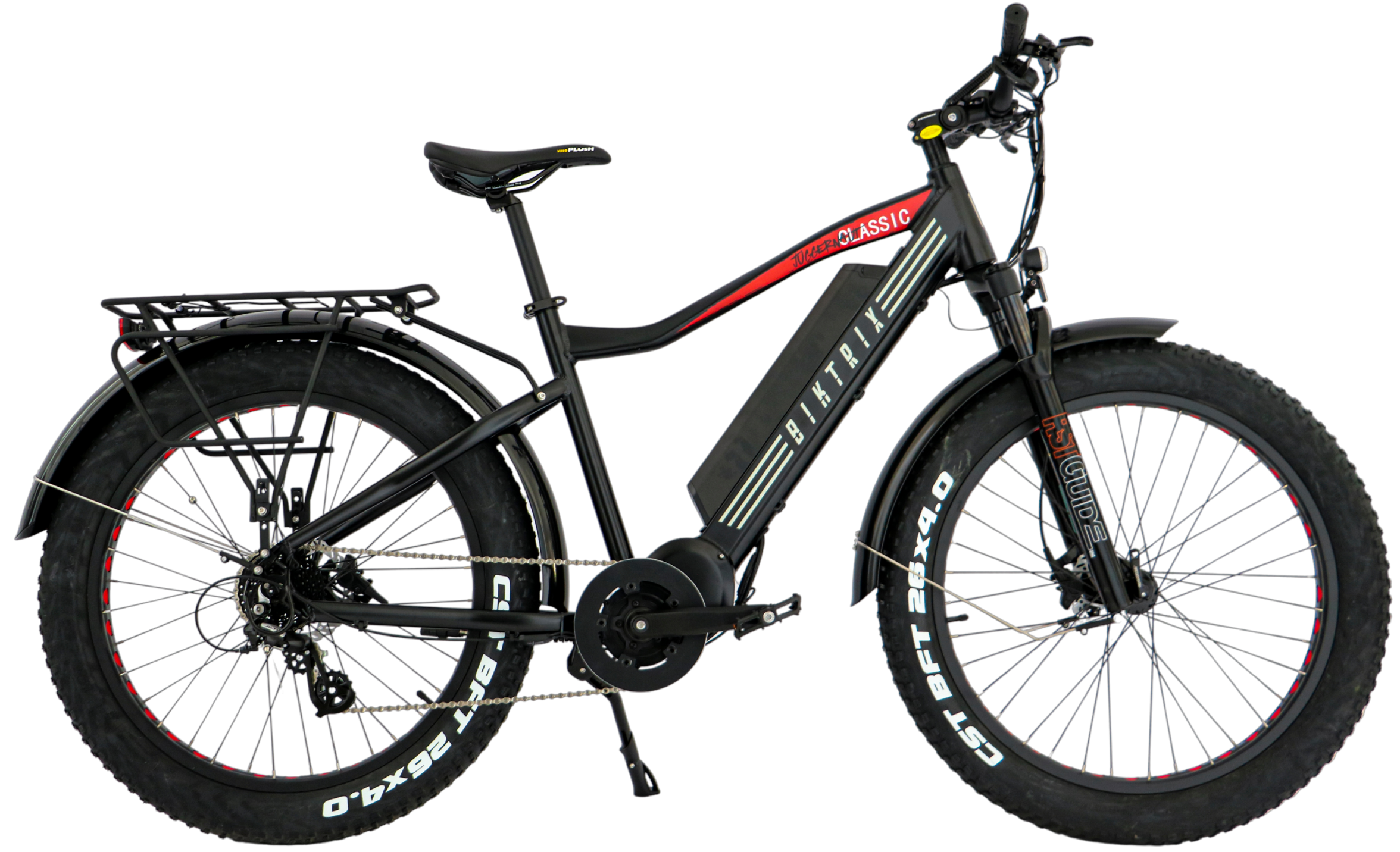

Juggernaut Classic 9

Name: Juggernaut Classic 9
Brand: Sale Item
SKU: JCL264GN1
Price: 1422.0 GBP
Availability: OutOfStock
Rating: 4.68 (76 reviews)

4.6

£1,422 £1,975

This item has been replaced!

Interested in the latest version of this classic Biktrix model? Check out the Juggernaut Classic Duo Step-Over!

Juggernaut Classic Duo Step-Over

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	480mm	18.9in
3	Reach	480mm	18.9in
4	Stack	630mm	24.8in
5	Chainstay Length	520mm	20.5in
6	Standover Height	740mm	29.1in
7	Head Angle	72°	-
8	Seat Angle	73.5°	-
9	Head Tube Length	150 mm	5.9 in
10	Fork Length	530mm	20.9in
11	Front Center	700mm	27.6in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1210mm	47.6in
15	Total Length	1980mm	78in
16	Max Seat Height	1010mm	39.8in
17	Min Seat Height	850mm	33.5in
18	Handlebar Height	1140mm	44.9in
19	Weight (Without Battery)	28.7kg	63.3lb

750W Mid-Drive

Motor Power

Up to 85mi

Standard Range

+5'6ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Technical Specifications

Frame 6061 aluminum	Front hub 135mm 36h	Seat post Aluminum 28.6mm

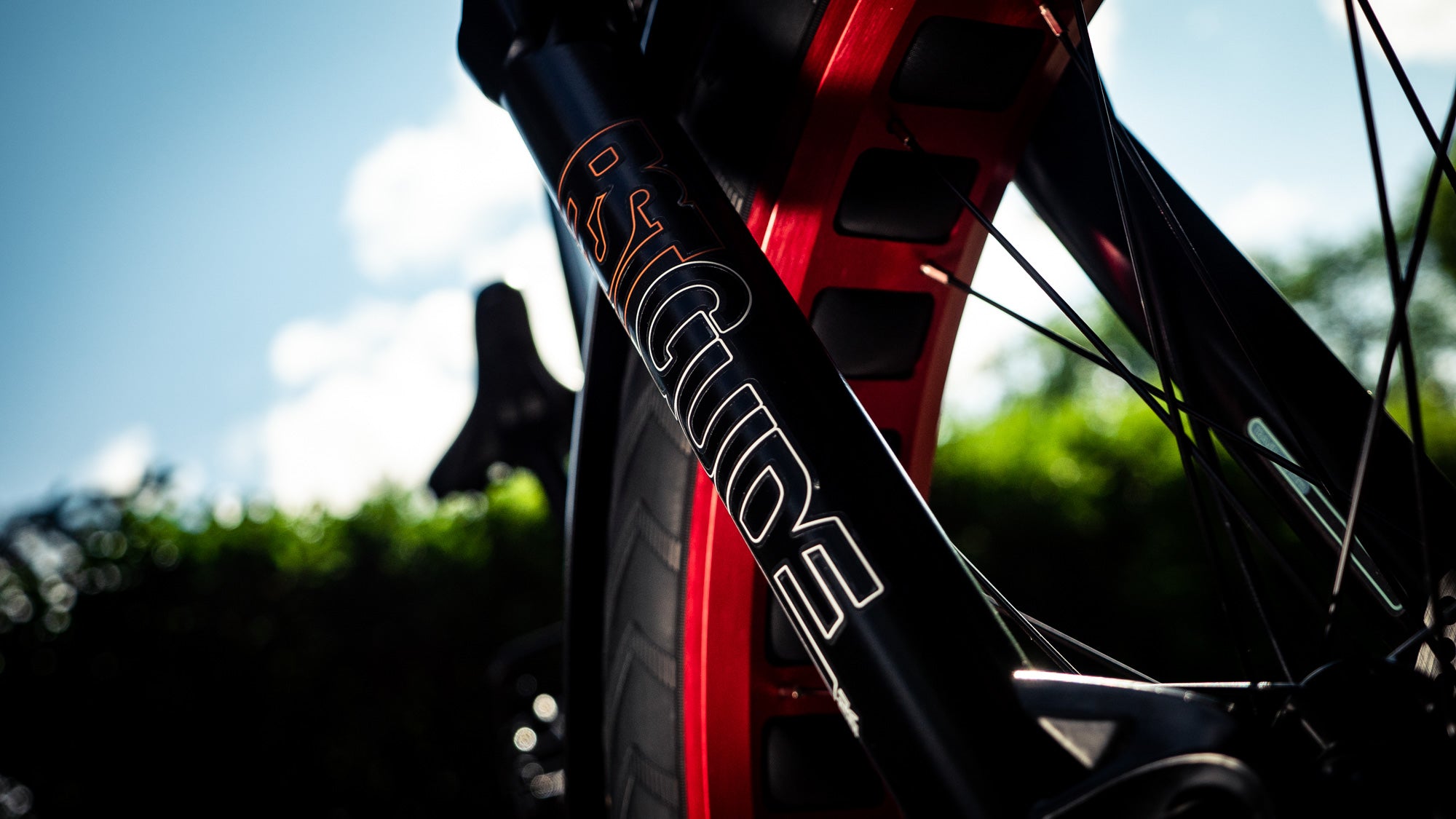

Fork Rst guide w/80mm travel, lockout & rebound	Front axle 5mm qr	Seat post clamp Qr

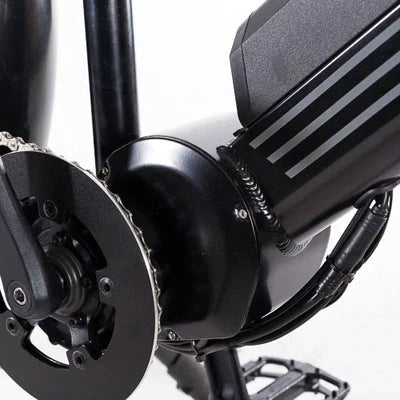

Headset Threadless 1-1/2 1-1/8 tapered	Rear hub 190mm 36h	Motor Bafang bbs02

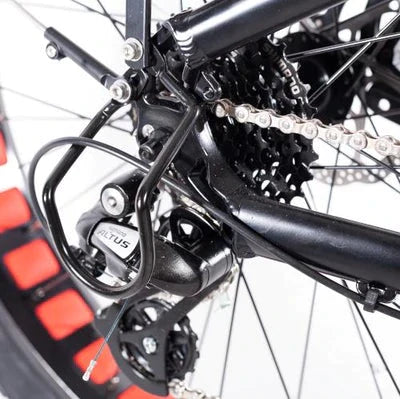

Shifter rear Shimano altus 8 speed trigger shifter	Rear axle 5mm qr	Battery sizes 48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung
Rear derailleur Shimano altus 8 speed	Rims 26" black with round cutouts/27.5" solid black	Display 800s backlit lcd display

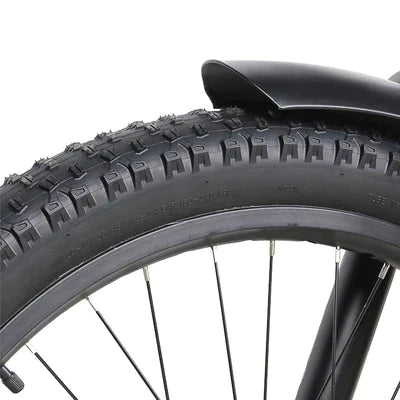

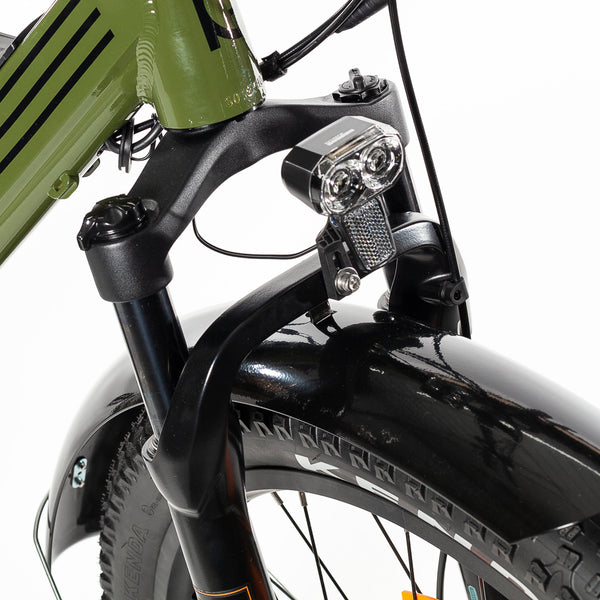

Cassette 11-32t	Tire sizes 26x4", 27.5x3"	Lights Wired headlight, battery powered taillight
Chain Kmc z8	Handlebar 31.8mm clamp, 700mm wide, 20mm rise	Assist type Cadence
Crank set 42t chainring w/ 170mm arms	Stem Promax adjustable 70mm	Assist levels 1-5 (1-3, 1-9)
Bottom bracket Bafang 68mm square tapered	Grips Slide on grips	Throttle Thumb throttle

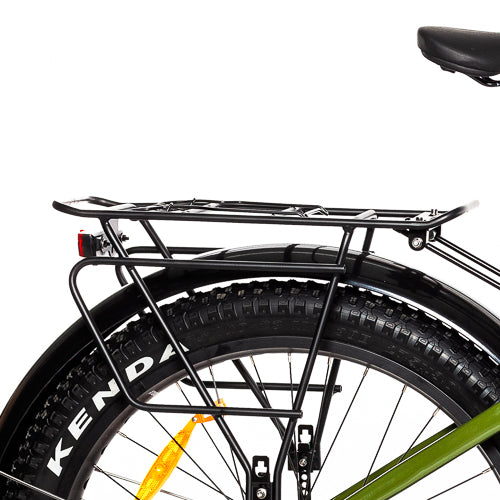

Brakes Biktrix dual piston hydraulic brakes w/160mm rotors	Saddle Velo plush narrow saddle	Other Rack, fenders, center mount kickstand
Brake levers Biktrix w/ adjustable reach and motor cutoffs

Frame 6061 aluminum	Front hub 135mm 36h
Seat post Aluminum 28.6mm	Fork Rst guide w/80mm travel, lockout & rebound
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/2 1-1/8 tapered	Rear hub 190mm 36h
Motor Bafang bbs02	Shifter rear Shimano altus 8 speed trigger shifter
Rear axle 5mm qr	Battery sizes 48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung
Rear derailleur Shimano altus 8 speed	Rims 26" black with round cutouts/27.5" solid black
Display 800s backlit lcd display	Cassette 11-32t

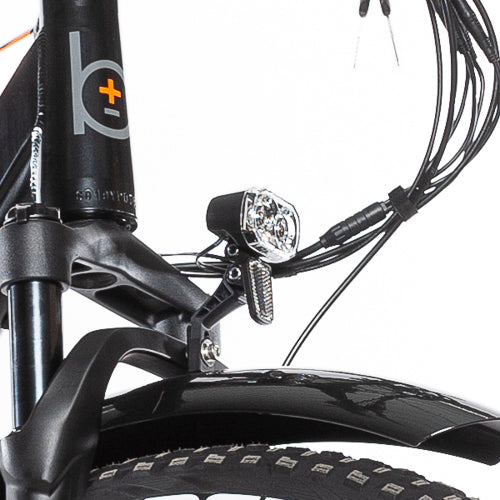

Tire sizes 26x4", 27.5x3"	Lights Wired headlight, battery powered taillight
Chain Kmc z8	Handlebar 31.8mm clamp, 700mm wide, 20mm rise
Assist type Cadence	Crank set 42t chainring w/ 170mm arms
Stem Promax adjustable 70mm	Assist levels 1-5 (1-3, 1-9)
Bottom bracket Bafang 68mm square tapered	Grips Slide on grips
Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic brakes w/160mm rotors
Saddle Velo plush narrow saddle	Other Rack, fenders, center mount kickstand
Brake levers Biktrix w/ adjustable reach and motor cutoffs

Frame

6061 aluminum

Front hub

135mm 36h

Seat post

Aluminum 28.6mm

Fork

Rst guide w/80mm travel, lockout & rebound

Front axle

5mm qr

Seat post clamp

Qr

Headset

Threadless 1-1/2 1-1/8 tapered

Rear hub

190mm 36h

Motor

Bafang bbs02

Shifter rear

Shimano altus 8 speed trigger shifter

Rear axle

5mm qr

Battery sizes

48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung

Rear derailleur

Shimano altus 8 speed

Rims

26" black with round cutouts/27.5" solid black

Display

800s backlit lcd display

Cassette

11-32t

Tire sizes

26x4", 27.5x3"

Lights

Wired headlight, battery powered taillight

Chain

Kmc z8

Handlebar

31.8mm clamp, 700mm wide, 20mm rise

Assist type

Cadence

Crank set

42t chainring w/ 170mm arms

Stem

Promax adjustable 70mm

Assist levels

1-5 (1-3, 1-9)

Bottom bracket

Bafang 68mm square tapered

Grips

Slide on grips

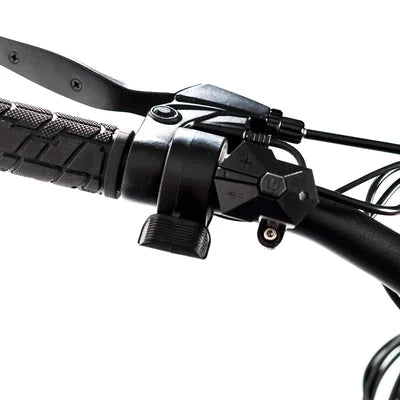

Throttle

Thumb throttle

Brakes

Biktrix dual piston hydraulic brakes w/160mm rotors

Saddle

Velo plush narrow saddle

Other

Rack, fenders, center mount kickstand

Brake levers

Biktrix w/ adjustable reach and motor cutoffs

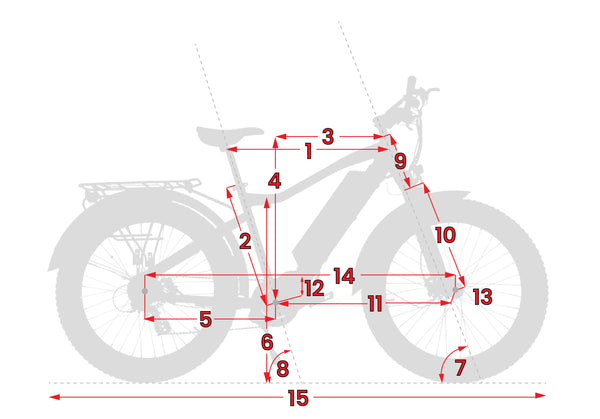

Size & Fittings

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	480mm	18.9in
3	Reach	480mm	18.9in
4	Stack	630mm	24.8in
5	Chainstay Length	520mm	20.5in
6	Standover Height	740mm	29.1in
7	Head Angle	72°	-
8	Seat Angle	73.5°	-
9	Head Tube Length	150 mm	5.9 in
10	Fork Length	530mm	20.9in
11	Front Center	700mm	27.6in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1210mm	47.6in
15	Total Length	1980mm	78in
16	Max Seat Height	1010mm	39.8in
17	Min Seat Height	850mm	33.5in
18	Handlebar Height	1140mm	44.9in
19	Weight (Without Battery)	28.7kg	63.3lb

FAQ & Guides

Manual eBike Display Manuals
FAQ eBike Battery Care Guide
FAQ Recommended Tire Pressure and Inflation Levels
FAQ I just assembled my eBike, what next?
FAQ I just received my eBike - what next?
Guide Spare Parts Finder

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX

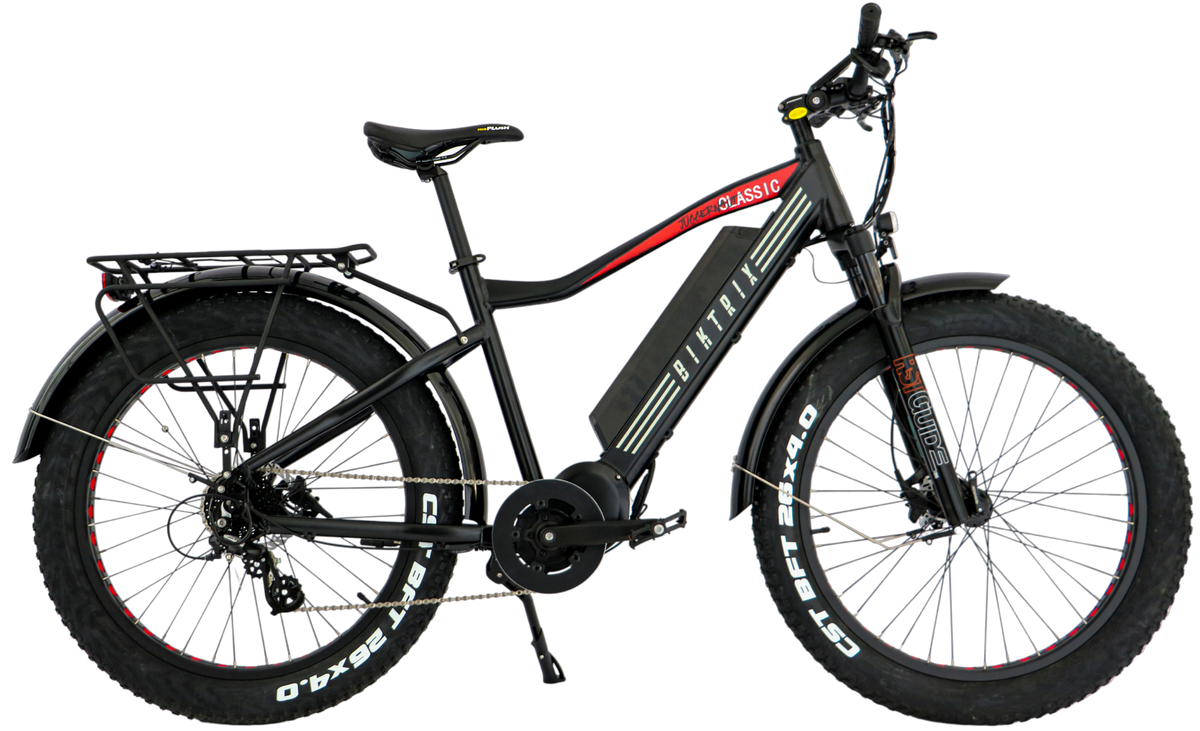

Juggernaut Classic 9
