Technical Specifications
Frame6061 aluminum |
Front hubQuanta 150mm 36h |
Seat postAluminum 30.4mm |
ForkBiktrix inverted air fork, 100mm travel |
Front axle15mm thru |
Seat post clampQuick release |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hubQuanta 197mm 36h |

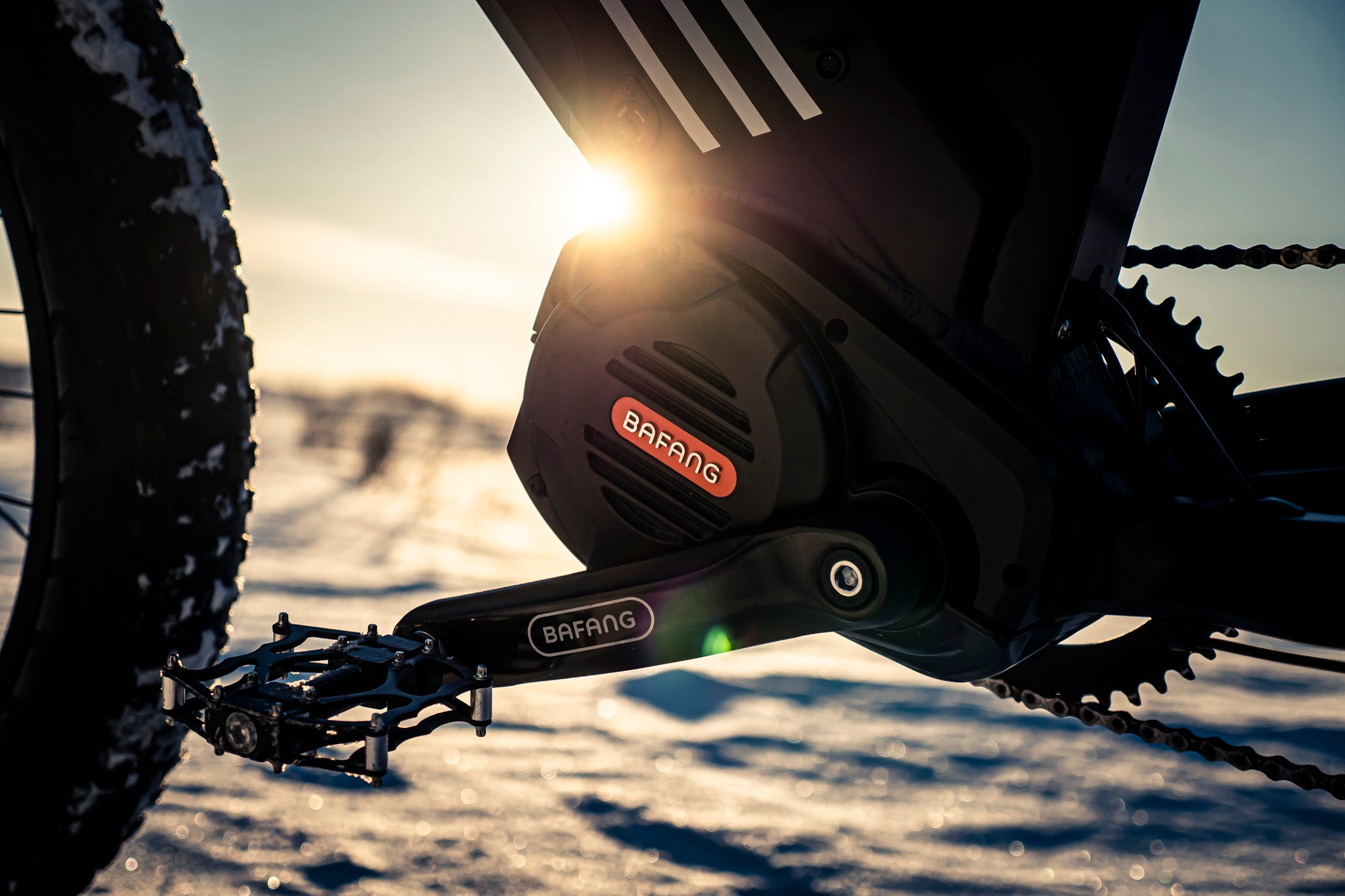

Motor1000w bafang ultra mid-drive - canbus protocol* |
Shifter rearSram nx 11 speed |
Rear axle12mm thru |
Battery sizes2 x 48v 15ah 720wh hidden batteries |

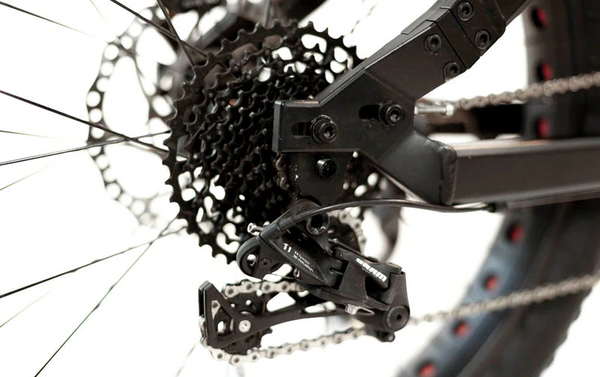

Rear derailleurSram nx 11 speed |
Rims26" - 36h |
DisplayDpc-18 color display - canbus protocol* |
CassetteSram 11-42t |
Tire sizes26x4.8" |

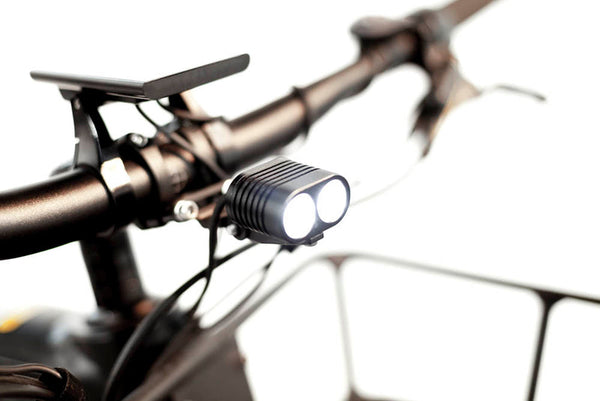

LightsIntegrated headlight |
ChainKmc e11s |
HandlebarAluminum 31.8 clamp, 760mm wide, 10mm rise 7° sweep |
Assist typeTorque, cadence |
Crank set170mm aluminum arms with 44t steel chainring |
Stem90mm aluminum |
Assist levels0-5 |
Bottom bracketBafang ultra isis |
GripsScrew lock |

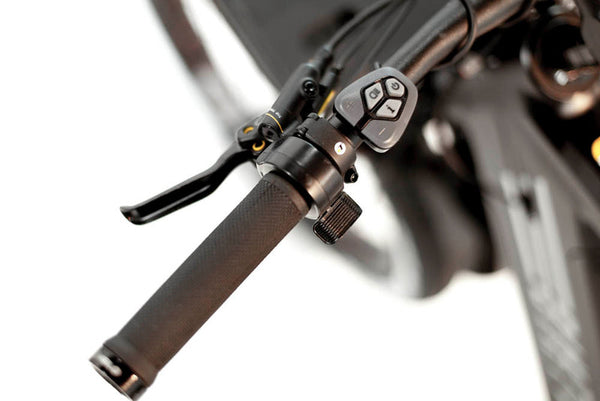

ThrottleThumb throttle |
BrakesTektro e-725 quad piston hydraulic w/ 203mm rotors |
SaddleVelo plush |

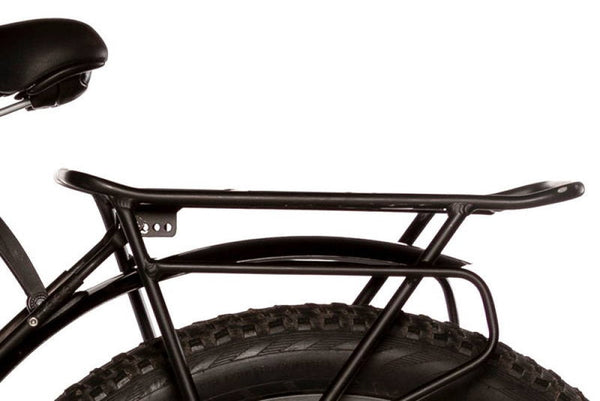

OtherFront rack, rear rack, adjustable kickstand |
Brake leversTektro hydraulic w/ motor cutoff |

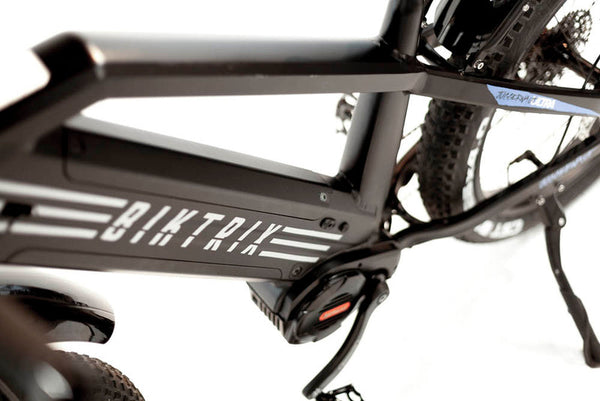

Frame6061 aluminum |
Front hubQuanta 150mm 36h |
Seat postAluminum 30.4mm |

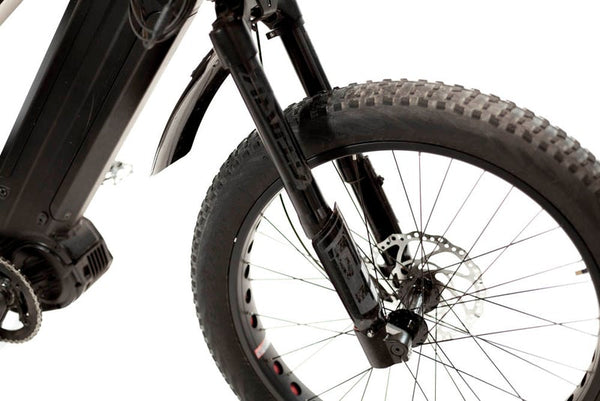

ForkBiktrix inverted air fork, 100mm travel |
Front axle15mm thru |
Seat post clampQuick release |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hubQuanta 197mm 36h |

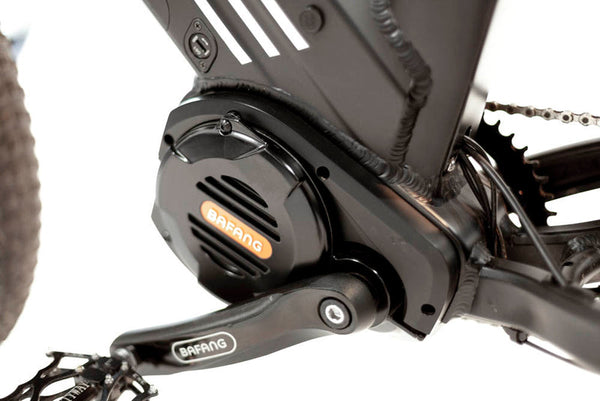

Motor1000w bafang ultra mid-drive - canbus protocol* |
Shifter rearSram nx 11 speed |
Rear axle12mm thru |
Battery sizes2 x 48v 15ah 720wh hidden batteries |
Rear derailleurSram nx 11 speed |
Rims26" - 36h |

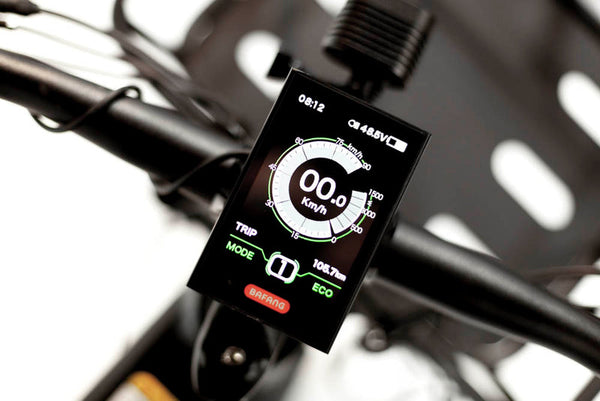

DisplayDpc-18 color display - canbus protocol* |
CassetteSram 11-42t |
Tire sizes26x4.8" |
LightsIntegrated headlight |
ChainKmc e11s |
HandlebarAluminum 31.8 clamp, 760mm wide, 10mm rise 7° sweep |
Assist typeTorque, cadence |
Crank set170mm aluminum arms with 44t steel chainring |
Stem90mm aluminum |
Assist levels0-5 |
Bottom bracketBafang ultra isis |
GripsScrew lock |
ThrottleThumb throttle |

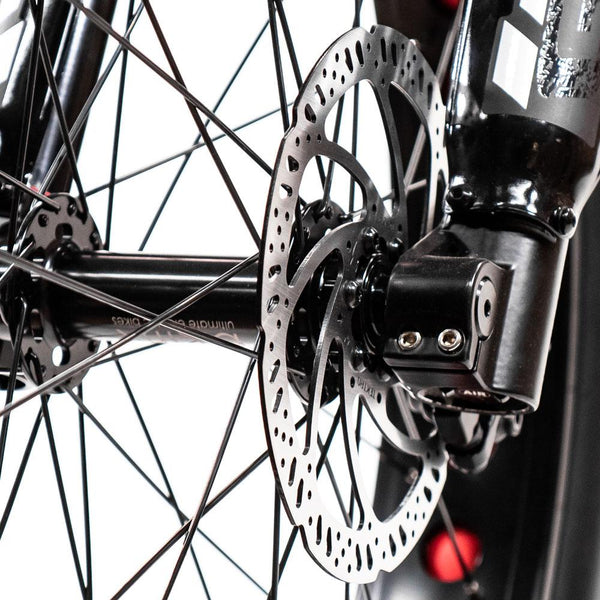

BrakesTektro e-725 quad piston hydraulic w/ 203mm rotors |
SaddleVelo plush |
OtherFront rack, rear rack, adjustable kickstand |
Brake leversTektro hydraulic w/ motor cutoff |

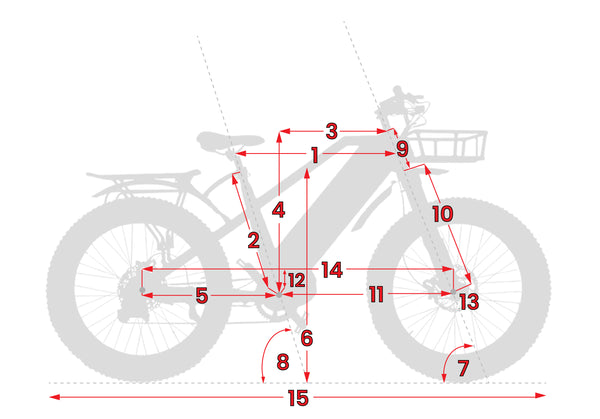

Size & Fittings
1 | Effective Top Tube Length |
610mm | 24in |
2 | Seat Tube Length (Classic Bike Size) |
480mm | 18.9in |
3 |
Reach |
480mm | 18.9in |
4 |
Stack |
680mm | 26.8in |
5 |
Chainstay Length |
560mm | 22in |
6 |
Standover Height |
730mm | 28.7in |
7 |
Head Angle |
65° | - |
8 |
Seat Angle |
68° | - |
9 |
Head Tube Length |
165 mm | 6.5 in |
10 |
Fork Length |
590mm | 23.2in |
11 |
Front Center |
680mm | 26.8in |
12 |
BB (Bottom Bracket) Drop |
45mm | 1.8in |
13 |
Fork Offset |
35mm | 1.4in |
14 |
Wheelbase |
1280mm | 50.4in |
15 |
Total Length |
2000mm | 78.7in |
16 |
Max Seat Height |
1110mm | 43.7in |
17 |
Min Seat Height |
890mm | 35in |
18 |
Handlebar Height |
1130mm | 44.5in |
19 |
Weight (Without Battery) |
34.9kg | 76.9lb |
