Juggernaut Ultra Founders Edition

Sale price £2,974 Regular price£3,215
Save £241
Red
Packages
Battery
Upgrades
Limited Glow in the Dark Powder Coating


Upgrade your Custom Powder Coated colour with a second layer to make your bike Glow in the Dark!

**The Glow in the Dark finish only works with LIGHTER colours and not DARK colours.
Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**Upgraded front forks are incompatible with front fender included in Rack and Fender Set

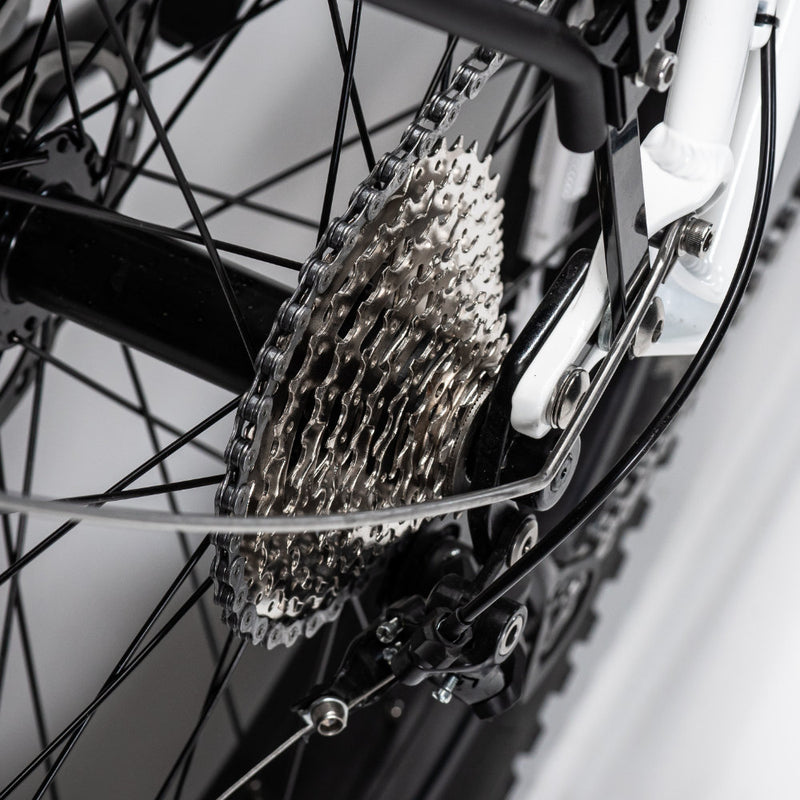

Drivetrain


Choose between a Shimano 9 Speed Drivetrain or upgraded SRAM NX 11 Speed!

Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

Rear Hub


Upgrade your eBike's rear hub for a smoother, more efficient ride, unlocking enhanced performance and reliability with every pedal.

Throttle


Select between a twist throttle or a thumb throttle for your eBike!

Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

**A-Bar Upgrade is incompatible with the RH Twist Throttle
Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail. Dropper seatposts offer seamless adjustments and ultimate control on any terrain.

***Adding a suspension or dropper seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"
Accessories
Coloured Pedals


Add some extra flair to your eBike with a set of coloured pedals!

Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price £2,974.00 Regular price£3,215.00
Shipping: Leaves within 4-6 Weeks
1000W Mid-Drive

Motor Power

60V 20Ah 1200Wh

est. 35mi Range

+5'5"ft / 380lb

Max Load

Torque Sensor

Powerful Pedal Assist

On-Demand Throttle

Pedaling Optional

25+ Point Quality

Control Checklist

Proven. Powerful. Unmatched.

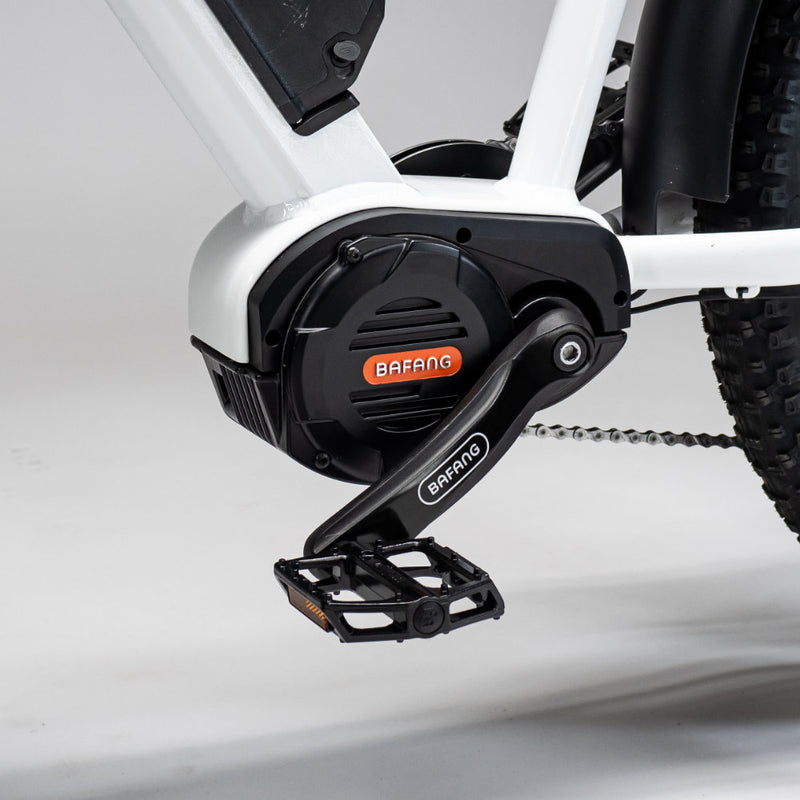

The Bafang Ultra motor provides excellent handling and weight distribution benefits with its mid-drive positioning. Combined with a 60V Battery this motor is loaded with 1800W of peak power and 160Nm of torque this motor is one of the most powerful motor systems available today.

Ultra Customizable

This exceptional eBike offers unparalleled personalization, allowing you to tailor every detail to your unique taste and riding style. Choose from over 100 vibrant colours with our Custom Powder Coating, and select the drivetrain, brakes, suspension fork, wheel sizes, seat posts and battery upgrades that suit you best. With the Juggernaut Ultra Founders Edition, you’re not just getting an eBike - you’re creating a masterpiece that’s truly yours. Embrace the freedom to design your perfect ride today!

Ultra Features.

Technical Specifications

Frame
6061 aluminum
Front hub
150mm ta 36h
Seat post
31.6mm

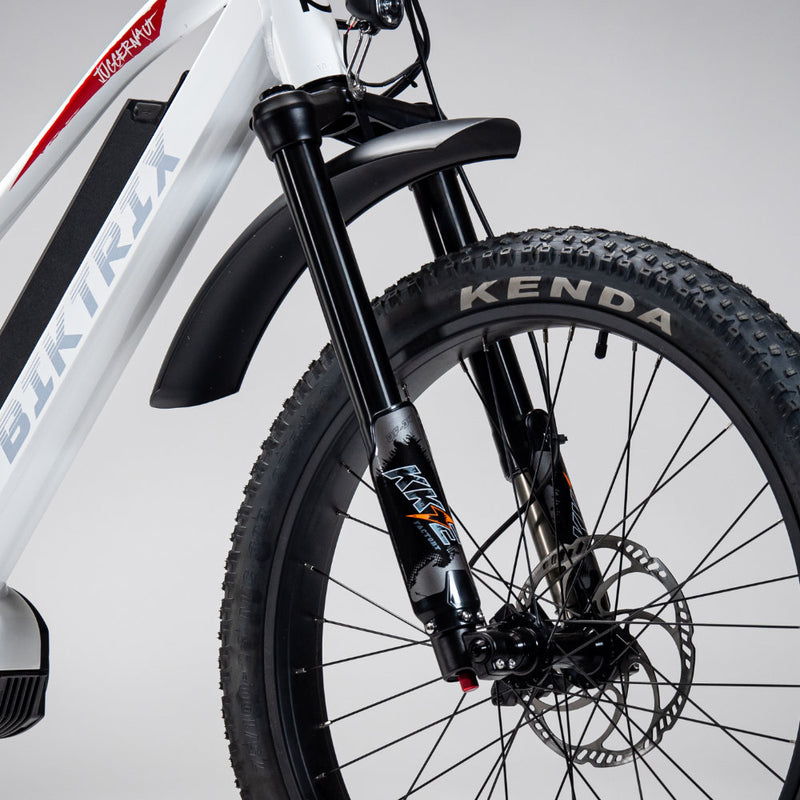

Fork
Biktrix inverted w/100mm travel, lockout and rebound adjustment
Front axle
15mm ta
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm ta 36h
Motor
Canbus bafang ultra m620 mid-drive
Shifter rear
Shimano alivio 9 speed
Rear axle
12mm ta

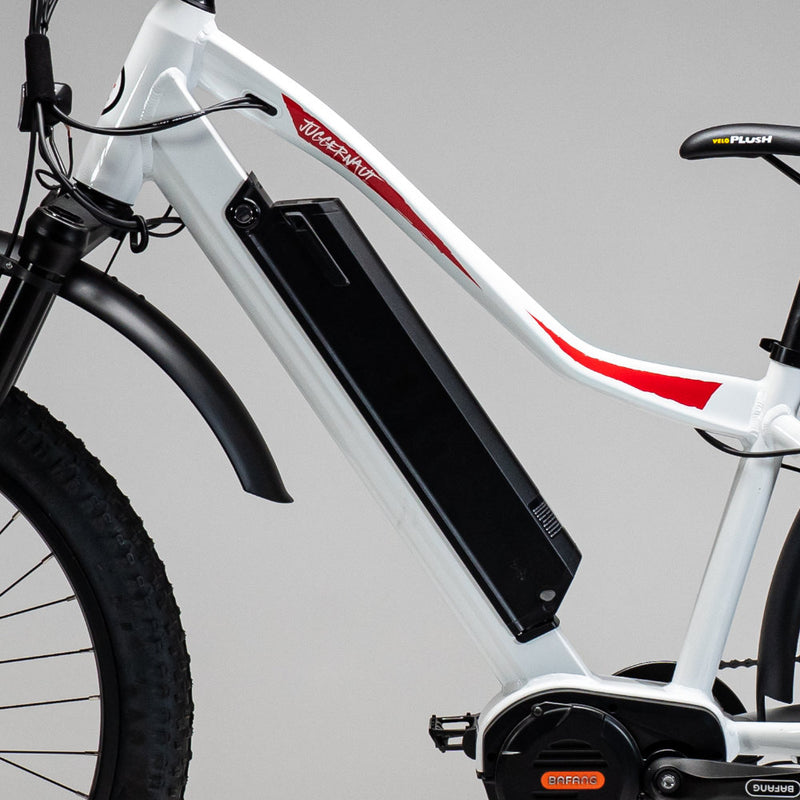

Battery sizes
60v 20ah 1200wh
Rear derailleur
Shimano alivio 9 speed
Rims
26" 36h 80mm black w/ red cutouts, 27.5" 36h 60mm solid black

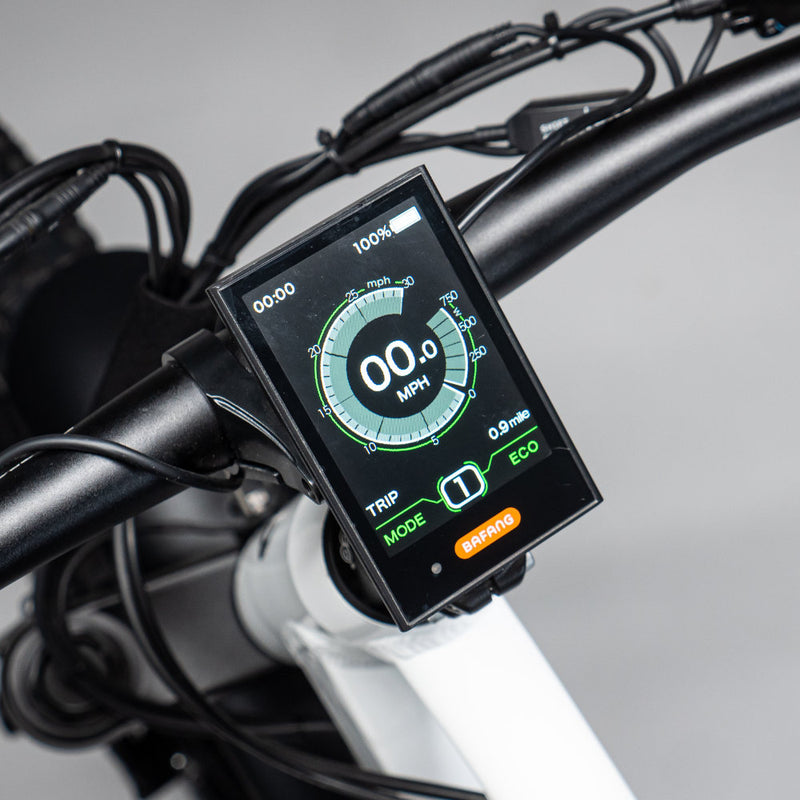

Display
Dpc-18 canbus
Cassette
12-34t 9 speed cassette
Tire sizes
26x4 kenda, 27.5x3 kenda

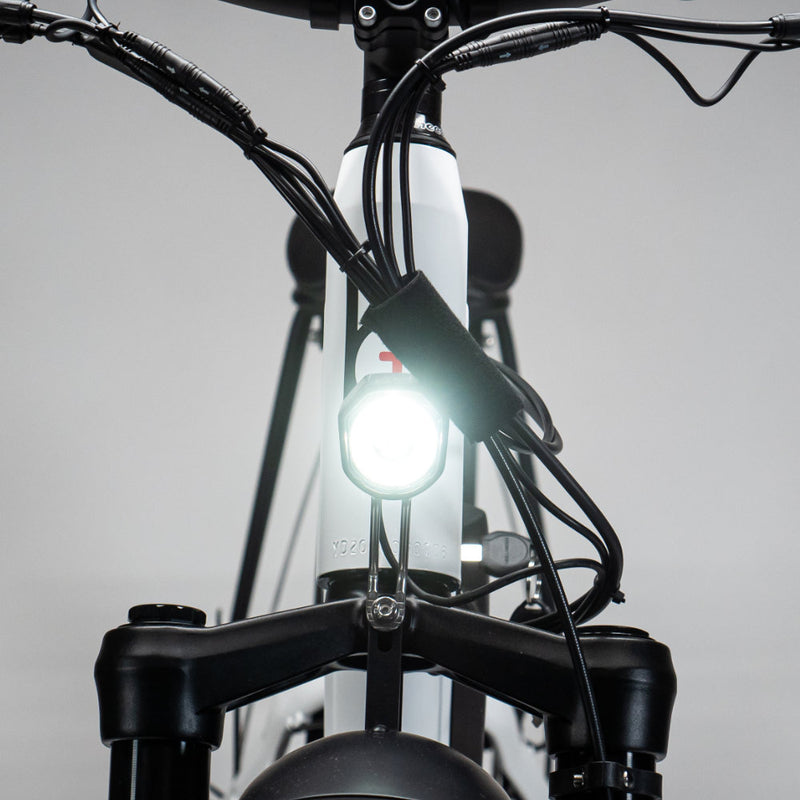

Lights
Armageddon headlight, taillight
Chain
Kmc 9 speed
Handlebar
770mm wide mtb
Assist type
Torque + cadence
Crank set
40t chainring w/170mm arms
Stem
Promax 40mm w/ 31.8mm clamp
Assist levels
0-5
Bottom bracket
Bafang isis
Grips
Slide-on comfort grips

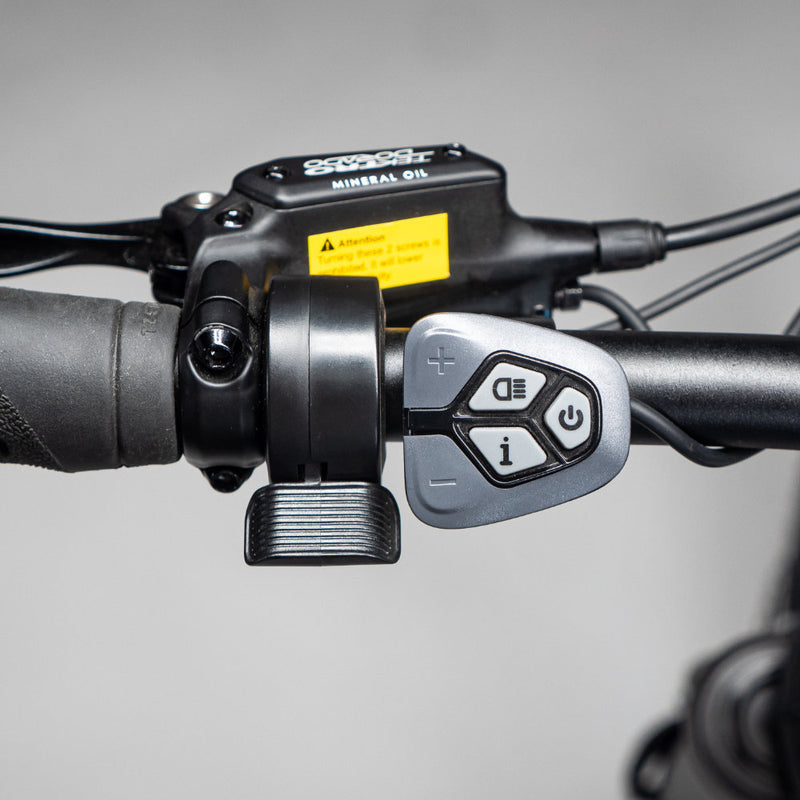

Throttle
Thumb throttle

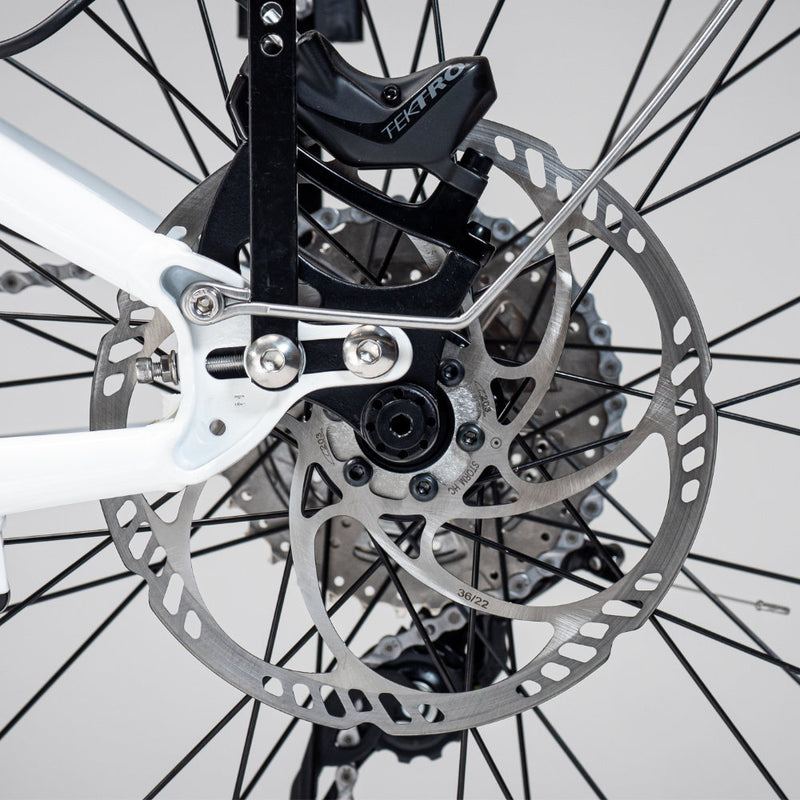

Brakes
Iiipro e500 quad-piston hydraulic w/203mm rotors
Saddle
Velo plush mtb saddle

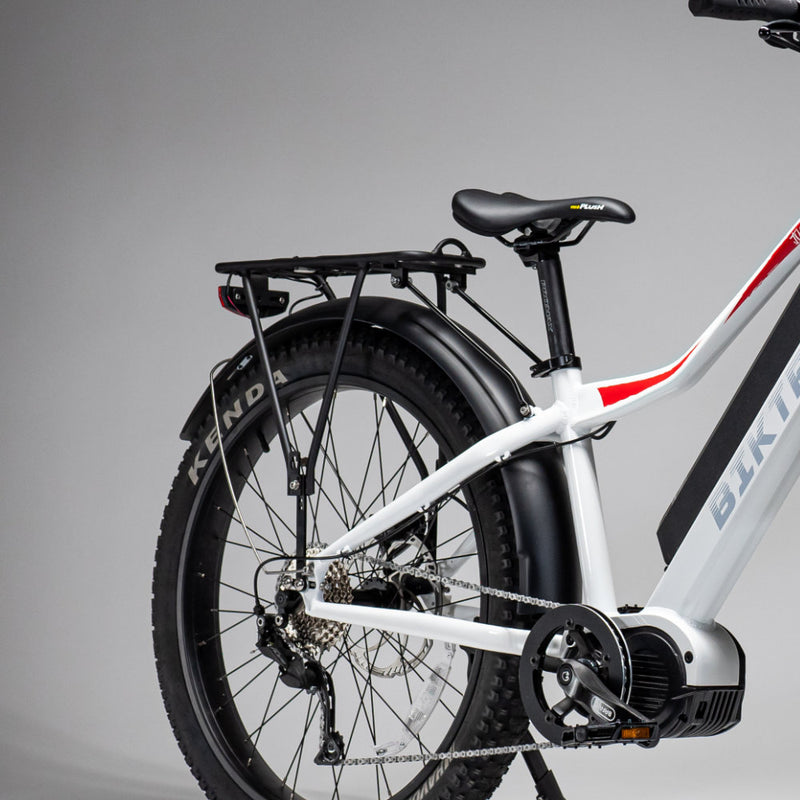

Other
Kickstand, rear rack, front and rear fenders
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
150mm ta 36h
Seat post
31.6mm
Fork
Biktrix inverted w/100mm travel, lockout and rebound adjustment
Front axle
15mm ta
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm ta 36h
Motor
Canbus bafang ultra m620 mid-drive
Shifter rear
Shimano alivio 9 speed
Rear axle
12mm ta
Battery sizes
60v 20ah 1200wh
Rear derailleur
Shimano alivio 9 speed
Rims
26" 36h 80mm black w/ red cutouts, 27.5" 36h 60mm solid black
Display
Dpc-18 canbus
Cassette
12-34t 9 speed cassette
Tire sizes
26x4 kenda, 27.5x3 kenda
Lights
Armageddon headlight, taillight
Chain
Kmc 9 speed
Handlebar
770mm wide mtb
Assist type
Torque + cadence
Crank set
40t chainring w/170mm arms
Stem
Promax 40mm w/ 31.8mm clamp
Assist levels
0-5
Bottom bracket
Bafang isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston hydraulic w/203mm rotors
Saddle
Velo plush mtb saddle
Other
Kickstand, rear rack, front and rear fenders
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
150mm ta 36h
Seat post
31.6mm
Fork
Biktrix inverted w/100mm travel, lockout and rebound adjustment
Front axle
15mm ta
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm ta 36h
Motor
Canbus bafang ultra m620 mid-drive
Shifter rear
Shimano alivio 9 speed
Rear axle
12mm ta
Battery sizes
60v 20ah 1200wh
Rear derailleur
Shimano alivio 9 speed
Rims
26" 36h 80mm black w/ red cutouts, 27.5" 36h 60mm solid black
Display
Dpc-18 canbus
Cassette
12-34t 9 speed cassette
Tire sizes
26x4 kenda, 27.5x3 kenda
Lights
Armageddon headlight, taillight
Chain
Kmc 9 speed
Handlebar
770mm wide mtb
Assist type
Torque + cadence
Crank set
40t chainring w/170mm arms
Stem
Promax 40mm w/ 31.8mm clamp
Assist levels
0-5
Bottom bracket
Bafang isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston hydraulic w/203mm rotors
Saddle
Velo plush mtb saddle
Other
Kickstand, rear rack, front and rear fenders
Brake levers
Adjustable w/ integrated brake cutoffs

Size & Fittings

1
Effective Top Tube Length
590mm 23.2in
2
Seat Tube Length (Classic Bike Size)
440mm 17.3in
3
Reach
420mm 16.5in
4
Stack
660mm 26in
5
Chainstay Length
510mm 20.1in
6
Standover Height
670mm 26.4in
7
Head Angle
72° -
8
Seat Angle
76° -
9
Head Tube Length
200 mm 7.9 in
10
Fork Length
550mm 21.7in
11
Front Center
790mm 31.1in
12
BB (Bottom Bracket) Drop
100mm 3.9in
13
Fork Offset
35mm 1.4in
14
Wheelbase
1290mm 50.8in
15
Total Length
1190mm 46.9in
16
Max Seat Height
940mm 37in
17
Min Seat Height
780mm 30.7in
18
Handlebar Height
1110mm 43.7in
19
Weight (Without Battery)
31.2kg 68.8lb
1
Effective Top Tube Length
610mm 24in
2
Seat Tube Length (Classic Bike Size)
470mm 18.5in
3
Reach
460mm 18.1in
4
Stack
660mm 26in
5
Chainstay Length
510mm 20.1in
6
Standover Height
730mm 28.7in
7
Head Angle
72° -
8
Seat Angle
76° -
9
Head Tube Length
200 mm 7.9 in
10
Fork Length
550mm 21.7in
11
Front Center
790mm 31.1in
12
BB (Bottom Bracket) Drop
80mm 3.1in
13
Fork Offset
35mm 1.4in
14
Wheelbase
1310mm 51.6in
15
Total Length
1990mm 78.3in
16
Max Seat Height
1030mm 40.6in
17
Min Seat Height
840mm 33.1in
18
Handlebar Height
1120mm 44.1in
19
Weight (Without Battery)
31.3kg 69lb
