Ultra Power. Greater Features.

Technical Specifications

Frame
6061 aluminum
Front hub
150mm thru 36h
Seat post
31.6mm aluminum
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm thru 36h
Motor
Bafang ultra m620
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34.5ah 1794wh:<br> 52v 17.5ah 910wh (internal battery) + <br>up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Black 26" with round cutouts, solid black 27.5"
Display
Dpc-18
Cassette
Sram 11-42t
Tire sizes
27.5x3" chaoyang mtb
Lights
Integrated headlight
Chain
Kmc e11s - 130 links
Handlebar
700mm wide w/25mm rise, 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
90mm solid
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Velo bolt on mtb grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/180mm rotors
Saddle
Velo plush
Other
2-bolt kickstand
Brake levers
Biktrix adjustable w/ integrated brake cutoff
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye
Frame
6061 aluminum
Front hub
150mm thru 36h
Seat post
31.6mm aluminum
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm thru 36h
Motor
Bafang ultra m620
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34.5ah 1794wh:<br> 52v 17.5ah 910wh (internal battery) + <br>up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Black 26" with round cutouts, solid black 27.5"
Display
Dpc-18
Cassette
Sram 11-42t
Tire sizes
27.5x3" chaoyang mtb
Lights
Integrated headlight
Chain
Kmc e11s - 130 links
Handlebar
700mm wide w/25mm rise, 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
90mm solid
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Velo bolt on mtb grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/180mm rotors
Saddle
Velo plush
Other
2-bolt kickstand
Brake levers
Biktrix adjustable w/ integrated brake cutoff
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye
Frame
6061 aluminum
Front hub
150mm thru 36h
Seat post
31.6mm aluminum
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm thru 36h
Motor
Bafang ultra m620
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34.5ah 1794wh:<br> 52v 17.5ah 910wh (internal battery) + <br>up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Black 26" with round cutouts, solid black 27.5"
Display
Dpc-18
Cassette
Sram 11-42t
Tire sizes
27.5x3" chaoyang mtb
Lights
Integrated headlight
Chain
Kmc e11s - 130 links
Handlebar
700mm wide w/25mm rise, 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
90mm solid
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Velo bolt on mtb grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/180mm rotors
Saddle
Velo plush
Other
2-bolt kickstand
Brake levers
Biktrix adjustable w/ integrated brake cutoff
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye

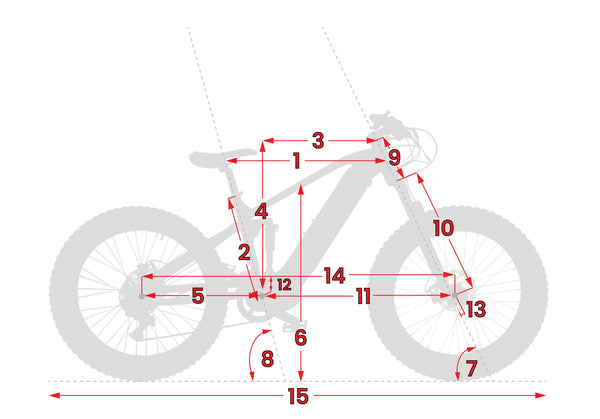

Size & Fittings

1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
480mm 18.9in
3
Reach
460mm 18.1in
4
Stack
590mm 23.2in
5
Chainstay Length
510mm 20.1in
6
Standover Height
740mm 29.1in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1330mm 52.4in
15
Total Length
2040mm 80.3in
16
Max Seat Height
1080mm 42.5in
17
Min Seat Height
880mm 34.6in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
32.6kg 71.9lb
