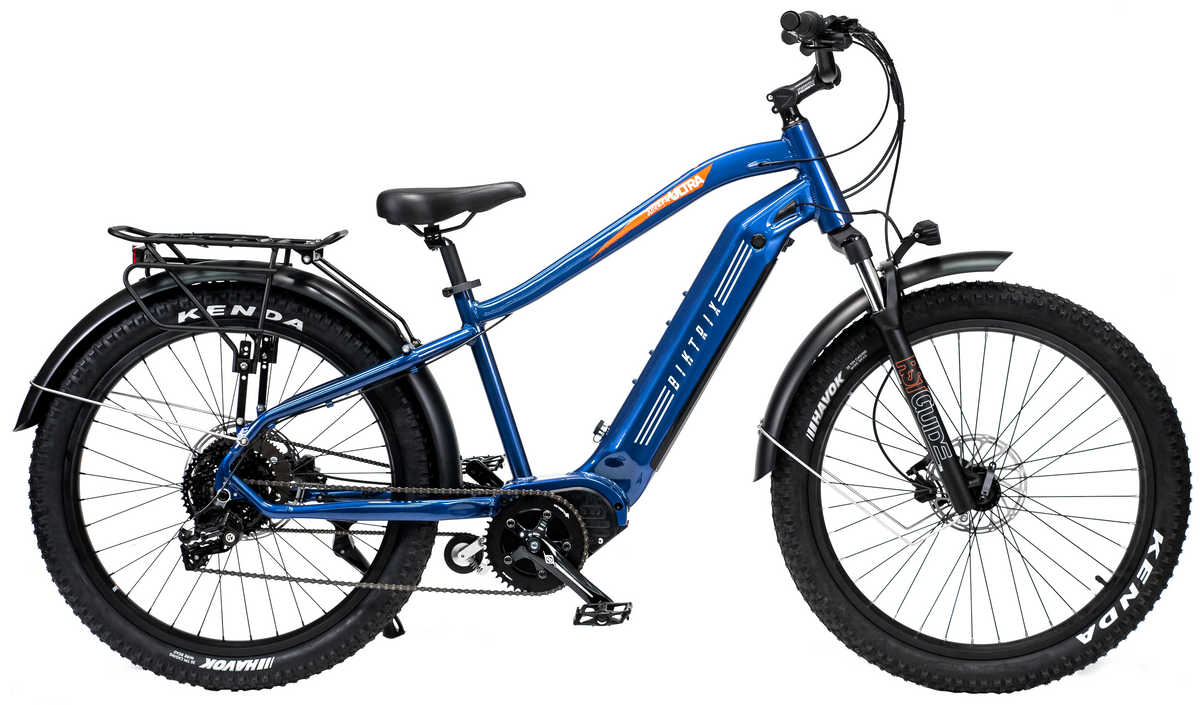

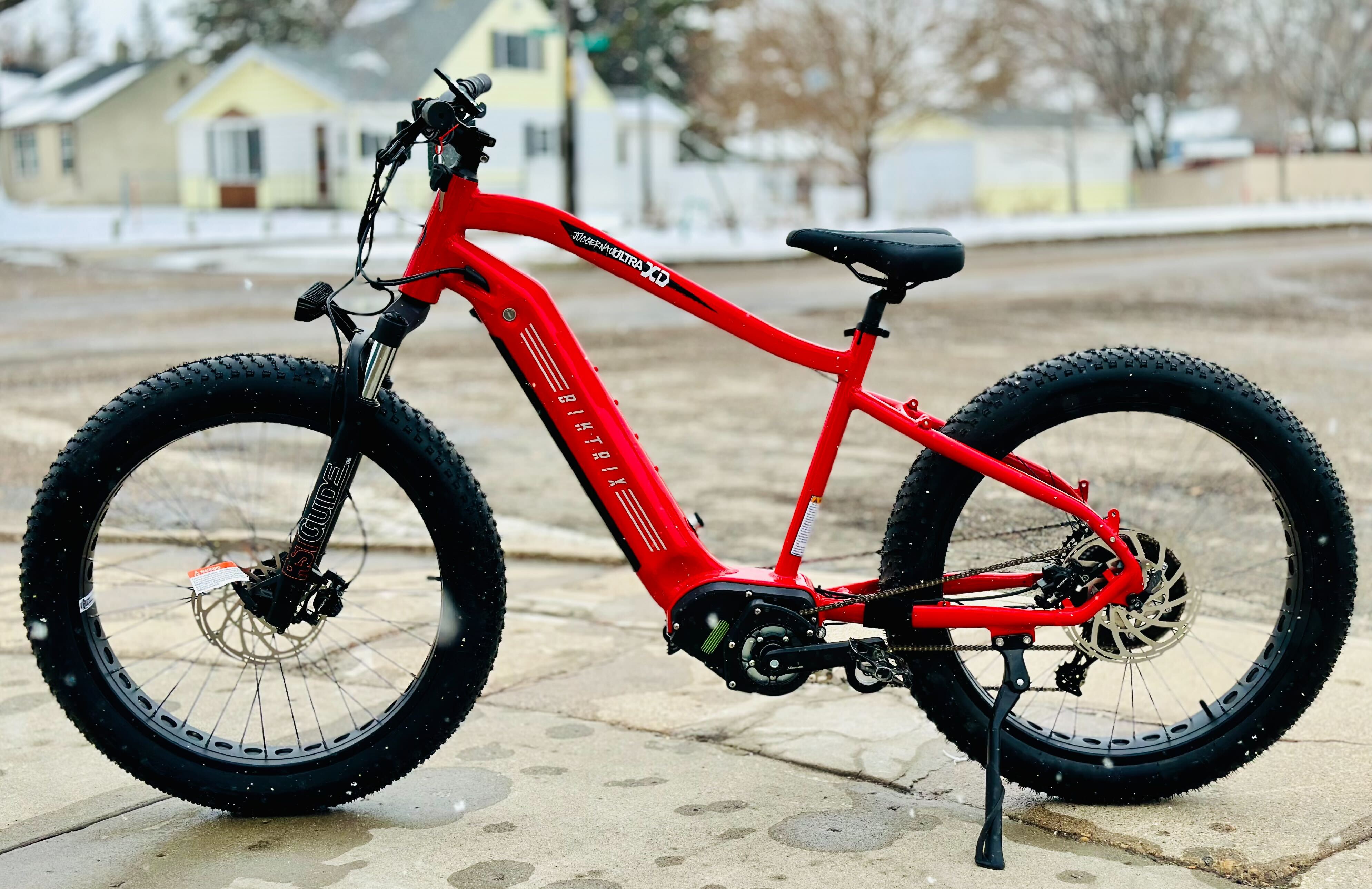

Juggernaut XD Duo SO

Sale price £4,179 Regular price£4,597
Save £418
Red
Packages
XD Package


Choose your installed package to fit your riding style; while it be cruising commutes or adventure riding

****Adventure Package doesn't include Rack & Fenders
Battery
Range Extender Battery

**This option adds an extra battery that mounts on top of the frame that doubles the range of the stock battery.
Upgrades
Throttle


Select a Thumb Throttle or Twist Throttle for your eBike

**Right-Hand Twist throttle is incompatible with A-Bar Upgrade
Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"
Fork

****Upgraded front forks are incompatible with front fender included in the Commuter Package

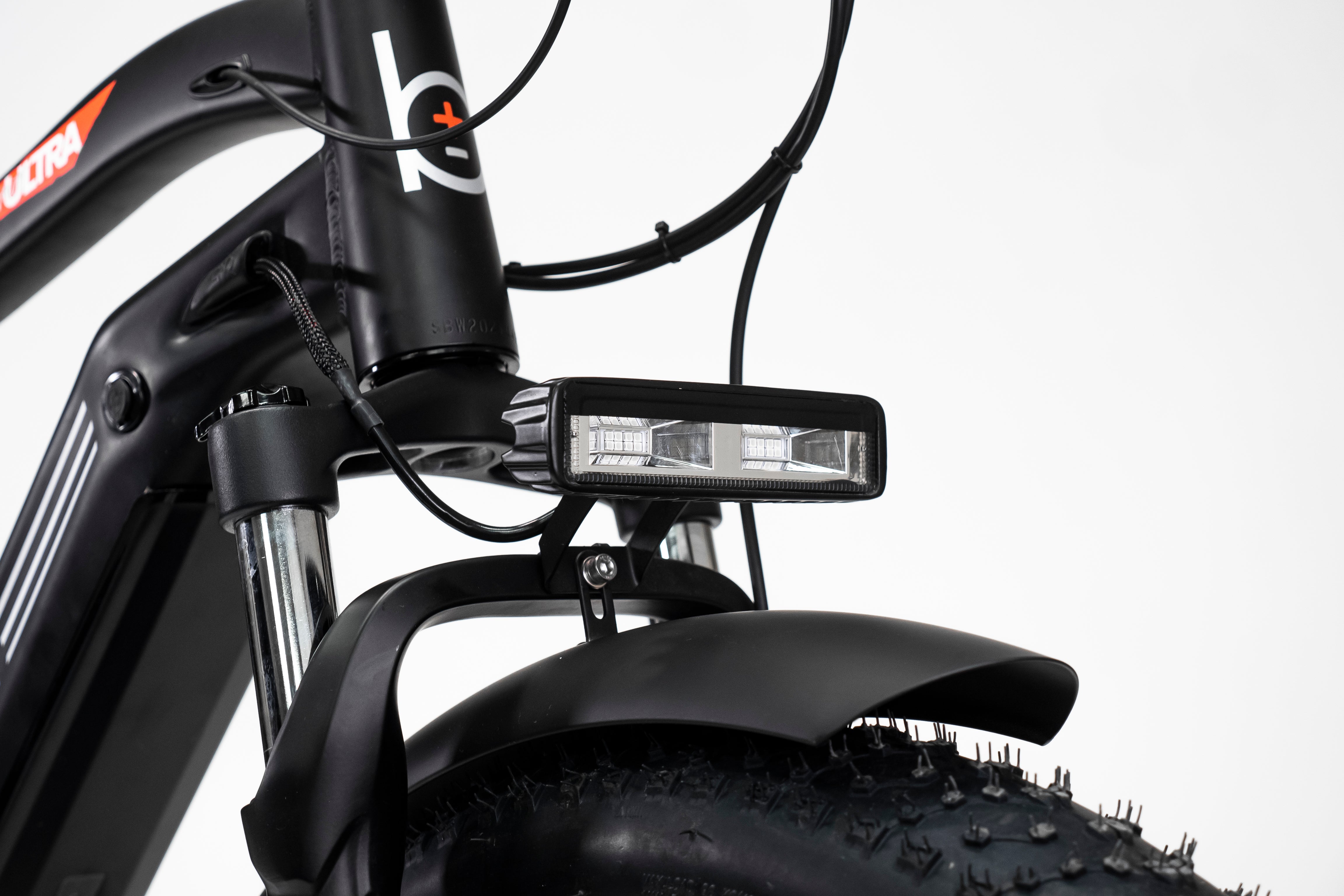

Headlights


Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

Accessories
Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price £4,179.00 Regular price£4,597.00
Shipping: Leaves within 2-4 Weeks
2300W Mid-Drive

Motor Power

52V 17Ah 910Wh

est. 40mi Range

+5'8ft / 380lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

40+

Miles Range

2300W

Mid-Drive

52V 17Ah

Strong, Reliable Battery

Unmatched. Power. Reliable.

Getting plenty of power to the rear wheel is exciting, but has always come at the risk of ongoing costs in replacement parts, and time lost riding. Many casual to moderate riders will not ride hard enough to cause such issues. But for those who want to push the limits, a more robust solution was needed to build the dream e-bike machine, with extreme endurance.

Designed And Built In Canada

The XD Drive system was developed in Saskatoon, Canada, by a team of e-bike enthusiasts with a shared passion for better solutions to transportation. The global pandemic conditions forced them to improvise, adapt, and overcome, tackling the bike parts shortages, chip shortages, shipping shortages, and forces of nature simultaneously throughout development.

The resulting product and its manufacturing approaches are primed for navigating such challenges with agility, and competitive in-house solutions.

Performance. Fully Loaded.

Technical Specifications

Frame
6061 aluminum
Front hub
135mm 36h (150mm 36h with wren fork)
Seat post
28.6mm

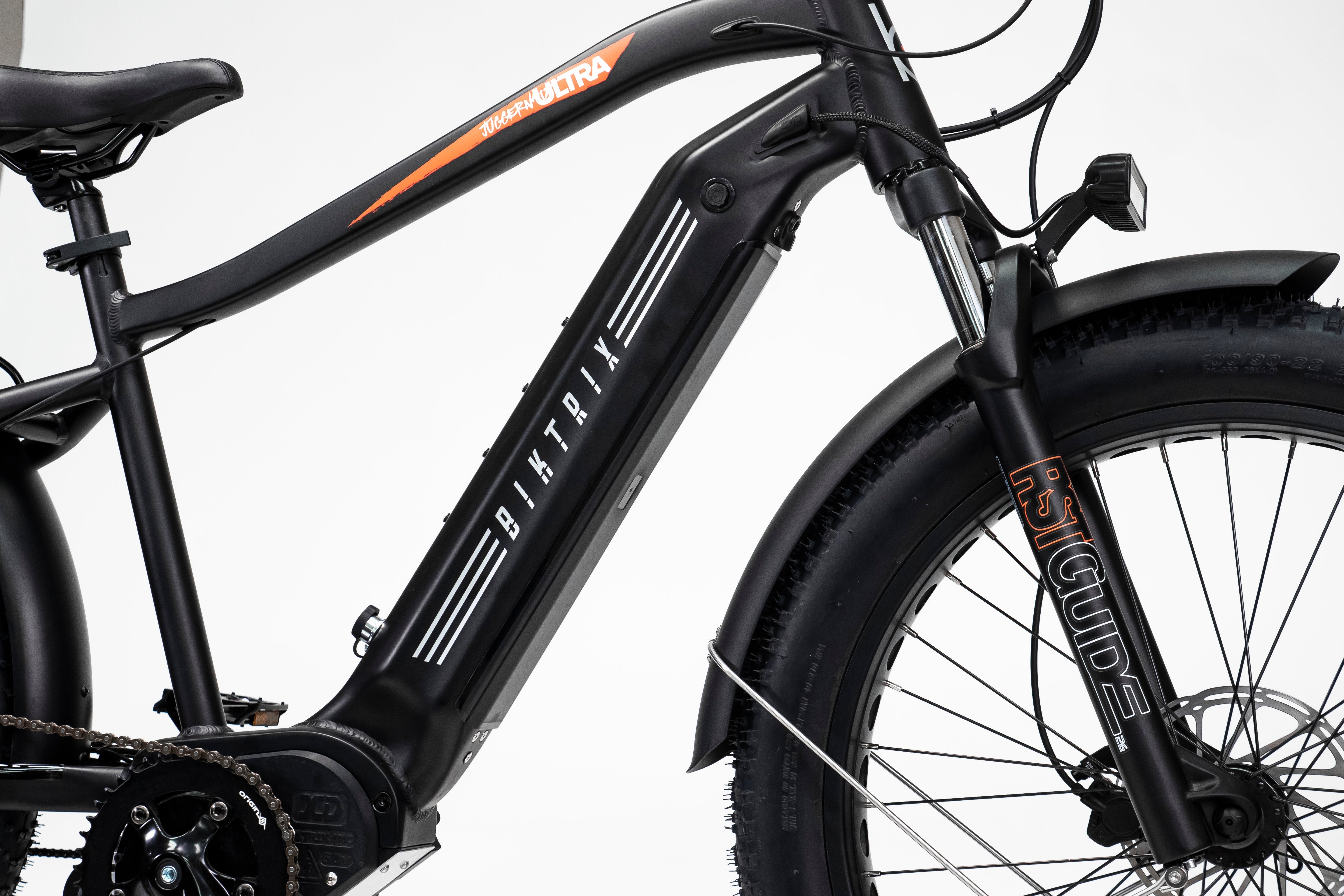

Fork
Rst guide w/ lockout, preload, 80mm travel
Front axle
5mm qr (15mm thru axle with wren fork)
Seat post clamp
Quick-release
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
190mm 36h hub / 197mm dropouts

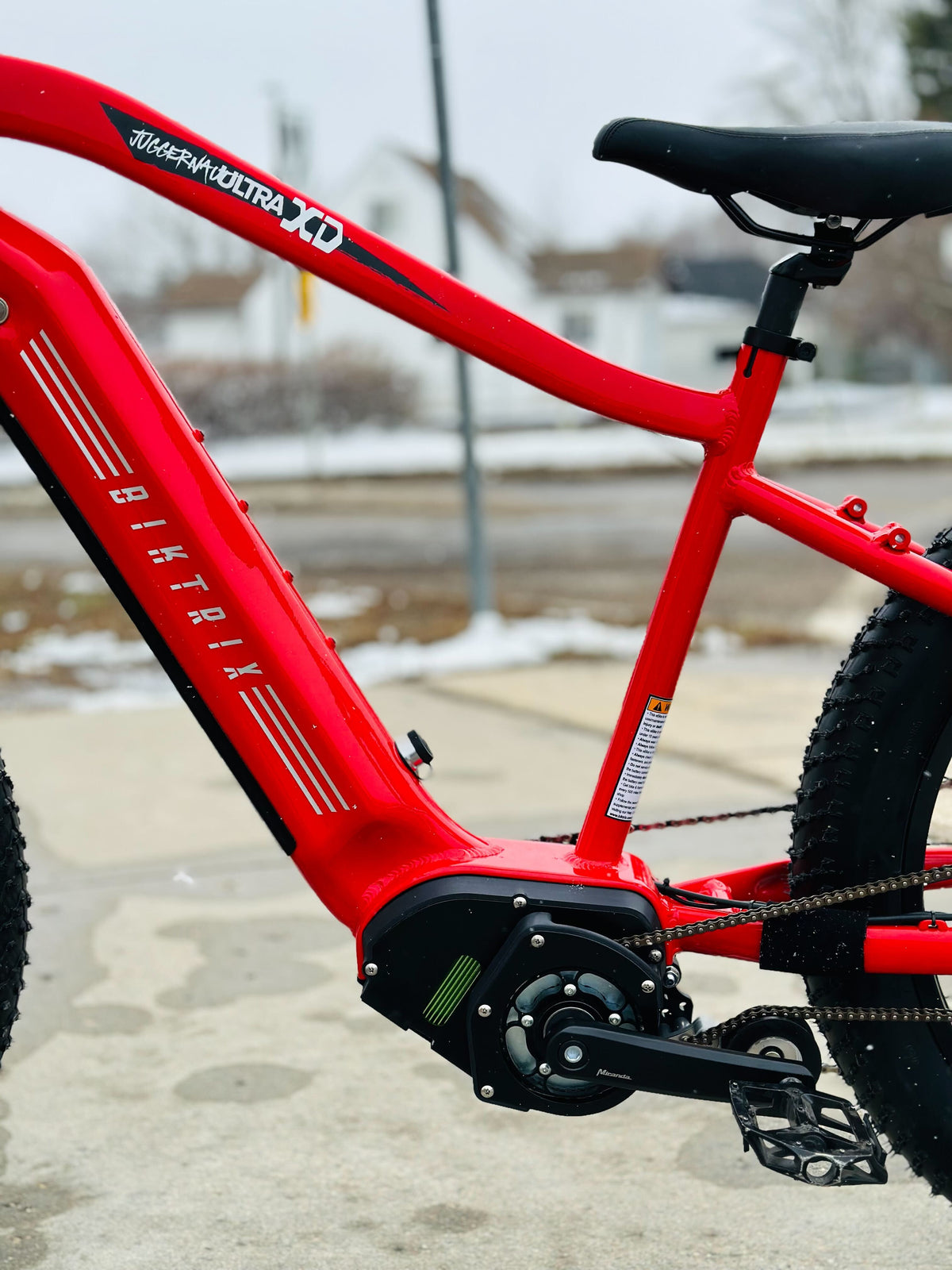

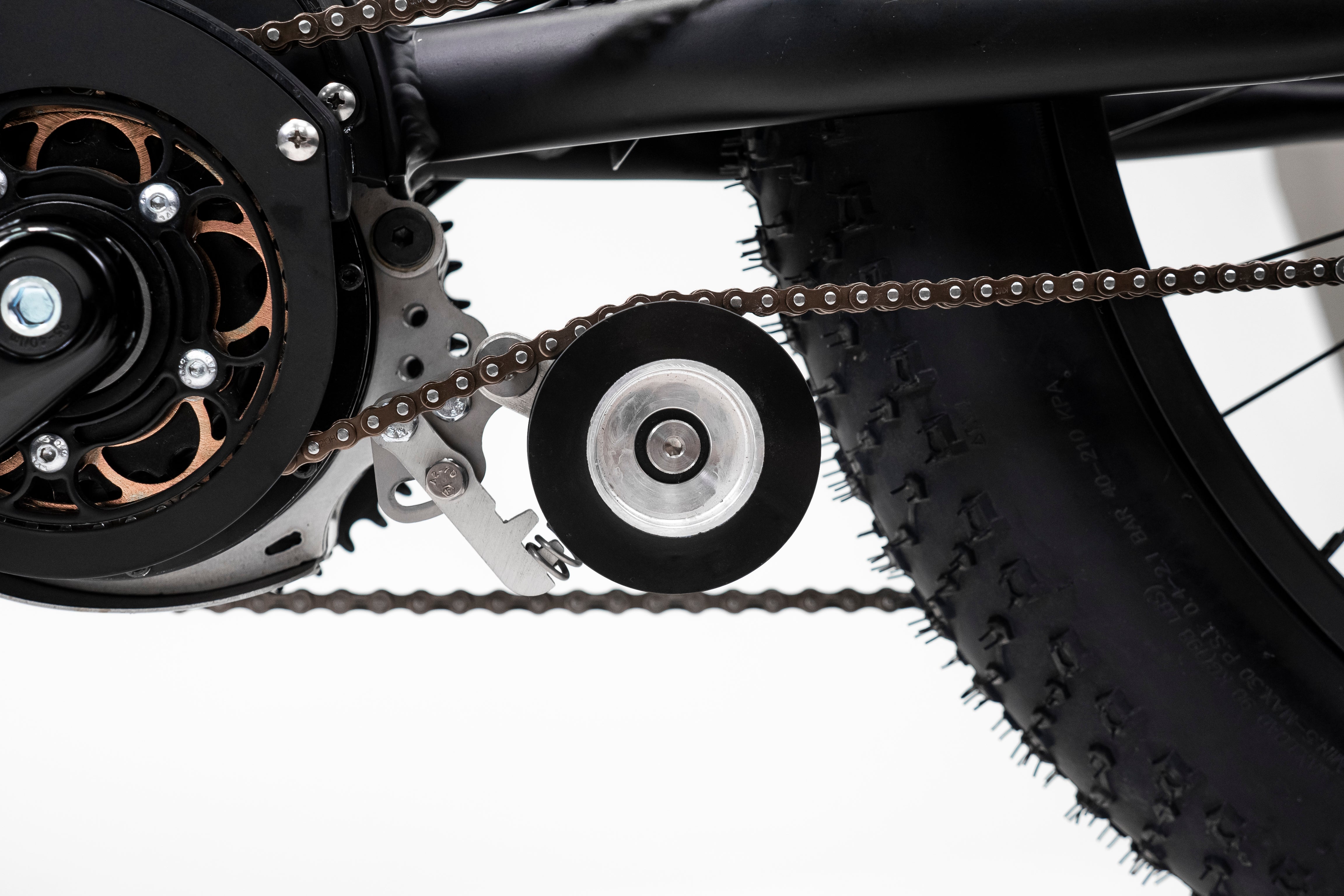

Motor
Biktrix mid-drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
52v 17.5ah 910wh hidden battery

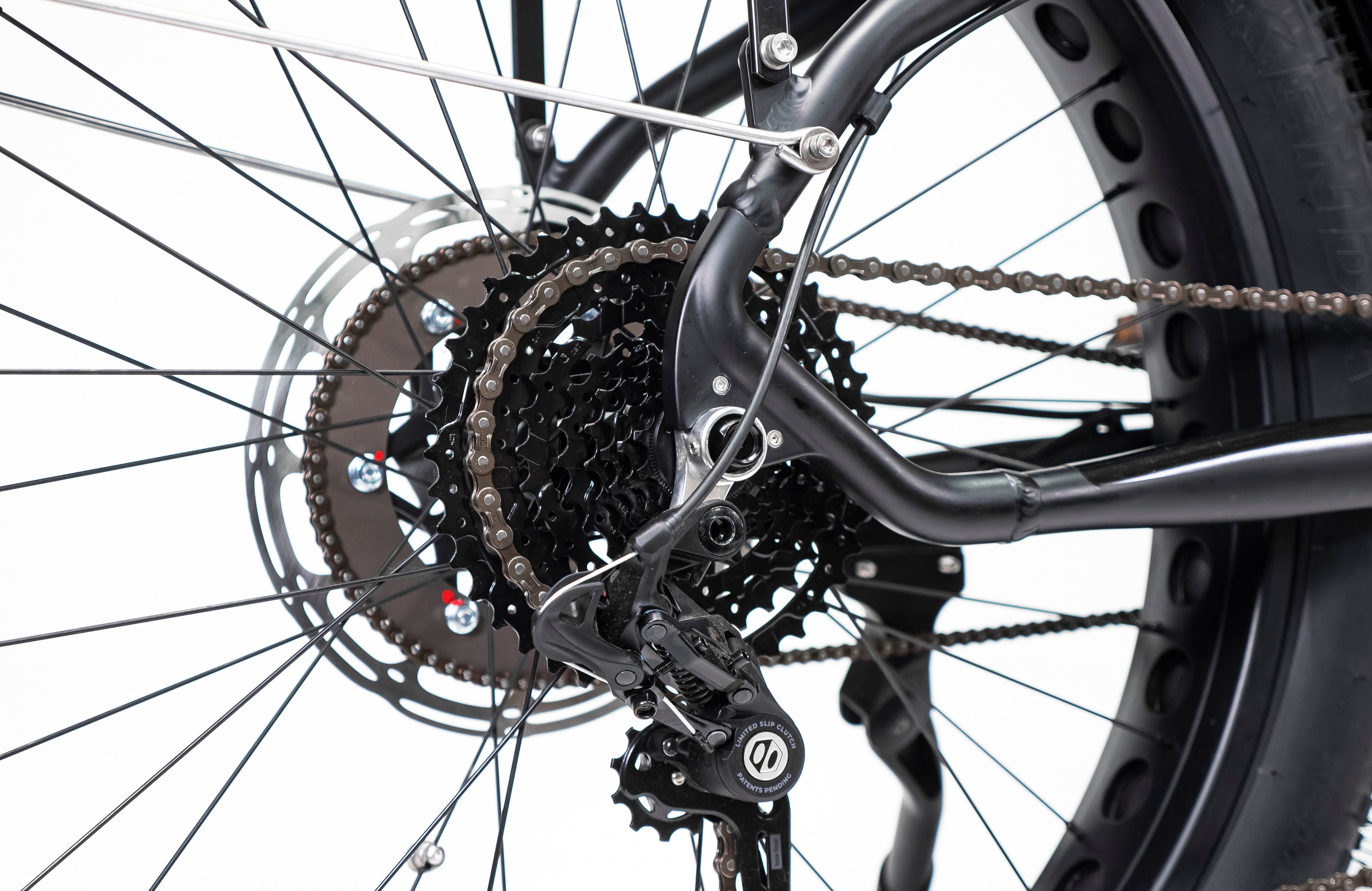

Rear derailleur
Sram nx 11 speed
Rims
26x4 black w/ round cutouts, 27.5x3 solid black
Display
Ds104 / ds103
Cassette
11 speed sram 11-42t cassette
Tire sizes
26x4, 27.5x3
Lights
Armageddon headlight (all), rear reflector (commuter package)
Chain
Kmc x11
Handlebar
780mm wide, 25mm rise w/31.8mm clamp (adventure package) / 700mm wide, 80mm rise w/31.8mm clamp (commuter package)
Assist type
Cadence
Crank set
Short crank arms
Stem
55mm (adventure package) / 90mm (commuter package)
Assist levels
1-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Low profile rh twist throttle

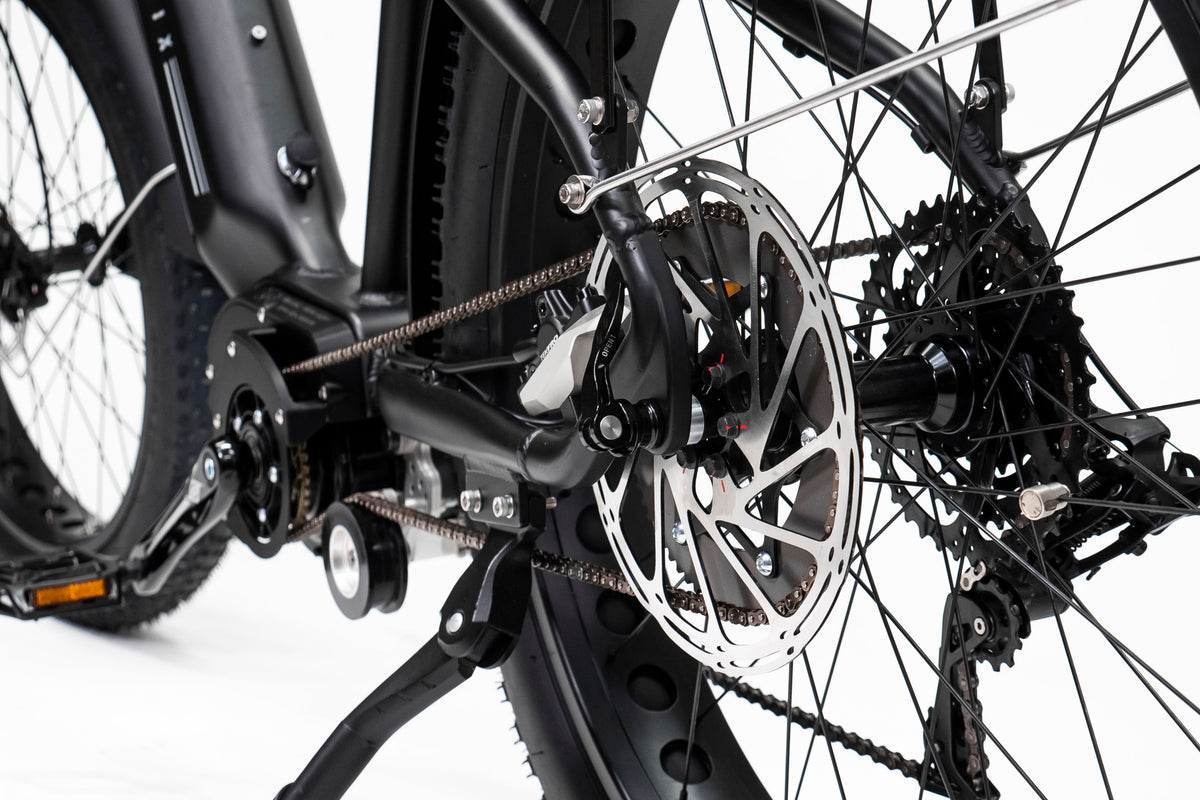

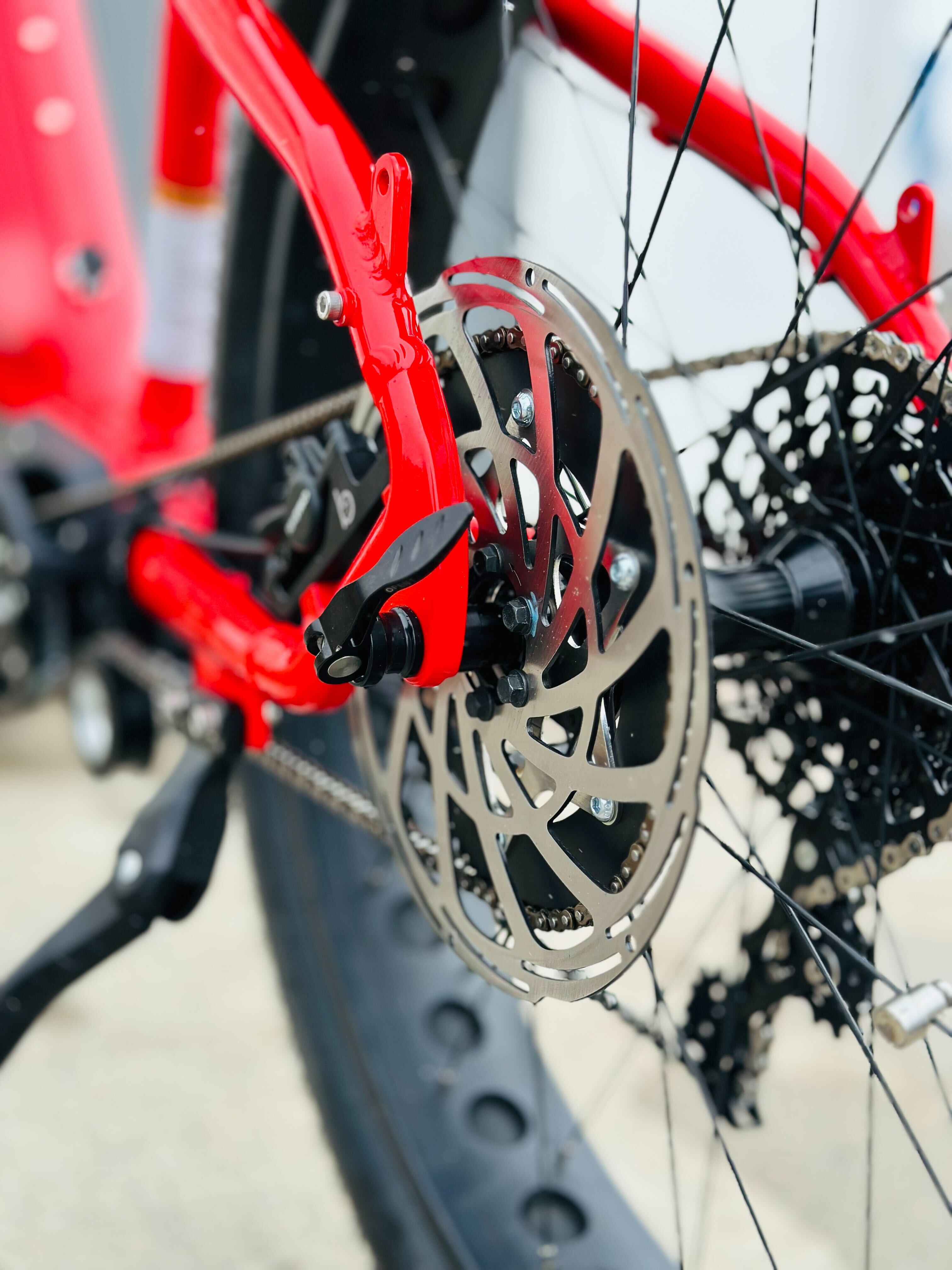

Brakes
Tektro dual piston brakes, 220mm rear rotor, 203mm front rotor
Saddle
Nebula mtb saddle (adventure package) / wide comfort seat (commuter package)
Other
Kickstand (all), rear rack and fenders (commuter package)
Brake levers
Tektro adjustable with integrated motor cutoff
Frame
6061 aluminum
Front hub
135mm 36h (150mm 36h with wren fork)
Seat post
28.6mm
Fork
Rst guide w/ lockout, preload, 80mm travel
Front axle
5mm qr (15mm thru axle with wren fork)
Seat post clamp
Quick-release
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
190mm 36h hub / 197mm dropouts
Motor
Biktrix mid-drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
52v 17.5ah 910wh hidden battery
Rear derailleur
Sram nx 11 speed
Rims
26x4 black w/ round cutouts, 27.5x3 solid black
Display
Ds104 / ds103
Cassette
11 speed sram 11-42t cassette
Tire sizes
26x4, 27.5x3
Lights
Armageddon headlight (all), rear reflector (commuter package)
Chain
Kmc x11
Handlebar
780mm wide, 25mm rise w/31.8mm clamp (adventure package) / 700mm wide, 80mm rise w/31.8mm clamp (commuter package)
Assist type
Cadence
Crank set
Short crank arms
Stem
55mm (adventure package) / 90mm (commuter package)
Assist levels
1-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Low profile rh twist throttle
Brakes
Tektro dual piston brakes, 220mm rear rotor, 203mm front rotor
Saddle
Nebula mtb saddle (adventure package) / wide comfort seat (commuter package)
Other
Kickstand (all), rear rack and fenders (commuter package)
Brake levers
Tektro adjustable with integrated motor cutoff
Frame
6061 aluminum
Front hub
135mm 36h (150mm 36h with wren fork)
Seat post
28.6mm
Fork
Rst guide w/ lockout, preload, 80mm travel
Front axle
5mm qr (15mm thru axle with wren fork)
Seat post clamp
Quick-release
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
190mm 36h hub / 197mm dropouts
Motor
Biktrix mid-drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
52v 17.5ah 910wh hidden battery
Rear derailleur
Sram nx 11 speed
Rims
26x4 black w/ round cutouts, 27.5x3 solid black
Display
Ds104 / ds103
Cassette
11 speed sram 11-42t cassette
Tire sizes
26x4, 27.5x3
Lights
Armageddon headlight (all), rear reflector (commuter package)
Chain
Kmc x11
Handlebar
780mm wide, 25mm rise w/31.8mm clamp (adventure package) / 700mm wide, 80mm rise w/31.8mm clamp (commuter package)
Assist type
Cadence
Crank set
Short crank arms
Stem
55mm (adventure package) / 90mm (commuter package)
Assist levels
1-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Low profile rh twist throttle
Brakes
Tektro dual piston brakes, 220mm rear rotor, 203mm front rotor
Saddle
Nebula mtb saddle (adventure package) / wide comfort seat (commuter package)
Other
Kickstand (all), rear rack and fenders (commuter package)
Brake levers
Tektro adjustable with integrated motor cutoff

Size & Fittings

1
Effective Top Tube Length
620mm 24.4in
2
Seat Tube Length (Classic Bike Size)
430mm 16.9in
3
Reach
460mm 18.1in
4
Stack
630mm 24.8in
5
Chainstay Length
520mm 20.5in
6
Standover Height
730mm 28.7in
7
Head Angle
68° -
8
Seat Angle
71° -
9
Head Tube Length
200 mm 7.9 in
10
Fork Length
530mm 20.9in
11
Front Center
790mm 31.1in
12
BB (Bottom Bracket) Drop
80mm 3.1in
13
Fork Offset
30mm 1.2in
14
Wheelbase
1320mm 52in
15
Total Length
2040mm 80.3in
16
Max Seat Height
970mm 38.2in
17
Min Seat Height
820mm 32.3in
18
Handlebar Height
1120mm 44.1in
19
Weight (Without Battery)
30.6kg 67.5lb
1
Effective Top Tube Length
620mm 24.4in
2
Seat Tube Length (Classic Bike Size)
470mm 18.5in
3
Reach
480mm 18.9in
4
Stack
670mm 26.4in
5
Chainstay Length
550mm 21.7in
6
Standover Height
750mm 29.5in
7
Head Angle
68° -
8
Seat Angle
71° -
9
Head Tube Length
200 mm 7.9 in
10
Fork Length
530mm 20.9in
11
Front Center
790mm 31.1in
12
BB (Bottom Bracket) Drop
90mm 3.5in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1330mm 52.4in
15
Total Length
2040mm 80.3in
16
Max Seat Height
1010mm 39.8in
17
Min Seat Height
860mm 33.9in
18
Handlebar Height
1140mm 44.9in
19
Weight (Without Battery)
31.2kg 68.8lb
1
Effective Top Tube Length
630mm 24.8in
2
Seat Tube Length (Classic Bike Size)
520mm 20.5in
3
Reach
500mm 19.7in
4
Stack
630mm 24.8in
5
Chainstay Length
520mm 20.5in
6
Standover Height
760mm 29.9in
7
Head Angle
68° -
8
Seat Angle
71° -
9
Head Tube Length
200 mm 7.9 in
10
Fork Length
530mm 20.9in
11
Front Center
790mm 31.1in
12
BB (Bottom Bracket) Drop
80mm 3.1in
13
Fork Offset
30mm 1.2in
14
Wheelbase
1320mm 52in
15
Total Length
2040mm 80.3in
16
Max Seat Height
1080mm 42.5in
17
Min Seat Height
920mm 36.2in
18
Handlebar Height
1150mm 45.3in
19
Weight (Without Battery)
30.6kg 67.5lb
