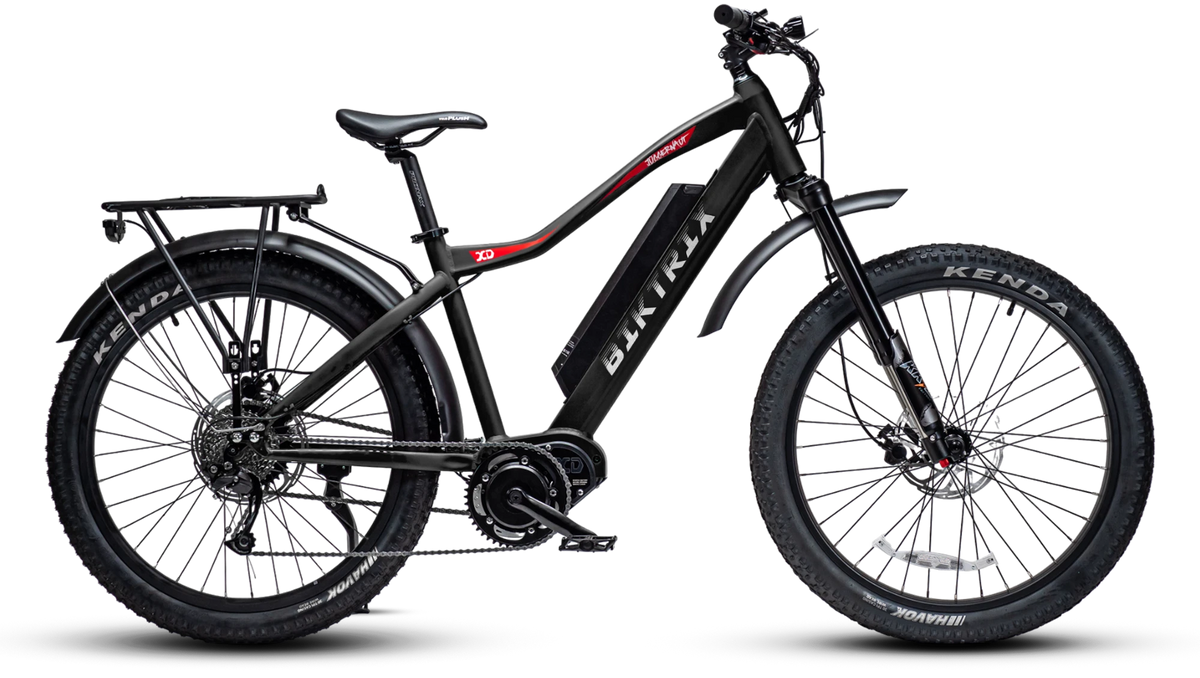

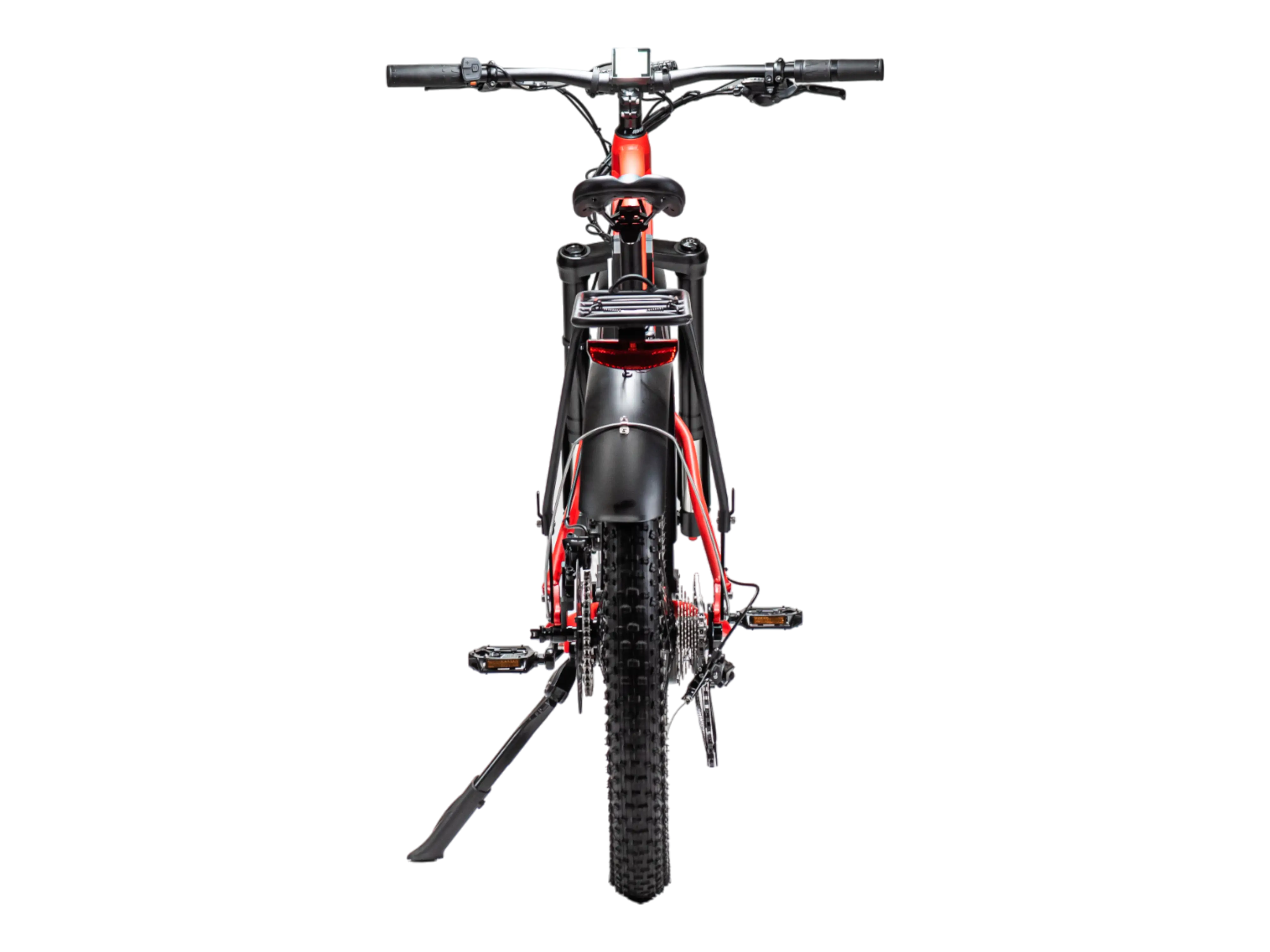

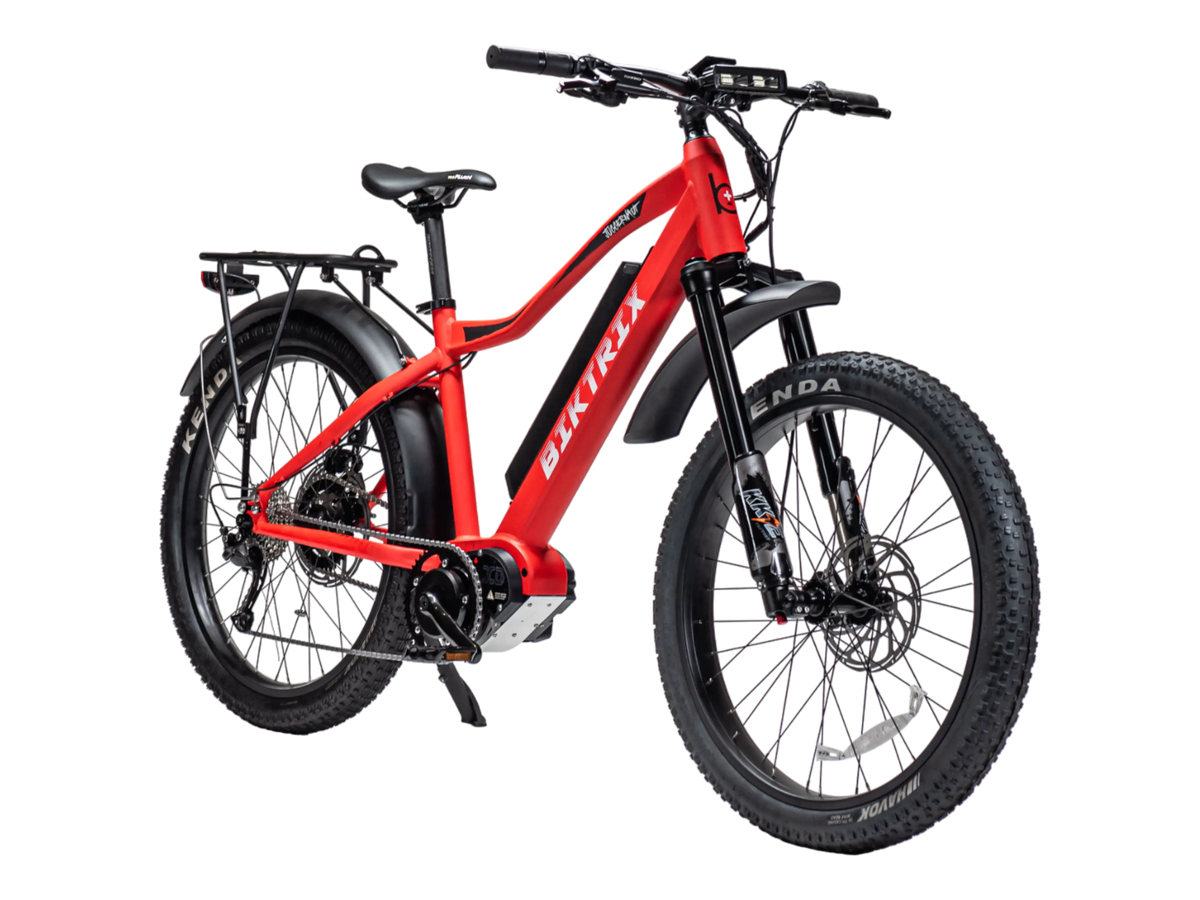

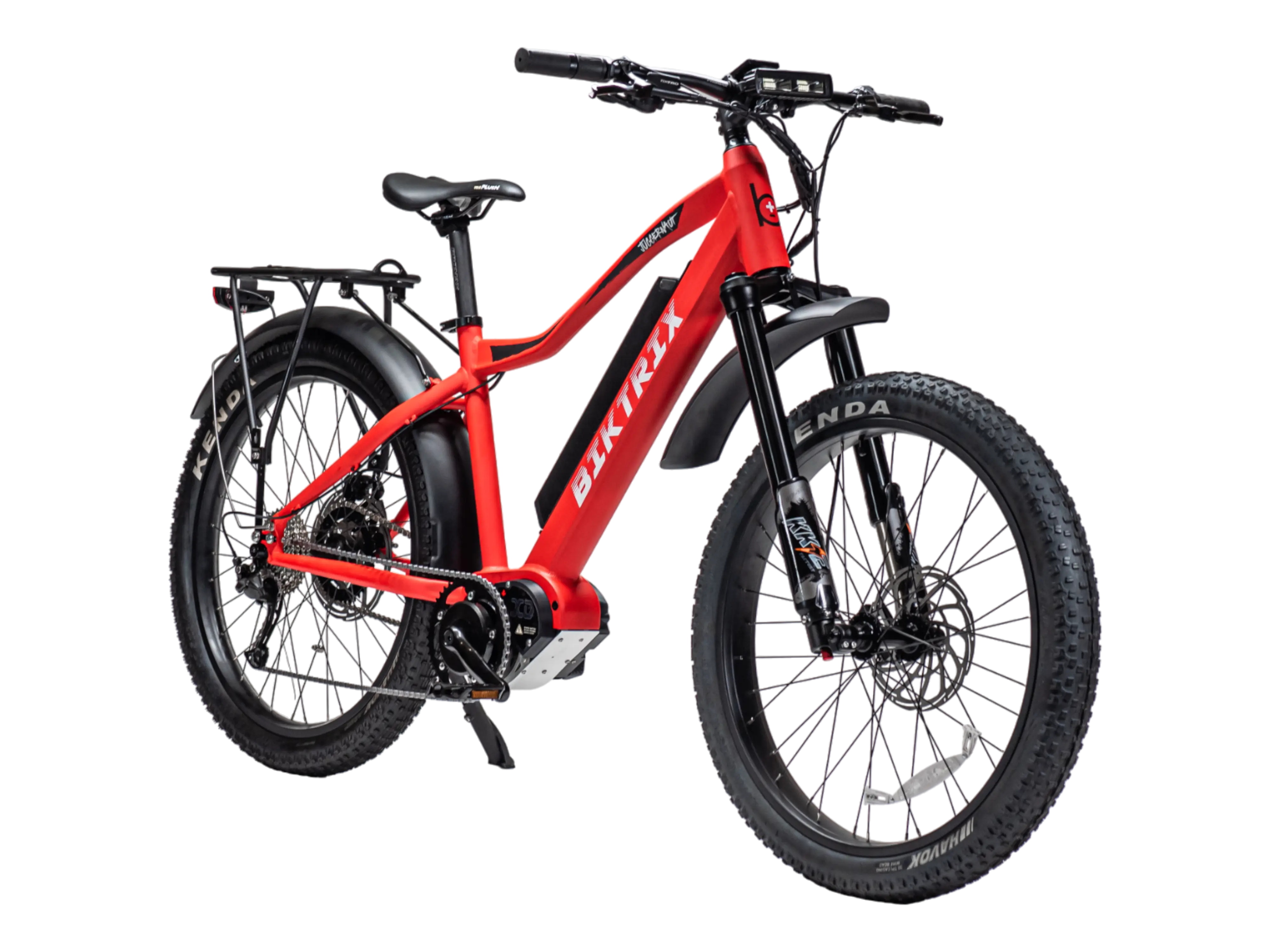

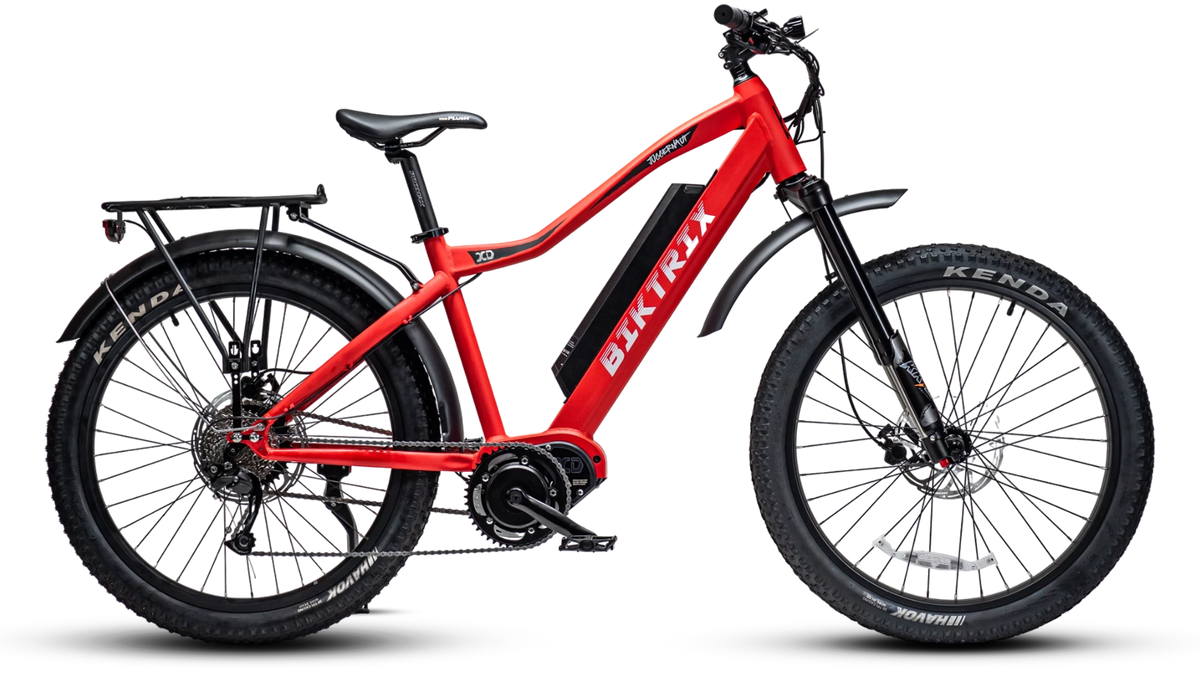

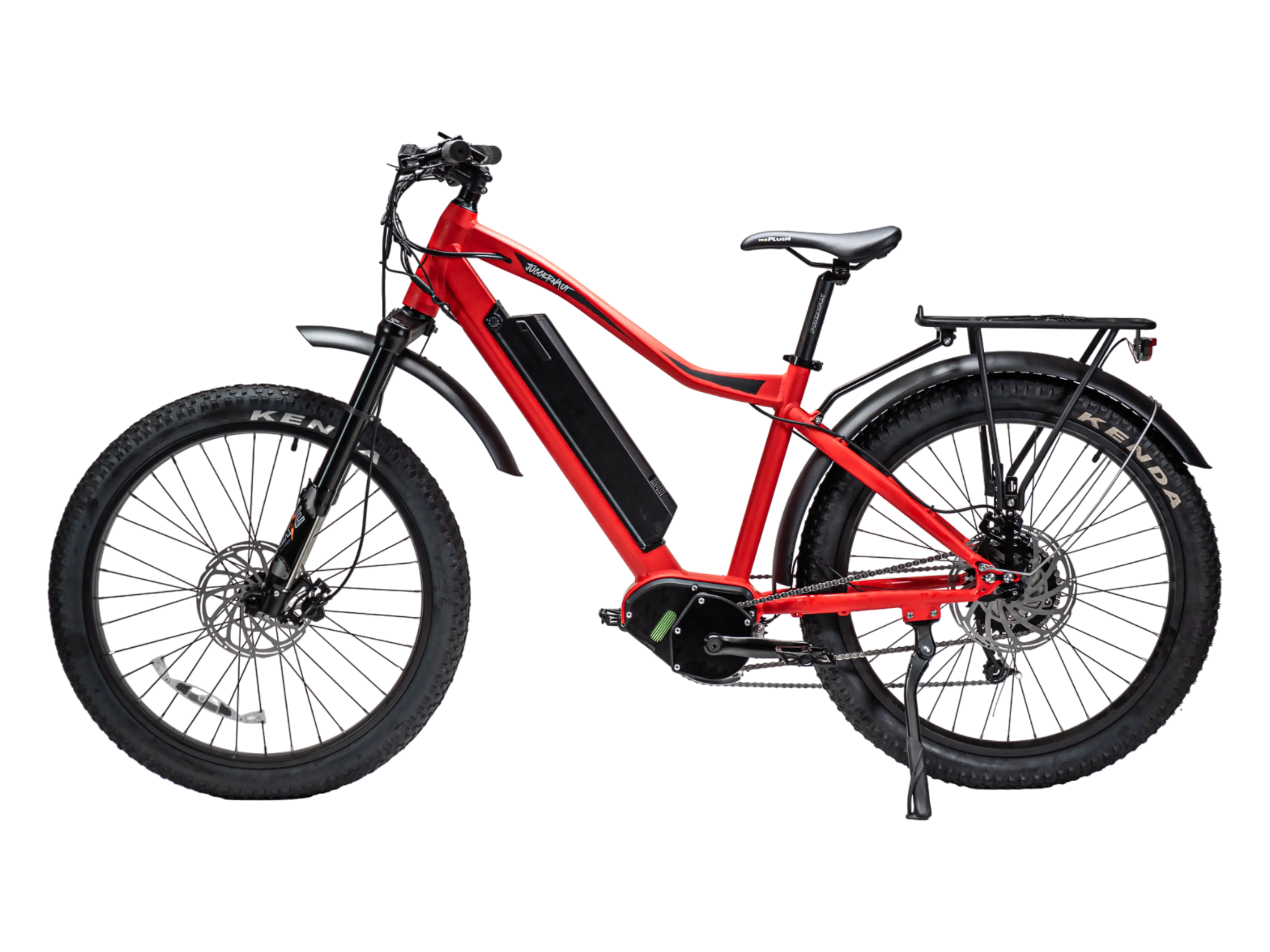

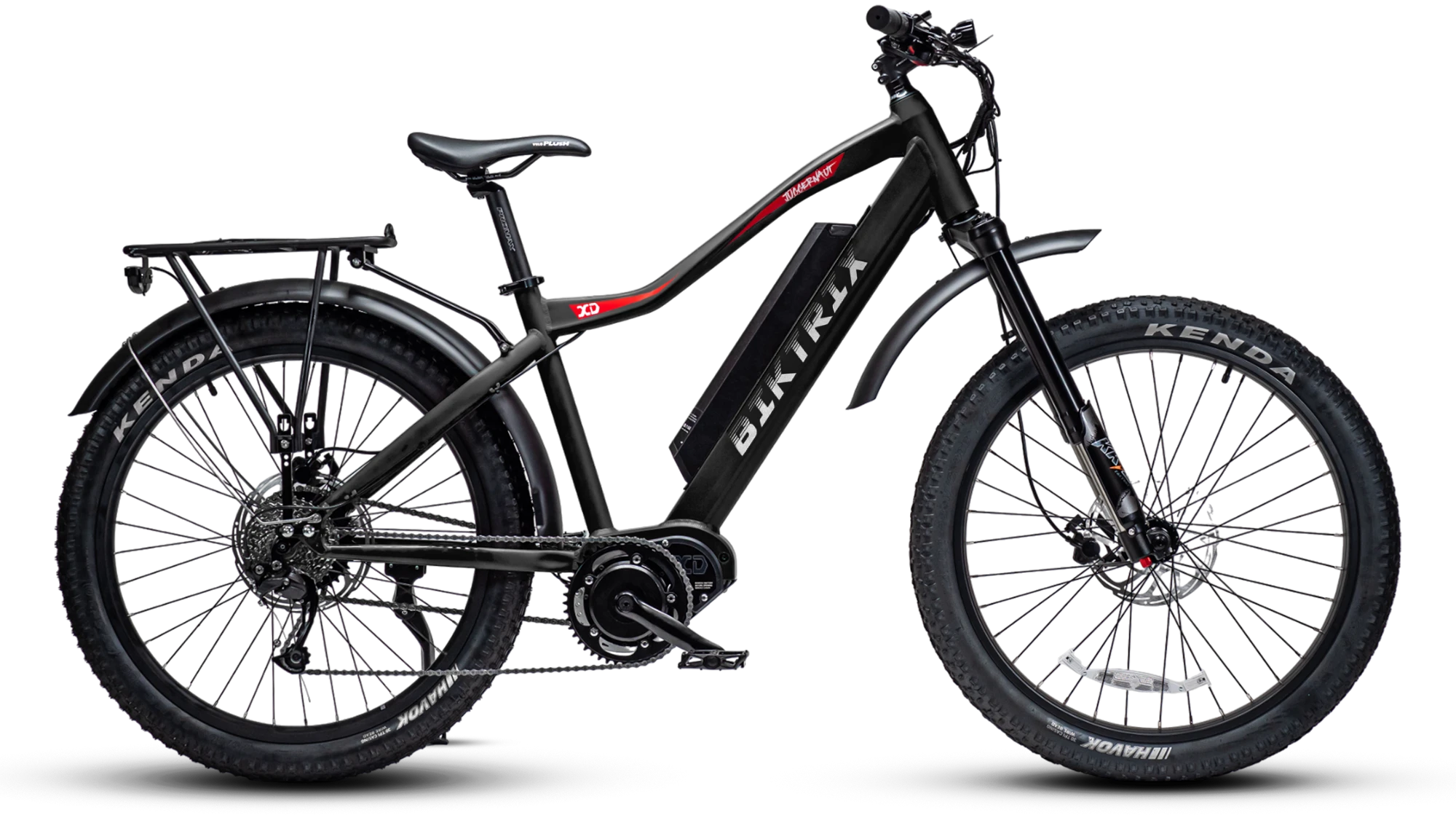

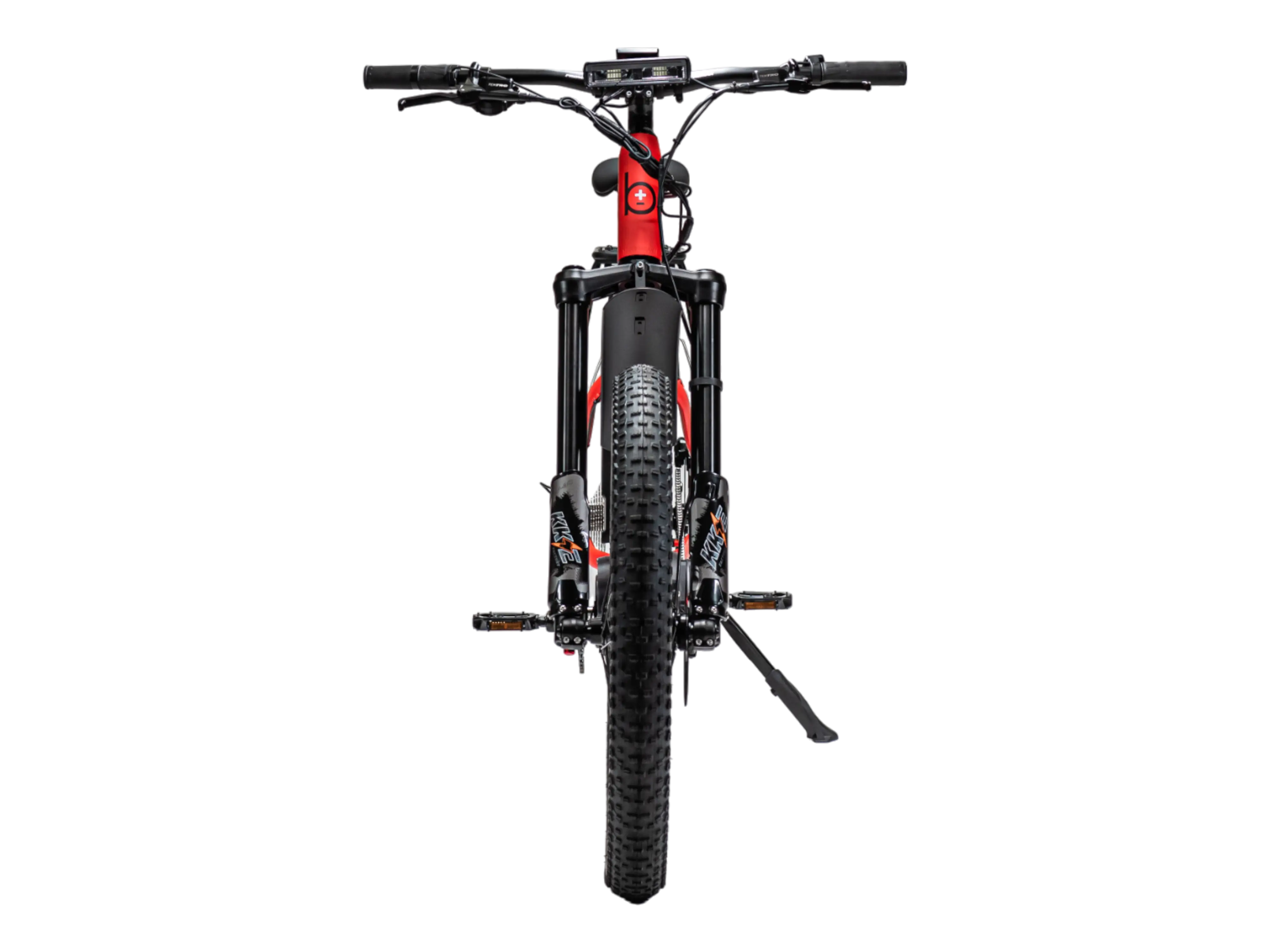

Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition

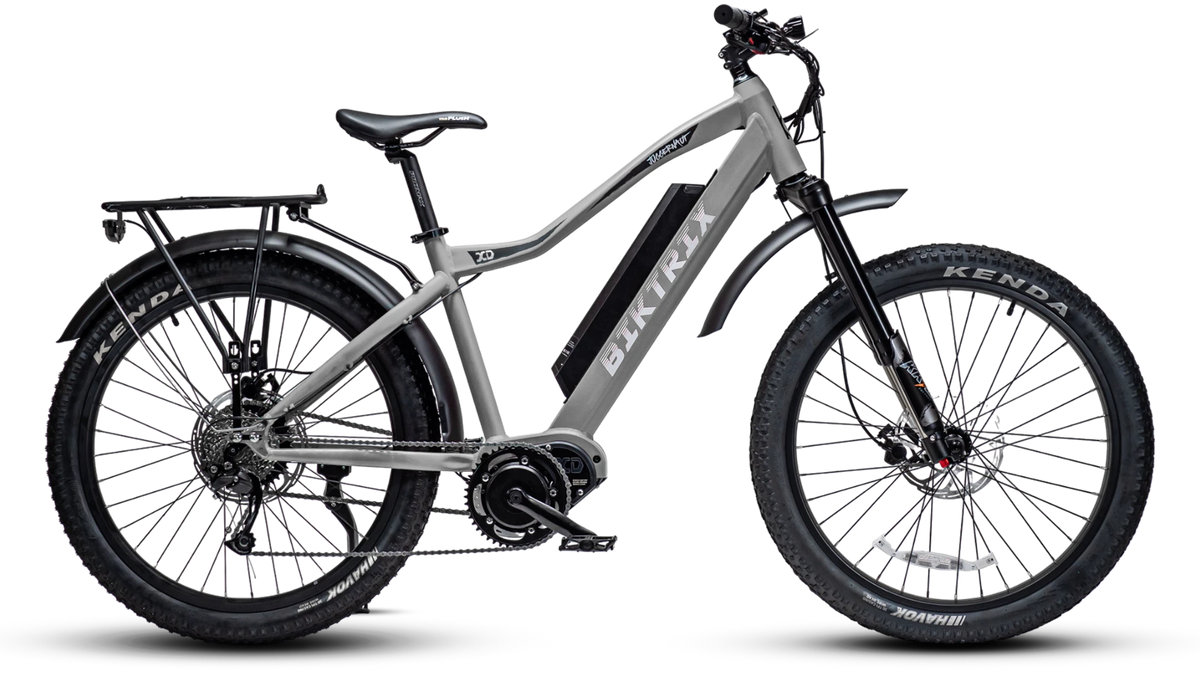

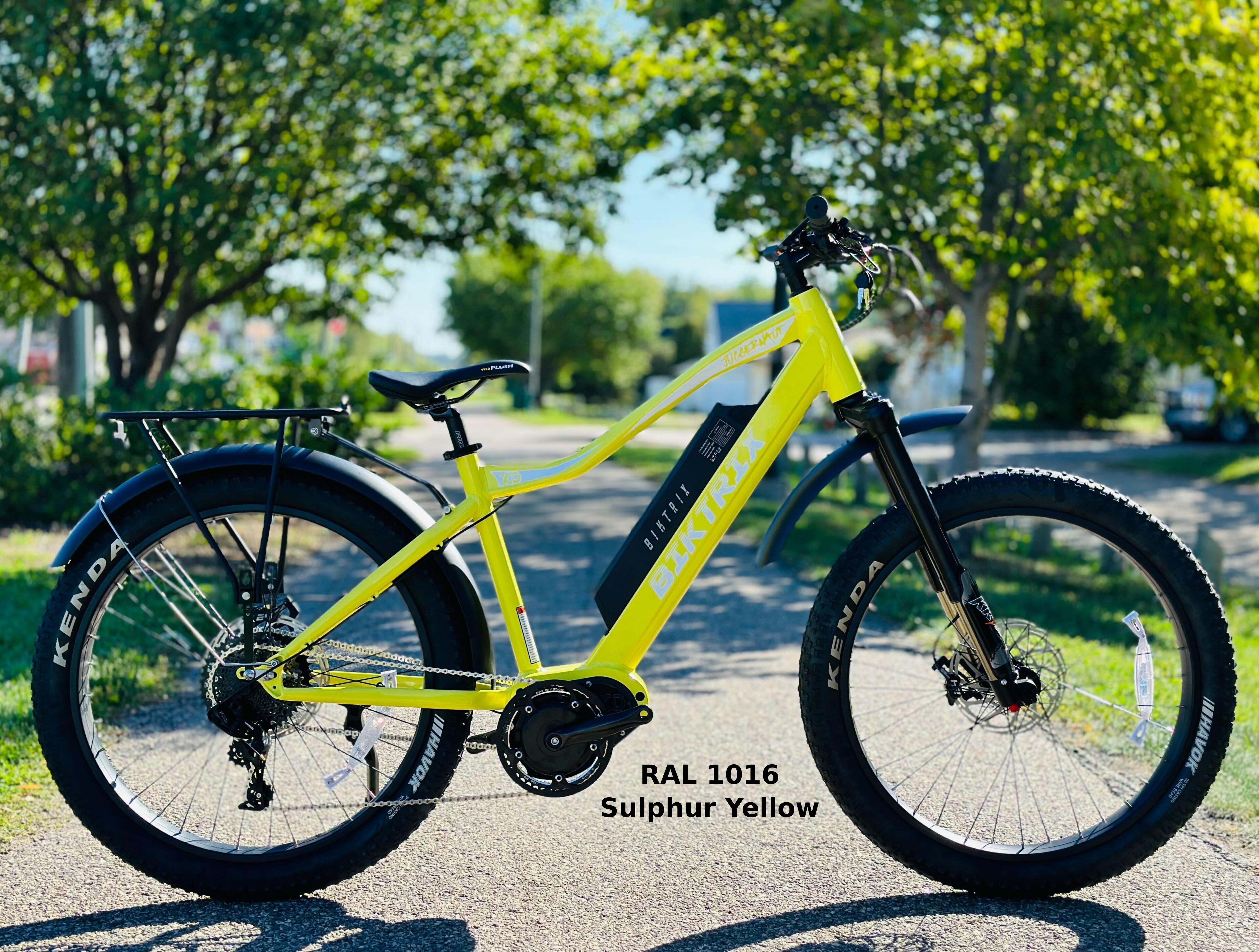

Custom Color Bike
Juggernaut XD Founders Edition
With Glow In The Dark Option
**With Glow In The Dark Option
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
Custom Color Bike
Juggernaut XD Founders Edition
**With Glow In The Dark Option
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
Juggernaut XD Founders Edition
3000W Mid-Drive

Motor Power

60V 20Ah 1200Wh

est. 20mi Range

+5'5"ft / 380lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Juggernaut XD Founders Edition

£3,895 £4,144
Save £249
Red
Packages
Battery
Upgrades
Limited Glow in the Dark Powder Coating


Upgrade your Custom Powder Coated colour with a second layer to make your bike Glow in the Dark!

**The Glow in the Dark finish only works with LIGHTER colours and not DARK colours.

How Glow In The Dark Works?

×

The Glow in the Dark Powder Coating upgrade applies a secondary gloss clear coat over your initial powder coating colour. This clear coat, when charged with a light source will then allow your bike frame to have a glow in the dark effect when in the dark!

Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**Upgraded front forks are incompatible with front fender included in Rack and Fender Set
Drivetrain


Choose between a Shimano 9 Speed Drivetrain or upgraded SRAM NX 11 Speed!

Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

×

Biktrix bikes are equipped with great brakes which are more than sufficient for most riders. However, if you plan on riding technical trails or have several descents on your daily ride, we offer a variety of brake upgrades which offer superior stopping power.

Unless otherwise stated, most Biktrix ebikes come standard with dual-piston hydraulic brakes. For heavier riders, folks who plan to haul more gear (ie: hunters), or anyone planning to ride over steep or technical terrain, the Quad piston brake upgrade is worth considering. Quad piston brakes have more stopping ability than the dual-piston (Quad piston brake upgrades not available on all models).

Rear Hub


Upgrade your eBike's rear hub for a smoother, more efficient ride, unlocking enhanced performance and reliability with every pedal.

Throttle


Select between a twist throttle or a thumb throttle for your eBike!

Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

**A-Bar Upgrade is incompatible with the RH Twist Throttle
Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail. Dropper seatposts offer seamless adjustments and ultimate control on any terrain.

***Adding a suspension or dropper seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"
Accessories
Coloured Pedals


Add some extra flair to your eBike with a set of coloured pedals!

Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Why BiktrixCare+?

×

Biktrix is proud to introduce our latest warranty option for all clients on all products. With these latest upgrades, we will guarantee primary customer service and premium care for your eBike.

2-Year

Standard

Standard Warranty that is included for all our eBikes for basic coverage

  • Battery & Charger
  • Cables, Wiring, Electronic Sensors
  • Front and Rear Suspensions
  • Motor* & Controller
  • Brakes
4-Years

BiktrixCare+

Starting at CA$349.00

The Ultimate coverage for your eBike, for complete peace of mind.

  • Everything in Standard
  • Refundable**
  • eBike Frame
  • Transferable

Inclusions

This package can be purchased within 30 Days from the date of delivery or while placing the eBike order whichever is earlier. BiktrixCare+ will cover the following list of eBike parts for manufacturing defects under the respective packages. BiktrixCare+ Gold is transferable once from the original buyer to another person subject to notifying the transfer of ownership to BEB.

*Motors

BEB will request to ship the motor to the Service Centre if the defect is fixable. Labour and parts cost is included in the motor service at BEB’s Service Centre. If the defect is unfixable BEB will issue a refurbished replacement. Shipping charges are excluded for the motor service. For Hub-Motors the maximum liability is the cost of the motor.

**Cancellation & Refund

BiktrixCare+ alone cannot be cancelled or refunded once the bike has been shipped. If the bike is returned under the first 14-day return window for a refund, 100% of the amount paid for this package would be refunded. If BEB decides to sever all relations with an owner under Section 19 this package would be deemed terminated with no refund

Learn More About BiktrixCare+

£3,895.00 £4,144.00
Shipping: Leaves within 4-6 Weeks

Technical Specifications

×
Frame
6061 aluminum
Front hub
150mm 36h ta
Seat post
31.6mm
Fork
Biktrix inverted w/100mm travel, lockout and rebound adjustment
Front axle
15mm ta
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
190mm ta 36h
Motor
3000w in-house developed coaxial drive motor
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
12mm ta
Battery sizes
60v 20ah 1200wh
Rear derailleur
Shimano alivio 9 speed
Display
Ds103 full color lcd
Cassette
12-34t 9 speed cassette
Tire sizes
26x4 kenda, 27.5x3 kenda
Lights
Armageddon headlight, battery taillight
Chain
Kmc 9 speed chain
Handlebar
770mm wide mtb w/31.8mm clamping diameter
Assist type
Torque
Crank set
44t chainring w/ short crank arms
Stem
Promax 40mm solid w/31.8mm clamp
Assist levels
0-5
Bottom bracket
High strength stainless steel square taper
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston w/203mm front, 220mm rear rotors
Saddle
Velo plush mtb saddle
Other
Rear rack, fenders, kickstand
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
150mm 36h ta
Seat post
31.6mm
Fork
Biktrix inverted w/100mm travel, lockout and rebound adjustment
Front axle
15mm ta
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
190mm ta 36h
Motor
3000w in-house developed coaxial drive motor
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
12mm ta
Battery sizes
60v 20ah 1200wh
Rear derailleur
Shimano alivio 9 speed
Display
Ds103 full color lcd
Cassette
12-34t 9 speed cassette
Tire sizes
26x4 kenda, 27.5x3 kenda
Lights
Armageddon headlight, battery taillight
Chain
Kmc 9 speed chain
Handlebar
770mm wide mtb w/31.8mm clamping diameter
Assist type
Torque
Crank set
44t chainring w/ short crank arms
Stem
Promax 40mm solid w/31.8mm clamp
Assist levels
0-5
Bottom bracket
High strength stainless steel square taper
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston w/203mm front, 220mm rear rotors
Saddle
Velo plush mtb saddle
Other
Rear rack, fenders, kickstand
Brake levers
Adjustable w/ integrated brake cutoffs

Sizing / Fittings

×
1
Effective Top Tube Length
 610mm 24in
2
Seat Tube Length (Classic Bike Size)
 480mm 18.9in
3
Reach
 420mm 16.5in
4
Stack
 660mm 26in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 730mm 28.7in
7
Head Angle
 72° -
8
Seat Angle
 76° -
9
Head Tube Length
 200 mm 7.9 in
10
Fork Length
 550mm 21.7in
11
Front Center
 790mm 31.1in
12
BB (Bottom Bracket) Drop
 100mm 3.9in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1310mm 51.6in
15
Total Length
 1990mm 78.3in
16
Max Seat Height
 1030mm 40.6in
17
Min Seat Height
 840mm 33.1in
18
Handlebar Height
 1120mm 44.1in
19
Weight (Without Battery)
 31.4kg 69.2lb
1
Effective Top Tube Length
 590mm 23.2in
2
Seat Tube Length (Classic Bike Size)
 440mm 17.3in
3
Reach
 420mm 16.5in
4
Stack
 660mm 26in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 670mm 26.4in
7
Head Angle
 72° -
8
Seat Angle
 76° -
9
Head Tube Length
 200 mm 7.9 in
10
Fork Length
 550mm 21.7in
11
Front Center
 790mm 31.1in
12
BB (Bottom Bracket) Drop
 80mm 3.1in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1290mm 50.8in
15
Total Length
 1970mm 77.6in
16
Max Seat Height
 940mm 37in
17
Min Seat Height
 780mm 30.7in
18
Handlebar Height
 1110mm 43.7in
19
Weight (Without Battery)
 31.3kg 69lb
3000W Mid-Drive

Motor Power

60V 20Ah 1200Wh

est. 20mi Range

+5'5"ft / 380lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

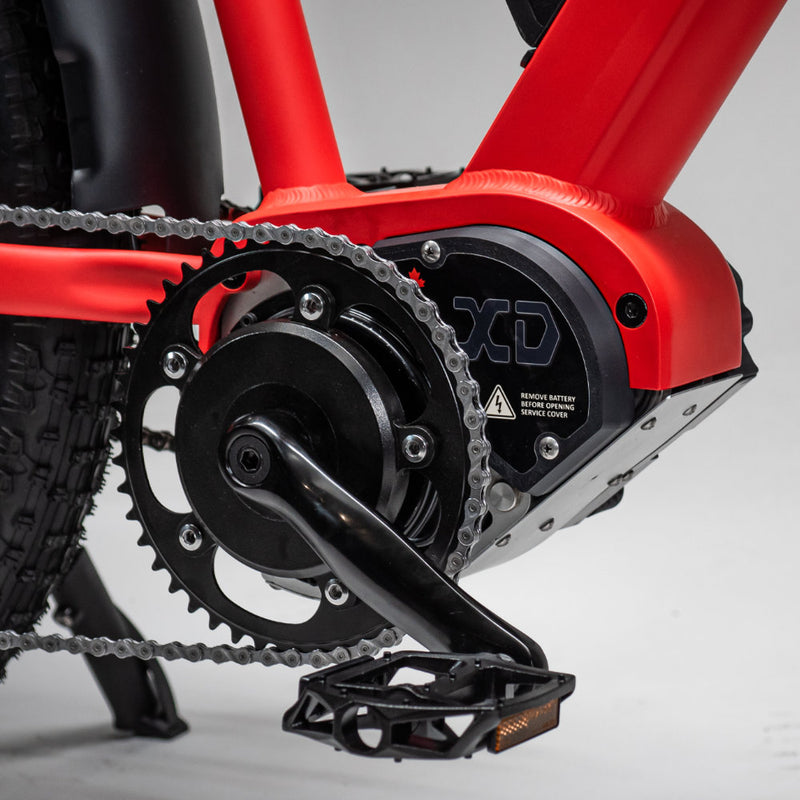

Innovative. Powerful. Unmatched.

The innovative Coaxial-Drive motor provides all the handling and weight distribution benefits that come with a mid-drive motor. But with all this power you need a drivetrain to handle it! The Juggernaut XD features a motor side drivetrain designed specifically to handle the power this motor puts out to keep this bike even more reliable than your average mid-drive motor.

Designed and Built in Canada

The XD Drive system stands as a testament to innovation, originating in Saskatoon, Canada where a passionate team of eBike enthusiasts undertook the challenge of crafting something groundbreaking and innovative.

What truly sets our XD Drive system apart is not just the cutting-edge design, but the distinct advantage of being designed by North American riders. Known for diverse and challenging riding conditions our team knows firsthand the demands this system has to go through! The outcome is the extraordinary XD Drive system, designed to elevate your eBike journey to new heights!

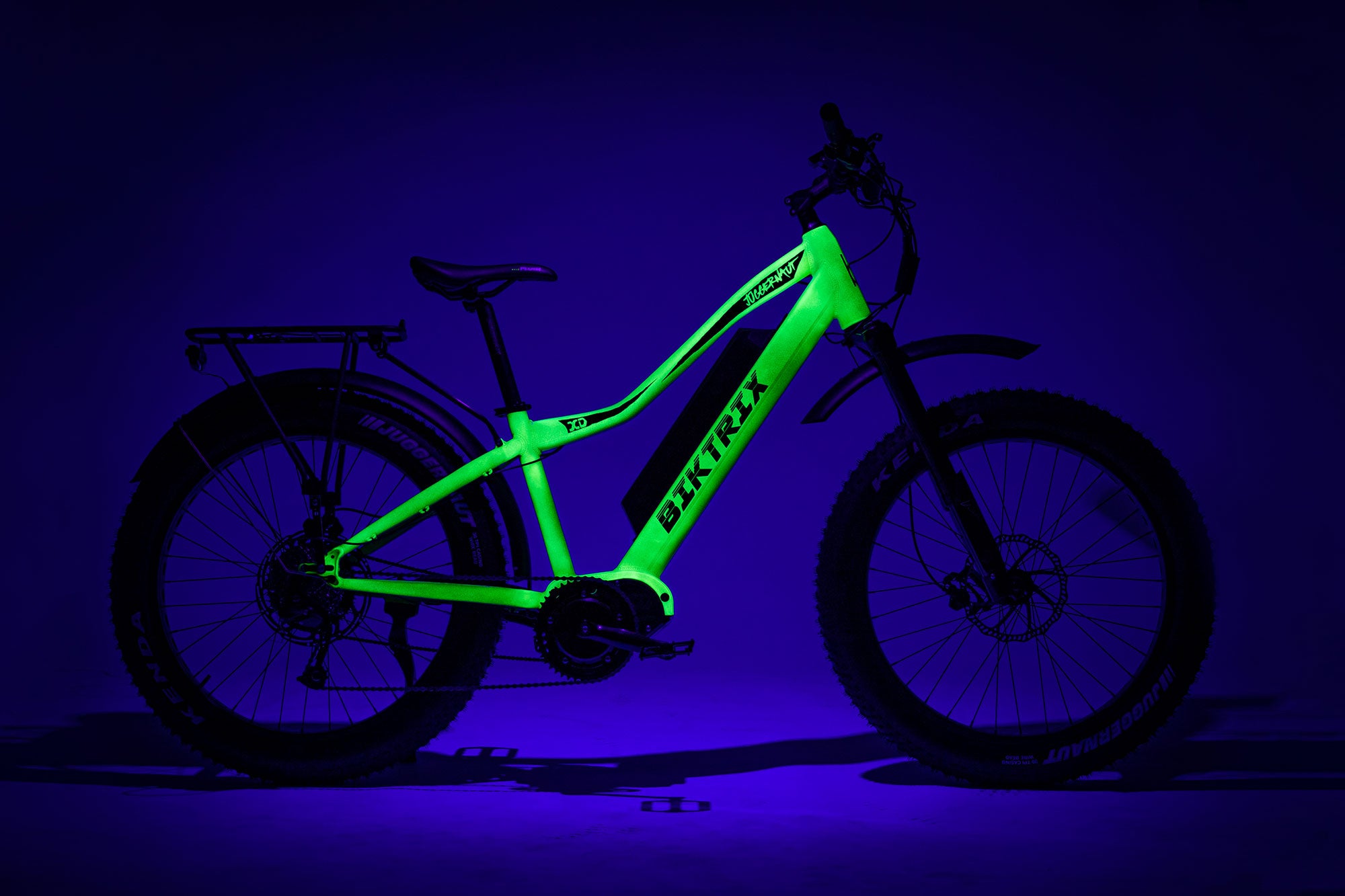

Glow In The Dark.

Light up your ride with our glow-in-the-dark eBike, blending
cutting-edge tech with striking visibility for a safer, thrilling
experience anytime!

Founded in Greatness.

NEW

3000W vs. 1800W+ Mid-Drive Motor

Choose the Ultra Option with the Bafang Ultra M620 mid-drive motor delivering 1800W and 160Nm of torque, or the XD Option with an in-house designed motor providing 3000W through a direct drive secondary chain for superior performance and durability.

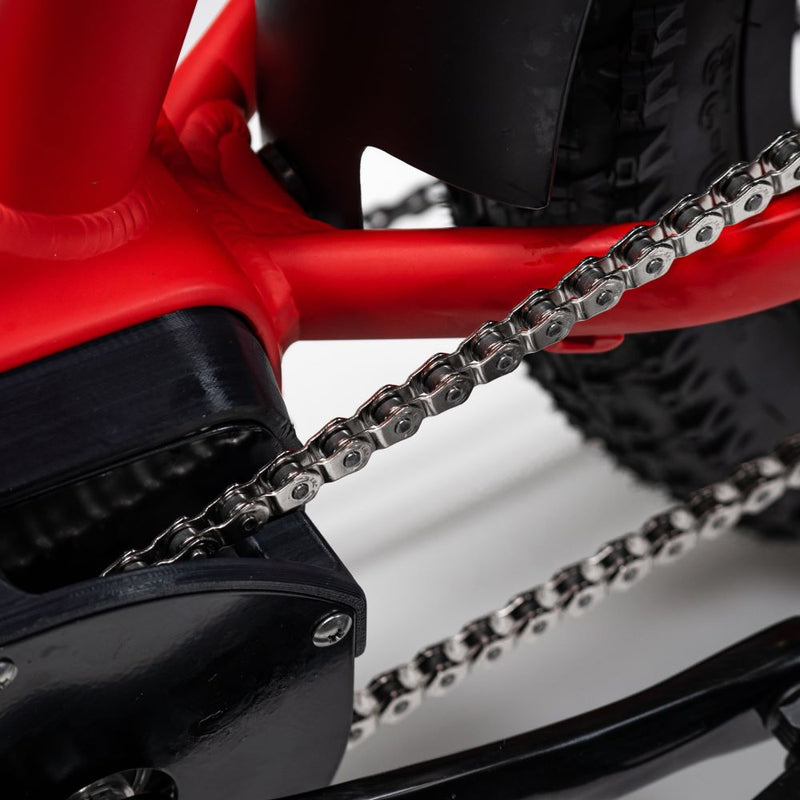

Heavy Duty Dual-Drive Chain

This motor drive chain can handle many times the forces a regular bike chain can. The results? An excellent chain to provide extreme durability and keep you riding for longer!

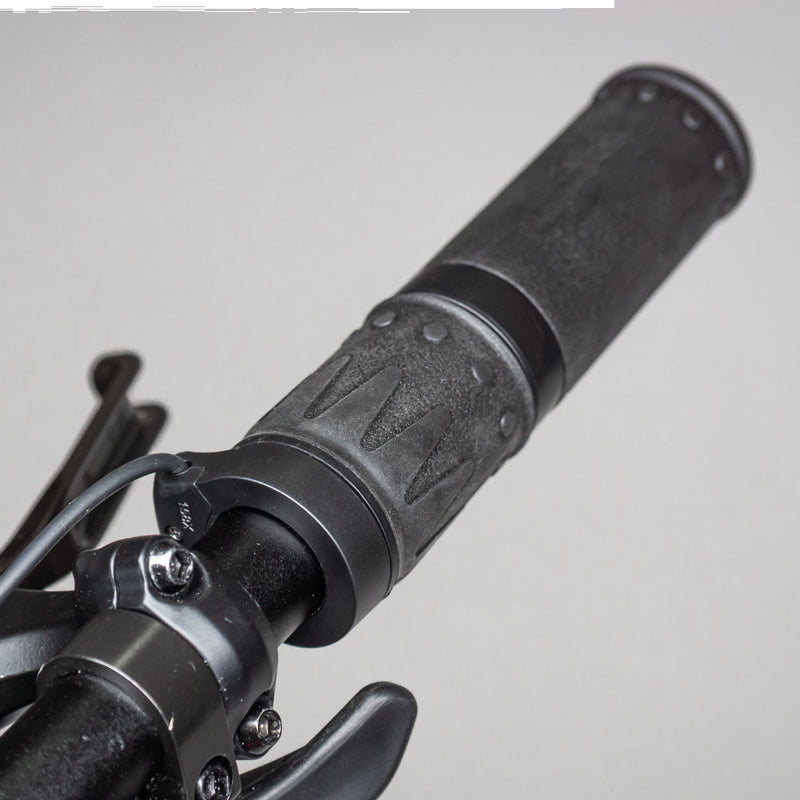

Twist Throttle

Unleash all of the power of the XD Dual Drive motor with just the flick of a wrist!

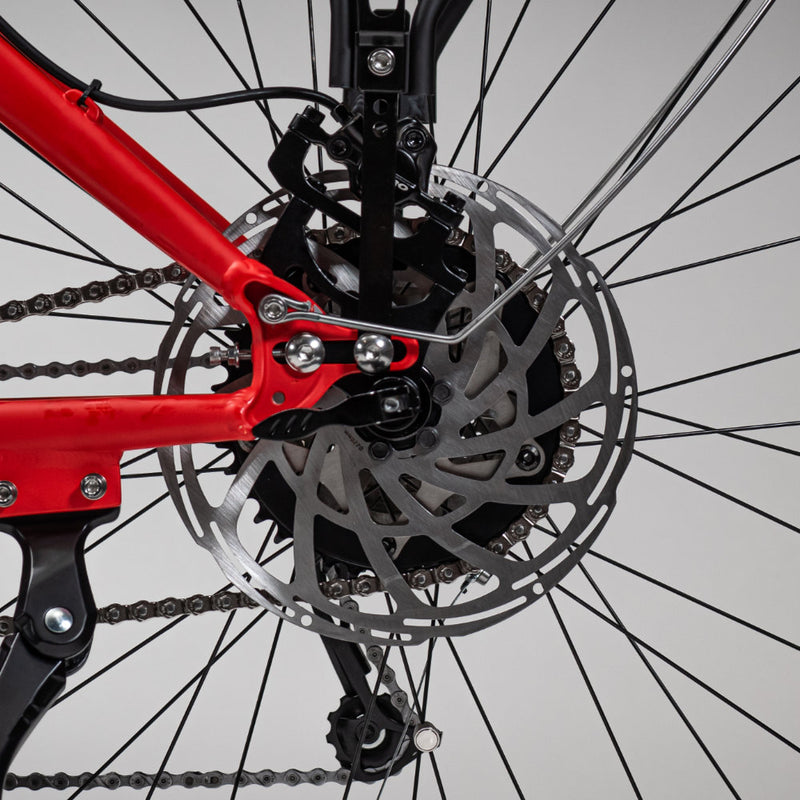

220mm Rear Brake Rotor

The 220mm rear brake rotor along with IIIPro Quad Piston Hydraulic Brakes will quickly and reliably bring you to a halt.

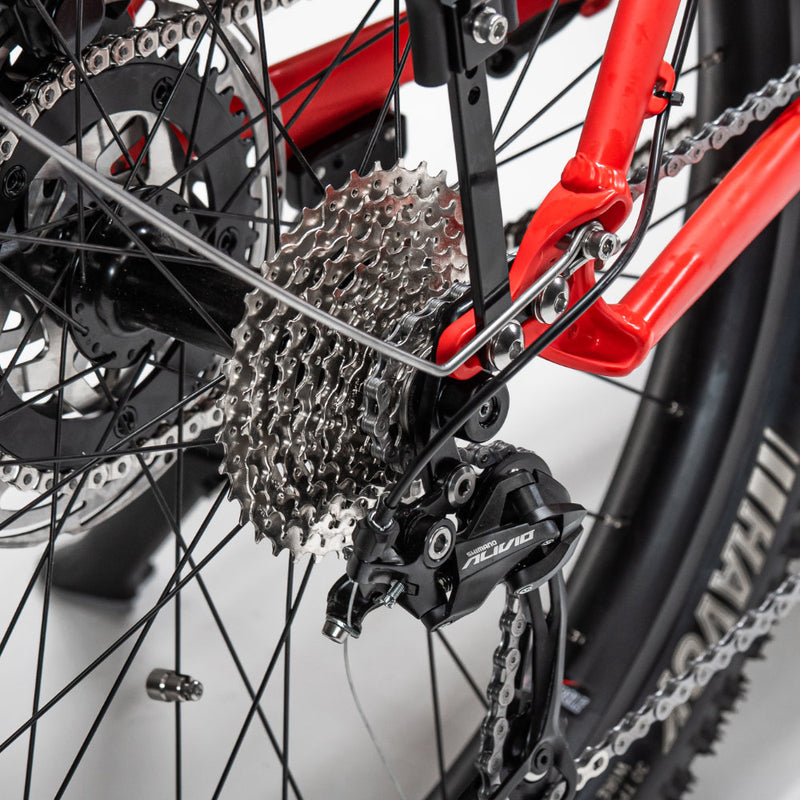

Shimano 9-Speed Drivetrain

The 9-Speed Shimano Alivio drivetrain on the bicycle side of the drivetrain ensures you can tackle any adventures the XD leads you to!

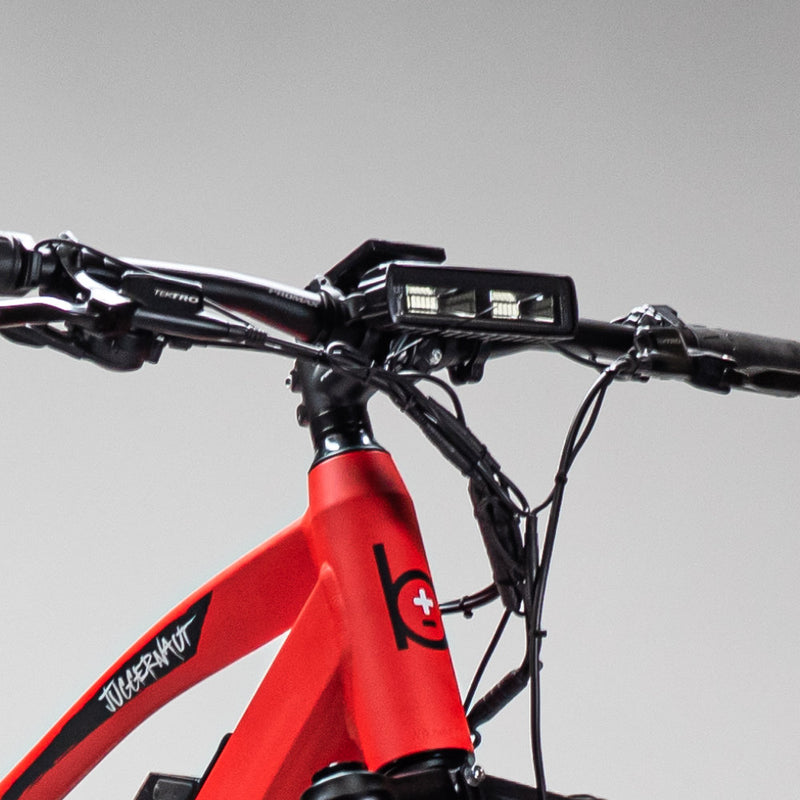

Armageddon Headlight

The Biktrix developed Armageddon Headlight with 2000 lumens of brightness will ensure your path stays lit up and fully visible!

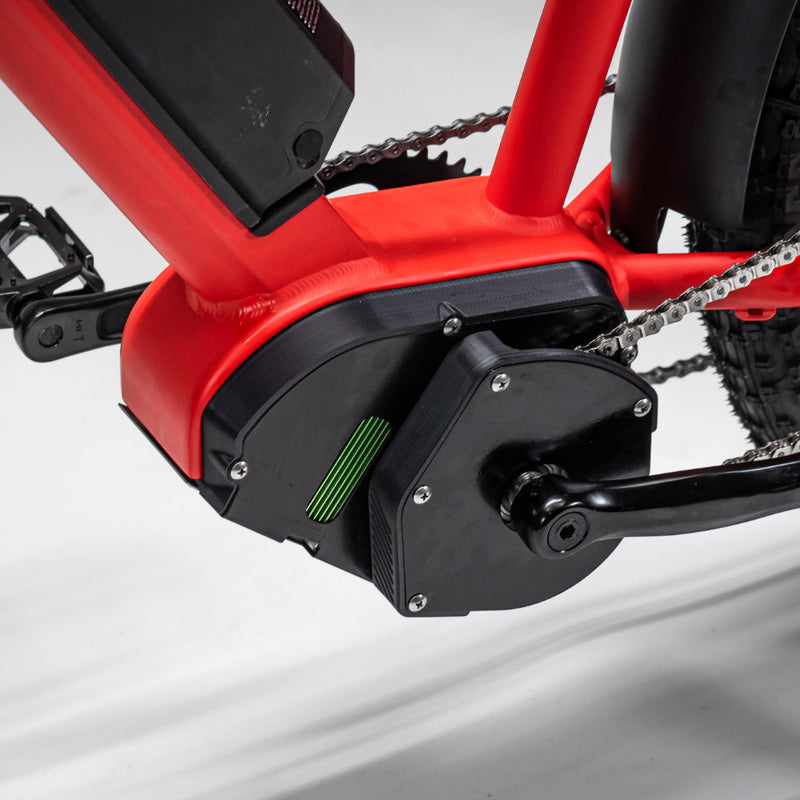

Torque Assistance Sensor

The torque sensor-based assistance provides smooth, predictable assistance to supercharge your pedalling!

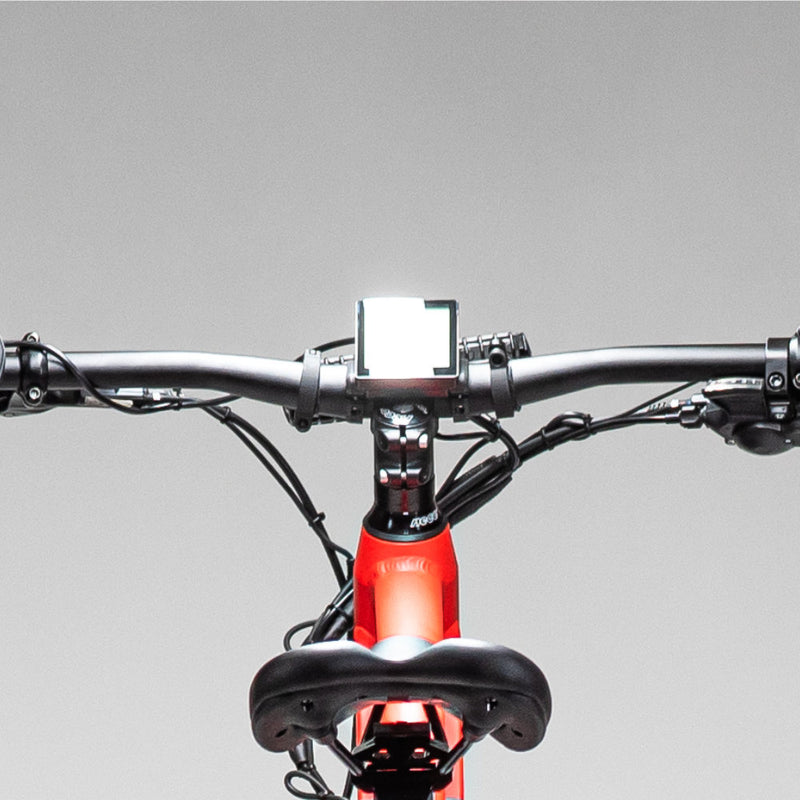

Display

The display shows all kinds of important information about your ride including speed, battery life, pedal assist level and more.

Technical Specifications

Frame
6061 aluminum
Front hub
150mm 36h ta
Seat post
31.6mm
Fork
Biktrix inverted w/100mm travel, lockout and rebound adjustment
Front axle
15mm ta
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
190mm ta 36h
Motor
3000w in-house developed coaxial drive motor
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
12mm ta
Battery sizes
60v 20ah 1200wh
Rear derailleur
Shimano alivio 9 speed
Display
Ds103 full color lcd
Cassette
12-34t 9 speed cassette
Tire sizes
26x4 kenda, 27.5x3 kenda
Lights
Armageddon headlight, battery taillight
Chain
Kmc 9 speed chain
Handlebar
770mm wide mtb w/31.8mm clamping diameter
Assist type
Torque
Crank set
44t chainring w/ short crank arms
Stem
Promax 40mm solid w/31.8mm clamp
Assist levels
0-5
Bottom bracket
High strength stainless steel square taper
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston w/203mm front, 220mm rear rotors
Saddle
Velo plush mtb saddle
Other
Rear rack, fenders, kickstand
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
150mm 36h ta
Seat post
31.6mm
Fork
Biktrix inverted w/100mm travel, lockout and rebound adjustment
Front axle
15mm ta
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
190mm ta 36h
Motor
3000w in-house developed coaxial drive motor
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
12mm ta
Battery sizes
60v 20ah 1200wh
Rear derailleur
Shimano alivio 9 speed
Display
Ds103 full color lcd
Cassette
12-34t 9 speed cassette
Tire sizes
26x4 kenda, 27.5x3 kenda
Lights
Armageddon headlight, battery taillight
Chain
Kmc 9 speed chain
Handlebar
770mm wide mtb w/31.8mm clamping diameter
Assist type
Torque
Crank set
44t chainring w/ short crank arms
Stem
Promax 40mm solid w/31.8mm clamp
Assist levels
0-5
Bottom bracket
High strength stainless steel square taper
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston w/203mm front, 220mm rear rotors
Saddle
Velo plush mtb saddle
Other
Rear rack, fenders, kickstand
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
150mm 36h ta
Seat post
31.6mm
Fork
Biktrix inverted w/100mm travel, lockout and rebound adjustment
Front axle
15mm ta
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
190mm ta 36h
Motor
3000w in-house developed coaxial drive motor
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
12mm ta
Battery sizes
60v 20ah 1200wh
Rear derailleur
Shimano alivio 9 speed
Display
Ds103 full color lcd
Cassette
12-34t 9 speed cassette
Tire sizes
26x4 kenda, 27.5x3 kenda
Lights
Armageddon headlight, battery taillight
Chain
Kmc 9 speed chain
Handlebar
770mm wide mtb w/31.8mm clamping diameter
Assist type
Torque
Crank set
44t chainring w/ short crank arms
Stem
Promax 40mm solid w/31.8mm clamp
Assist levels
0-5
Bottom bracket
High strength stainless steel square taper
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston w/203mm front, 220mm rear rotors
Saddle
Velo plush mtb saddle
Other
Rear rack, fenders, kickstand
Brake levers
Adjustable w/ integrated brake cutoffs

Size & Fittings

1
Effective Top Tube Length
 610mm 24in
2
Seat Tube Length (Classic Bike Size)
 480mm 18.9in
3
Reach
 420mm 16.5in
4
Stack
 660mm 26in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 730mm 28.7in
7
Head Angle
 72° -
8
Seat Angle
 76° -
9
Head Tube Length
 200 mm 7.9 in
10
Fork Length
 550mm 21.7in
11
Front Center
 790mm 31.1in
12
BB (Bottom Bracket) Drop
 100mm 3.9in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1310mm 51.6in
15
Total Length
 1990mm 78.3in
16
Max Seat Height
 1030mm 40.6in
17
Min Seat Height
 840mm 33.1in
18
Handlebar Height
 1120mm 44.1in
19
Weight (Without Battery)
 31.4kg 69.2lb
1
Effective Top Tube Length
 590mm 23.2in
2
Seat Tube Length (Classic Bike Size)
 440mm 17.3in
3
Reach
 420mm 16.5in
4
Stack
 660mm 26in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 670mm 26.4in
7
Head Angle
 72° -
8
Seat Angle
 76° -
9
Head Tube Length
 200 mm 7.9 in
10
Fork Length
 550mm 21.7in
11
Front Center
 790mm 31.1in
12
BB (Bottom Bracket) Drop
 80mm 3.1in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1290mm 50.8in
15
Total Length
 1970mm 77.6in
16
Max Seat Height
 940mm 37in
17
Min Seat Height
 780mm 30.7in
18
Handlebar Height
 1110mm 43.7in
19
Weight (Without Battery)
 31.3kg 69lb

Need A Hand?

Chat With Us
We are always excited to hear from you. Just click the button below to activate chat now.
Chat Now
Book A Virtual Demo
Our eBike specialists can help you find your dream eBike and answer any questions you may have.
Book An Appointment Now
Give Us A Ring
24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.
+1-866-BIKTRIX

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Free Shipping

Free shipping (over $1,000) within the USA and Canada. *Some exceptions apply.

Custom Built

Built to order just for you in our Canadian warehouse.

Free In Store Pickup

Each eBIke is meticulously built in house and made with utter perfection.

Amazing Value

Our bikes offer the best value for your money. Our specs cannot be beat for the price.
