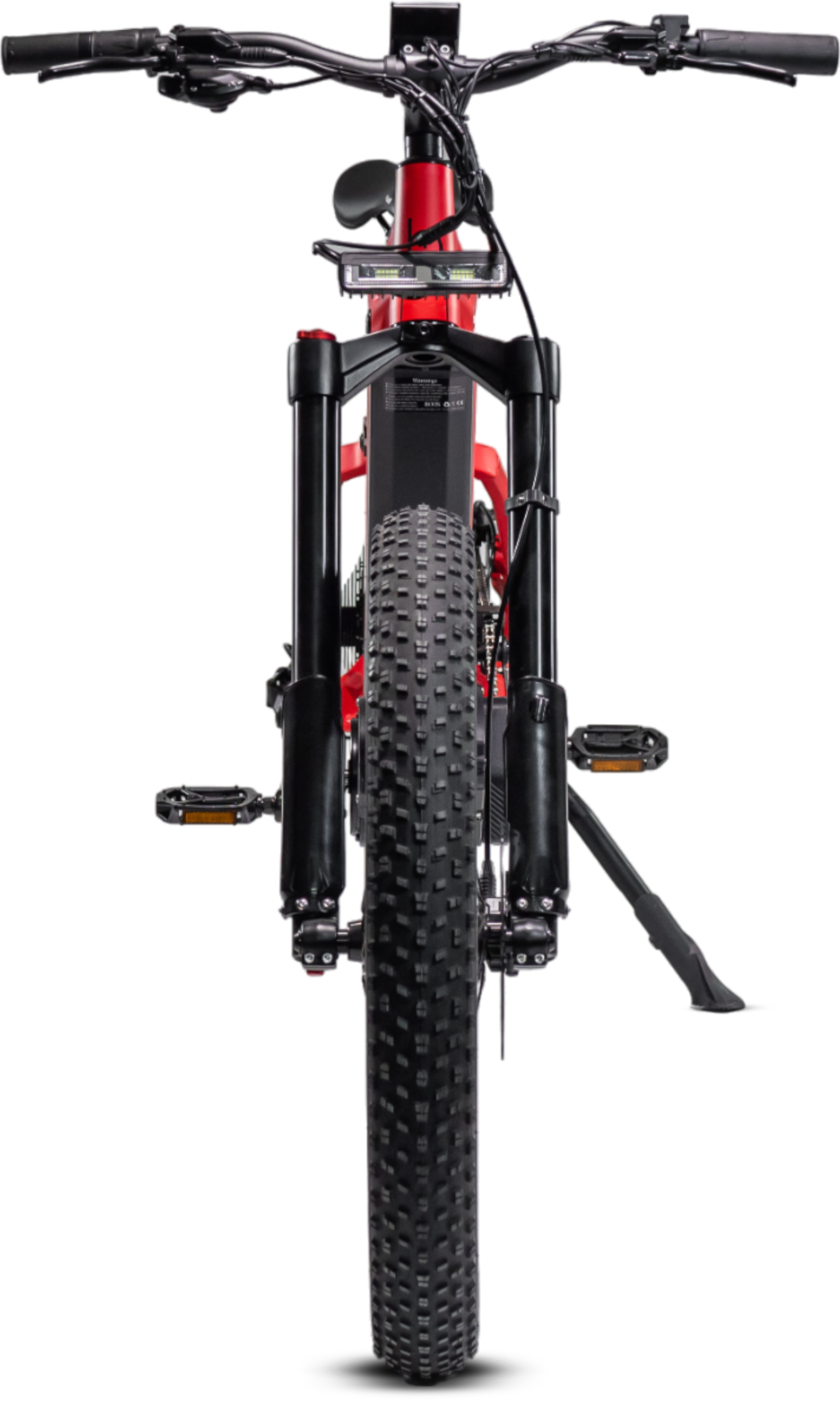

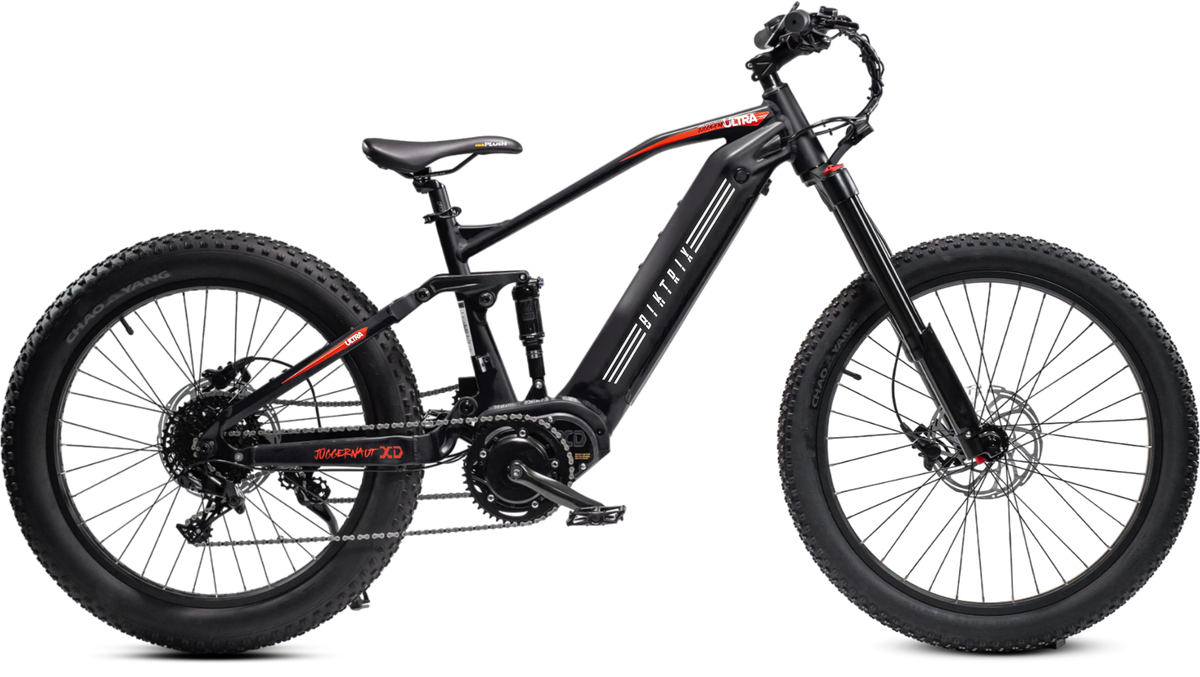

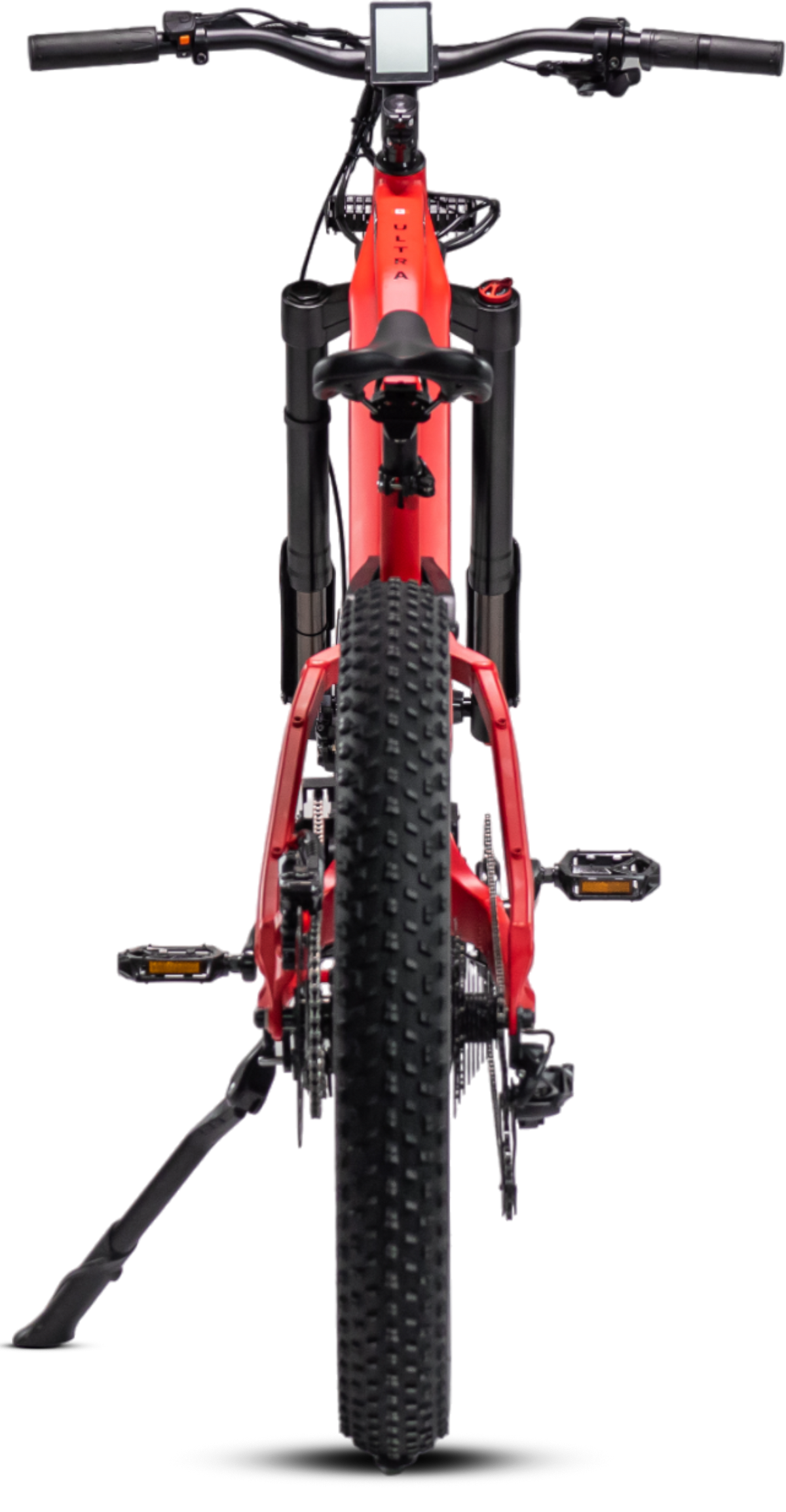

Juggernaut FS XD Mullet

Sale price £4,597 Regular price£5,014
Save £417

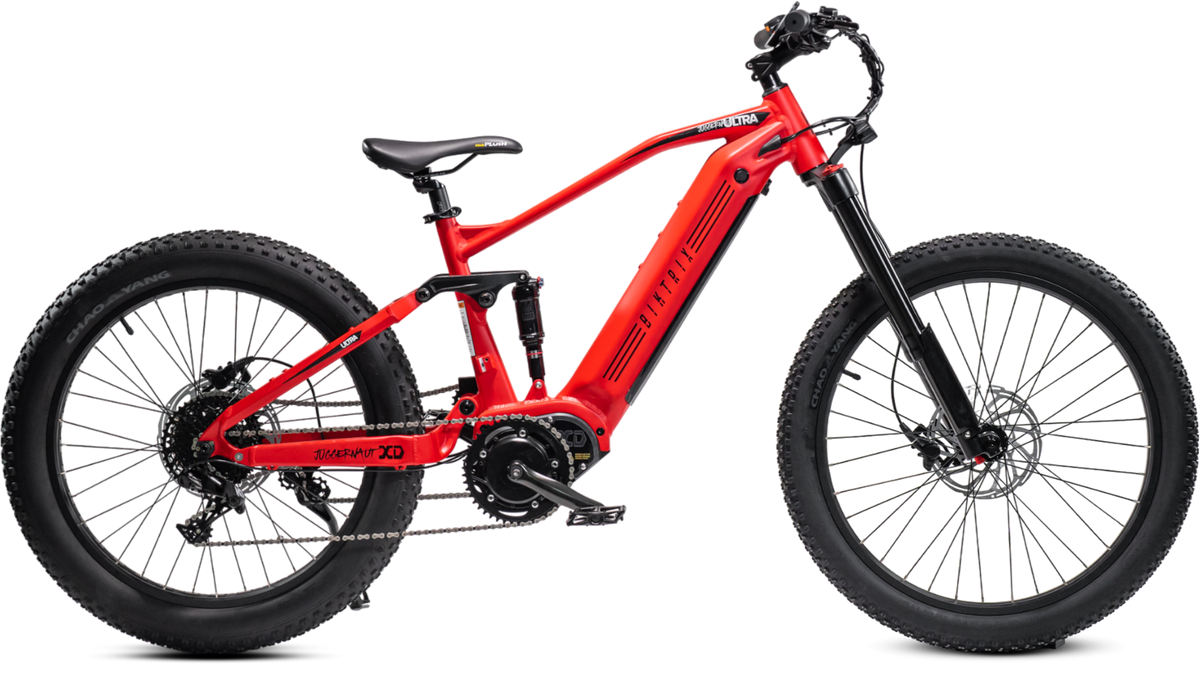

Matte Red
Packages
Battery
Range Extender Battery


Add an additional battery to extend your bikes range and give you that boost!

**This option adds an extra battery that mounts on top of the frame that doubles the range of the stock battery.
Upgrades
Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

**A-Bar Upgrade is incompatible with the RH Twist Throttle
Throttle


Select a Thumb Throttle or Twist Throttle for your eBike

**Right-Hand Twist throttle is incompatible with A-Bar Upgrade
Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**Upgraded front forks are incompatible with front fender included in Rack and Fender Set
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

Rear Hub


Upgrade your eBike's rear hub for a smoother, more efficient ride, unlocking enhanced performance and reliability with every pedal.

Dropper Seatpost


Elevate your ride with a dropper seatpost for seamless adjustments and ultimate control on any terrain.

***Adding a dropper seatpost to your eBike will increase the minimum seatpost height by approximately 75mm/3"
Accessories
Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price £4,597.00 Regular price£5,014.00
Shipping: Leaves within 2-4 Weeks
2300W Mid-Drive

Motor Power

52V 17Ah 910Wh

est. 30mi Range

+5'8ft / 265lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

See the FS XD In Action

Don't miss out—watch the video now to see the amazing Juggernaut FS XD in action and learn all about its incredible features!

Full Suspension. Full Power.

You don’t usually see this much power in a Full Suspension eBike but the XD FS changes that! The custom high idler pulley running standard half-link bike chain was designed to ensure the XD Drive Train and it’s dynamics are fully isolated from the rear suspension of the bike. The result? High-performance full suspension available for all your adventures with 2300W of power from the motor!

Innovative. Powerful. Unmatched.

The innovative Coaxial-Drive motor provides all the handling and weight distribution benefits that come with a mid-drive motor. But with all this power you need a drivetrain to handle it! The Juggernaut XD features a motor side drivetrain designed specifically to handle the power this motor puts out to keep this bike even more reliable than your average mid-drive motor.

Crush Any Obstacle.

Preproduction Specifications

*Final version may have equivalent or better parts substitutions

Frame
6061 aluminum w/rear suspension
Front hub
150mm ta 36h
Seat post
31.6mm
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle - kke
Seat post clamp
34.9 qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm ta 36h
Motor
Xd coaxial drive motor
Shifter rear
Sram nx 11 speed trigger
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Black 27.5x3 solid, 60mm wide 36h front
black 26x4 w/ round cutouts, 60mm wide 36h rear
Display
Ds104 / ds103
Cassette
Sram 11-42t 11 speed
Tire sizes
27.5x3 chaoyang front, 26x4 chaoyang rear
Lights
Armageddon headlight
Chain
Kmc e11s - 130 links
Handlebar
700mm wide w/25mm rise, 31.8mm clamp
Assist type
Torque
Crank set
Short crank arms w/44t chainring
Stem
90mm solid
Assist levels
0-5
Bottom bracket
High strength stainless steel square taper
Grips
Velo mtb grips
Throttle
Thumb throttle/low profile rh twist throttle
Brakes
Iiipro e500 quad piston hydraulic w/203mm front, 220mm rear rotor
Saddle
Velo plush
Brake levers
Adjustable w/ integrated brake cutoffs
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye
Frame
6061 aluminum w/rear suspension
Front hub
150mm ta 36h
Seat post
31.6mm
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle - kke
Seat post clamp
34.9 qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm ta 36h
Motor
Xd coaxial drive motor
Shifter rear
Sram nx 11 speed trigger
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Black 27.5x3 solid, 60mm wide 36h front
black 26x4 w/ round cutouts, 60mm wide 36h rear
Display
Ds104 / ds103
Cassette
Sram 11-42t 11 speed
Tire sizes
27.5x3 chaoyang front, 26x4 chaoyang rear
Lights
Armageddon headlight
Chain
Kmc e11s - 130 links
Handlebar
700mm wide w/25mm rise, 31.8mm clamp
Assist type
Torque
Crank set
Short crank arms w/44t chainring
Stem
90mm solid
Assist levels
0-5
Bottom bracket
High strength stainless steel square taper
Grips
Velo mtb grips
Throttle
Thumb throttle/low profile rh twist throttle
Brakes
Iiipro e500 quad piston hydraulic w/203mm front, 220mm rear rotor
Saddle
Velo plush
Brake levers
Adjustable w/ integrated brake cutoffs
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye
Frame
6061 aluminum w/rear suspension
Front hub
150mm ta 36h
Seat post
31.6mm
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle - kke
Seat post clamp
34.9 qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm ta 36h
Motor
Xd coaxial drive motor
Shifter rear
Sram nx 11 speed trigger
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Black 27.5x3 solid, 60mm wide 36h front
black 26x4 w/ round cutouts, 60mm wide 36h rear
Display
Ds104 / ds103
Cassette
Sram 11-42t 11 speed
Tire sizes
27.5x3 chaoyang front, 26x4 chaoyang rear
Lights
Armageddon headlight
Chain
Kmc e11s - 130 links
Handlebar
700mm wide w/25mm rise, 31.8mm clamp
Assist type
Torque
Crank set
Short crank arms w/44t chainring
Stem
90mm solid
Assist levels
0-5
Bottom bracket
High strength stainless steel square taper
Grips
Velo mtb grips
Throttle
Thumb throttle/low profile rh twist throttle
Brakes
Iiipro e500 quad piston hydraulic w/203mm front, 220mm rear rotor
Saddle
Velo plush
Brake levers
Adjustable w/ integrated brake cutoffs
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye

Size & Fittings

1
Effective Top Tube Length
580mm 22.8in
2
Seat Tube Length (Classic Bike Size)
430mm 16.9in
3
Reach
440mm 17.3in
4
Stack
540mm 21.3in
5
Chainstay Length
510mm 20.1in
6
Standover Height
730mm 28.7in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1320mm 52in
15
Total Length
2030mm 79.9in
16
Max Seat Height
160mm 6.3in
17
Min Seat Height
840mm 33.1in
18
Handlebar Height
1020mm 40.2in
19
Weight (Without Battery)
32.6kg 71.9lb
1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
480mm 18.9in
3
Reach
460mm 18.1in
4
Stack
590mm 23.2in
5
Chainstay Length
510mm 20.1in
6
Standover Height
740mm 29.1in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1330mm 52.4in
15
Total Length
2040mm 80.3in
16
Max Seat Height
1080mm 42.5in
17
Min Seat Height
880mm 34.6in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
33.1kg 73lb
1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
520mm 20.5in
3
Reach
460mm 18.1in
4
Stack
590mm 23.2in
5
Chainstay Length
520mm 20.5in
6
Standover Height
770mm 30.3in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1340mm 52.8in
15
Total Length
2060mm 81.1in
16
Max Seat Height
1120mm 44.1in
17
Min Seat Height
940mm 37in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
33.6kg 74.1lb
