Magura MT5e with Bafang HiGo 2-Pin Connector

Sale price £264
Packages
Battery
Upgrades
Accessories

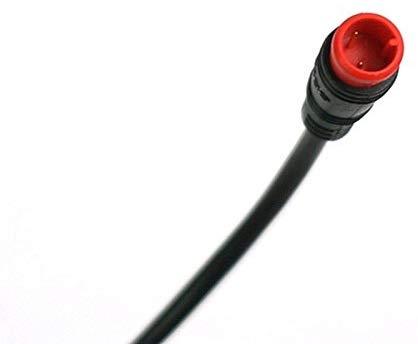

Add 2-Pin to 3-Pin Adaptor?


Use this adaptor to plug the 2-Pin Brake Sensor connector into your bike's existing electronics without any further modifications

Warranty
Sale price £264.00
Shipping: Leaves within 6-7 business days

Overview

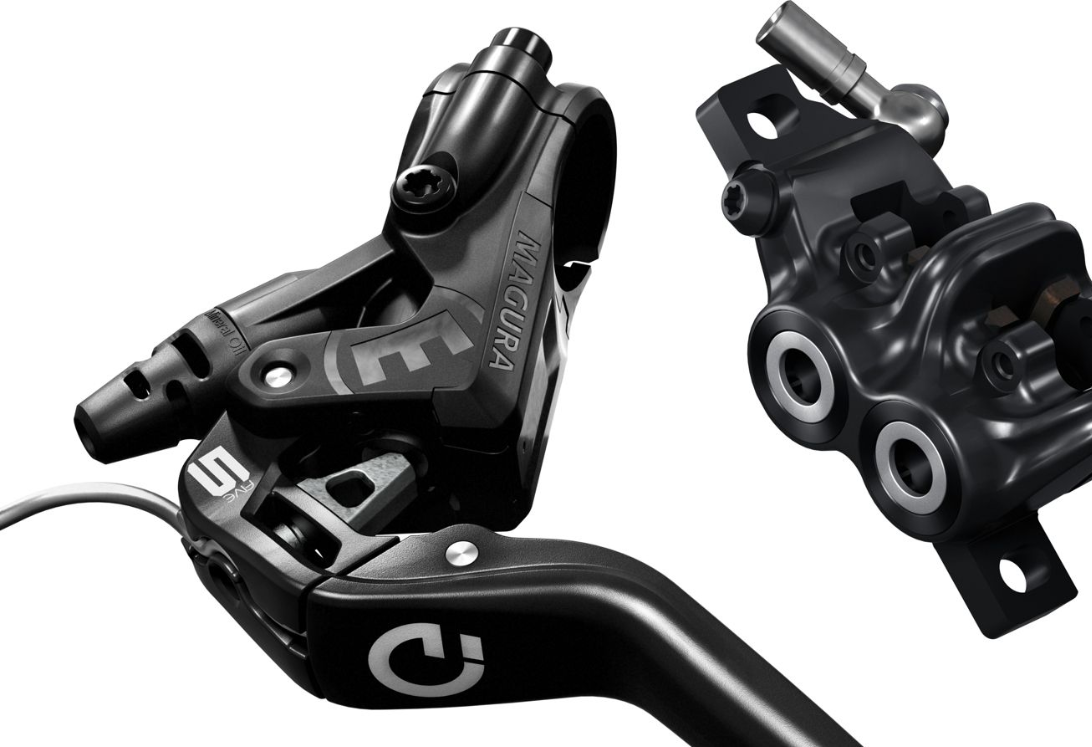

The Magura MT5e quad-piston disc brakes are the ultimate upgrade for your eBike. With German engineering and premium manufacturing, you won't find a higher quality brake system.

It is much more than a basic brake; it features a mechanical switch in the brake lever with a Bafang HIGO connector (closer type) which activates the brake light before deceleration begins and controls the motor cut-out for maximum safety.

What's Included:

  • Pre-bled MT5e
  • Closer type (Normally open, closed when engaged)
  • OEM packaging (no retail packaging)
  • 2200mm Hose
  • Pre-Bled and ready to install

The price is for 2 x (brake lever + caliper) attached to a 2200mm hose. The brake lever is reversible to use either on the left or right for front or back.

Features:

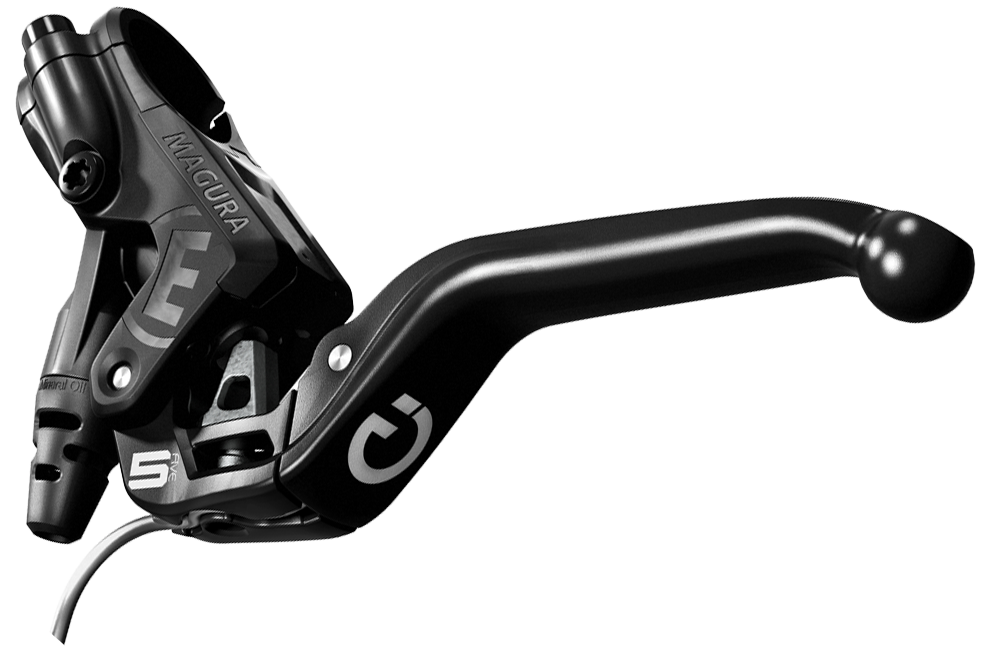

  • Ergonomic, 3-finger, aluminium brake lever
  • Carbotecture® housing & handlebar clamp
  • Adjustable lever reach

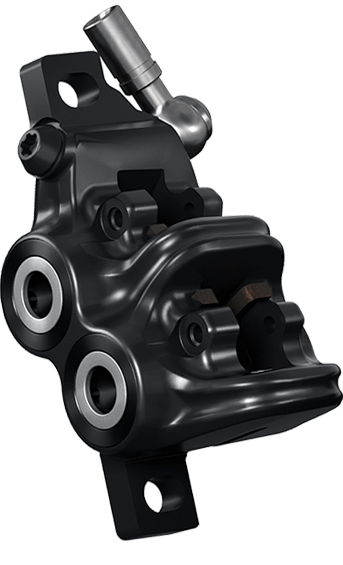

  • Forged, 4-piston brake caliper
  • MagnetiXchange brake pistons for easy brake pad replacement
  • Compatible with all MAGURA Storm and Storm SL discs

Note: If you do not opt for the 2-Pin:3-Pin Adaptors you will need to modify the connectors as shown here.

    Technical Specifications

    Master Material

    Carbotecture®

    Lever Blade Material

    Aluminum with Switch

    Caliper Material

    Aluminum

    Brake Type

    Hydraulic

    Brake Fluid

    Magura Royal Blood

    Reach Adjustment

    Yes, with 3mm Allen Key

    Brake Cutoff Switch

    Yes, 2-Pin HIGO

    Lever Blade Style

    3-Finger Ball End

    Mounting

    Post Mount / IS Mount with adaptors

    Weight

    345g per brake assembly

    Brake Sensor Type

    Closer Type

    Colour

    Black

    Hose Length

    2200mm

    Need A Hand?

    Chat With Us
    We are always excited to hear from you. Just click the button below to activate chat now.
    Chat Now
    Book A Virtual Demo
    Our eBike specialists can help you find your dream eBike and answer any questions you may have.
    Book An Appointment Now
    Give Us A Ring
    24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.
    +1-866-BIKTRIX

    Customer Reviews

    Based on 3 reviews
    100%
    (3)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    C
    Customer
    Magura MT5e with Bafang HiGo 2-Pin Connector?

    It was a replacement part so I am still happy with it. It works like the original. Thank you for the fast delivery.

    D
    Dominique Archambault
    Magura brakes

    Great service and fast shipping!!!

    C
    Customer
    Great breaks hard to find at the moment

    Beware of E-bike vendors sellin ghr Regular MT5's as the MT5E, they are not the same thing. A Complete Magura Mt5E set is great with any bafang motor at 500watts +. Avoid FLX
