Overview

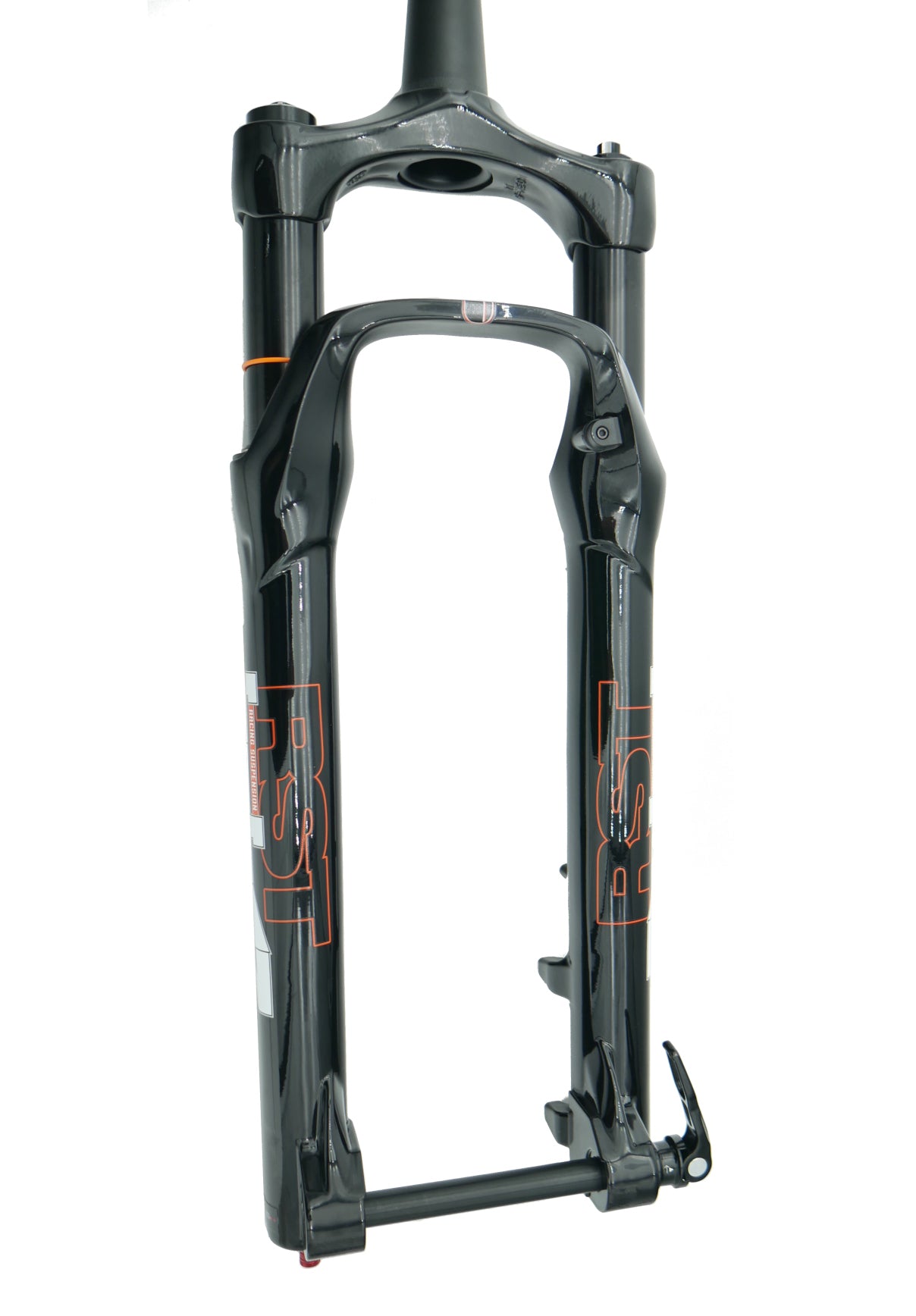

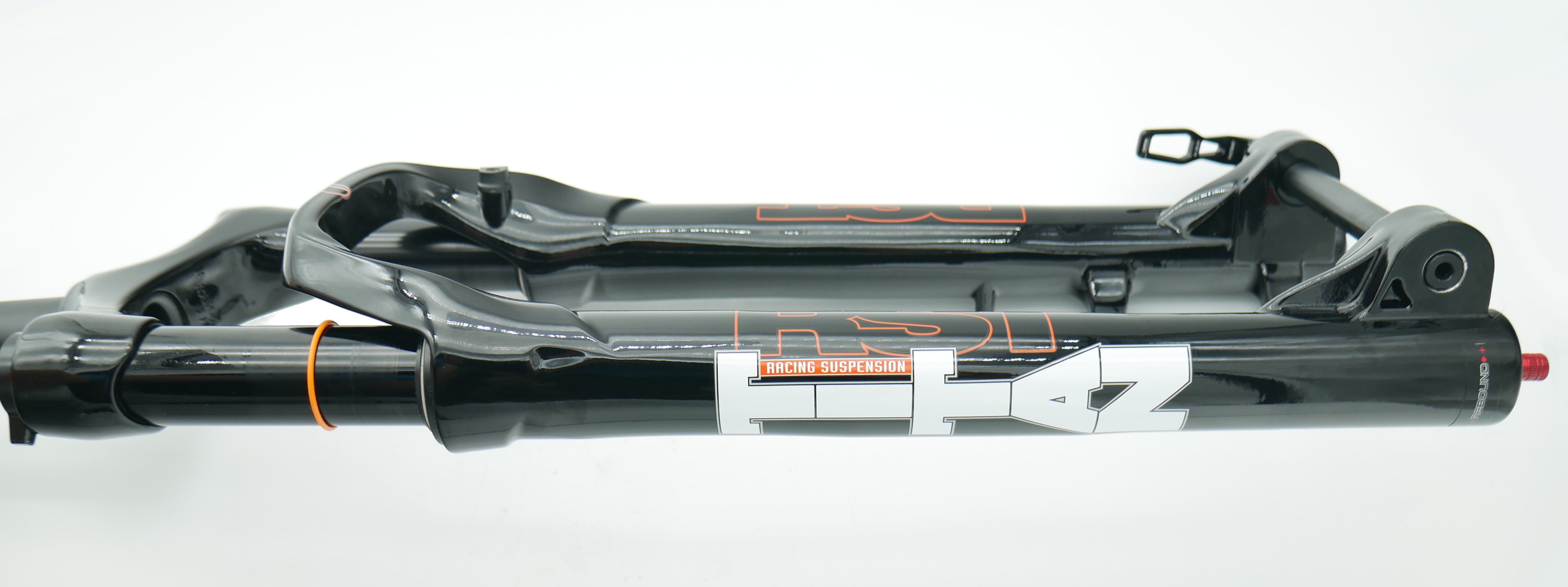

Experience the ultimate ride with the RST Titan Fork. Designed for maximum performance, the BO-TNL damper and air spring provide smooth and responsive suspension, allowing you to conquer any terrain with ease. With adjustable compression, rebound, and lock-out settings, you can fine-tune the fork to suit your riding style. The 34mm aluminum stanchions and magnesium lower ensure durability and lightweight construction. Featuring a 1.5" to 1.125" aluminum tapered steerer, this fork offers precise handling and stability. The post-mount disc brake compatibility allows for easy installation of 180 to 220mm rotors, providing reliable stopping power. Weighing in at just 2.38kg, the RST Titan Fork combines strength and agility for an exceptional riding experience. This is a direct replacement for the Monte Capro Lite.
MODEL: RST Titan 110-15 AIR
Max Tire: 27.5"x3.0" or 29"x2.25"
Spring: Air Spring
Damper: BO-TNL

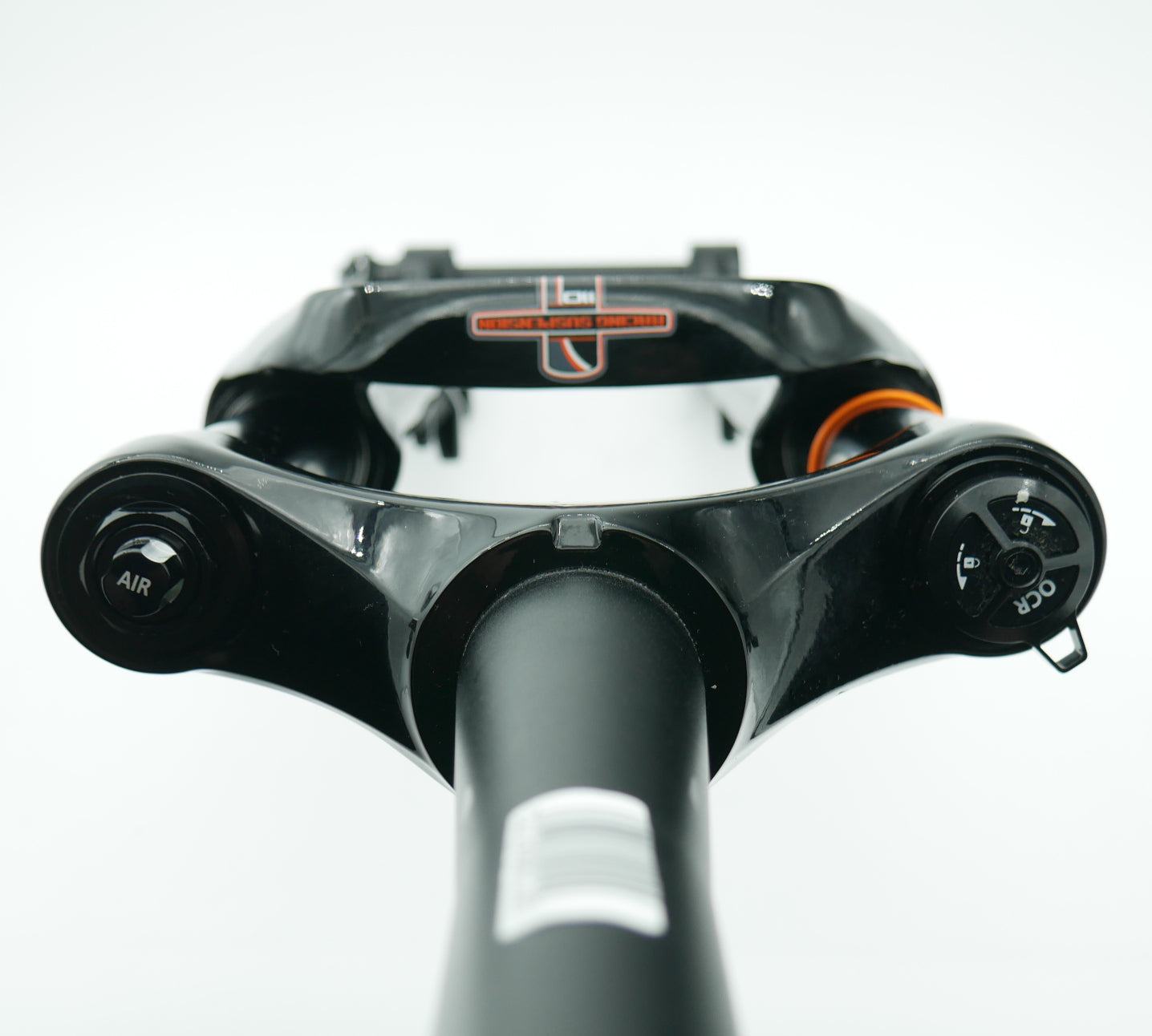

Adjustments: Compression adjust, Rebound, adjust Lock-Out
Steerer: 1.5" to 1.125" Aluminum tapered
Stanchion: 34mm Aluminum, Hard Anodize Black

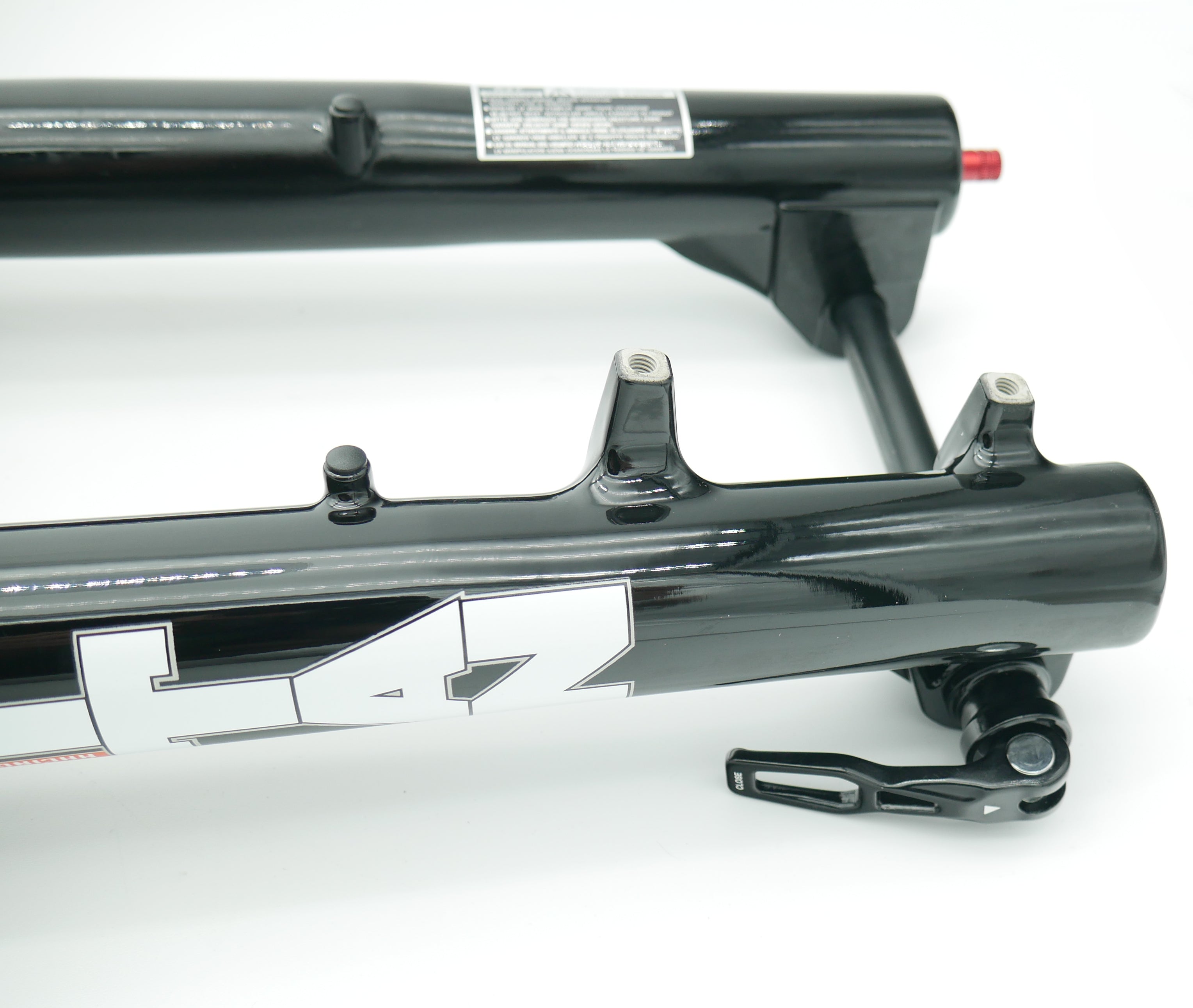

Lower: Magnesium 15*110mm QR Axle
Travel: 140mm
Axle to Crown: 550mm
Brake Type (Rotor Size): Post-Mount Disc (180 - 220mm max.)
Weight: 2.38kg
Technical Specifications
Travel
140 mm
Adjustments
Lockout (Compression), Rebound
Spring Type
Air Spring
Steerer Tube Length and Diameter
225mm, 1-1/8" 1-1/2" Tapered
Hub Spacing
110mm TA
Supported Axle
15x110mm QR Thru Axle - Included
Supported Wheel Sizes
27.5x3"
Brake Rotor Size Range
160mm - 203mm
Compatibility
| Bike Name | Compatible |
|---|---|
| Monte Capro Ultra 1/2 w/ 27.5 x 2.8" Boost Hub Spacing | |
| Monte Capro Ultra 1/2 w/ 26x4.8" Fat Tire Hub Spacing | |
| Monte Capro Lite | |
| Juggernaut Ultra Eagle 1 | |
| Juggernaut Ultra FS Pro 1 w/ 27.5x3" Boost Hub Spacing | |
| Juggernaut Ultra FS Pro 1 w/26x4" Fat Tire hub Spacing | |
| Juggernaut Ultra FS Pro 2/3 | |
| Juggernaut Ultra FS |
