500W Hub-Drive

Motor Power

Up to 55mi

Standard Range

+5'2"ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

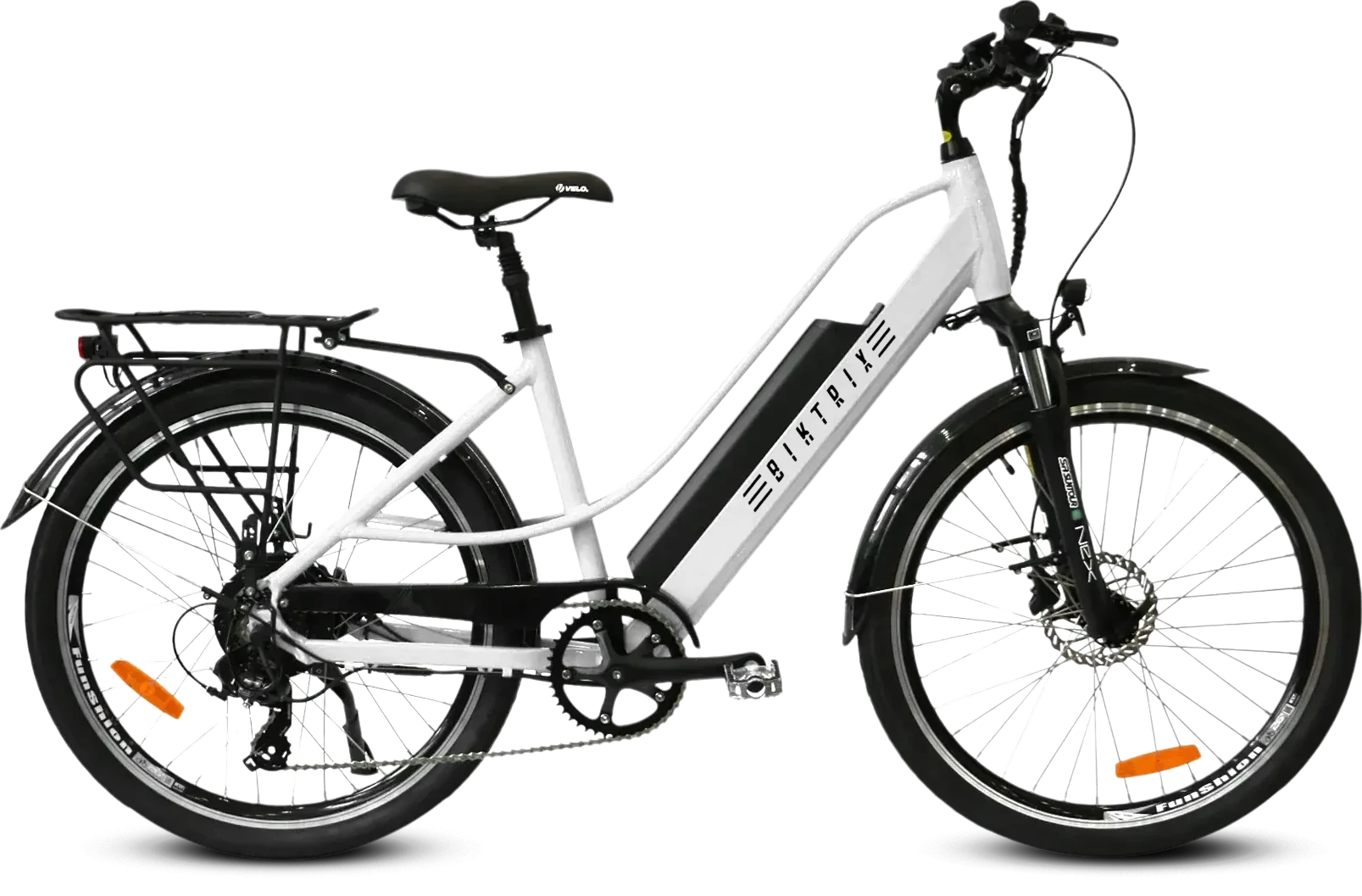

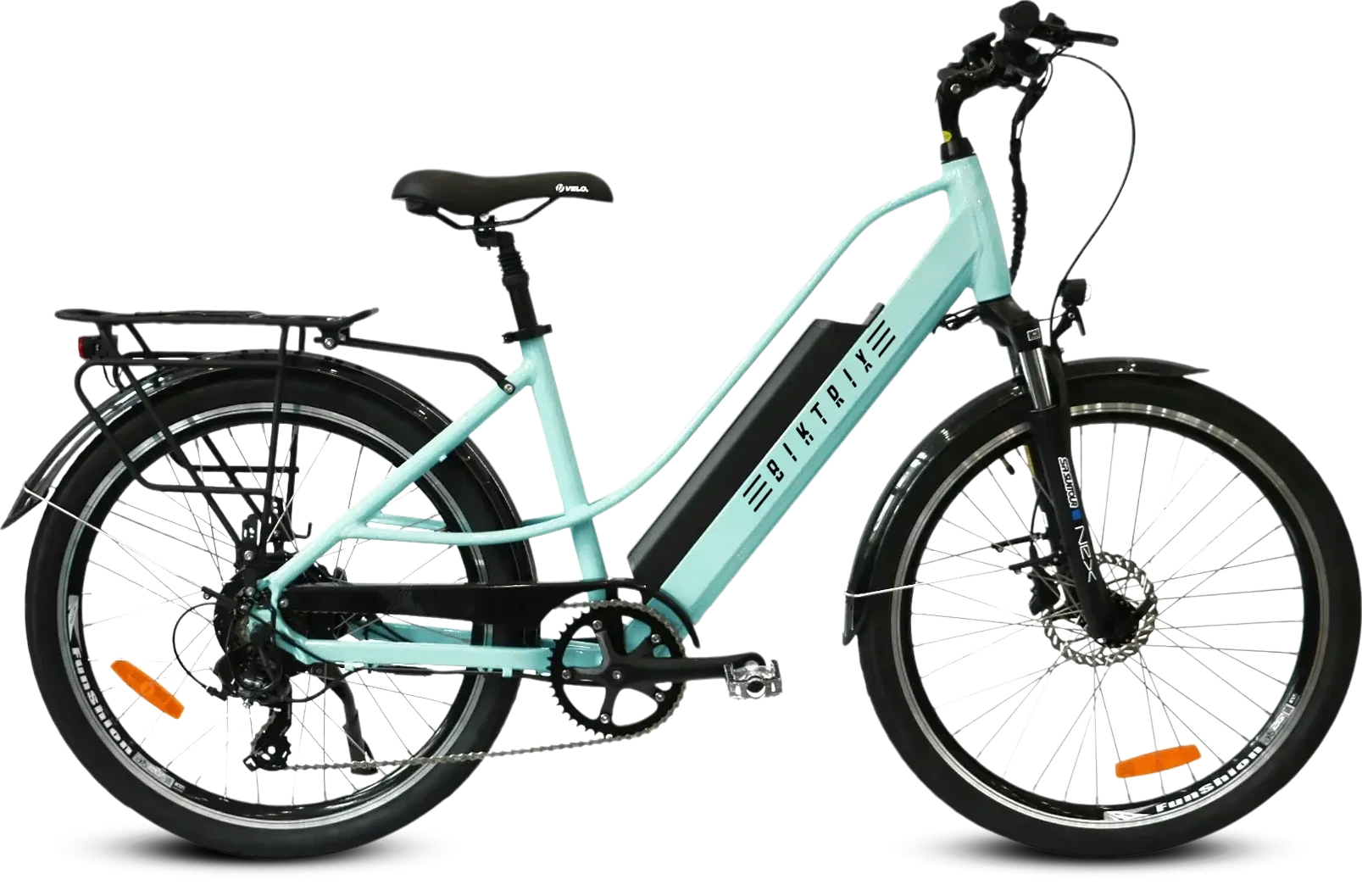

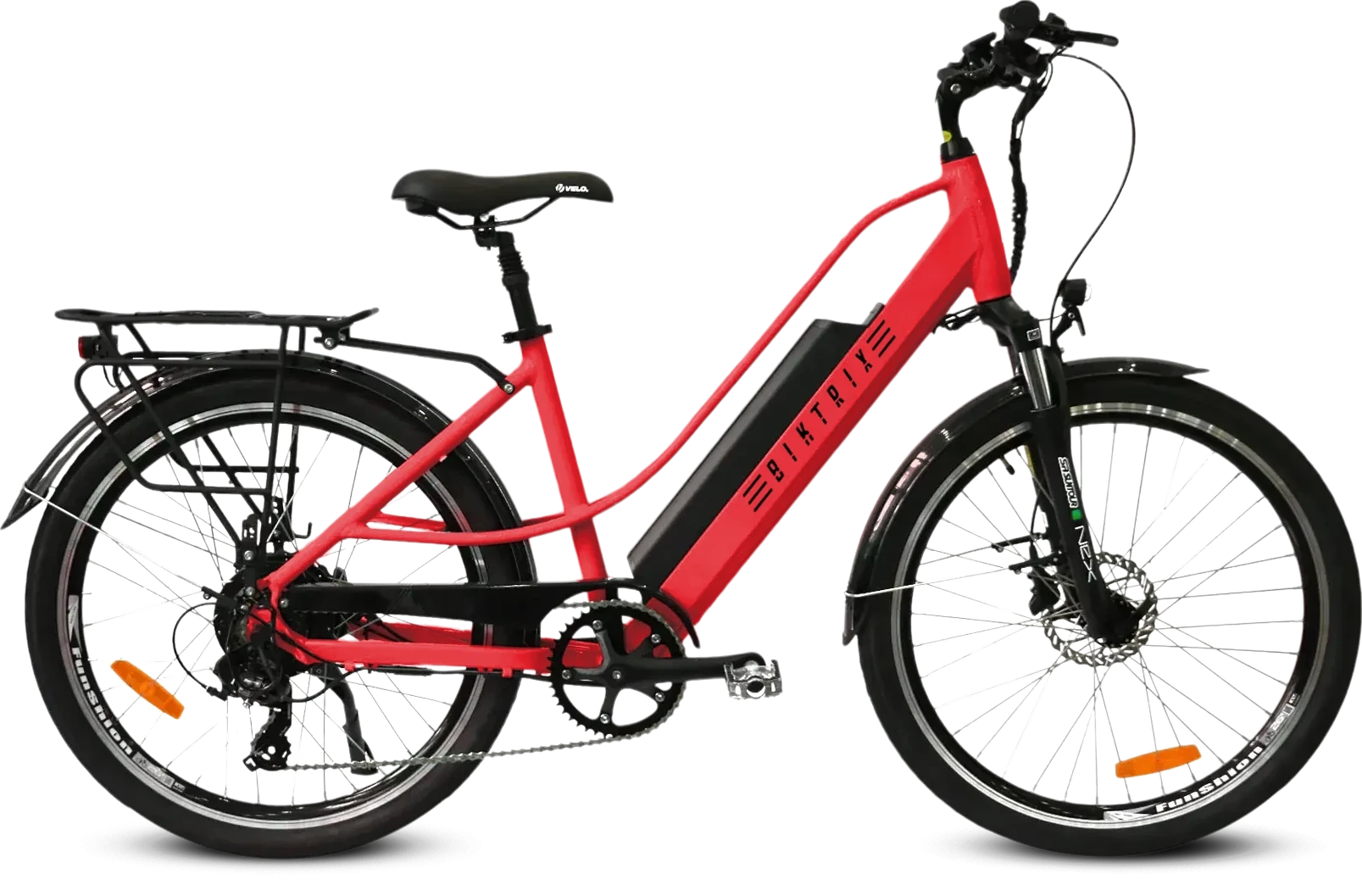

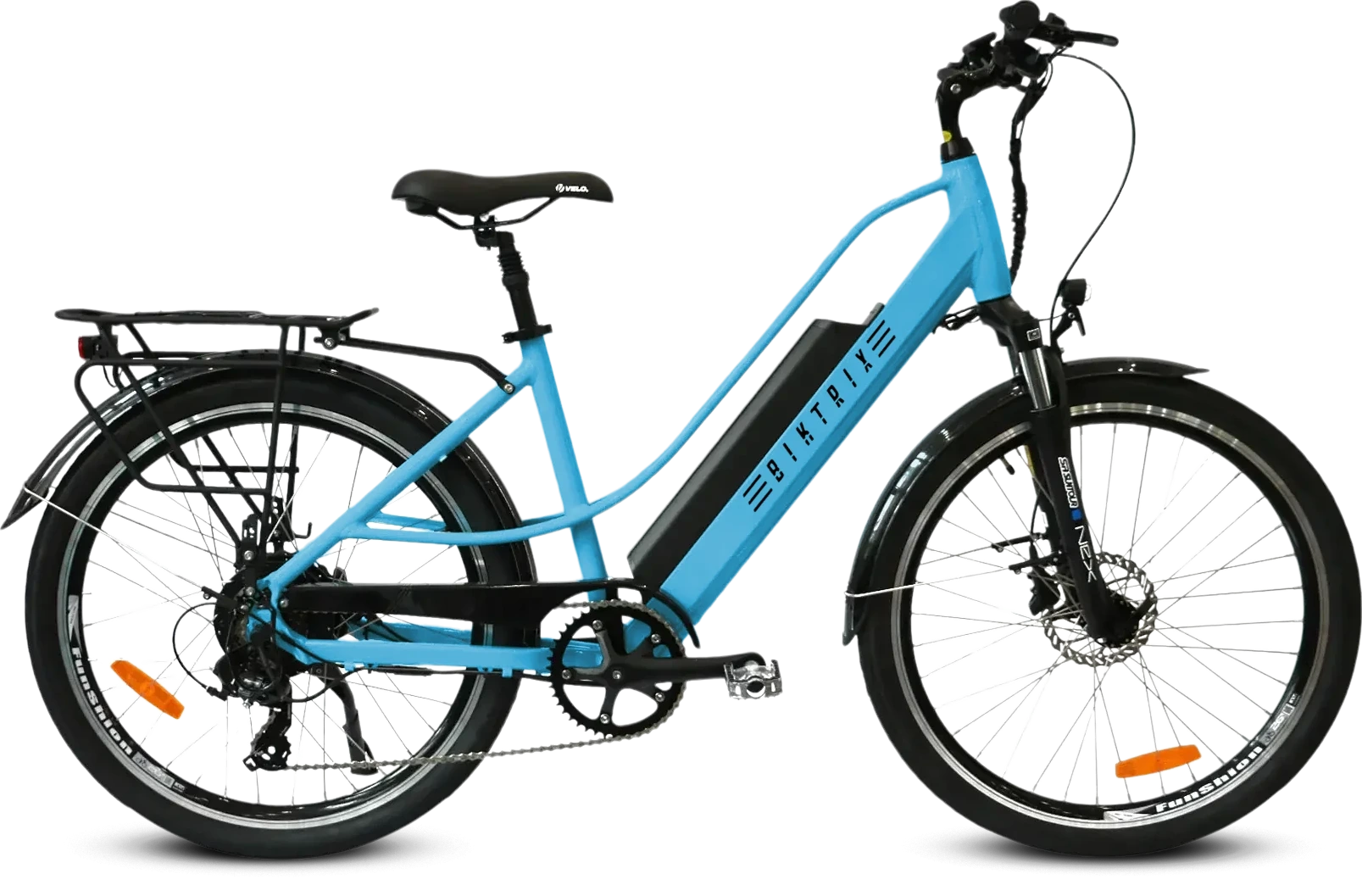

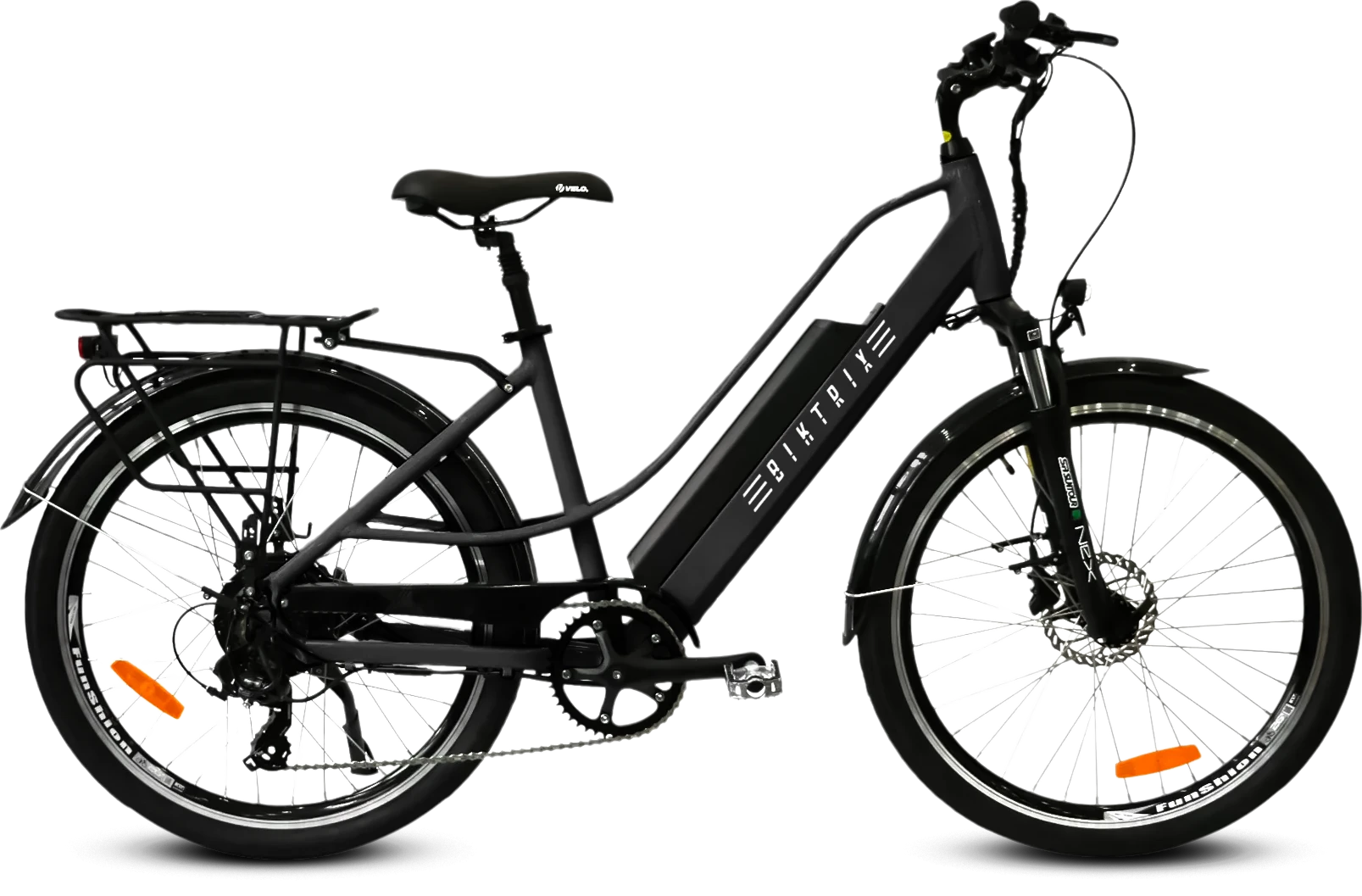

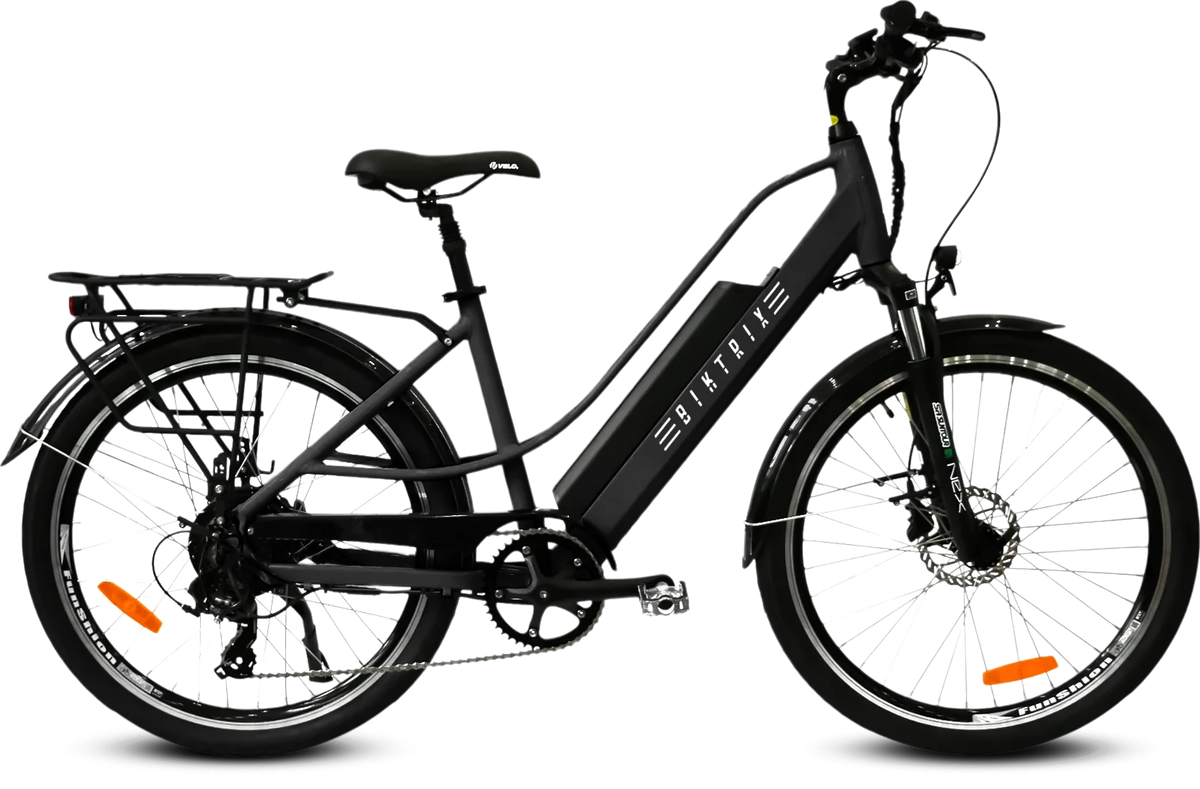

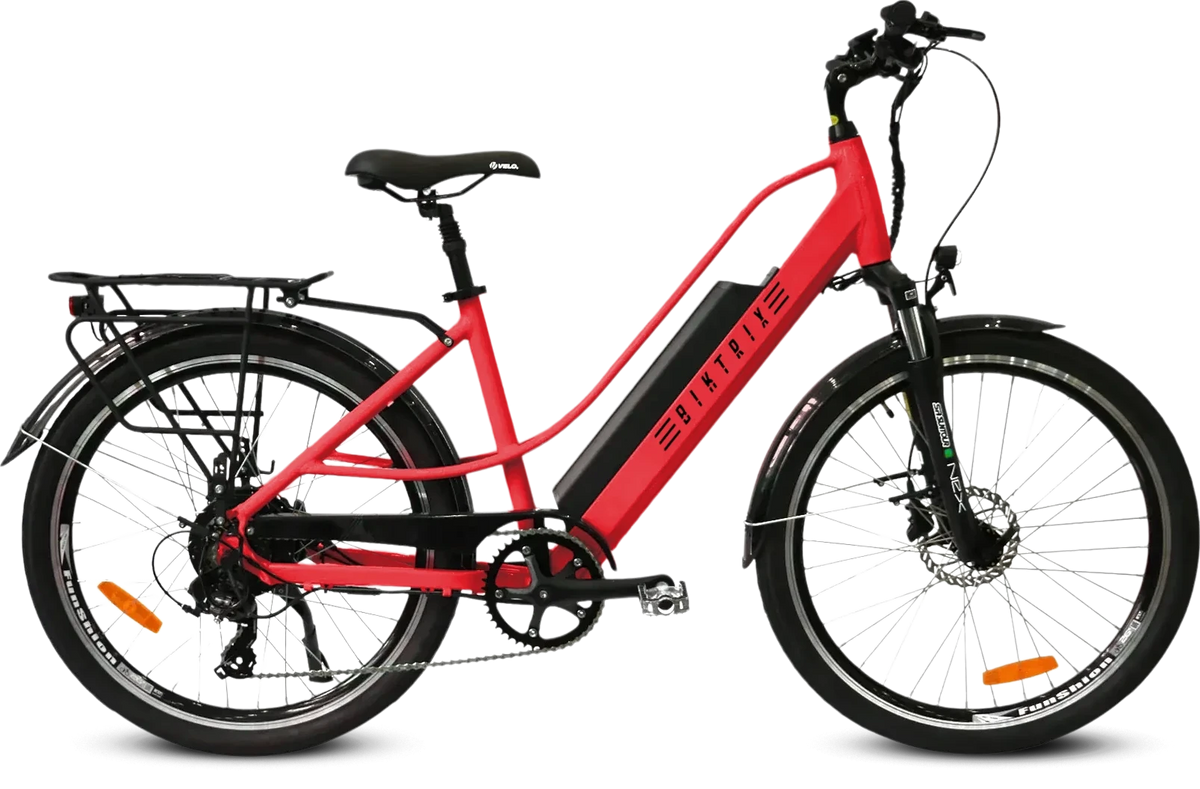

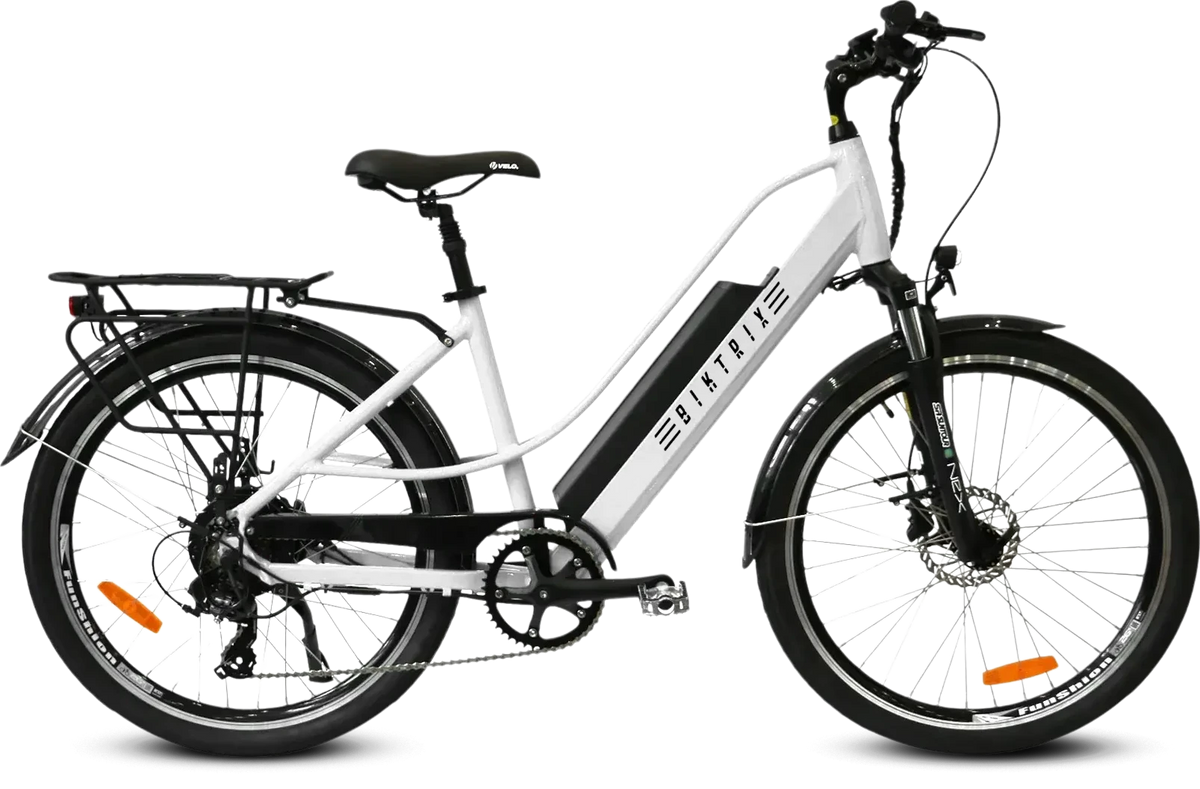

Stunner Lite

Name: Stunner Lite
Brand: Biktrix Electric Bikes
SKU: STLIST26GN1
Price: 1403.0 GBP
Availability: OutOfStock
Rating: 4.27 (22 reviews)

4.2

£1,403

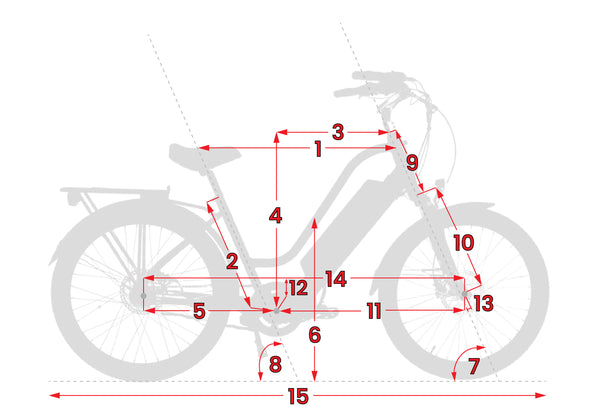

1	Effective Top Tube Length	560mm	22in
2	Seat Tube Length (Classic Bike Size)	445mm	17.5in
3	Reach	450mm	17.7in
4	Stack	620mm	24.4in
5	Chainstay Length	460mm	18.1in
6	Standover Height	600mm	23.6in
7	Head Angle	75°	-
8	Seat Angle	76°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	440mm	17.3in
11	Front Center	645mm	25.4in
12	BB (Bottom Bracket) Drop	70mm	2.8in
13	Fork Offset	20mm	0.8in
14	Wheelbase	1100mm	43.3in
15	Total Length	1760mm	69.3in
16	Max Seat Height	940mm	37in
17	Min Seat Height	790mm	31.1in
18	Handlebar Height	1060mm	41.7in
19	Weight (Without Battery)	21.4kg	47.2lb

500W Hub-Drive

Motor Power

Up to 55mi

Standard Range

+5'2"ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		85km Up To
PAS 2 Pedal-Assist Lv.2		75km Up To
PAS 3 Pedal-Assist Lv.3		65km Up To
PAS 4 Pedal-Assist Lv.4		58km Up To
PAS 5 Pedal-Assist Lv.5		50km Up To
THRL Throttle Only		40km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum	Front hub 100mm 36h qr	Seat post 28.6mm
Fork Suntour nex-ds with 50mm travel, preload adjustment	Front axle 5mm qr	Seat post clamp 34.9mm qr
Headset Threaded 1-1/8" straight	Rear hub Motor	Motor 500w nominal, 750w peak, bafang rear hub motor
Shifter rear Shimano 7 speed trigger shifter	Rear axle Bolt-on	Battery sizes 48v 16ah 768wh
Rear derailleur Shimano tourney 7 speed derailleur	Rims 26" solid black, 36h, 30mm wide	Display Ukc3 colour display
Cassette Shimano 14-28t 7 speed freewheel	Tire sizes 26x2 kenda kwick roller	Lights Integrated headlight, taillight
Chain Kmc z8.1 - 114 links	Handlebar 620mm wide, 40mm rise w/25.4mm clamp	Assist type Torque + cadence
Crank set 44t chainring w/170mm arms	Stem 70mm adjustable w/25.4mm clamp	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Integrated torque sensor (68mm) w/ square taper	Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic w/160mm rotors
Saddle Velo foam breeze padded saddle	Other Rear rack, fenders, kickstand	Brake levers Biktrix adjustable w/ integrated brake sensors

Frame 6061 aluminum	Front hub 100mm 36h qr
Seat post 28.6mm	Fork Suntour nex-ds with 50mm travel, preload adjustment
Front axle 5mm qr	Seat post clamp 34.9mm qr
Headset Threaded 1-1/8" straight	Rear hub Motor
Motor 500w nominal, 750w peak, bafang rear hub motor	Shifter rear Shimano 7 speed trigger shifter
Rear axle Bolt-on	Battery sizes 48v 16ah 768wh
Rear derailleur Shimano tourney 7 speed derailleur	Rims 26" solid black, 36h, 30mm wide
Display Ukc3 colour display	Cassette Shimano 14-28t 7 speed freewheel
Tire sizes 26x2 kenda kwick roller	Lights Integrated headlight, taillight
Chain Kmc z8.1 - 114 links	Handlebar 620mm wide, 40mm rise w/25.4mm clamp
Assist type Torque + cadence	Crank set 44t chainring w/170mm arms
Stem 70mm adjustable w/25.4mm clamp	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Integrated torque sensor (68mm) w/ square taper	Throttle Thumb throttle
Brakes Biktrix dual piston hydraulic w/160mm rotors	Saddle Velo foam breeze padded saddle
Other Rear rack, fenders, kickstand	Brake levers Biktrix adjustable w/ integrated brake sensors

Frame

6061 aluminum

Front hub

100mm 36h qr

Seat post

28.6mm

Fork

Suntour nex-ds with 50mm travel, preload adjustment

Front axle

5mm qr

Seat post clamp

34.9mm qr

Headset

Threaded 1-1/8" straight

Rear hub

Motor

500w nominal, 750w peak, bafang rear hub motor

Shifter rear

Shimano 7 speed trigger shifter

Rear axle

Bolt-on

Battery sizes

48v 16ah 768wh

Rear derailleur

Shimano tourney 7 speed derailleur

Rims

26" solid black, 36h, 30mm wide

Display

Ukc3 colour display

Cassette

Shimano 14-28t 7 speed freewheel

Tire sizes

26x2 kenda kwick roller

Lights

Integrated headlight, taillight

Chain

Kmc z8.1 - 114 links

Handlebar

620mm wide, 40mm rise w/25.4mm clamp

Assist type

Torque + cadence

Crank set

44t chainring w/170mm arms

Stem

70mm adjustable w/25.4mm clamp

Assist levels

0-5 (0-3, 0-9)

Bottom bracket

Integrated torque sensor (68mm) w/ square taper

Throttle

Thumb throttle

Brakes

Biktrix dual piston hydraulic w/160mm rotors

Saddle

Velo foam breeze padded saddle

Other

Rear rack, fenders, kickstand

Brake levers

Biktrix adjustable w/ integrated brake sensors

Size & Fittings

1	Effective Top Tube Length	560mm	22in
2	Seat Tube Length (Classic Bike Size)	445mm	17.5in
3	Reach	450mm	17.7in
4	Stack	620mm	24.4in
5	Chainstay Length	460mm	18.1in
6	Standover Height	600mm	23.6in
7	Head Angle	75°	-
8	Seat Angle	76°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	440mm	17.3in
11	Front Center	645mm	25.4in
12	BB (Bottom Bracket) Drop	70mm	2.8in
13	Fork Offset	20mm	0.8in
14	Wheelbase	1100mm	43.3in
15	Total Length	1760mm	69.3in
16	Max Seat Height	940mm	37in
17	Min Seat Height	790mm	31.1in
18	Handlebar Height	1060mm	41.7in
19	Weight (Without Battery)	21.4kg	47.2lb
