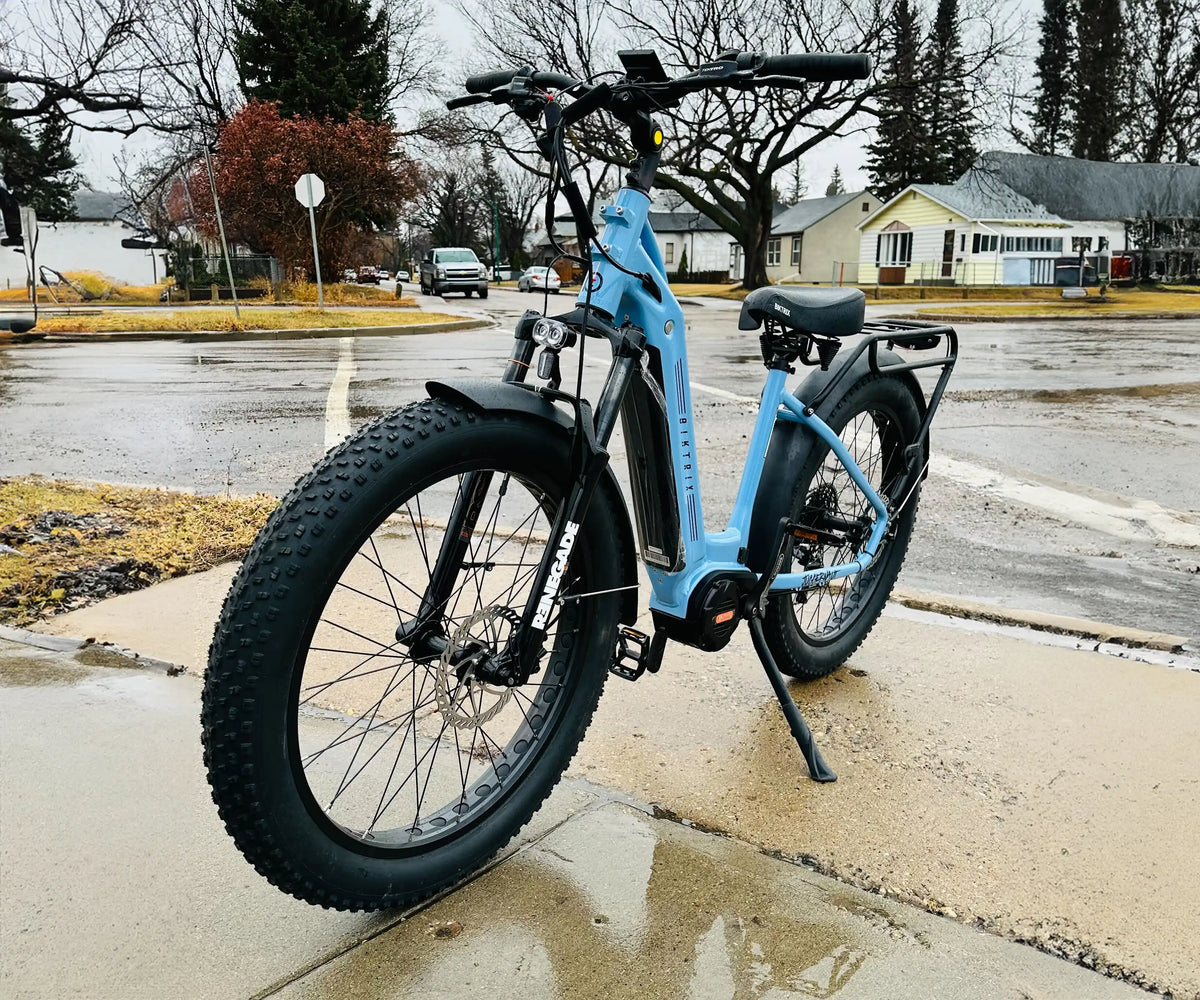

Horizon Juggernaut Ultra Duo 4 19”
Horizon Juggernaut Ultra Duo 4 19”

Motor Power

Up to mi

Standard Range

+ft /

Max Load

25+ Point Quality

Control Checklist

Horizon Juggernaut Ultra Duo 4 19”

£2,710 £3,330
£2,710 £3,330
Notify Me When Available

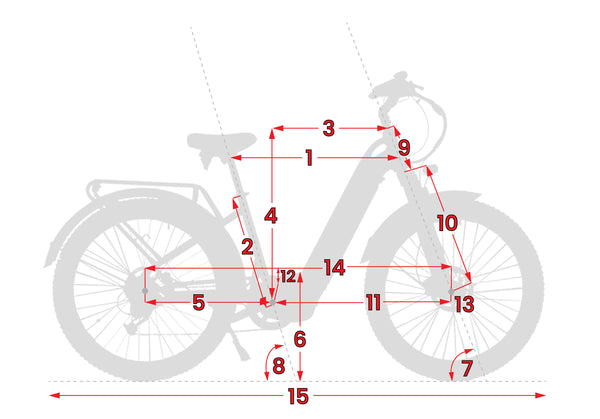

Sizing / Fittings

×
1
Effective Top Tube Length
 560mm 22in
2
Seat Tube Length (Classic Bike Size)
 460mm 18.1in
3
Reach
 560mm 22in
4
Stack
 520mm 20.5in
5
Chainstay Length
 520mm 20.5in
6
Standover Height
 450mm 17.7in
7
Head Angle
 68° -
8
Seat Angle
 71° -
9
Head Tube Length
 180 mm 7.1 in
10
Fork Length
 530mm 20.9in
11
Front Center
 730mm 28.7in
12
BB (Bottom Bracket) Drop
 50mm 2in
13
Fork Offset
 30mm 1.2in
14
Wheelbase
 1240mm 48.8in
15
Total Length
 2000mm 78.7in
16
Max Seat Height
 1000mm 39.4in
17
Min Seat Height
 880mm 34.6in
18
Handlebar Height
 1160mm 45.7in
19
Weight (Without Battery)
 34kg 75lb

Technical Specifications

×
Frame
6061 aluminum
Front hub
135mm 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout & preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
190mm 36h
Motor
1000w bafang ultra m620
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
5mm qr
Battery sizes
Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
26" black with round cutouts / 27.5" black solid
Display
Dpc-18
Cassette
9 speed 11-34t cassette
Tire sizes
26x4", 27.5x3"
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s 124 links
Handlebar
700mm wide, 50mm rise w/31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
Adjustable stem
Assist levels
0-5
Bottom bracket
Bafang isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad piston hydraulic w/180mm rotors
Saddle
Wide spring supported comfort saddle
Other
Front and rear fenders, kickstand, rear rack
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
135mm 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout & preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
190mm 36h
Motor
1000w bafang ultra m620
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
5mm qr
Battery sizes
Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
26" black with round cutouts / 27.5" black solid
Display
Dpc-18
Cassette
9 speed 11-34t cassette
Tire sizes
26x4", 27.5x3"
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s 124 links
Handlebar
700mm wide, 50mm rise w/31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
Adjustable stem
Assist levels
0-5
Bottom bracket
Bafang isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad piston hydraulic w/180mm rotors
Saddle
Wide spring supported comfort saddle
Other
Front and rear fenders, kickstand, rear rack
Brake levers
Adjustable w/ integrated brake cutoffs

Motor Power

Up to mi

Standard Range

+ft /

Max Load

25+ Point Quality

Control Checklist

Overview

Experience the perfect all-terrain commuter with great comfort, performance, and utility. Enjoy all day riding with upgrades like the RST Renegade suspension fork which absorbs bumps as if you were riding on a cloud. Ride confidently with quad piston brakes to stop at a dime.
