Overview

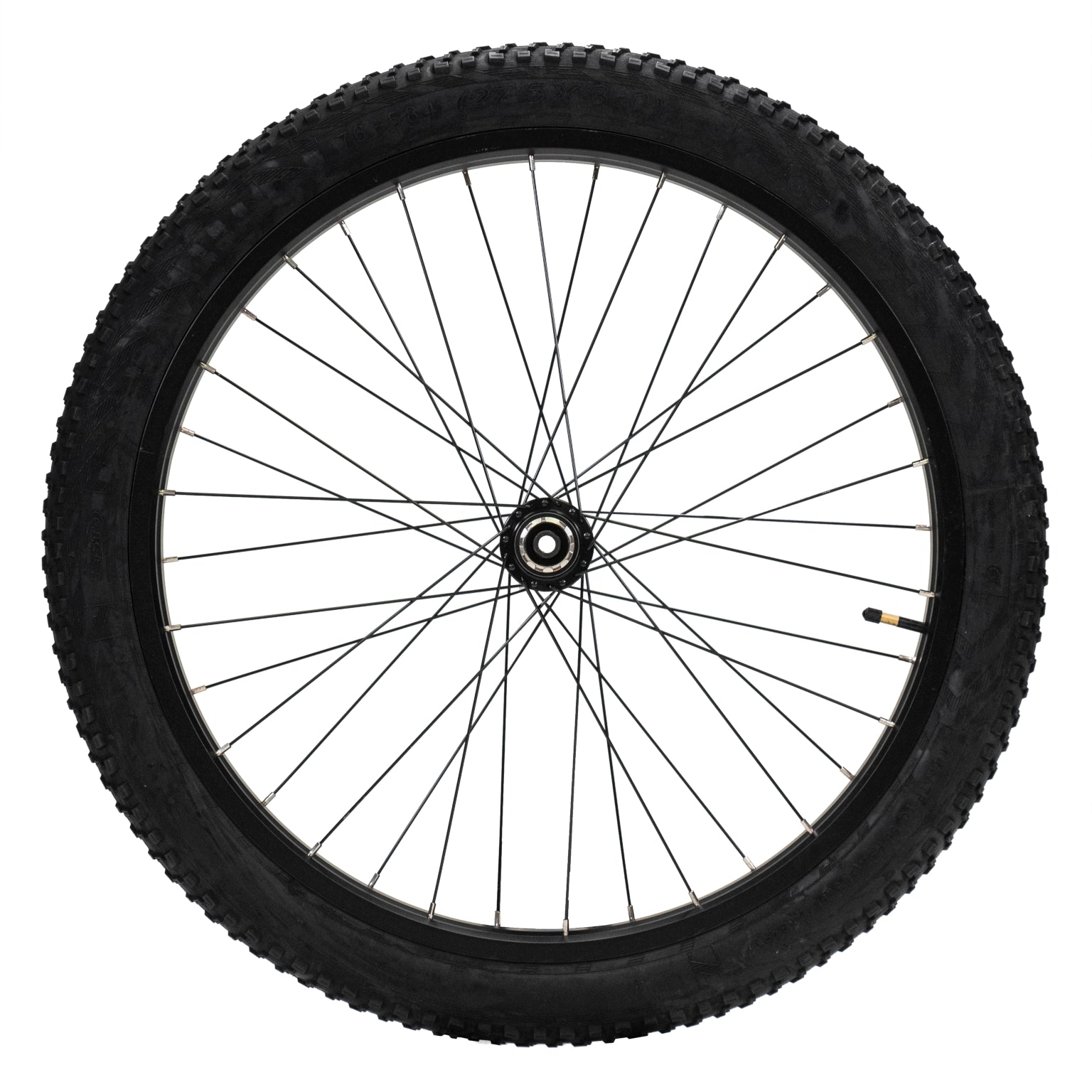

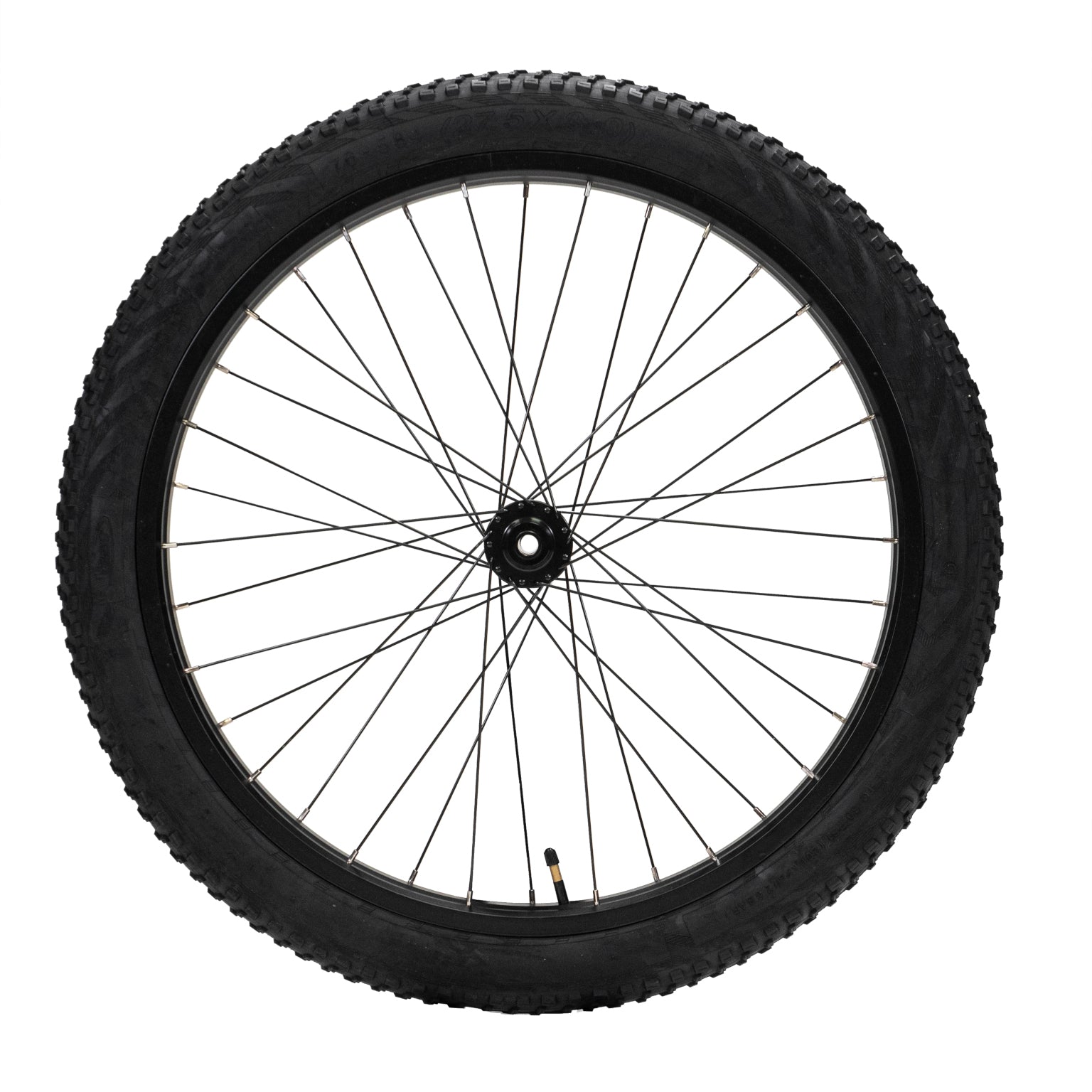

Add extra versatility to your eBike with this do-it-yourself conversion kit! Easily swap out your existing wheels for these 27.5” tall and 3” wide mountain bike tires to change how your eBike performs on various terrain. With a Thru-Axle design, this wheelset is sturdily threaded through your bike’s fork and hub for a secure fit.
Free CST tires included
*Possibly Compatible with other models - please consult this guide to identify your hub spacing and check compatibility
Technical Specifications
Front Hub Spacing
150mm
Front Hub Axle Type
Thru Axle, 15mm *Not Included
Rear Hub Spacing
197mm
Rear Hub Brand
KT-M9ZR
Rear Hub Axle Type
12mm Thru Axle *Not Included
Rim Style
60mm Wide, Solid, Single Wall, 36 Hole
Driver Style
HG - Hyperglide
Rim Colour
Solid Black
Spokes
14G Stainless Steel, Black
Tire
27.5x3 CST
Compatibility
| Bike Name | Compatible |
|---|---|
| Juggernaut Ultra FS | |
| Juggernaut Ultra FS RST | |
| Juggernaut Ultra FS Pro 26x4 Version | |
| Juggernaut Ultra FS Pro 27.5x3 Version | |
| Juggernaut Ultra FS Pro 2 | |
| Juggernaut Ultra FS Pro 3 | |
| Juggernaut Ultra Beast | |
| Juggernaut XD Duo / Juggernaut XD | |
| Juggernaut Ultra Eagle 2 | |
| Juggernaut XD Eagle | |
| Juggernaut Ultra Eagle 1 | |
| Monte Capro Ultra 1/2 26x4.8 | |
| Monte Capro Ultra 1/2 27.5x2.8 |
Need A Hand?
Customer Reviews
Based on 10 reviews
50%
(5)
30%
(3)
10%
(1)
10%
(1)
0%
(0)
J
I had a freehub failure after a few hundred kilometers of use. Unfortunately the bicycle was out of warranty and I had to purchase a replacement hub. The failure was that internal ratchet ring had lost it's bond with the hub and was slipping. Peddling barely moved the bicycle forward. Bitrix support was fabulous. Not only did they help diagnose and offer replacement parts but they overcame a big shipping problem delivering to a Greek island. My bike would be sitting DOA without their help and support.
M
I was informed after placing the order with a support person that the tire was no longer in stock. So, I went elsewhere to find replacement tires.
L
Embarrassing to say that during the minor basic assembly after recieving the bike. I popped the inner tube by not tucking it in properly before inflating :) So it took me a while to get a new tube. Finally rode my bike yesterday...Wow !!!
D
Tire is working well for me
W
This is a bit off the subject. But I’ve made a request several days ago and haven’t got any response. My ultra FS is in the shop repierce that the axle might be broken the gears turn but the wheel doesn’t. Do you want to shop said perhaps it has something to do with the software? If you actually broken, it seems like it could be a warranty issue? Please advise feel
M
After about 6 rides in a 150 miles on the bike. Bike came with front flat tire and basically no air in the shocks. Easy fix but still. The Forks are not up to the specs of the rest of bike. I thought I was getting the 140 travel forks. So I will be getting a new fork. Sad after all the research I did for this bike. 😪 Also the seat has clips in the back for support one is laying in the trail somewhere. It would be nice if there was a bash guard or chain ring for the bike. I can't
find a after market one for the bike. The rest of the bike I love. Great battery and motor combo. I changed the bike when I ordered from 4 inch tires to 3 maybe thats why it same with 100ml forks. Read the find print twice before ordering.
D
Still, 26x4.00 are not for me or my riding style. These wheels, although still "fat", can accomodate 2.8 DH tires with good knobs for cornering, tracking, and more surgical handling. I have Maxxis DHR and DHF and they rock on these wheels. The 26 will be saved for a snowy day, the 27.5 are my go to wheels.
K
Bought 2nd wheelset because I was curious on how it would change my ride. 27.5 rear install went well, will be able to switch back to 26x4 no problem. Also trying 27.5 on front 26 on rear setup.
B
Product is good, wait was long and didn’t get color I ordered, also waiting on bell and water bottle holder still.
